Supertex inc.
HV2761
Low Charge Injection, 24-Channel,
High Voltage Analog Switch with Bleed Resistors
Features
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
24-channel high voltage analog switch
Integrated bleed resistors on the outputs
3.3 or 5.0V CMOS input logic level
3:1 MUX-deMUX with 8 states
20MHz data shift clock frequency
HVCMOS technology for high performance
Very low quiescent power dissipation,10µA
Low parasitic capacitance
DC to 50MHz analog signal frequency
-60dB typical OFF-isolation at 5.0MHz
CMOS logic circuitry for low power
Excellent noise immunity
Cascadable serial data register with latches
Flexible operating supply voltages
Medical ultrasound imaging
Piezoelectric transducer drivers
Inkjet printer heads
Optical MEMS modules
General Description
The Supertex HV2761 is a low charge injection, 24-channel,
high voltage analog switch integrated circuit (IC) intended for
use in applications requiring high voltage switching controlled by
low voltage control signals, such as medical ultrasound imaging,
piezoelectric transducer drivers, and printers. The bleed resistors
eliminate voltage built up on capacitive loads such as piezoelectric
transducers.
Input data is shifted into a 24-bit shift register that can then be
retained in a 24-bit latch. To reduce any possible clock feed through
noise, the latch enable (LE) should be left high until all bits are
clocked in. Data are clocked in during the rising edge of the clock.
Using HVCMOS technology, this device combines high voltage
bilateral DMOS switches and low power CMOS logic to provide
efficient control of high voltage analog signals.
The device is suitable for various combinations of high voltage
supplies, e.g., V
PP
/V
NN
: +40V/-160V, +100V/-100V, and +160V/-40V.
Applications
Block Diagram
Latches
D
LE
CLR
D
LE
CLR
D
LE
CLR
D
LE
CLR
Level
Shifters
Output
Switches
SW0
SW1
Y0
SW2
SW3
CLK
DIN
24-Bit
Shift
Register
D
LE
CLR
D
LE
CLR
SW4
Y1
SW5
DOUT
D
LE
CLR
D
LE
CLR
D
LE
CLR
VDD GND
Doc.# DSFP-HV2761
NR010913
SW21
SW22
Y7
SW23
LE CLR
VNN VPP
RGND
Supertex inc.
www.supertex.com
HV2761
Ordering Information
Part Number
HV2761FG-G
Package
48-Lead LQFP
Packing
250/Tray
1000/Reel

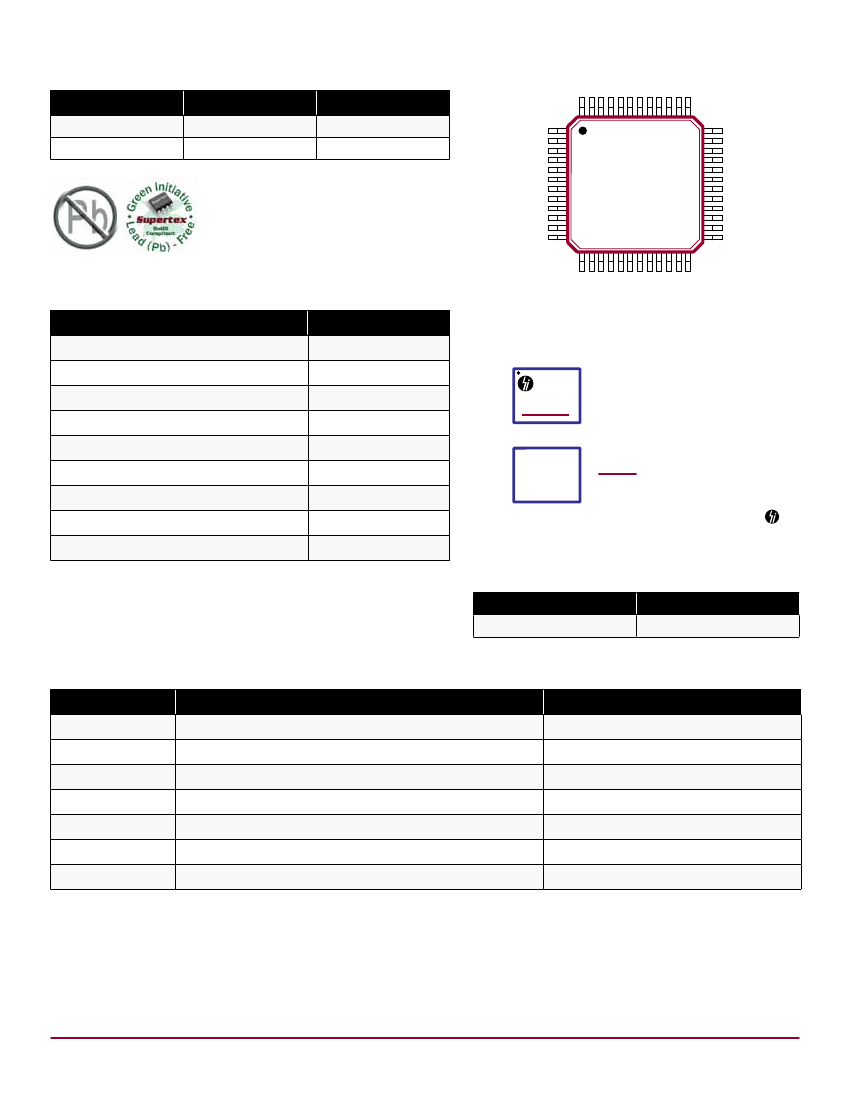

Pin Configuration
1
48
HV2761FG-G M931 48-Lead LQFP
-G indicates package is RoHS compliant (‘Green’)
Absolute Maximum Ratings
Parameter
V
DD
logic supply
V
PP
- V
NN
differential supply
V
PP
positive supply
V
NN
negative supply
Logic input voltage
Analog signal range
Peak analog signal current/channel
Storage temperature
Power dissipation
Value
-0.5V to +6.5V
220V
-0.5V to V
NN
+ 200V
+0.5V to - 200V
-0.5V to V
DD
+ 0.3V
V
NN
to V
PP
3.0A
-65°C to 150°C
1.0W
Top Marking
HV2761FG
LLLLLLLLL
YY W W
48-Lead LQFP
(top view)
Product Marking
YY = Year Sealed
WW = Week Sealed
L = Lot Number
C = Country of Origin*
A = Assembler ID*
= “Green” Packaging
*May be part of top marking
Bottom Marking
CCCCCCCC
AAA
Package may or may not include the following marks: Si or
48-Lead LQFP
Absolute Maximum Ratings are those values beyond which damage to the device
may occur. Functional operation under these conditions is not implied. Continuous
operation of the device at the absolute rating level may affect device reliability. All
voltages are referenced to device ground.
Typical Thermal Resistance
Package
48-Lead LQFP
θ
ja
52
O
C/W
Recommended Operating Conditions
Sym
V
DD
V
PP
V
NN
V
IH
V
IL
V
SIG
T
A
Parameter
Logic power supply voltage
Positive high voltage supply
Negative high voltage supply
High level input voltage
Low level input voltage
Analog signal voltage peak-to-peak
Operating free air temperature
Value
3.0V to 5.5V
+40V to V
NN
+ 200V
-40V to - 160V
0.9V
DD
to V
DD
0V to 0.1V
DD
V
NN
+10V to V
PP
- 10V
0
O
C to 70
O
C
Notes:
1.
Power up/down sequence is arbitrary except GND must be powered-up first and
powered-down last.
2.
V
SIG
must be V
NN
≤ V
SIG
≤ V
PP
or floating during power up/down transition.
3.
Rise and fall times of power supplies V
DD
, V
PP
, and V
NN
should not be less than 1.0msec.
Doc.# DSFP-HV2761
NR010913
2
Supertex inc.
www.supertex.com
HV2761
DC Electrical Characteristics
(Over recommended operating conditions unless otherwise specified )
Sym
Parameter
0
O
C
Min
-
-
R
ONS
Small signal switch
ON-resistance
-
-
-
-
ΔR
ONS
R
ONL
R
INT
I
SOL
V
OS
I
PPQ
I
NNQ
I
PPQ
I
NNQ
I
SW
f
SW
Small signal switch
ON-resistance matching
Large signal switch
ON-resistance
Output switch shunt resis-
tance
Switch OFF-leakage per switch
DC offset switch OFF
DC offset switch ON
Quiescent V
PP
supply current
Quiescent V
NN
supply current
Quiescent V
PP
supply current
Quiescent V
NN
supply current
Switch output peak current
Output switching frequency
-
-
-
-
-
-
-
-
-
-
-
-
-
I
PP
Average V
PP
supply current
-
-
-
I
NN
Average V
NN
supply current
-
-
I
DD
I
DDQ
I
SOR
I
SINK
C
IN
Average V
DD
supply current
Quiescent V
DD
supply current
Data out source current
Data out sink current
Logic input capacitance
-
-
0.45
0.45
-
Max
-
-
-
-
-
-
20
-
-
5.0
300
500
-
-
-
-
-
-
4.0
4.0
4.0
4.0
4.0
4.0
8.0
10
-
-
10
Min
-
-
-
-
-
-
-
-
20
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+25
O
C
Typ
26
22
22
18
20
16
5.0
30
35
1.0
100
100
10
-10
10
-10
2.0
-
-
-
-
-
-
-
-
-
Max
-
-
-
-
-
-
20
-
50
10
300
500
50
-50
50
-50
1.3
50
4.5
4.5
4.5
4.5
4.5
4.5
8.0
10
-
-
10
+70
O
C
Min
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.40
0.40
-
10
Max
-
-
-
-
-
-
20
-
-
15
300
500
-
-
-
-
-
-
5.0
5.0
5.0
5.0
5.0
5.0
8.0
10
mA
μA
mA
mA
pF
mA
mA
%
Ω
KΩ
μA
mV
μA
μA
A
kHz
Ω
Unit Conditions
I
SIG
= 5.0mA
I
SIG
= 5.0mA
I
SIG
= 5.0mA
V
PP
= +40V,
I
SIG
= 200mA V
NN
= -160V
V
PP
= +100V,
I
SIG
= 200mA V
NN
= -100V
V
PP
= +160V,
I
SIG
= 200mA V
NN
= -40V
I
SIG
= 5.0mA,
V
PP
= +100V, V
NN
= -100V
V
SIG
= V
PP
- 10V, I
SIG
= 1.0A
Output switch to R
GND
I
RINT
= 0.5mA
V
SIG
= V
PP
- 10V, V
NN
+10V
No load
All switches OFF
All switches ON,
I
SW
= 5.0mA
V
SIG
duty cycle < 0.1%
Duty cycle = 50%
V
PP
= +40V, All output
V
NN
= -160V switches are
V
PP
= +100V, turning ON
V
NN
= -100V and OFF at
V
PP
= +160V, 50kHz with
no load
V = -40V
V
PP
= +40V, All output
V
NN
= -160V switches are
V
PP
= +100V, turning ON
V
NN
= -100V and OFF at
V
PP
= +160V, 50kHz with
no load
V = -40V
NN
NN
f
CLK
= 5.0MHz, V
DD
= 5.0V
All logic inputs are static
V
OUT
= V
DD
- 0.7V
V
OUT
= 0.7V
---
0.45 0.70
0.45 0.70
-
-
* See Test Circuits on page 5
Doc.# DSFP-HV2761
NR010913
3
Supertex inc.
www.supertex.com
HV2761
AC Electrical Characteristics
(Over recommended operating conditions unless otherwise specified)
Sym
t
SD
t
WLE
t
DO
t
WCLR
t
SU
t
H
f
CLK
t
R
, t
F
t
ON
t
OFF
dv/dt
Parameter
Set up time before LE rises
Time width of LE
Clock delay time to data out
Time width of CLR
Set up time data to clock
Hold time data from clock
Clock frequency
Clock rise and fall times
Turn ON time
Turn OFF time
Maximum V
SIG
slew rate
0
O
C
Min
25
56
12
25
15
55
21
7.0
5.0
7.0
-
-
-
-
-
-
-
-
K
O
K
CR
I
ID
C
SG(OFF)
C
SG(ON)
+V
SPK
-V
SPK
+V
SPK
-V
SPK
+V
SPK
-V
SPK
* See Test Circuits on page 5
+25
O
C
Min
25
-
-
25
15
55
21
7.0
5.0
7.0
-
-
-
-
-
-
-
-
-30
-58
-60
-
-
-
-
-
-
-
-
-
-
-
Typ
-
56
12
78
30
-
-
-
-
-
-
-
-
-
-
-
-
-
-33
-60
-70
-
9.0
27
30
30
-
-
-
-
-
-
Max
-
-
-
100
40
-
-
-
-
-
8
20
50
5.0
5.0
20
20
20
-
-
-
300
14
35
39
39
150
150
150
150
150
150
-
-
-
+70
O
C
Min
25
56
12
25
15
55
21
7.0
5.0
7.0
-
-
-
-
-
-
-
-
-30
-58
-60
-
-
-
-
-
-
-
-
-
-
-
Max
-
-
-
100
40
-
-
-
-
-
8
20
50
5.0
5.0
20
20
20
-
-
-
300
14
35
39
39
-
-
-
-
-
-
Max
Unit
ns
ns
ns
ns
ns
ns
MHz
ns
μs
Conditions
---
V
DD
= 3.0V
V
DD
= 5.0V
V
DD
= 3.0V
V
DD
= 5.0V
---
V
DD
= 3.0V
V
DD
= 5.0V
V
DD
= 3.0V
V
DD
= 5.0V
V
DD
= 3.0V
V
DD
= 5.0V
---
V
SIG
= V
PP
- 10V,
R
LOAD
= 10kΩ
V
PP
= +40V, V
NN
= -160V
V
PP
= +100V, V
NN
= -100V
V
PP
= +160V, V
NN
= -40V
f = 5.0MHz,
1.0kΩ//15pF load
f = 5.0MHz, 50Ω load
f = 5.0MHz, 50Ω load
300ns pulse width,
2.0% duty cycle
V
SIG
= 0V, f = 1.0MHz
all SW OFF
V
SIG
= 0V, f = 1.0MHz
one SW ON, two SW OFF
V
PP
= +40V, V
NN
= -160V
R
LOAD
= 50Ω
100
40
-
-
-
-
-
8
20
50
5.0
5.0
20
20
20
-
-
-
300
14
35
39
39
-
-
-
-
-
-
V/ns
OFF isolation
Switch crosstalk
Output switch isolation diode
current
OFF capacitance SW to GND
OFF capacitance Y to GND
ON capacitance SW to GND
ON capacitance Y to GND
-30
-58
-60
-
-
-
-
-
-
-
-
-
-
-
dB
dB
mA
pF
pF
Output voltage spike
(per switch)
mV
V
PP
= +100V, V
NN
= -100V
R
LOAD
= 50Ω
V
PP
= +160V, V
NN
= -40V
R
LOAD
= 50Ω
Doc.# DSFP-HV2761
NR010913
4
Supertex inc.
www.supertex.com
HV2761
AC Electrical Characteristics
(cont.)
(Over recommended operating conditions unless otherwise specified)
Sym
Parameter
0
O
C
Min
-
-
-
Max
-
-
-
Min
-
-
-
+25
O
C
Typ
820
600
350
Max
-
-
-
+70
O
C
Min
-
-
-
Max
-
-
-
pC
Unit
Conditions
V
PP
= +40V, V
NN
= -160V
V
PP
= +100V, V
NN
= -100V
V
PP
= +160V, V
NN
= -40V
QC
Charge injection
(per switch)

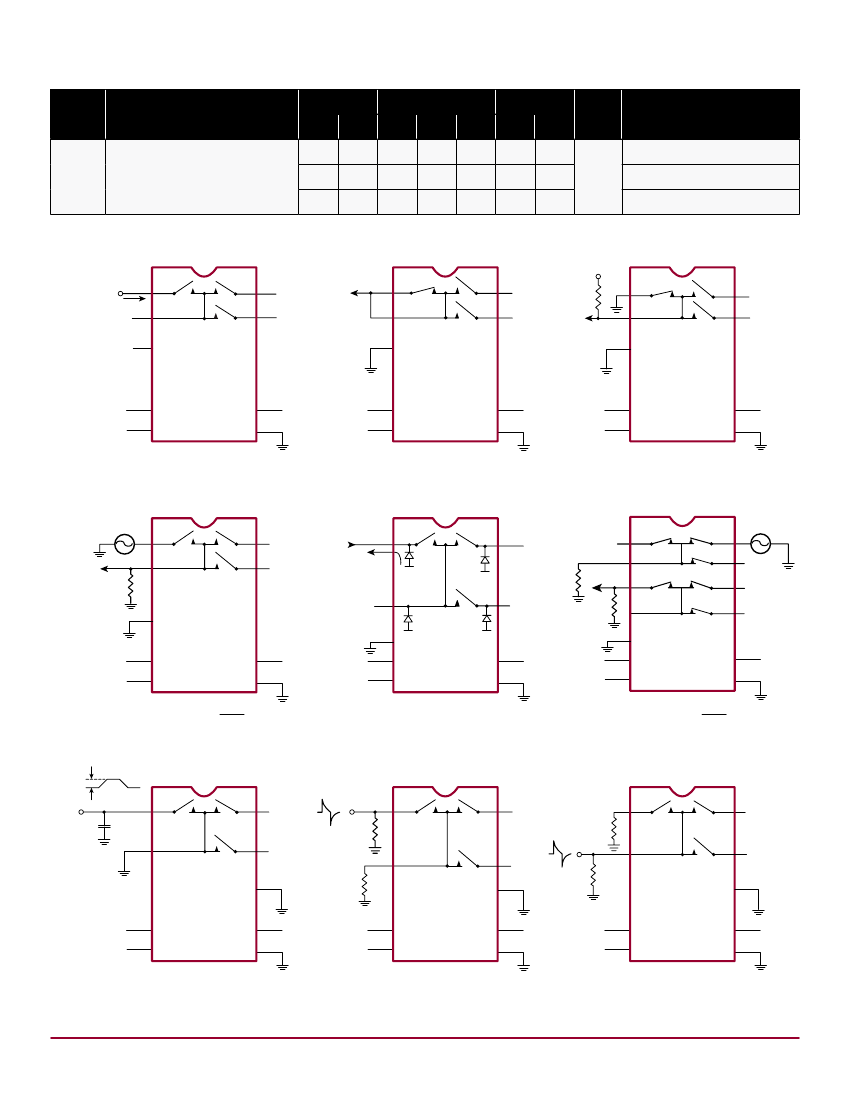

Test Circuits
V
PP
-10V
I
SOL
NC
NC
SW0
Y0
RGND
SW1
SW2
NC
NC
V
OUT
SW0
Y0
RGND
SW1
SW2
V
PP
-10V
NC
NC
R
LOAD
10kΩ
V
OUT
SW0
Y0
RGND
SW1
SW2
NC
NC
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
Switch OFF Leakage
V
IN
= 10V
P-P
@5.0MHz
V
OUT
50Ω
RGND
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
DC Offset ON/OFF
T
ON
/T
OFF
Test Circuit
V
IN
= 10V
P-P
@5.0MHz
NC
NC
NC
SW0
Y0
SW1
SW2
NC
NC
V
SIG
SW0
I
ID
V
NN
Y0
SW1
NC
50Ω
NC
V
OUT
50Ω
SW0
Y0
SW3
Y1
NC
RGND
SW1
SW2
SW4
SW5
NC
SW2
NC
RGND
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
K
O
= 20Log
V
OUT
V
IN
K
CR
= 20Log
V
OUT
V
IN
OFF Isolation
V
OUT
V
OUT
SW0
1000pF
Y0
SW1
SW2
NC
NC
+V
SPK
Isolation Diode Current
Crosstalk
V
OUT
SW0
SW1
NC
+V
SPK
SW0
V
OUT
R
L
1kΩ
Y0
SW1
SW2
NC
NC
-V
SPK
50Ω
Y0
R
L
1kΩ
5.0V
V
PP
V
NN
VPP
VNN
SW2
RGND
VDD
GND
NC
RGND
-V
SPK
50Ω
RGND
VPP
VNN
VDD
GND
5.0V
V
PP
V
NN
VPP
VNN
VDD
GND
5.0V
V
PP
V
NN
Q = 1000pF • ∆V
OUT
Charge Injection
Output Voltage Spike SW
Output Voltage Spike Y
Doc.# DSFP-HV2761
NR010913
5
Supertex inc.
www.supertex.com
京公网安备 11010802033920号
EEWORLD
