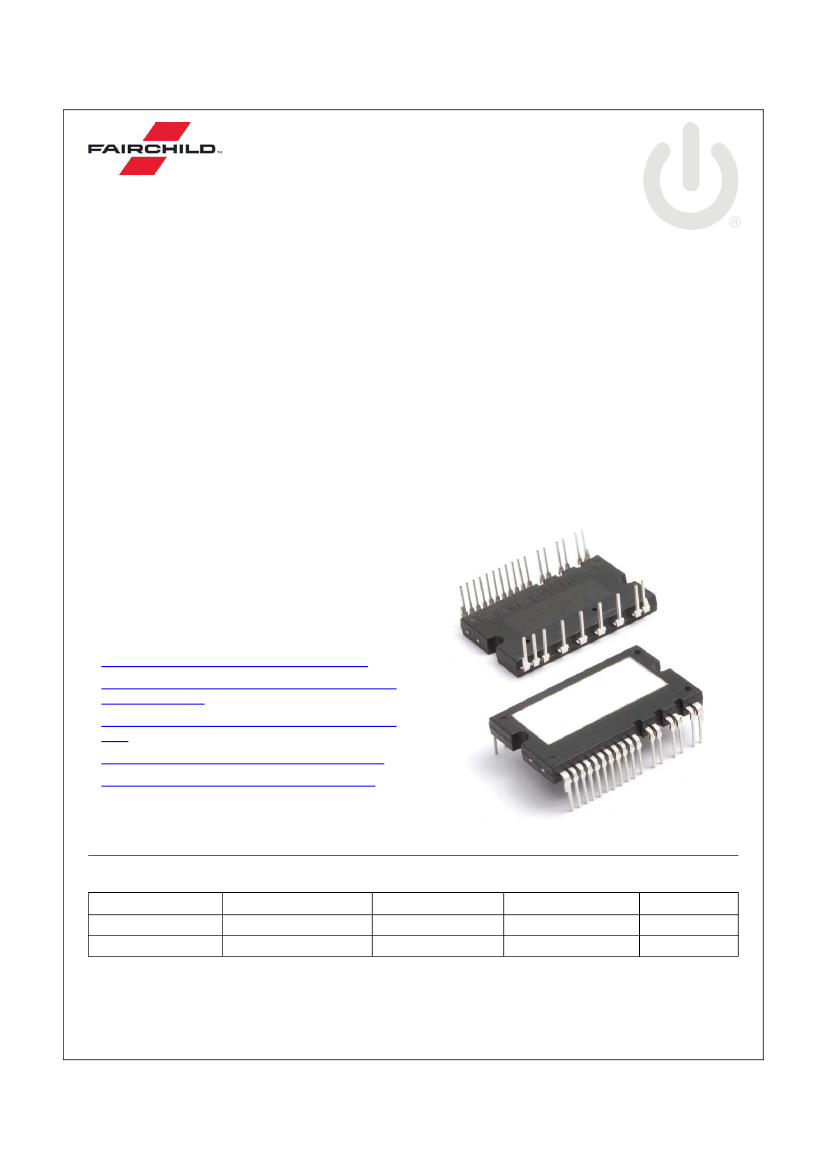

FNB40560 / FNB40560B2 Motion SPM® 45 Series
March
2015
FNB40560 / FNB40560B2
Motion SPM
®
45 Series
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 5 A 3-Phase IGBT Inverter with Integral Gate
Drivers and Protection
• Low Thermal Resistance Using Ceramic Substrate
• Low-Loss, Short-Circuit Rated IGBTs
• Built-In Bootstrap Diodes and Dedicated Vs Pins Sim-
plify PCB Layout
• Built-In NTC Thermistor for Temperature Monitoring
• Separate Open-Emitter Pins from Low-Side IGBTs for
Three-Phase Current Sensing
• Single-Grounded Power Supply
• Isolation Rating: 2000 V
rms
/ min.
General Description
FNB40560 / FNB40560B2 is a Motion SPM
®
45 module
providing a fully-featured, high-performance inverter out-
put stage for AC Induction, BLDC, and PMSM motors.
These modules integrate optimized gate drive of
the built-in IGBTs to minimize EMI and losses, while also
providing multiple on-module protection features includ-
ing under-voltage lockouts, over-current shutdown, ther-
mal monitoring, and fault reporting. The built-in, high-
speed HVIC requires only a single supply voltage and
translates the incoming logic-level gate inputs to the
high-voltage, high-current drive signals required to prop-
erly drive the module's robust short-circuit-rated IGBTs.
Separate negative IGBT terminals are available for each
phase to support the widest variety of control algorithms.
Applications
• Motion Control - Home Appliance / Industrial Motor
