7283L15PAI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 7283L15PAI

7283L15PAI: DescriptionFIFO DUAL 2K X 9; Categorystorage; File Size284KB，12 Pages; ManufacturerIDT (Integrated Device Technology, Inc.); Websitehttp://www.idt.com/

Download Datasheet Parametric View All

7283L15PAI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7283L15PAI	-	-	View	Buy Now

7283L15PAI Overview

FIFO DUAL 2K X 9

7283L15PAI Parametric

Parameter Name	Attribute value
Product Category	FIFO
Manufacturer	IDT (Integrated Device Technology, Inc.)
RoHS	No
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Package / Case	TSSOP-56
Packaging	Tube
Height	1 mm
Length	14 mm
Factory Pack Quantity	34
Width	6.1 mm
Unit Weight	0.026103 oz

Preview

Download Datasheet

View All

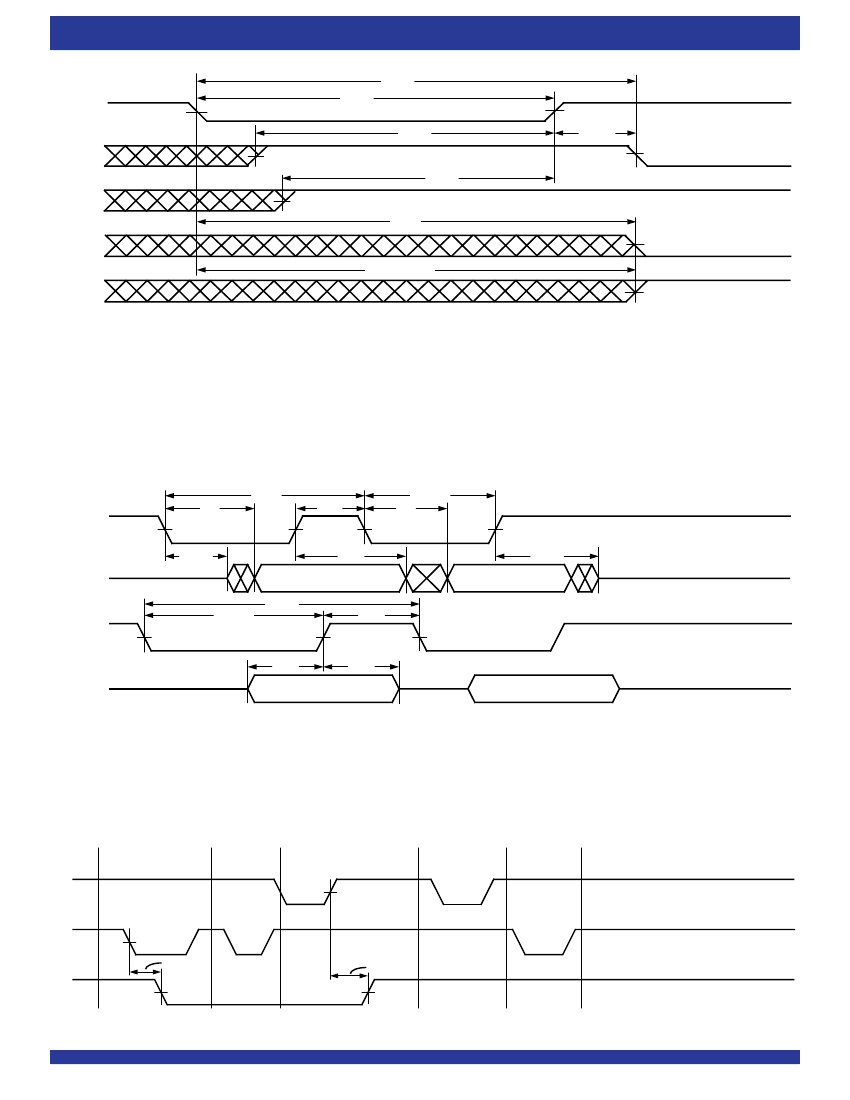

CMOS DUAL ASYNCHRONOUS FIFO

DUAL 256 x 9, DUAL 512 x 9,

DUAL 1,024 x 9, DUAL 2,048 x 9,

DUAL 4,096 x 9, DUAL 8,192 x 9

IDT7280

IDT7281

IDT7282

IDT7283

IDT7284

IDT7285

FEATURES:

•

DESCRIPTION:

•

The IDT7280 is equivalent to two IDT7200 256 x 9 FIFOs

The IDT7281 is equivalent to two IDT7201 512 x 9 FIFOs

The IDT7282 is equivalent to two IDT7202 1,024 x 9 FIFOs

The IDT7283 is equivalent to two IDT7203 2,048 x 9 FIFOs

The IDT7284 is equivalent to two IDT7204 4,096 x 9 FIFOs

The IDT7285 is equivalent to two IDT7205 8,192 x 9 FIFOs

Low power consumption

— Active: 685 mW (max.)

— Power-down: 83 mW (max.)

Ultra high speed—12 ns access time

Asynchronous and simultaneous read and write

Offers optimal combination of data capacity, small foot print

and functional flexibility

Ideal for bi-directional, width expansion, depth expansion,

bus-matching, and data sorting applications

Status Flags: Empty, Half-Full, Full

Auto-retransmit capability

High-performance CMOS technology

Space-saving TSSOP

Industrial temperature range (–40°C to +85°C) is available

The IDT7280/7281/7282/7283/7284/7285 are dual-FIFO memories that

load and empty data on a first-in/first-out basis. These devices are functional

and compatible to two IDT7200/7201/7202/7203/7204/7205 FIFOs in a single

package with all associated control, data, and flag lines assigned to separate

pins. The devices use Full and Empty flags to prevent data overflow and

underflow and expansion logic to allow for unlimited expansion capability in both

word size and depth.

The reads and writes are internally sequential through the use of ring pointers,

with no address information required to load and unload data. Data is toggled

in and out of the devices through the use of the Write (W) and Read (R) pins.

The devices utilize a 9-bit wide data array to allow for control and parity bits

at the user’s option. This feature is especially useful in data communications

applications where it is necessary to use a parity bit for transmission/reception

error checking. It also features a Retransmit (RT) capability that allows for reset

of the read pointer to its initial position when

is pulsed LOW to allow for

retransmission from the beginning of data. A Half-Full Flag is available in the

single device mode and width expansion modes.

These FIFOs are fabricated using high-speed CMOS technology. They are

designed for those applications requiring asynchronous and simultaneous

read/writes in multiprocessing and rate buffer applications.

FUNCTIONAL BLOCK DIAGRAM

DATA INPUTS

(DA

-DA

)

WRITE

CONTROL

WRITE

POINTER

THREE-

STATE

BUFFERS

RAM

ARRAY A

256 x 9

512 x 9

1,024 x 9

2,048 x 9

4,096 x 9

8,192 x 9

RSA

WRITE

CONTROL

WRITE

POINTER

DATA INPUTS

(DB

-DB

)

RAM

ARRAY B

256 x 9

512 x 9

1,024 x 9

2,048 x 9

4,096 x 9

8,192 x 9

THREE-

STATE

BUFFERS

RSB

READ

POINTER

READ

POINTER

READ

CONTROL

FLAG

LOGIC

EXPANSION

LOGIC

RESET

LOGIC

READ

CONTROL

FLAG

LOGIC

EXPANSION

LOGIC

RESET

LOGIC

XIA

XOA/HFA

FFA

EFA

DATA

OUTPUTS

(QA

-QA

)

FLA/RTA

XIB

XOB/HFB

FFB

EFB

DATA

OUTPUTS

(QB

-QB

)

FLB/RTB

3208 drw 01

IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc

COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES

JUNE 2012

DSC-3208/9
