BAV45
w w w. c e n t r a l s e m i . c o m
SILICON
PICOAMPERE DIODE
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BAV45 is a silicon
picoampere diode, mounted in a hermetically sealed
metal case, designed for extremely low leakage
applications.
MARKING: FULL PART NUMBER

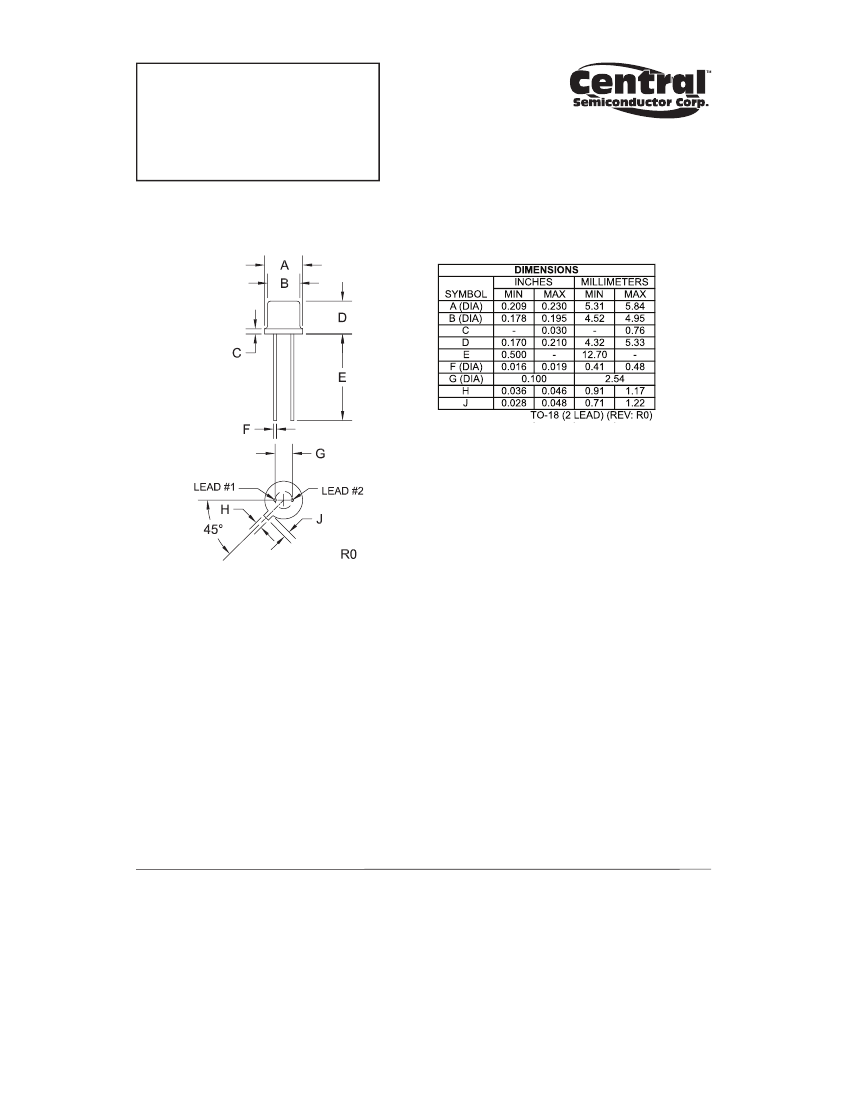

TO-18 (2-LEAD) CASE
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Reverse Voltage
Continuous Forward Current
Peak Repetitive Forward Current
Operating and Storage Junction Temperature
Thermal Resistance
ELECTRICAL
SYMBOL
IR
IR
IR
VF
CJ
trr
SYMBOL
VRRM
VR
IF
IFRM
TJ, Tstg
Θ
JA
UNITS
V
V
mA
mA
°C
°C/W
35
20
50
100
-65 to +125
500
CHARACTERISTICS:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
VR=5.0V
VR=5.0V, TA=80°C
VR=20V
IF=10mA
VR=0, f=1.0MHz
IF=IR=10mA, Irr=1.0mA, RL=100Ω
MAX
5.0
250
10
1.0
1.3
600
UNITS
pA
pA
pA
V
pF
ns
R1 (1-May 2013)
OUTSTANDING SUPPORT AND SUPERIOR SERVICES
PRODUCT SUPPORT
Central’s operations team provides the highest level of support to insure product is delivered on-time.
• Supply management (Customer portals)
• Custom bar coding for shipments
• Inventory bonding
• Custom product packing
• Consolidated shipping options
DESIGNER SUPPORT/SERVICES
Central’s applications engineering team is ready to discuss your design challenges. Just ask.
• Free quick ship samples (2
nd
day air)
• Special wafer diffusions
• Online technical data and parametric search
• PbSn plating options
• SPICE models
• Package details
• Custom electrical curves
• Application notes
• Environmental regulation compliance
• Application and design sample kits
• Customer specific screening
• Custom product and package development
• Up-screening capabilities
REQUESTING PRODUCT PLATING
1.
2.
If requesting Tin/Lead plated devices, add the suffix “ TIN/LEAD” to the part number when
ordering (example: 2N2222A TIN/LEAD).
If requesting Lead (Pb) Free plated devices, add the suffix “ PBFREE” to the part number
when ordering (example: 2N2222A PBFREE).
CONTACT US
Corporate Headquarters & Customer Support Team
Central Semiconductor Corp.
145 Adams Avenue
Hauppauge, NY 11788 USA
Main Tel: (631) 435-1110
Main Fax: (631) 435-1824
Support Team Fax: (631) 435-3388
www.centralsemi.com
Worldwide Field Representatives:
www.centralsemi.com/wwreps
Worldwide Distributors:
www.centralsemi.com/wwdistributors
For the latest version of Central Semiconductor’s
LIMITATIONS AND DAMAGES DISCLAIMER,
which is part of Central’s Standard Terms and Conditions of sale, visit: www.centralsemi.com/terms
w w w. c e n t r a l s e m i . c o m
(001)
http://www.centralsemi.com
PDN01029
6/30/16
12/30/16
6/30/17
Summary:The BAV45 silicon picoampere diode is discontinued and now classified as End of Life (EOL). This device type will now only be
offered for sale in bare die form.
Although Central Semiconductor Corp. makes every effort to continue to produce devices that have been proclaimed EOL (End of Life) by
various manufacturers, it is an accepted industry practice to discontinue certain devices when customer demand falls below a minimum
level of sustainability. Accordingly, the following product(s) have been transitioned to End of Life status as part of Central's
Product Management Process. Any replacement product will be noted below. The effective date for placing the last purchase order will
be six(6) months from the date of this notice and twelve(12) months from the notice date for final shipments; this may be extended if
inventory is available.
_________________________
Central Part Number
_________________________
Replacement
BAV45
CPD65-BAV45-CT
Central would be happy to assist you by providing additional information or technical data to help locate an alternate source if we
have no replacement available. Please email your requests to engineering@centralsemi.com.
