DMP6050SFG-7

Description
MOSFET 60V P-Ch Enh FET 20Vgss 1.8W
Categorysemiconductor    Discrete semiconductor
File Size530KB,6 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

DMP6050SFG-7 Online Shopping

Suppliers Part Number Price MOQ In stock
DMP6050SFG-7 - - View Buy Now

DMP6050SFG-7 Overview

MOSFET 60V P-Ch Enh FET 20Vgss 1.8W

DMP6050SFG-7 Parametric

Parameter NameAttribute value
Product CategoryMOSFET
ManufacturerDiodes
RoHSDetails
TechnologySi
Package / CasePowerDI3333-8
PackagingCut Tape
PackagingReel
Factory Pack Quantity2000

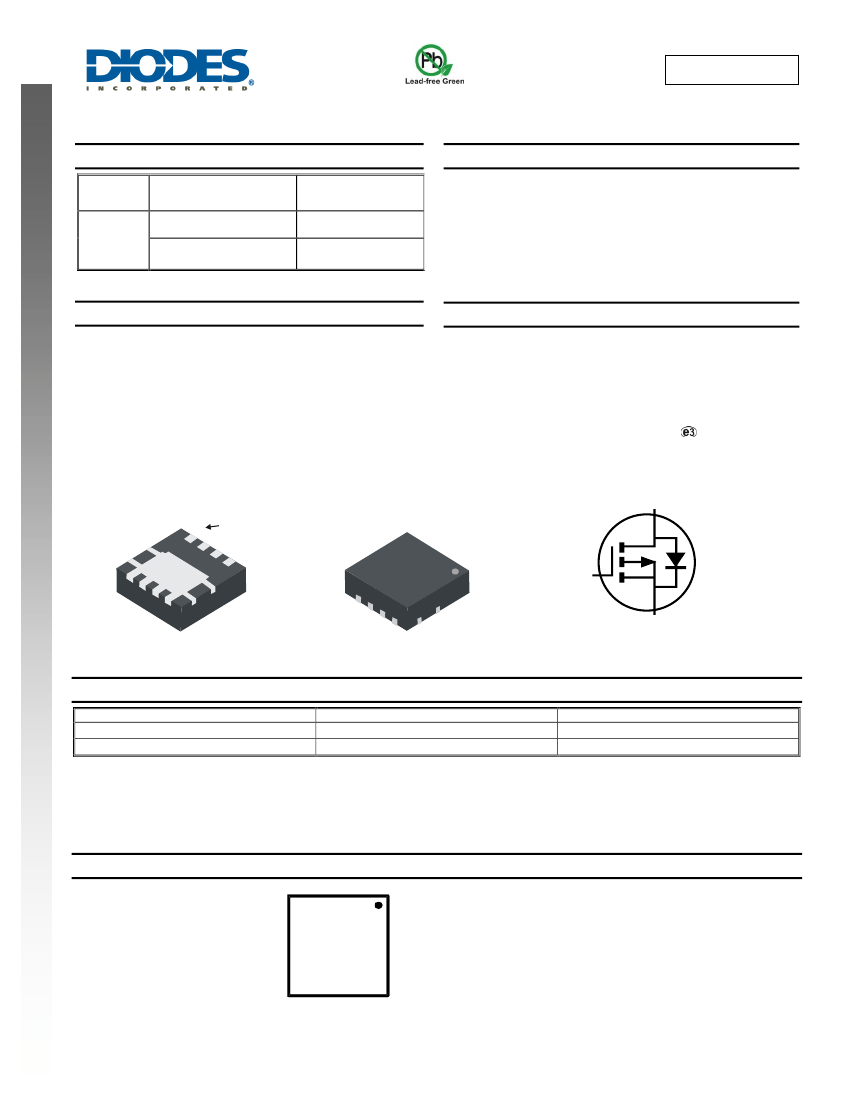

DMP6050SFG
60V P-CHANNEL ENHANCEMENT MODE MOSFET
®
POWERDI
Product Summary
ADVANCE INFORMATION
NEW PRODUCT
V
(BR)DSS
R
DS(ON)
max
50m @ V
GS
= -10V
-60V
70m @ V
GS
= -4.5V
-4.1A
I
D
max
T
A
= +25°
C
-4.8A
Features and Benefits
Low R
DS(ON)
– Ensures On State Losses Are Minimized
Small Form Factor Thermally Efficient Package Enables Higher
Density End Products
Occupies Just 33% of The Board Area Occupied by SO-8
Enabling Smaller End Product
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Backlighting
Power Management Functions
DC-DC Converters
Mechanical Data
Case: POWERDI
®
3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish
Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.072 grams (Approximate)
POWERDI
®
3333-8
D
S
S
Pin 1
S
G
G
D
D
D
D
S
Top View
Equivalent Circuit
Bottom View
Ordering Information
(Note 4)
Part Number
DMP6050SFG-7
DMP6050SFG-13
Notes:
Case
POWERDI
®
3333-8
POWERDI
®
3333-8
Packaging
2000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
YYWW
P55= Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 14 = 2014)
WW = Week Code (01 to 53)
P55
POWERDI is a registered trademark of Diodes Incorporated.
DMP6050SFG
Document number: DS37378 Rev. 1 - 2
1 of 6
www.diodes.com
October 2014
© Diodes Incorporated
