Data Sheet
MULTIPLE RS-232 DRIVERS AND RECEIVERS
General Description
The AZ75232 combines three drivers and five receiv-
ers, which conform to the EIA/TIA-232-F and ITU
v.28 standards. Each receiver converts EIA/TIA-232-F
inputs to 5-V TTL/CMOS levels and each driver con-
verts TTL/CMOS input levels into EIA/TIA-232-F
levels.
The flow-through pinout facilitates simple non-cross-
over board layout. The AZ75232 provides a one-chip
solution for the common 9-pin serial RS-232 interface
between data terminal and data communications equip-
ment.
The AZ75232 is available in SOIC-20, SSOP-20 and
TSSOP-20 packages.
AZ75232
Features
·
·
·
·
·
Single Chip with Easy Interface between UART
and Serial-Port Connector
Meet the Requirement of EIA/TIA-232-F and
ITU v.28 Standards
Designed to Support Data Rates up to 120kbit/s
3 Drivers and 5 Receivers
Flow-through Pinout
Applications
·
·
Mother Board
Peripheral Equipment
SOIC-20
SSOP-20
TSSOP-20

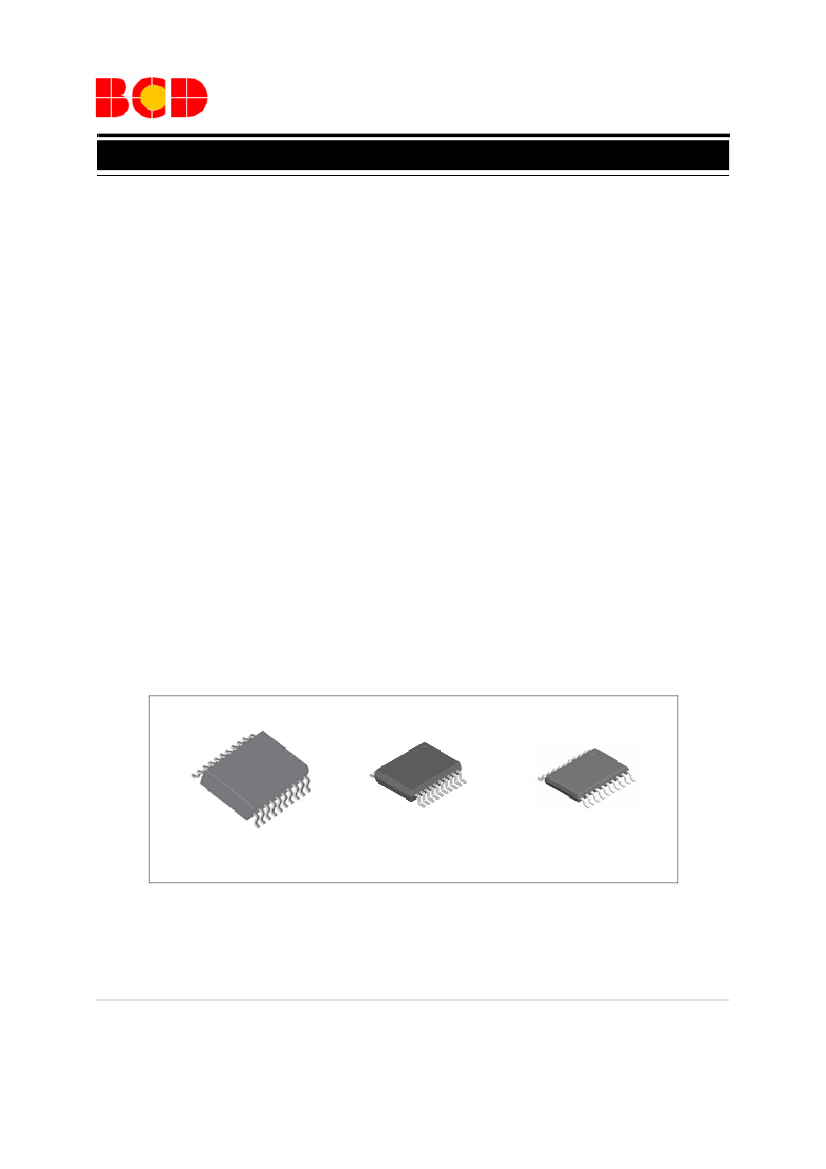

Figure 1. Package Types of AZ75232
Oct. 2009 Rev. 1. 7
1
BCD Semiconductor Manufacturing Limited
Data Sheet
MULTIPLE RS-232 DRIVERS AND RECEIVERS
Pin Configuration
M/GS/G Package
(SOIC-20/SSOP-20/TSSOP-20)
AZ75232
V
DD
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
V
SS
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
RY1
RY2
RY3
DA1
DA2
RY4
DA3
RY5
GND
Figure 2. Pin Configuration of AZ75232 (Top View)
Pin Description
Pin
Number
1
2
3
4
5
6
7
8
9
10
Pin
Name
V
DD
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
V
SS
Function
Positive Supply Voltage for Driver
Receiver Input
Receiver Input
Receiver Input
Driver Output
Driver Output
Receiver Input
Driver Output
Receiver Input
Negative Supply Voltage for Driver
Pin
Number
11
12
13
14
15
16
17
18
19
20
Pin
Name
GND
RY5
DA3
RY4
DA2
DA1
RY3
RY2
RY1
V
CC
Ground
Receiver Output
Driver Input
Receiver Output
Driver Input
Driver Input
Receiver Output
Receiver Output
Receiver Output
Supply Voltage for Receiver
Function
Oct. 2009 Rev. 1. 7
2
BCD Semiconductor Manufacturing Limited
Data Sheet
MULTIPLE RS-232 DRIVERS AND RECEIVERS
Functional Block Diagram
V
DD
1
2
RA1
RA2
3
4
5
6
7
8
9
RA5
V
SS
10
11
18
17
16
15
14
13
12
RY5
GND
20
19
RY1
RY2
V
CC
AZ75232
RA3
DY1
DY2
RY3
DA1
DA2
RY4
DA3
RA4
DY3
Figure 3. Functional Block Diagram of AZ75232
Ordering Information
AZ75232
Circuit Type
Package
M: SOIC-20
GS: SSOP-20
G: TSSOP-20
Package
SOIC-20
SSOP-20
TSSOP-20
Temperature
Range
-40 to 85
o
C
-40 to 85
o
C
-40 to 85
o
C
Part Number
Lead Free
AZ75232M-E1
AZ75232MTR-E1
AZ75232GS-E1
AZ75232GSTR-E1
AZ75232G-E1
AZ75232GTR-E1
Green
AZ75232M-G1
AZ75232MTR-G1
AZ75232GS-G1
AZ75232GSTR-G1
AZ75232G-G1
AZ75232GTR-G1
-
E1: Lead Free
G1: Green
TR: Tape and Reel
Blank: Tube
Marking ID
Lead Free
AZ75232M-E1
AZ75232M-E1
AZ75232GS-E1
AZ75232GS-E1
232GE
232GE
Green
AZ75232M-G1
AZ75232M-G1
AZ75232GS-G1
AZ75232GS-G1
232GG
232GG
Packing
Type
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with
"G1" suffix are available in green packages.
Oct. 2009 Rev. 1. 7
3
BCD Semiconductor Manufacturing Limited
Data Sheet
MULTIPLE RS-232 DRIVERS AND RECEIVERS
Absolute Maximum Ratings (Note 1)
Parameter
Supply Voltage
Symbol
V
DD
V
SS
V
CC
Input Voltage Range
Power Dissipation (T
A
=25
o
C)
V
I
Driver
Receiver
SOIC-20
P
D
V
O
I
OL
T
J
T
STG
T
LEAD
SSOP-20
TSSOP-20
Driver Output Voltage Range
Receiver Low-Level Output Current
Operating Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10sec)
-15 to 15
20
150
-65 to 150
260
Value
15
-15
7
-15 to 7
-30 to 30
1340
1210
1100
V
mA
o
o
AZ75232
Unit
V
V
mW
C
C
o
C
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.
These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated
under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods
may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Voltage
High-Level Input Voltage (Driver Only)
Low-Level Input Voltage (Driver Only)
High-Level Output Current
Low-Level Output Current
Operating Temperature Range
Driver
Receiver
Driver
Receiver
Symbol
V
DD
V
SS
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
-40
Min
7.5
-15
4.5
1.9
0.8
-6
-0.5
6
16
85
Max
15
-7.5
5.5
V
V
mA
mA
o
C
Unit
V
Oct. 2009 Rev. 1. 7
4
BCD Semiconductor Manufacturing Limited
Data Sheet
MULTIPLE RS-232 DRIVERS AND RECEIVERS
Electrical Characteristics
(T
A
=25
o
C, unless otherwise specified.)
Parameter
Symbol
Conditions
V
DD
=9V, V
SS
=-9V
V
DD
=12V, V
SS
=-12V
V
DD
=15V, V
SS
=-15V
V
DD
=9V, V
SS
=-9V
V
DD
=12V, V
SS
=-12V
V
DD
=15V, V
SS
=-15V
V
DD
=9V, V
SS
=-9V
V
DD
=12V, V
SS
=-12V
V
DD
=15V, V
SS
=-15V
V
DD
=9V, V
SS
=-9V
V
DD
=12V, V
SS
=-12V
V
DD
=15V, V
SS
=-15V
Min
Typ
Max
15
19
25
4.5
5.5
9
-15
-19
-25
-3.2
-3.2
-3.2
30
6
7.5
-7.5
-6
10
-1.6
-4.5
4.5
300
-12
12
-19.5
19.5
mA
V
V
µA
mA
mA
mA
Ω
mA
mA
Unit
VOLTAGE SUPPLY SECTION (V
CC
=5V, V
DD
=9V, V
SS
=-9V, unless otherwise specified)
All inputs at
1.9V, no load
Supply Current from V
DD
I
DD
All inputs at
0.8V, no load
AZ75232
All inputs at
1.9V, no load
Supply Current from V
SS
I
SS
All inputs at
0.8V, no load
Supply Current from V
CC
High-Level Output Voltage
Low-Level Output Voltage
High-Level Input Current
Low-Level Input Current
High-Level Short-Circuit
Output Current
Low-Level Short-Circuit Out-
put Current
Output Resistance
Propagation Delay Time
Low to High Level Output
Propagation Delay Time
High to Low Level Output
Transition Time
Low to High Level Output
Transition Time
High to Low Level Output
I
CC
V
OH
V
OL
I
IH
I
IL
I
OS(H)
I
OS(L)
r
O
All inputs at 5V, no load, V
CC
=5V
V
IL
=0.8V, R
L
=3kΩ
V
IH
=1.9V, R
L
=3kΩ
V
I
=5V
V
I
=0V
V
IL
=0.8V, V
O
=0V
V
IH
=2V, V
O
=0V
V
CC
=V
DD
=V
SS
=0, V
O
=-2Vto 2V
DRIVER SECTION (V
CC
=5V, V
DD
=9V, V
SS
=-9V, unless otherwise specified)
DRIVER SECTION (V
CC
=5V, V
DD
=12V, V
SS
=-12V, unless otherwise specified)
t
PLH
t
PHL
t
TLH
t
THL
R
L
=3kΩ to 7kΩ, C
L
=15pF
R
L
=3kΩ to 7kΩ, C
L
=15pF
R
L
=3kΩ to 7kΩ
R
L
=3kΩ to 7kΩ
C
L
=15pF
C
L
=2500pF (Note 2)
C
L
=15pF
C
L
=2500pF (Note 2)
315
75
60
1.7
40
1.5
500
175
100
2.5
75
2.5
ns
ns
ns
µs
ns
µs
Oct. 2009 Rev. 1. 7
5
BCD Semiconductor Manufacturing Limited
