19-3750; Rev 0; 7/05
3V/5V, 6dB Video Amplifiers with
High Output-Current Capability
General Description
The MAX9504A/MAX9504B 3V/5V, ground-sensing
amplifiers with a fixed gain of 6dB provide high output
current while consuming only 10nA of current in shut-
down mode. The MAX9504A/MAX9504B are ideal for
amplifying DC-coupled video inputs from current digi-
tal-to-analog converters (DACs). The output can drive
two DC-coupled 150Ω back-terminated video loads in
portable media players, security cameras, and automo-
tive video applications. The MAX9504B features an
internal 160mV input offset to prevent output sync tip
clipping when the input signal is close to ground.
The MAX9504A/MAX9504B have -3dB large-signal
bandwidth of 42MHz and -3dB small-signal bandwidth
of 47MHz.
The MAX9504A/MAX9504B operate from a single +2.7V
to +5.5V supply and consume only 5mA of supply cur-
rent. The low-power shutdown mode reduces supply
current to 10nA, making the MAX9504A/MAX9504B ideal
for low-voltage, battery-powered video applications.
The MAX9504A/MAX9504B are available in tiny 6-pin
µDFN (2mm x 2mm) and 6-pin SOT23 packages, and
are specified over the -40°C to +85°C extended tem-
perature range.
Features
♦
DC-Coupled Input/Output
♦
Drives Two DC-Coupled Video Loads
♦
Direct Connection to Ground-Referenced DAC
♦
♦
♦
♦
♦
42MHz Large-Signal Bandwidth
47MHz Small-Signal Bandwidth
Internal 160mV Input Offset (MAX9504B)
Single-Supply Operation from +2.7V to +5.5V
10nA Shutdown Supply Current
MAX9504A/MAX9504B
♦
Small
µDFN
(2mm x 2mm) and SOT23 Packages
Ordering Information
PART
MAX9504AELT-T
MAX9504AEUT+T
MAX9504BELT-T
MAX9504BEUT+
PIN-
PACKAGE
6 µDFN-6
6 SOT23-6
6 µDFN-6
6 SOT23-6
PKG
CODE
L622-1
U65-3
L622-1
U65-3
OFFSET TOP
(mV)
MARK
0
0
160
160
AAJ
ABWC
AAK
ABWD
Applications
Car Navigation Systems
Security Cameras
Portable Media Players
Low-Power Video Applications
Y/C-to-CVBS Mixer
Note:
All devices specified over the -40°C to +85°C operating
range.
+Denotes
lead-free package.
Block Diagram
V
CC
Pin Configurations
MAX9504A
MAX9504B
TOP VIEW
FB
6
SHDN
5
OUT
IN
4
MAX9504B
ONLY
160mV OFFSET
SHDN
OUT
MAX9504A
MAX9504B
1
V
CC
2
GND
3
IN
580Ω
1.2kΩ
2.3kΩ
FB
780Ω
µDFN
Pin Configurations continued at end of data sheet.
GND
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
3V/5V, 6dB Video Amplifiers with
High Output-Current Capability
MAX9504A/MAX9504B
ABSOLUTE MAXIMUM RATINGS
V
CC
to GND ..............................................................-0.3V to +6V
IN, OUT, FB,
SHDN
to GND .......................-0.3V to (V
CC
+ 0.3V)
OUT Short-Circuit Duration to V
CC
or GND ..............Continuous
Continuous Power Dissipation (T
A
= +70°C)
6-Pin SOT23 (derate 8.7mW/°C above +70°C)............695mW
6-Pin µDFN (derate 4.7mW/°C above +70°C) .............377mW
Operating Temperature Range ..........................-40°C to +85°C
Junction Temperature .....................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
(V
CC
= 3.0V, GND = 0V, V
IN
= 0.5V, R
L
= infinity to GND, FB connected to OUT,
SHDN
= V
CC
, T
A
= -40°C to +85°C. Typical values
are at T
A
= +25°C, unless otherwise noted.) (Note 1)
PARAMETER
Supply Voltage Range
Quiescent Supply Current
Shutdown Supply Current
Input Voltage Range
Input Offset Voltage
Input Bias Current
Input Resistance
SYMBOL
V
CC
I
CC
I
SHDN
V
IN
V
OS
I
BIAS
R
IN
V
CC
= 3V
V
CC
= 5V
SHDN
= 0V
Inferred from
voltage gain
MAX9504A
MAX9504B
V
IN
= 0V
0 < V
IN
< 1.45V
V
CC
= 2.7V,
0.1V < V
IN
< 1.10V
V
CC
= 3.0V,
0.1V < V
IN
< 1.25V
V
CC
= 4.5V,
0.1V < V
IN
< 1.90V
V
CC
= 2.7V,
0 < V
IN
< 0.95V
V
CC
= 3.0V,
0 < V
IN
< 1.10V
V
CC
= 4.5V,
0 < V
IN
< 1.75V
Power-Supply Rejection
Ratio
Output Current
Output Short-Circuit Current
SHDN
Logic-Low Threshold
SHDN
Logic-High Threshold
SHDN
Input Current
Shutdown Output
Impedance
PSRR
I
OUT
I
SC
V
IL
V
IH
I
IN
R
OUT
(Disabled)
CONDITIONS
Guaranteed by PSRR
MIN
2.7
TYP
5
5
0.01
MAX
5.5
9
9
1
1.25
1.10
UNITS
V
mA
µA
V
mV
µA
MΩ
MAX9504A
MAX9504B
0.10
0
-25
120
0
160
5
4
1.9
1.9
2.0
2.0
2
+25
200
20
2.1
2.1
R
L
= 150Ω
(Note 2),
MAX9504A
Voltage Gain
A
V
R
L
= 150Ω
(Note 2),
MAX9504B
V/V
1.9
1.9
2.0
2.0
2
60
50
45
40
80
61
85
110
130
V
CC
x 0.3
V
CC
x 0.7
dB
mA
mA
V
V
0.003
4
1.000
µA
kΩ
2.1
2.1
2.7V < V
CC
< 5.5V
MAX9504A
MAX9504B
Sourcing, R
L
= 20Ω to GND
Sinking, R
L
= 20Ω to V
CC
OUT shorted to V
CC
or GND
SHDN
= 0V or V
CC
SHDN
= 0V
2
_______________________________________________________________________________________
3V/5V, 6dB Video Amplifiers with
High Output-Current Capability
AC ELECTRICAL CHARACTERISTICS
(V
CC
= 3.0V, GND = 0V, V
IN
= 0.5V, R
L
= 150Ω to GND, FB connected to OUT,
SHDN
= V
CC
, T
A
= +25°C, unless otherwise noted.)
PARAMETER
Small-Signal -3dB
Bandwidth
Large-Signal -3dB
Bandwidth
Small-Signal 0.1dB Gain
Flatness
Large-Signal 0.1dB Gain
Flatness
Slew Rate
Settling Time to 1%
Power-Supply Rejection
Ratio
Output Impedance
Differential Gain
Differential Phase
SYMBOL
BW
SS
BW
LS
CONDITIONS
V
OUT
= 100mV
P-P
V
OUT
= 2V
P-P
MIN
TYP
47
42
10
12
165
25
MAX9504A
MAX9504B
V
CC
= 3V
V
CC
= 5V
V
CC
= 3V
V
CC
= 5V
75
49
2.5
0.1
0.1
0.3
0.3
0.2
0.1
0.1
0.1
2
65
300
85
MAX
UNITS
MHz
MHz
MHz
MHz
V/µs
ns
dB
Ω
%
degrees
MAX9504A/MAX9504B
BW
0.1dBSS
V
OUT
= 100mV
P-P
BW
0.1dBLS
V
OUT
= 2V
P-P
SR
t
S
PSRR
Z
OUT
DG
DP
V
OUT
= 2V step
V
OUT
= 2V step
f = 100kHz
f = 5MHz
NTSC
NTSC
2T Pulse-to-Bar K Rating
2T Pulse Response
2T Bar Response
Nonlinearity
Group Delay Distortion
Peak Signal-to-RMS Noise
Enable Time
Disable Time
D/dT
SNR
t
ON
t
OFF
2T = 250ns, bar time is 18µs, the beginning
2.5% and the ending 2.5% of the bar time
are ignored
2T = 250ns
2T = 250ns, bar time is 18µs, the beginning
2.5% and the ending 2.5% of the bar time
are ignored
5-step staircase
f = 100kHz to 5.5MHz
V
IN
= 1V
P-P
, 100kHz < f < 5MHz
V
IN
= 1V, V
OUT
settled to 1% of nominal
V
IN
= 1V, V
OUT
settled to 1% of nominal
K%
K%
K%
%
ns
dB
ns
ns
Note 1:
All devices are 100% production tested at T
A
= +25°C. Specifications over temperature limits are guaranteed by design.
Note 2:
Voltage gain (A
V
) is referenced to the input offset voltage; i.e., an input voltage of V
IN
would produce an output voltage of
V
OUT
= A
V
x (V
IN
+ V
OS
).
_______________________________________________________________________________________
3
3V/5V, 6dB Video Amplifiers with
High Output-Current Capability
MAX9504A/MAX9504B
Typical Operating Characteristics
(V
CC
= 3.0V, GND = 0V, V
IN
= 0.5V, R
L
= 150Ω to GND, FB connected to OUT,
SHDN
= V
CC
, T
A
= +25°C, unless otherwise noted.)

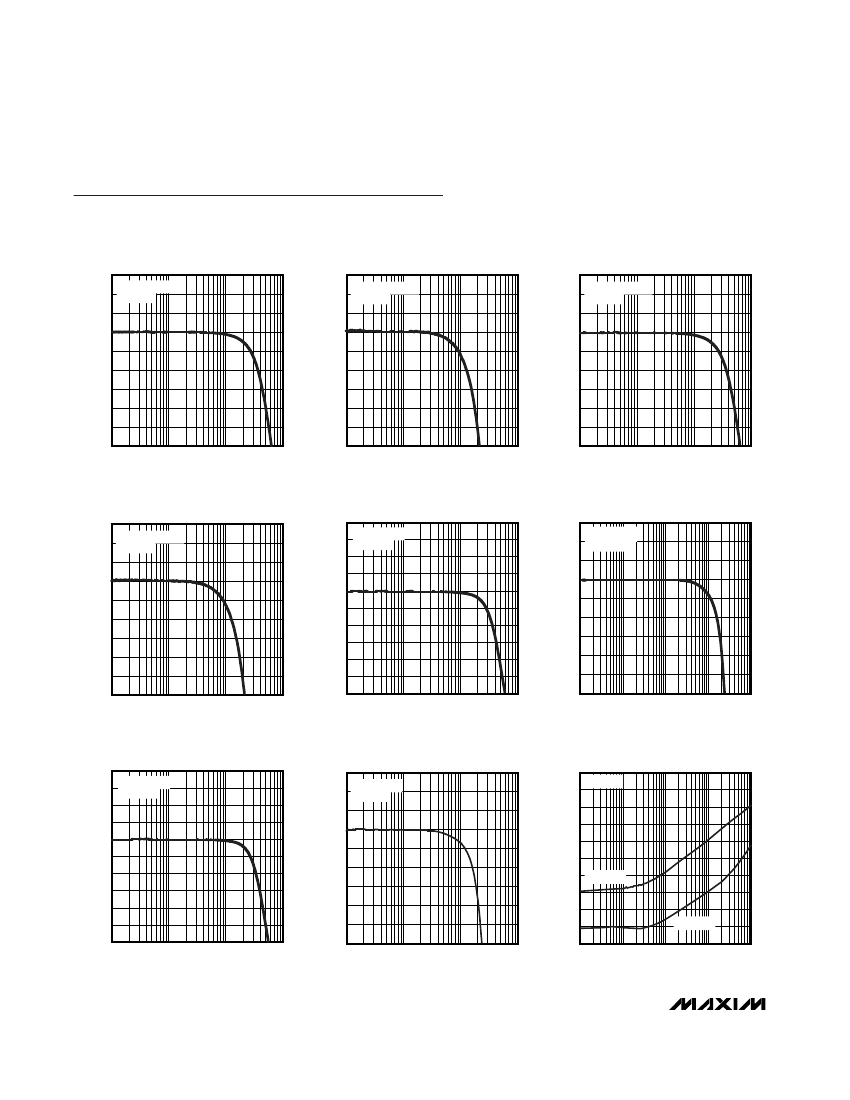

SMALL-SIGNAL GAIN
vs. FREQUENCY
MAX9504 toc01
SMALL-SIGNAL GAIN FLATNESS
vs. FREQUENCY
MAX9504 toc02
SMALL-SIGNAL GAIN
vs. FREQUENCY
2
1
0
GAIN (dB)
-1
-2
-3
-4
-5
-6
V
OUT
= 100mV
P-P
V
CC
= 5V
MAX9504 toc03
3
2
1
0
GAIN (dB)
-1
-2
-3
-4
-5
-6
0.1
1
10
V
OUT
= 100mV
P-P
V
CC
= 3V
0.3
0.2
0.1
0
GAIN (dB)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
V
OUT
= 100mV
P-P
V
CC
= 3V
3
100
0.1
1
10
100
0.1
1
10
100
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
SMALL-SIGNAL GAIN FLATNESS
vs. FREQUENCY
MAX9504 toc04
LARGE-SIGNAL GAIN
vs. FREQUENCY
MAX9504 toc05
LARGE-SIGNAL GAIN FLATNESS
vs. FREQUENCY
0.2
0.1
0
GAIN (dB)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
V
OUT
= 2V
P-P
V
CC
= 3V
MAX9504 toc06
0.3
0.2
0.1
0
GAIN (dB)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
0.1
1
10
V
OUT
= 100mV
P-P
V
CC
= 5V
4
3
2
1
GAIN (dB)
0
-1
-2
-3
-4
-5
-6
V
OUT
= 2V
P-P
V
CC
= 3V
0.3
100
0.1
1
10
100
0.01
0.1
1
FREQUENCY (MHz)
10
100
FREQUENCY (MHz)
FREQUENCY (MHz)
LARGE-SIGNAL GAIN
vs. FREQUENCY
MAX9504 toc07
LARGE-SIGNAL GAIN FLATNESS
vs. FREQUENCY
MAX9504 toc08
POWER-SUPPLY REJECTION RATIO
vs. FREQUENCY
0
-10
-20
PSRR (dB)
-30
-40
-50
-60
-70
-80
MAX9504A
0.01
0.1
FREQUENCY (MHz)
1
10
MAX9504B
V
CC
= 3V
MAX9504 toc09
4
3
2
1
GAIN (dB)
V
OUT
= 2V
P-P
V
CC
= 5V
0.3
0.2
0.1
0
GAIN (dB)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
V
OUT
= 2V
P-P
V
CC
= 5V
10
0
-1
-2
-3
-4
-5
-6
0.1
1
10
100
FREQUENCY (MHz)
0.1
1
10
100
-90
0.001
FREQUENCY (MHz)
4
_______________________________________________________________________________________
3V/5V, 6dB Video Amplifiers with
High Output-Current Capability
MAX9504A/MAX9504B

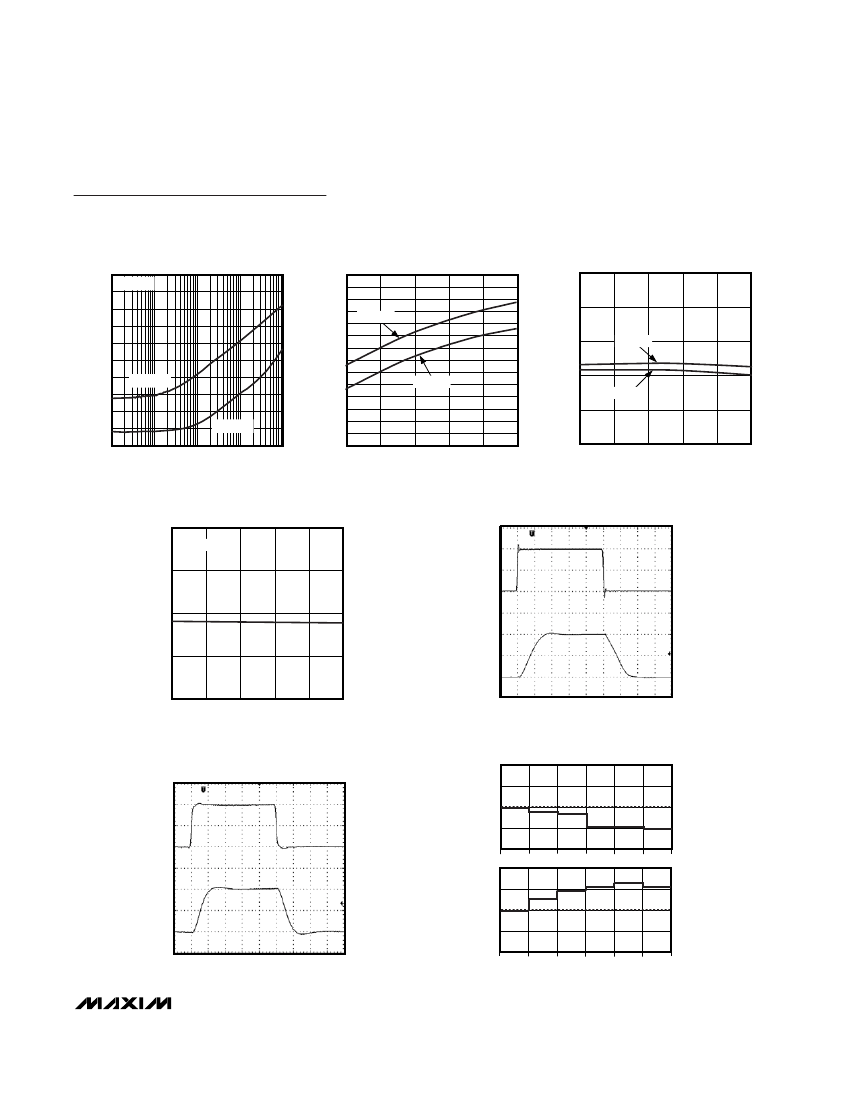

Typical Operating Characteristics (continued)
(V
CC
= 3.0V, GND = 0V, V
IN
= 0.5V, R
L
= 150Ω to GND, FB connected to OUT,
SHDN
= V
CC
, T
A
= +25°C, unless otherwise noted.)
POWER-SUPPLY REJECTION RATIO
vs. FREQUENCY
MAX9504 toc10
QUIESCENT SUPPLY CURRENT
vs. TEMPERATURE
5.50
5.45
5.40
5.35
5.30
5.25
5.20
5.15
5.10
5.05
5.00
4.95
4.90
4.85
4.80
-40
MAX9504 toc11
MAX9504B INPUT OFFSET VOLTAGE
vs. TEMPERATURE
MAX9504 toc12
10
0
-10
-20
PSRR (dB)
-30
-40
-50
-60
-70
-80
-90
0.001
0.01
0.1
FREQUENCY (MHz)
MAX9504A
1
MAX9504B
V
CC
= 5V
0.19
0.18
SUPPLY CURRENT (mA)
V
CC
= 5V
V
OS
(V)
0.17
V
CC
= 5V
V
CC
= 3V
0.16
V
CC
= 3V
0.15
0.14
-15
10
35
60
85
-40
-15
10
35
60
85
TEMPERATURE (°C)
TEMPERATURE (°C)
10
VOLTAGE GAIN
vs. TEMPERATURE
V
CC
= 3V and 5V
2.05
GAIN (V/V)
MAX9504 toc13
LARGE-SIGNAL STEP RESPONSE
MAX9504 toc14
2.10
V
IN
500mV/div
2.00
1.95
V
OUT
1V/div
1.90
-40
-15
10
35
60
85
10ns/div
TEMPERATURE (°C)
DIFFERENTIAL GAIN AND PHASE
MAX9504 toc15
DIFFERENTIAL PHASE (degrees) DIFFERENTIAL GAIN (%)
0.1
0
-0.1
-0.2
0.4
0.2
0
-0.2
-0.4
1
2
3
4
5
6
1
2
3
4
5
6
V
IN
25mV/div
V
OUT
50mV/div
10ns/div
MAX9504 toc16
SMALL-SIGNAL STEP RESPONSE
0.2
_______________________________________________________________________________________
5
京公网安备 11010802033920号
EEWORLD
