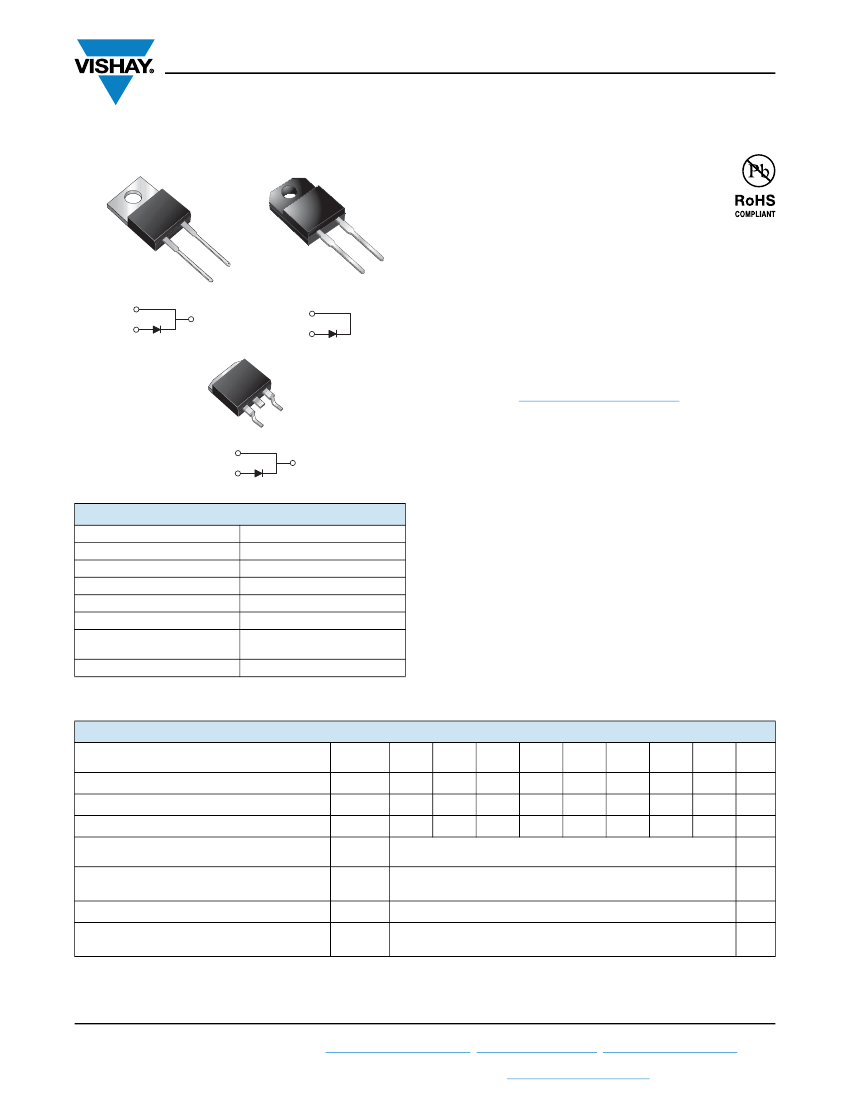

FES16xT, FESF16xT, FESB16xT
www.vishay.com
Vishay General Semiconductor
Ultrafast Plastic Rectifier
TO-220AC
ITO-220AC
FEATURES
• Power pack
• Glass passivated pellet chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 245 °C (for TO-263AB package)
• Solder dip 275 °C max. 10 s, per JESD 22-B106
(for TO-220AC and ITO-220AC package)
• AEC-Q101 qualified
(for ITO-220AC and TO-263AB package)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
2
1
FES16xT Series
PIN 1
PIN 2
2
1
FESF16xT Series
PIN 1
PIN 2
CASE
TO-263AB
K
2
1
FESB16xT Series
PIN 1
PIN 2
K
HEATSINK
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes, DC/DC
converters, and other power switching application.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Diode variations
16 A
50 V to 600 V
250 A
35 ns, 50 ns
0.975 V, 1.30 V, 1.50 V
150 °C
TO-220AC, ITO-220AC,
TO-263AB
Single
MECHANICAL DATA
Case:
TO-220AC, ITO-220AC, TO-263AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
as marked
Mounting Torque:
10 in-lbs max.
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
rectified current at T
C
= 100 °C
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Operating storage and temperature range
Isolation voltage (ITO-220AC only)
from terminal to heatsink t = 1 min
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
FES
16AT
50
35
50
FES
16BT
100
70
100
FES
16CT
150
105
150
FES
16DT
200
140
200
16
250
-65 to +150
1500
FES
16FT
300
210
300
FES
16GT
400
280
400
FES
16HT
500
350
500
FES
16JT
600
420
600
UNIT
V
V
V
A
A
°C
V
Revision: 10-Nov-17
Document Number: 88599
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
FES16xT, FESF16xT, FESB16xT
www.vishay.com
Vishay General Semiconductor
FES
16AT
FES
16BT
FES
16CT
FES
16DT
FES
16FT
FES
16GT
FES
16HT
FES
16JT
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage
Maximum DC reverse current at
rated DC blocking voltage
Maximum reverse recovery time
Typical junction capacitance
TEST CONDITIONS
16 A
T
C
= 25 °C
T
C
= 100 °C
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
SYMBOL
V
F (1)
I
R
t
rr
C
J
35
175
UNIT
V
μA
50
145
ns
pF
0.975
10
500
1.30
1.50
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to case
SYMBOL
R
JC
FES
1.2
FESF
1.7
FESB
1.2
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AC
ITO-220AC
TO-263AB
TO-263AB
ITO-220AC
TO-263AB
TO-263AB
(1)
PREFERRED P/N
FES16JT-E3/45
FESF16JT-E3/45
FESB16JT-E3/45
FESB16JT-E3/81
FESF16JTHE3/45
(1)
FESB16JTHE3/45
(1)
FESB16JTHE3/81
(1)
UNIT WEIGHT (g)
1.78
1.80
1.33
1.33
1.80
1.33
1.33
PACKAGE CODE
45
45
45
81
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tape and reel
Note
AEC-Q101 qualified, available in ITO-220AC and TO-263AB package
Revision: 10-Nov-17
Document Number: 88599
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
FES16xT, FESF16xT, FESB16xT
www.vishay.com
Vishay General Semiconductor

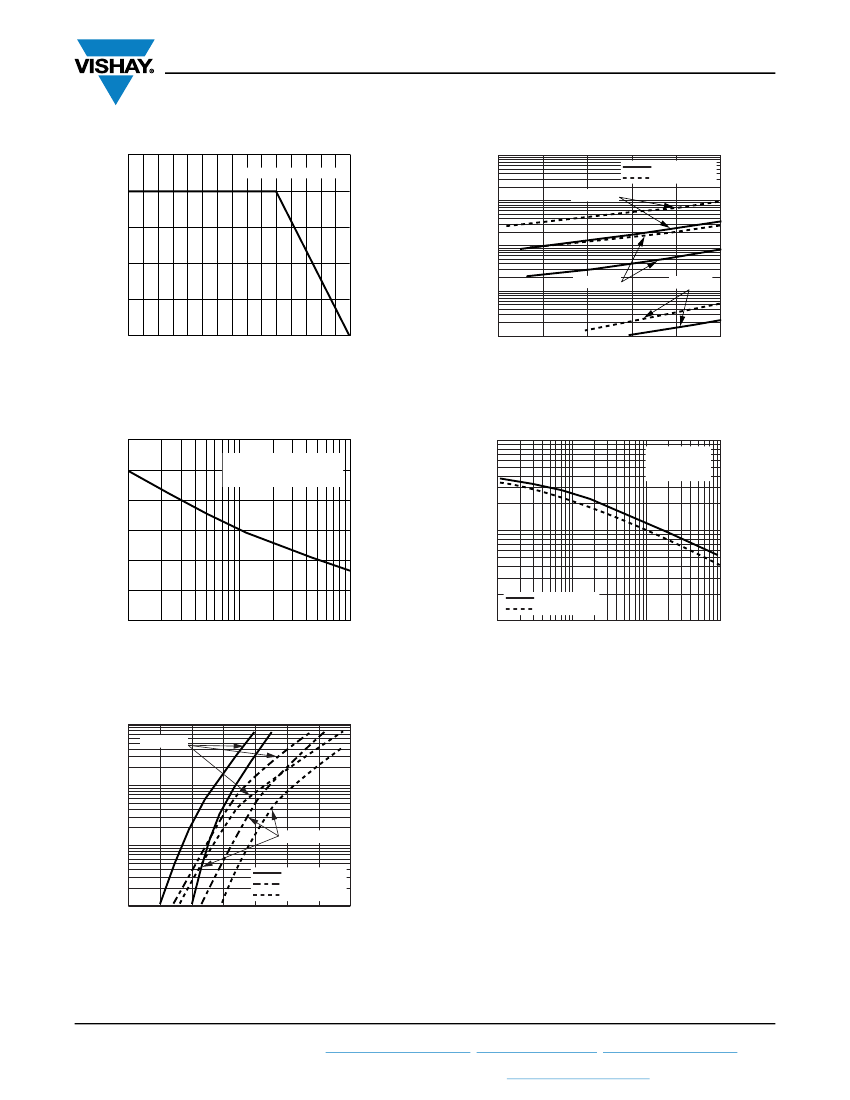

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
20
1000
Average Forward Rectified Current (A)
16
Instantaneous Reverse Leakage
Current (μA)
Resistive or Inductive Load
50 V to 200 V
300 V to 400 V
100
T
J
= 125 °C
12
10
8
T
J
= 100 °C
1
T
J
= 25 °C
4
0
0
50
100
150
0.1
0
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
300
1000
T
J
= T
J
max.
8.3 ms
Single
Half
Sine-Wave
(JEDEC Method)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Peak Forward
Surge
Current (A)
200
Junction Capacitance (pF)
250
150
100
100
50
50 V to 400 V
500 V to 600 V
10
1
10
100
0.1
1
10
100
0
Number of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
100
Instantaneous Forward Current (A)
T
J
= 125 °C
10
T
J
= 25 °C
1
50 V to 200 V
300 V to 400 V
500 V to 600 V
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Revision: 10-Nov-17
Document Number: 88599
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
FES16xT, FESF16xT, FESB16xT
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AC
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91) DIA.
0.148 (3.74) DIA.
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
PIN 1
PIN 2
CASE
Vishay General Semiconductor
ITO-220AC
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
45° REF.
0.600 (15.24)
0.580 (14.73)
0.671 (17.04)
0.651 (16.54)
2
0.191 (4.85)
0.171 (4.35)
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
7° REF.
0.350 (8.89)
0.330 (8.38)
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.135 (3.43) DIA.
0.122 (3.08) DIA.
PIN
1
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.603 (15.32)
0.573 (14.55)
7° REF.
PIN
2
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.110 (2.79)
0.100 (2.54)
0.025 (0.64)
0.015 (0.38)
0.037 (0.94)
0.027 (0.68)
0.205 (5.20)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
0.022 (0.56)
0.014 (0.36)
D
2
PAK (TO-263AB)
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) min.
0.33 (8.38) min.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) min.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 10-Nov-17
Document Number: 88599
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
