CY62167EV30 MoBL
®
16-Mbit (1M × 16/2M × 8) Static RAM
16-Mbit (1M × 16/2M × 8) Static RAM
Features
■
■
■
TSOP I package configurable as 1M × 16 or 2M × 8 SRAM
Very high speed: 45 ns
Temperature ranges
❐
Industrial: –40 °C to +85 °C
❐
Automotive-A: –40 °C to +85 °C
Wide voltage range: 2.20 V to 3.60 V
Ultra-low standby power
❐
Typical standby current: 1.5
A
❐
Maximum standby current: 12
A
Ultra-low active power
❐
Typical active current: 2.2 mA at f = 1 MHz
Easy memory expansion with CE
1
, CE
2
, and OE Features
Automatic power-down when deselected
CMOS for optimum speed and power
Offered in Pb-free 48-ball VFBGA and 48-pin TSOP I packages
■
■
low active current. Ultra low active current is ideal for providing
More Battery Life (MoBL
®
) in portable applications such as
cellular telephones. The device also has an automatic power
down feature that reduces power consumption by 99 percent
when addresses are not toggling. Place the device into standby
mode when deselected (CE
1
HIGH or CE
2
LOW or both BHE and
BLE are HIGH). The input and output pins (I/O
0
through I/O
15
)
are placed in a high impedance state when: the device is
deselected (CE
1
HIGH or CE
2
LOW), outputs are disabled (OE
HIGH), both Byte High Enable and Byte Low Enable are disabled
(BHE, BLE HIGH), or a write operation is in progress (CE
1
LOW,
CE
2
HIGH and WE LOW).
To write to the device, take Chip Enables (CE
1
LOW and CE
2
HIGH) and Write Enable (WE) input LOW. If Byte Low Enable
(BLE) is LOW, then data from I/O pins (I/O
0
through I/O
7
) is
written into the location specified on the address pins (A
0
through
A
19
). If Byte High Enable (BHE) is LOW, then data from the I/O
pins (I/O
8
through I/O
15
) is written into the location specified on
the address pins (A
0
through A
19
).
To read from the device, take Chip Enables (CE
1
LOW and CE
2
HIGH) and Output Enable (OE) LOW while forcing the Write
Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW, then data
from the memory location specified by the address pins appears
on I/O
0
to I/O
7
. If Byte High Enable (BHE) is LOW, then data from
memory appears on I/O
8
to I/O
15
. See
Truth Table on page 12
for a complete description of read and write modes.
For a complete list of related documentation,
click here.
■
■
■
■
■
Functional Description
The CY62167EV30 is a high performance CMOS static RAM
organized as 1M words by 16 bits or 2M words by 8 bits. This
device features an advanced circuit design that provides an ultra

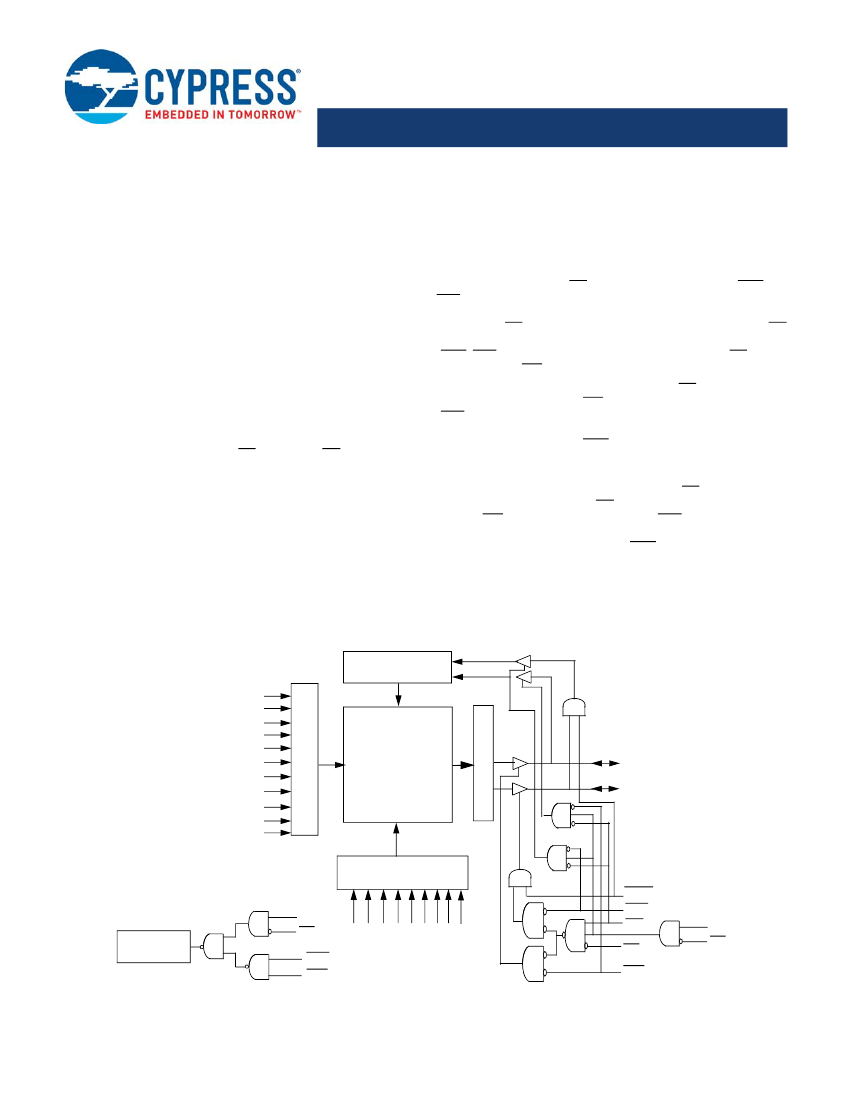

Logic Block Diagram
DATA IN DRIVERS
A
10
A
9
A
8
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
ROW DECODER
1M × 16 / 2M x 8
RAM Array
SENSE AMPS
I/O
0
–I/O
7
I/O
8
–I/O
15
COLUMN DECODER
BYTE
BHE
WE
OE
BLE
CE
2
Power Down
Circuit
CE
1
BHE
BLE
A
11
A
12
A
13
A
14
A
15
A
16
A
17
A
18
A
19
CE
2
CE
1
Cypress Semiconductor Corporation
Document Number: 38-05446 Rev. *P
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised May 11, 2017
CY62167EV30 MoBL
®
Contents
Pin Configuration ............................................................. 3
Product Portfolio .............................................................. 3
Maximum Ratings ............................................................. 4
Operating Range ............................................................... 4
Electrical Characteristics ................................................. 4
Capacitance ...................................................................... 5
Thermal Resistance .......................................................... 5
AC Test Loads and Waveforms ....................................... 5
Data Retention Characteristics ....................................... 6
Data Retention Waveform ................................................ 6
Switching Characteristics ................................................ 7
Switching Waveforms ...................................................... 8
Truth Table ...................................................................... 12
Ordering Information ...................................................... 13
Ordering Code Definitions ......................................... 13
Package Diagrams .......................................................... 14
Acronyms ........................................................................ 16
Document Conventions ................................................. 16
Units of Measure ....................................................... 16
Document History Page ................................................. 17
Sales, Solutions, and Legal Information ...................... 19
Worldwide Sales and Design Support ....................... 19
Products .................................................................... 19
PSoC® Solutions ...................................................... 19
Cypress Developer Community ................................. 19
Technical Support ..................................................... 19
Document Number: 38-05446 Rev. *P
Page 2 of 19
CY62167EV30 MoBL
®

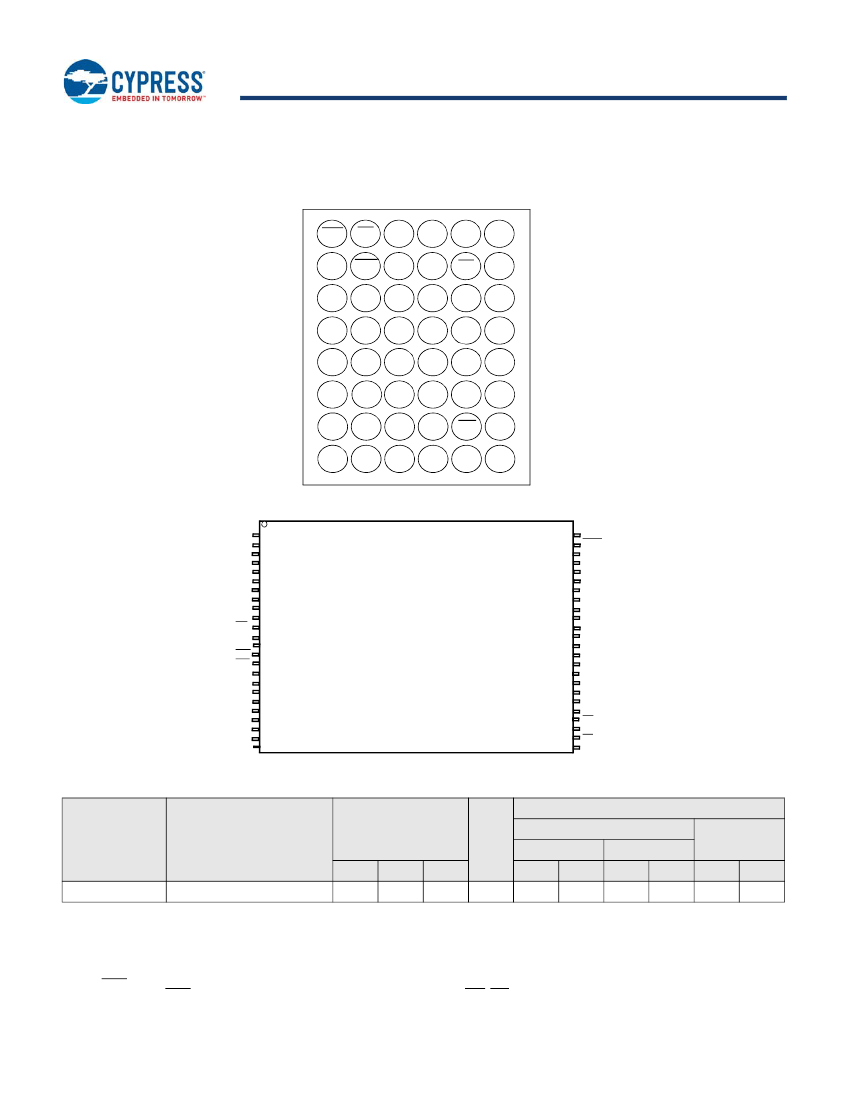

Pin Configuration
Figure 1. 48-ball VFBGA pinout (Top View)
[1, 2]
1
BLE
I/O
8
I/O
9
V
SS
V
CC
I/O
14
I/O
15
A
18
2
OE
BHE
I/O
10
I/O
11
I/O
12
I/O
13
A
19
A
8
3
A
0
A
3
A
5
A
17
NC
A
14
A
12
A
9
4
A
1
A
4
A
6
A
7
A
16
A
15
A
13
A
10
5
A
2
CE
1
I/O
1
I/O
3
I/O
4
I/O
5
WE
A
11
6
CE
2
I/O
0
I/O
2
V
CC
Vss
I/O
6
I/O
7
NC
A
B
C
D
E
F
G
H
Figure 2. 48-pin TSOP I pinout (Top View)
[2, 3]
A15
A14
A13
A12
A11
A10
A9
A8
A19
NC
WE
CE
2
NC
BHE
BLE
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A16
BYTE
Vss
I/O15/A20
I/O7
I/O14
I/O6
I/O13
I/O5
I/O12
I/O4
Vcc
I/O11
I/O3
I/O10
I/O2
I/O9
I/O1
I/O8
I/O0
OE
Vss
CE
1
A0
Product Portfolio
Power Dissipation
Product
Range
V
CC
Range (V)
Min
CY62167EV30LL
Industrial/Automotive-A
2.2
Typ
[4]
3.0
Max
3.6
45
Speed
(ns)
Operating I
CC
(mA)
f = 1 MHz
Typ
[4]
2.2
Max
4.0
f = f
max
Typ
[4]
25
Max
30
Standby I
SB2
(A)
Typ
[4]
1.5
Max
12
Notes
1. Ball H6 for the VFBGA package can be used to upgrade to a 32M density.
2. NC pins are not connected on the die.
3. The BYTE pin in the 48-pin TSOP I package has to be tied to V
CC
to use the device as a 1 M × 16 SRAM. The 48-pin TSOP I package can also be used as a 2 M × 8
SRAM by tying the BYTE signal to V
SS
. In the 2 M × 8 configuration, Pin 45 is A20, while BHE, BLE and I/O
8
to I/O
14
pins are not used.
4. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at V
CC
= V
CC(typ)
, T
A
= 25 °C.
