DF1508S-E3-77 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DF1508S-E3-77

DF1508S-E3-77: DescriptionPower Switch ICs - Power Distribution; Categorysemiconductor Discrete semiconductor; File Size86KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DF1508S-E3-77 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF1508S-E3-77	-	-	View	Buy Now

DF1508S-E3-77 Overview

Power Switch ICs - Power Distribution

DF1508S-E3-77 Parametric

Parameter Name	Attribute value
Product Category	Bridge Rectifiers
Manufacturer	Vishay
RoHS	Details
Type	Single Phase Bridge
Mounting Style	PCB Mount
Termination Style	SMD/SMT
Package / Case	DFS
Peak Reverse Voltage	800 V
Vf - Forward Voltage	1.1 V
Max Surge Current	50 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Length	8.51 mm
Width	6.5 mm
Height	3.3 mm
Packaging	Reel
Packaging	MouseReel
Packaging	Cut Tape
Ir - Reverse Current	5 uA
Product	Bridge Rectifiers
Factory Pack Quantity	1500
Vr - Reverse Voltage	560 V
Unit Weight	0.010547 oz

Preview

Download Datasheet

View All

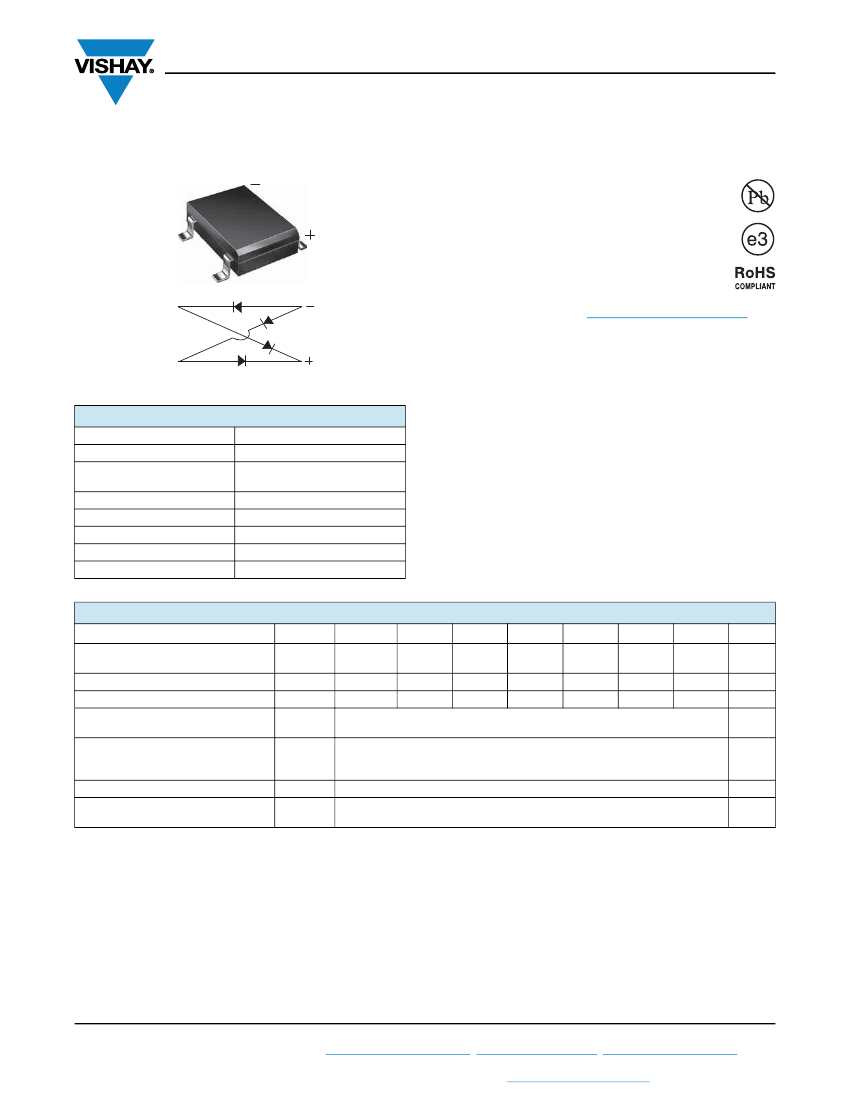

DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S

www.vishay.com

Vishay General Semiconductor

Miniature Glass Passivated Single-Phase

Surface Mount Bridge Rectifiers

FEATURES

• UL recognition, file number E54214

• Ideal for automated placement

• High surge current capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 260 °C

• Material categorization: For definitions of

compliance please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

Case Style DFS

PRIMARY CHARACTERISTICS

Package

F(AV)

RRM

FSM

at I

= 1.5 A

max.

Diode variations

DFS

1.5 A

50 V, 100 V, 200 V, 400 V, 600 V,

800 V, 1000 V

50 A

5 μA

1.1 V

150 °C

Quad

General purpose use in AC/DC bridge full wave rectification

for SMPS, lighting ballaster, adapter, battery charger, home

appliances, office equipment, and telecommunication

applications.

MECHANICAL DATA

Case:

DFS

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked on body

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse

voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward output

rectified current at T

= 40 °C

(1)

Peak forward surge current single half

sine-wave superimposed on rated

load

Rating for fusing (t < 8.3 ms)

Operating junction and storage

temperature range

SYMBOL DF15005S DF1501S DF1502S DF1504S DF1506S DF1508S DF1510S

RRM

RMS

F(AV)

FSM

, T

STG

100

200

140

200

400

280

400

1.5

- 55 to + 150

600

420

600

800

560

800

1000

700

1000

UNIT

°C

Note

(1)

Units mounted on PCB with 0.51" x 0.51" (13 mm x 13 mm) copper pads

Revision: 19-Aug-13

Document Number: 88570

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

DF1508S-E3-77 Related Products

	DF1508S-E3-77	DF1506S-E3-77	DF1501S-E3-77
Description	Power Switch ICs - Power Distribution	High Speed Operational Amplifiers DUAL HI-SPD LO-PWR LO-DIST VOL FDBK AMP
Product Category	Bridge Rectifiers	Bridge Rectifiers	Bridge Rectifiers
Manufacturer	Vishay	Vishay	Vishay
RoHS	Details	Details	Details
Type	Single Phase Bridge	Single Phase Bridge	Single Phase Bridge
Mounting Style	PCB Mount	PCB Mount	PCB Mount
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	DFS	DFS	DFS
Peak Reverse Voltage	800 V	600 V	100 V
Vf - Forward Voltage	1.1 V	1.1 V	1.1 V
Max Surge Current	50 A	50 A	50 A
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C
Maximum Operating Temperature	+ 150 C	+ 150 C	+ 150 C
Length	8.51 mm	8.51 mm	8.51 mm
Width	6.5 mm	6.5 mm	6.5 mm
Height	3.3 mm	3.3 mm	3.3 mm
Ir - Reverse Current	5 uA	5 uA	5 uA
Product	Bridge Rectifiers	Bridge Rectifiers	Bridge Rectifiers
Factory Pack Quantity	1500	1500	1500
Vr - Reverse Voltage	560 V	420 V	70 V
Unit Weight	0.010547 oz	0.010547 oz	0.010547 oz
Packaging	Cut Tape	Reel	Cut Tape
