CS230001-CZZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CS230001-CZZ

CS230001-CZZ: DescriptionTimers u0026 Support Products IC Clock BW1Hz w/ 1x 2x 4x 8x; Categorylogic logic; File Size59KB，4 Pages; ManufacturerCirrus Logic; Websitehttp://www.cirrus.com; Environmental Compliance

Download Datasheet Parametric View All

CS230001-CZZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CS230001-CZZ	-	-	View	Buy Now

CS230001-CZZ Overview

Timers u0026 Support Products IC Clock BW1Hz w/ 1x 2x 4x 8x

CS230001-CZZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	MSOP
package instruction	LEAD FREE, MSOP-10
Contacts	10
Reach Compliance Code	compliant
series	S
Input adjustment	STANDARD
JESD-30 code	S-PDSO-G10
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	10
Actual output times
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
minfmax	75 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

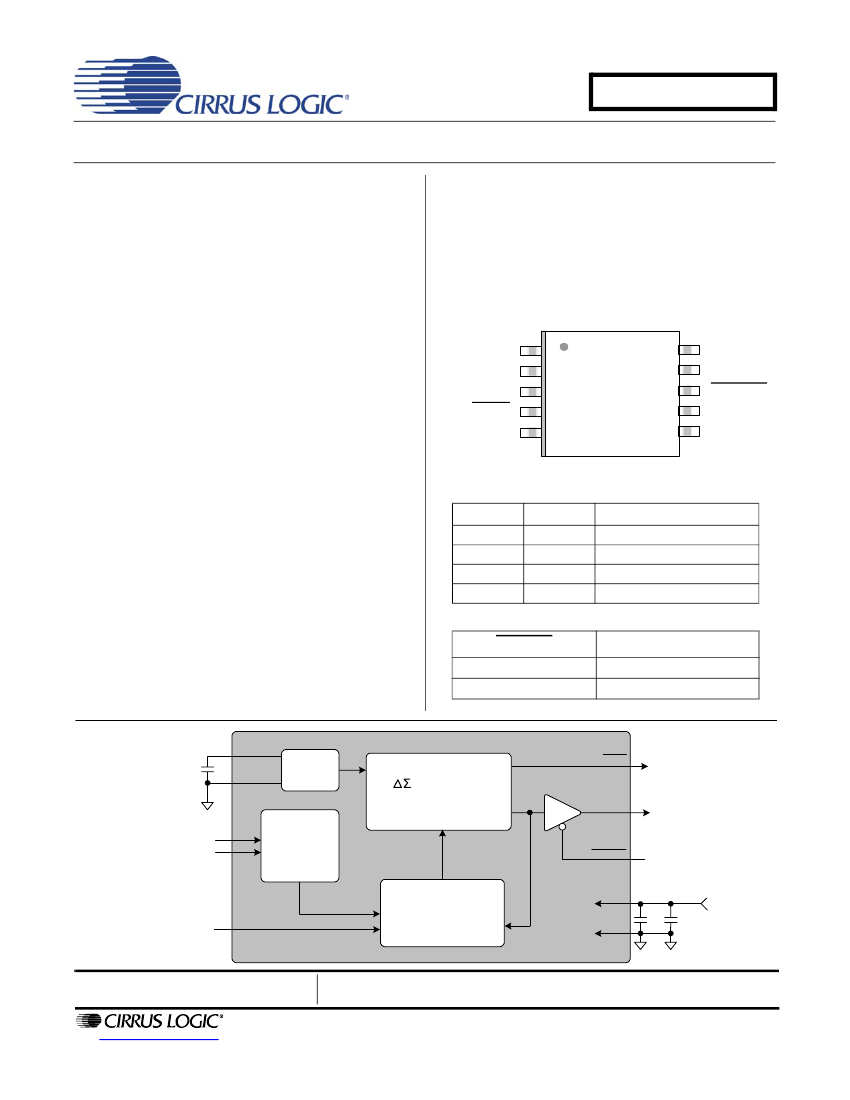

CS2300-01

1x, 2x, 4x, and 8x Clock Multiplier with Internal LCO

Features

Clock Multiplier / Jitter Reduction

– Generates a Low Jitter 6 - 75 MHz Clock

from a Jittery 750 kHz to 30 MHz Clock

Source

Internal LCO Reference Clock

1 Hz Loop Filter Bandwidth

Selectable Multiplication Factors

– 1x, 2x, 4x, and 8x

Output Enable Pin

Lock Indicator

Minimal Board Space Required

– No External Analog Loop-filter

Components

Ordering Information

The CS2300-01 is available in a 10-pin MSOP package

in Commercial (-10°C to +70°C) grade. Customer de-

velopment kits are also available for custom device

prototyping and device evaluation. Please see

“Order-

ing Information” on page 2

for complete details.

Pin-Out Diagram

GND

CLK_OUT

LOCK

CLK_IN

OUT_EN

FILTN

FILTP

General Description

The CS2300-01 is an extremely versatile system clock-

ing device that utilizes a programmable phase lock loop.

The CS2300-01 is based on a hybrid analog-digital PLL

architecture comprised of a unique combination of a

Delta-Sigma Fractional-N Frequency Synthesizer and a

Digital PLL. This architecture allows for generation of a

low-jitter clock relative to an external noisy synchroniza-

tion clock with frequencies as low as 750 kHz. The

CS2300-01 is a CS2300-OTP device that has been pre-

configured at the factory. There are three hardware con-

figuration pins available for mode and feature selection.

Hardware Controls Settings

PLL_OUT

1x CLK_IN

2x CLK_IN

4x CLK_IN

8x CLK_IN

OUT_EN

CLK_OUT

Enabled

High Impedance

FILTP

0.1 µF

LOCK

FILTN

LCO

PLL Lock

Indicator

6 MHz to 75 MHz

PLL Output

Output

Enable/Disable

Fractional-N

Frequency Synthesizer

M[1:0]

00=1x

01=2x

10=4x

11=8x

Output to Input

Clock Ratio

CLK_OUT

Ratio Selection

OUT_EN

750 kHz to 30 MHz

Frequency Reference

CLK_IN

1 Hz BW Digital PLL &

Fractional N Logic

0.1 µF

1 µF

3.3 V

GND

Advance Product Information

http://www.cirrus.com

This document contains information for a new product.

Cirrus Logic reserves the right to modify this product without notice.

Cirrus Logic, Inc. 2008

AUG '08

PS846A4

CS2300-01

6. REVISION HISTORY

Release

Initial Release

Corrected part number

Reduced page count and updated formatting

Updated formatting

Changes

Contacting Cirrus Logic Support

For all product questions and inquiries, contact a Cirrus Logic Sales Representative.

To find one nearest you, go to

www.cirrus.com.
