DN2535
N-Channel Depletion-Mode
Vertical DMOS FETs
Features
►
►
►
►
►
►
High input impedance
Low input capacitance
Fast switching speeds
Low on-resistance
Free from secondary breakdown
Low input and output leakage
General Description
The Supertex DN2535 is a low threshold depletion mode
(normally-on) transistor utilizing an advanced vertical
DMOS structure and Supertex’s well-proven silicon-gate
manufacturing process. This combination produces a device
with the power handling capabilities of bipolar transistors
and with the high input impedance and positive temperature
coefficient inherent in MOS devices. Characteristic of all
MOS structures, this device is free from thermal runaway and
thermally-induced secondary breakdown.
Supertex’s vertical DMOS FETs are ideally suited to a
wide range of switching and amplifying applications where
high breakdown voltage, high input impedance, low input
capacitance, and fast switching speeds are desired.
Applications
►
►
►
►
►
►
►
Normally-on switches
Solid state relays
Converters
Linear amplifiers
Constant current sources
Power supply circuits
Telecom
Ordering Information
Device
DN2535
Package Options
TO-92
DN2535N3-G
TO-220
DN2535N5-G
BV
DSX
/BV
DGX
(V)
R
DS(ON)
(max)
(Ω)
I
DSS
(min)
(mA)
350
25
150
-G indicates package is RoHS compliant (‘Green’)

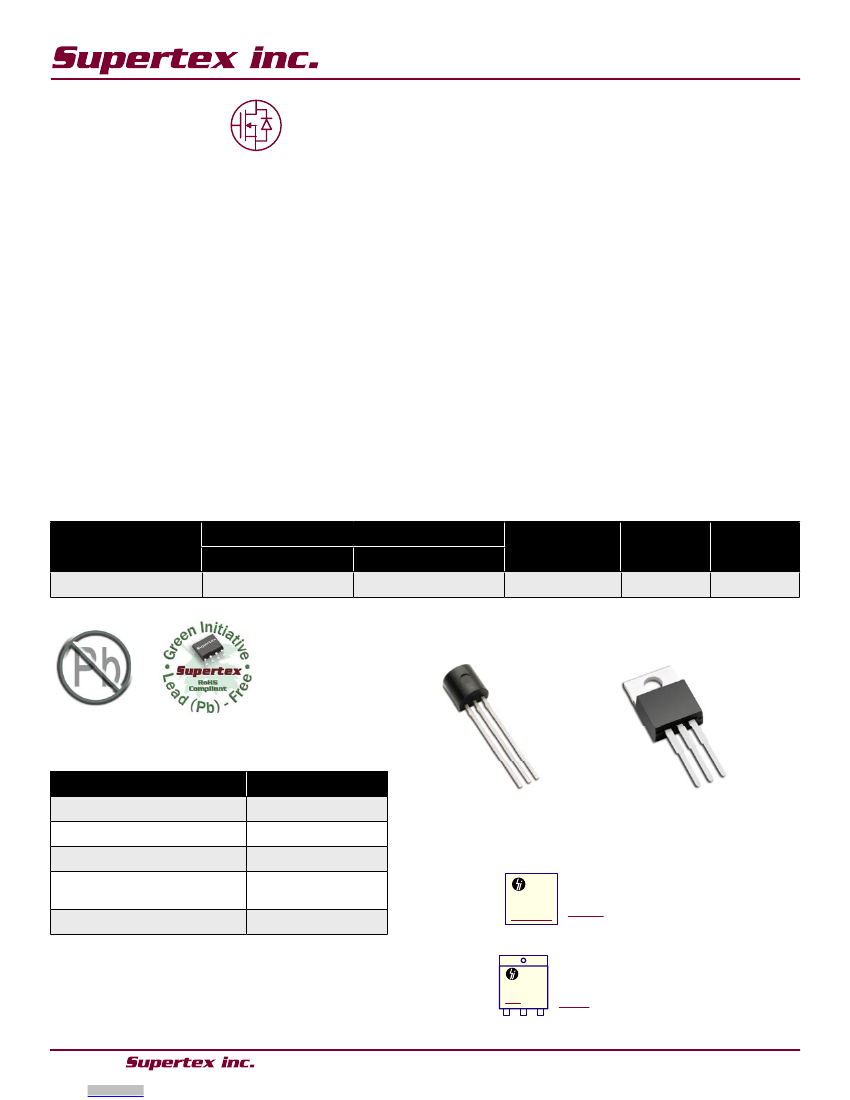

Pin Configurations
DRAIN
SOURCE
Absolute Maximum Ratings
Parameter
Drain-to-source voltage
Drain-to-gate voltage
Gate-to-source voltage
Operating and storage
temperature
Soldering temperature*
Value
BV
DSX
BV
DGX
±20V
-55
O
C to +150
O
C
300
O
C
DRAIN
GATE
3-Lead TO-92 (N3)
GATE
SOURCE
DRAIN
3-Lead TO-220 (N5)
Product Marking
DN
2 5 3 5
YYWW
YY = Year Sealed
WW = Week Sealed
= “Green” Packaging
Absolute Maximum Ratings are those values beyond which damage to the
device may occur. Functional operation under these conditions is not implied.
Continuous operation of the device at the absolute rating level may affect
device reliability. All voltages are referenced to device ground.
*
Distance of 1.6mm from case for 10 seconds.
3-Lead TO-92 (N3)
L = Lot Number
YY = Year Sealed
WW = Week Sealed
= “Green” Packaging
DN2535N5
LLLLLLLLL
YYWW
3-Lead TO-220 (N5)
●
1235 Bordeaux Drive, Sunnyvale, CA 94089
●
Tel: 408-222-8888
●
www.supertex.com
DN2535
Thermal Characteristics
Package
TO-92
TO-220
(continuous)
(mA)
I
D
†
(pulsed)
(mA)
I
D
Power Dissipation
@T
C
= 25 C
(W)
O
O
( C/W)
θ
jc
( C/W)
O
θ
ja
(mA)
I
DR
†
(mA)
I
DRM
120
500
500
500
1.0
15
125
8.3
170
70
120
500
500
500
Notes:
† I
D
(continuous) is limited by max rated T
j
.
Electrical Characteristics
(T
Sym
BV
DSX
V
GS(OFF)
ΔV
GS(OFF)
I
GSS
I
D(OFF)
I
DSS
R
DS(ON)
ΔR
DS(ON)
G
FS
C
ISS
C
OSS
C
RSS
t
d(ON)
t
r
t
d(OFF)
t
f
V
SD
t
rr
Parameter
A
= 25
O
C unless otherwise specified)
Min
350
-1.5
-
-
-
-
150
-
-
-
-
-
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
17
-
325
200
12
1.0
-
-
-
-
-
800
Max
-
-3.5
-4.5
100
10
1.0
-
25
1.1
-
300
30
5.0
10
15
15
20
1.8
-
Units
V
V
mV/
O
C
nA
µA
mA
mA
Ω
%/
O
C
mmho
pF
Conditions
V
GS
= -5.0V, I
D
= 100µA
V
DS
= 25V, I
D
= 10µA
V
DS
= 25V, I
D
= 10µA
V
GS
= ±20V, V
DS
= 0V
V
DS
= Max rating, V
GS
= -10V
V
DS
= 0.8 Max Rating,
V
GS
= -10V, T
A
= 125
O
C
V
GS
= 0V, V
DS
= 25V
V
GS
= 0V, I
D
= 120mA
V
GS
= 0V, I
D
= 120mA
V
DS
= 10V, I
D
= 100mA
V
GS
= -10V,
V
DS
= 25V,
f = 1.0MHz
V
DD
= 25V,
I
D
= 150mA,
R
GEN
= 25Ω,
V
GS
= -10V, I
SD
= 120mA
V
GS
= -10V, I
SD
= 1.0A
Drain-to-source breakdown voltage
Gate-to-source off voltage
Change in V
GS(OFF)
with temperature
Gate body leakage current
Drain-to-source leakage current
Saturated drain-to-source current
Static drain-to-source on-state resistance
Change in R
DS(ON)
with temperature
Forward transconductance
Input capacitance
Common source output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
Turn-off delay time
Fall time
Diode forward voltage drop
Reverse recovery time
ns
V
ns
Notes:
1.
All D.C. parameters 100% tested at 25
O
C unless otherwise stated. (Pulse test: 300µs pulse, 2% duty cycle.)
2.
All A.C. parameters sample tested.
Switching Waveforms and Test Circuit
0V
90%
10%
t
(ON)
V
DD
PULSE
GENERATOR
R
L
OUTPUT
INPUT
-10V
t
(OFF)
t
r
t
d(OFF)
t
F
10%
t
d(ON)
V
DD
R
GEN
10%
90%
D.U.T.
INPUT
OUTPUT
0V
90%
●
1235 Bordeaux Drive, Sunnyvale, CA 94089
●
Tel: 408-222-8888
●
www.supertex.com
2
DN2535

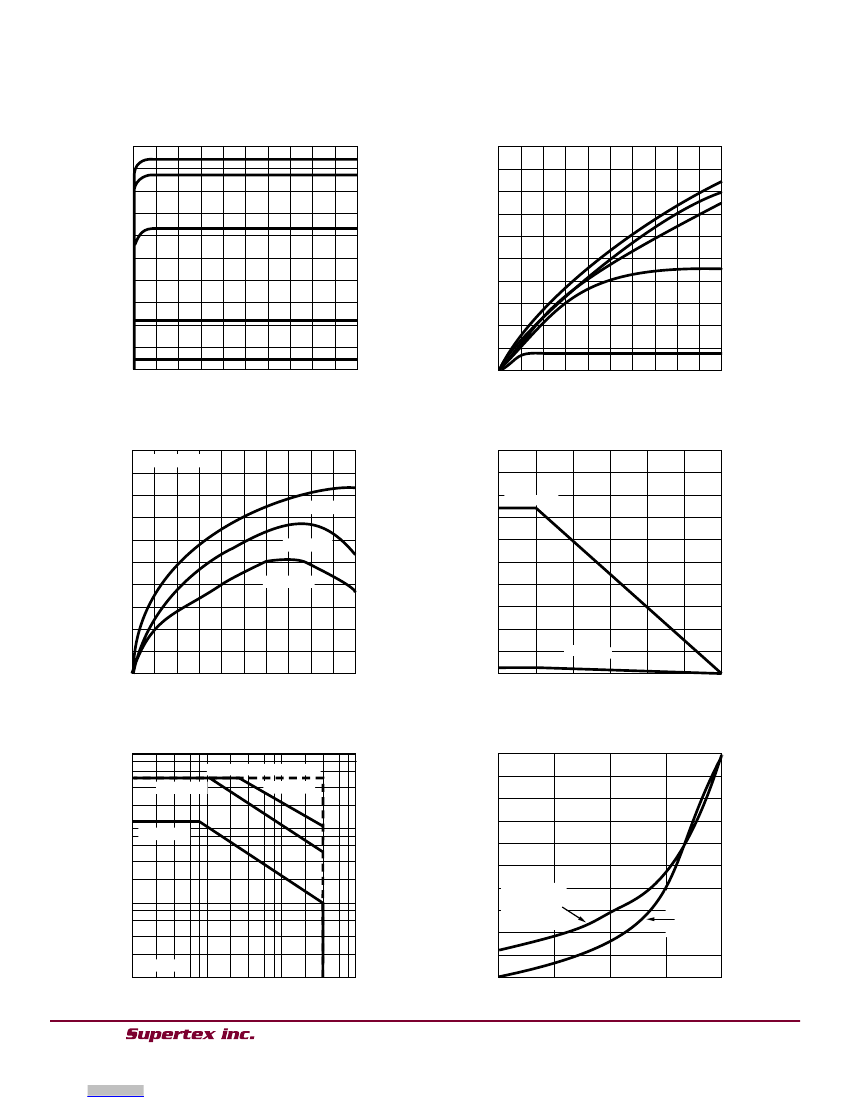

Typical Performance Curves
Output Characteristics
0.5
V
GS
= 1.0V
0.5V
250
V
GS
= 1.0V
0.5V
0V
Saturation Characteristics
0.4
200
I
D
( a mpe re s )
0.3
0V
I
D
( millia mps )
150
0.2
100
-0.5V
0.1
-0.5V
50
-1.0V
0
0
1
2
3
4
5
0
0
80
160
240
320
-1.0V
400
V
DS
(volts)
Transconductance vs. Drain Current
0.5
V
DS
(volts)
Power Dissipation vs. Ambient Temperature
20
V
DS
= 10V
0.4
T
A
= -55
°C
TO-220
G
F S
( s ie me ns )
P
D
( wa tts )
0.3
T
A
= 25
°C
10
0.2
T
A
= 125
°C
0.1
(T A = 2 5
°
C )
0
0
50
100
150
200
250
TO-92
0
0
25
50
75
100
125
150
I
D
(milliamps)
T
C
(
°C)
Maximum Rated Safe Operating Area
1
1.0
Thermal Response Characteristics
(T A = 25
°C)
TO-220 (DC)
T he rma l R e s is ta nc e ( norma liz e d)
TO-92/TO-220 (pulsed)
0.8
I
D
( a mpe re s )
0.1
TO-92 (DC)
0.6
0.4
0.01
TO-220
T
C
= 25
°C
P
D
= 15W
TO-92
T
C
= 25
°C
P
D
= 1.0W
0.2
0.001
1
T
C
= 25
°C
0
10
100
1000
0.001
0.01
0.1
1
10
V
DS
(volts)
t
p
(seconds)
●
1235 Bordeaux Drive, Sunnyvale, CA 94089
●
Tel: 408-222-8888
●
www.supertex.com
3
DN2535

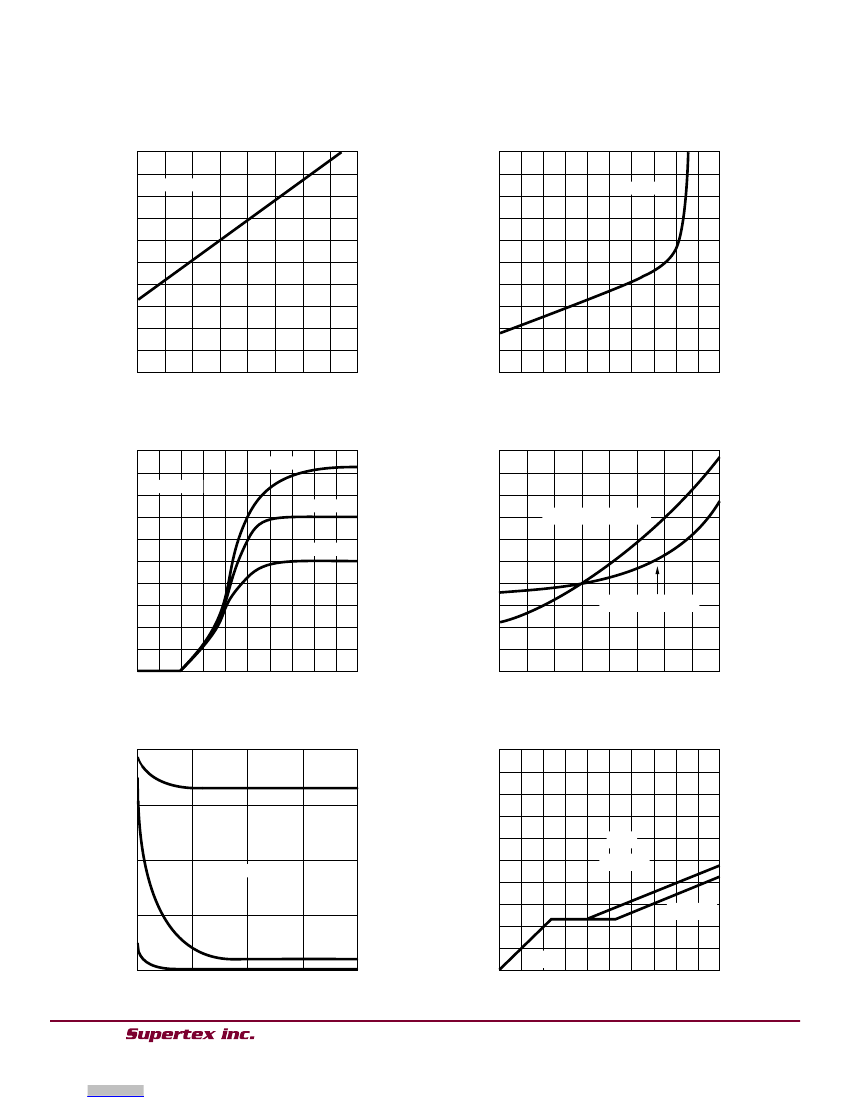

Typical Performance Curves (cont.)
BV
DSS
Variation with Temperature
1.1
100
On-Resistance vs. Drain Current
1.05
V
GS
= -5V
80
V
GS
= 0V
B V
D S S
N orma liz e d
1.0
R
D S ( on)
( O hms )
-50
50
100
150
60
0.95
40
0.9
20
0
0
0
80
160
240
320
400
T
j
(
°C)
I
D
(milliamps)
Transfer Characteristics
0.40
V
GS(off)
and R
2.5
DS
Variation with Temperature
T
A
= -55
°C
0.32
V
DS
= 10V
T
A
= 25
°C
2
I
D
( a mpe re s )
R
DS (ON)
@ I
D
= 120mA
N orma liz e d
0.24
T
A
= 125
°C
1.5
0.16
1
V
GS(OFF)
@ 10
µA
0.5
0.08
0
-3
2
-1
0
1
2
0
-50
0
50
100
150
V
GS
(Volts)
Capacitance Vs. Drain-to-Source Voltage
200
T
j
(
°C)
Gate Drive Dynamic Characteristics
15
C
ISS
150
C ( P ic ofa ra ds )
10
V
G S
( V olts )
200pF
5
100
V
GS
= -10V
V
DS
= 20V
0
50
-5
V
DS
= 40V
C
RSS
0
0
10
20
30
C
OSS
40
170pF
0
0.4
0.8
1.2
1.6
2.0
V
DS
(Volts)
Q
C
(Nanocoulombs)
●
1235 Bordeaux Drive, Sunnyvale, CA 94089
●
Tel: 408-222-8888
●
www.supertex.com
4
DN2535
3-Lead TO-92 Package Outline (L/LL/N3)
D
A
Seating Plane
1
2
3
L
e1
e
b
c
Front View
Side View
E1
E
1
2
3
Bottom View
Symbol
Dimensions
(inches)
MIN
NOM
MAX
A
.170
-
.210
b
.014
†
-
.022
†
c
.014
†
-
.022
†
D
.175
-
.205
E
.125
-
.165
E1
.080
-
.105
e
.095
-
.105
e1
.045
-
.055
L
.500
-
.610*
JEDEC Registration TO-92.
* This dimension is not specified in the original JEDEC drawing. The value listed is for reference only.
† This dimension is a non-JEDEC dimension.
Drawings not to scale.
Supertex Doc.#:
DSPD-3TO92N3, Version D080408.
●
1235 Bordeaux Drive, Sunnyvale, CA 94089
●
Tel: 408-222-8888
●
www.supertex.com
5
