DSC9G02
Silicon NPN epitaxial planar type
For high-frequency amplification
DSC5G02 in SSMini3 type package
Features
High transition frequency f
T
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: C5
Packaging
DSC9G02×0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Collector power dissipation
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
opr
T
stg
Rating
30
20
3
15
125
150
–40 to +85
–55 to +150
Unit
V
V
V
mA
mW
°C
°C
°C
1: Base
2: Emitter
3: Collector
Panasonic
JEITA
Code

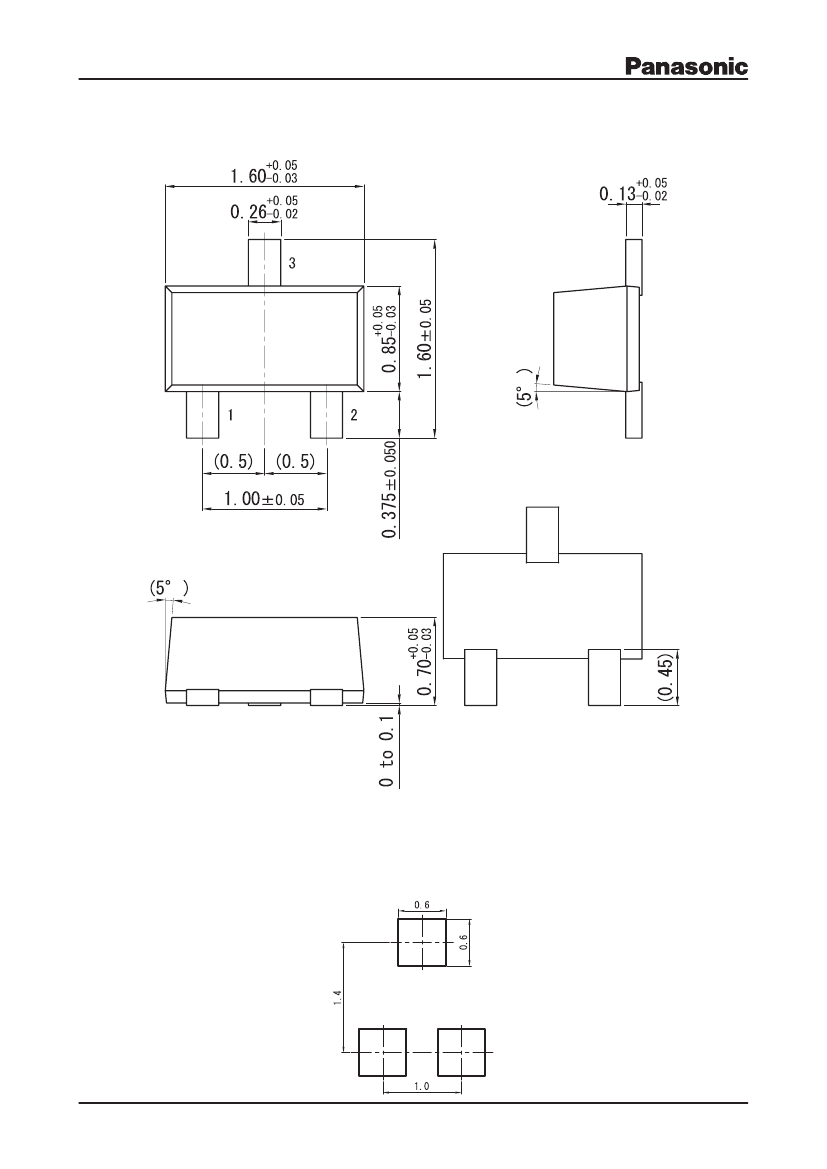

SSMini3-F3-B
SC-89
SOT-490
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Emitter-base voltage (Collector open)
Base-emitter voltage
Forward current transfer ratio
*1
Transition frequency
Reverse transfer capacitance
(Common emitter)
Power gain
Noise figure
Symbol
V
CBO
V
EBO
V
BE
h
FE
f
T
C
re
PG
NF
Conditions
I
C
= 10
mA,
I
E
= 0
I
E
= 10
mA,
I
C
= 0
V
CE
= 6 V, I
C
= 1 mA
V
CE
= 6 V, I
C
= 1 mA
V
CE
= 6 V, I
C
= 1 mA
V
CE
= 6 V, I
C
= 1 mA , f = 10.7 MHz
V
CE
= 6 V, I
C
= 1 mA , f = 100 MHz
V
CE
= 6 V, I
C
= 1 mA , f = 100 MHz
65
450
650
0.6
24
3.3
Min
30
3
0.72
260
Typ
Max
Unit
V
V
V
MHz
pF
dB
dB
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *
1: Rank classification
Code
Rank
h
FE
Marking Symbol
C
C
65 to 160
C5C
D
D
100 to 260
C5D
0
No-rank
65 to 260
C5
Product of no-rank is not classified and have no marking symbol for rank.
Publication date: February 2014
Ver. BED
1
