CAT25080LI-G

Description
PCI Interface IC 32 Lane 18 Port PCIe Gen 3 Switch IC
Categorystorage    storage
File Size187KB,19 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

CAT25080LI-G Online Shopping

Suppliers Part Number Price MOQ In stock
CAT25080LI-G - - View Buy Now

CAT25080LI-G Overview

PCI Interface IC 32 Lane 18 Port PCIe Gen 3 Switch IC

CAT25080LI-G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Manufacturer packaging code646AA
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time1 week
Other features100 YEAR DATA RETENTION
Maximum clock frequency (fCLK)5 MHz
Data retention time - minimum100
Durability1000000 Write/Erase Cycles
JESD-30 codeR-PDIP-T8
JESD-609 codee4
length9.27 mm
memory density8192 bit
Memory IC TypeEEPROM
memory width8
Number of functions1
Number of terminals8
word count1024 words
character code1000
Operating modeSYNCHRONOUS
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
organize1KX8
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Parallel/SerialSERIAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply2/5 V
Certification statusNot Qualified
Maximum seat height5.33 mm
Serial bus typeSPI
Maximum standby current0.000002 A
Maximum slew rate0.002 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Maximum write cycle time (tWC)5 ms
write protectHARDWARE/SOFTWARE

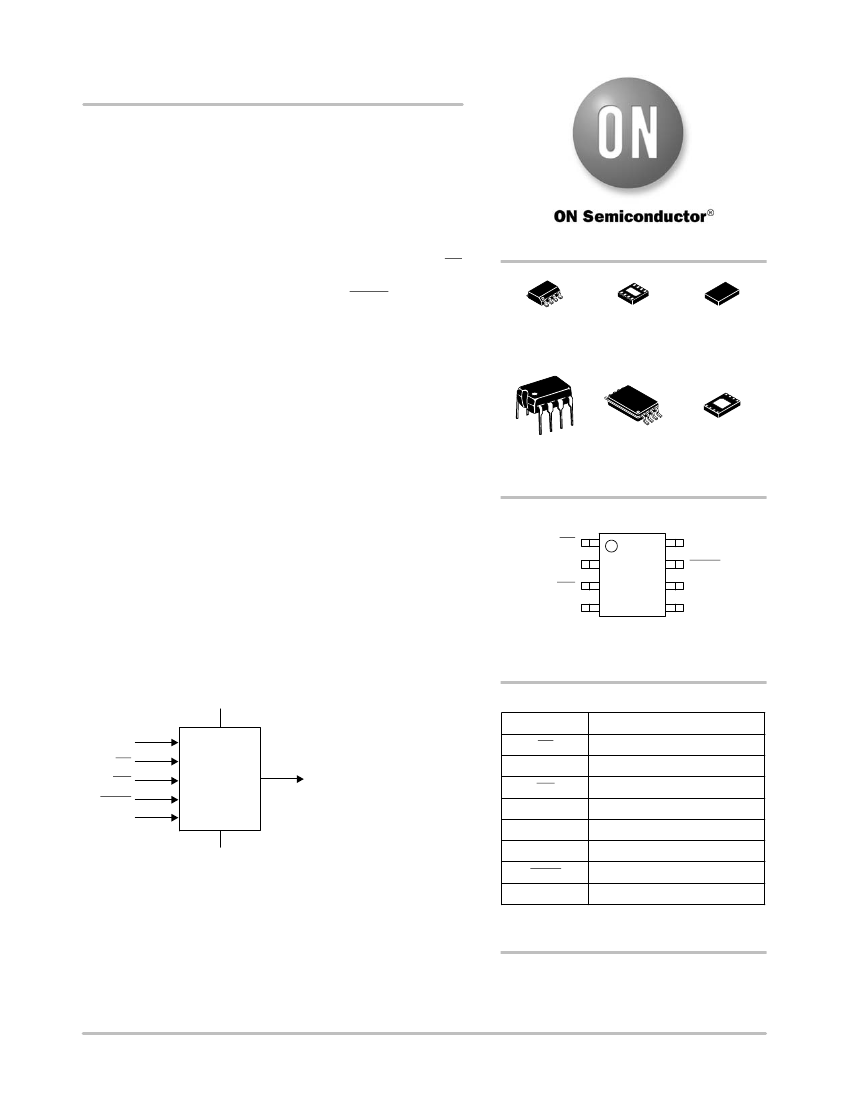

CAT25080, CAT25160
8-Kb and 16-Kb SPI Serial
CMOS EEPROM
Description
The CAT25080/25160 are 8−Kb/16−Kb Serial CMOS EEPROM
devices internally organized as 1024x8/2048x8 bits. They feature a
32−byte page write buffer and support the Serial Peripheral Interface
(SPI) protocol. The device is enabled through a Chip Select (CS)
input. In addition, the required bus signals are a clock input (SCK),
data input (SI) and data output (SO) lines. The HOLD input may be
used to pause any serial communication with the CAT25080/25160
device. These devices feature software and hardware write protection,
including partial as well as full array protection.
Features
http://onsemi.com
SOIC−8
V SUFFIX
CASE 751BD
UDFN−8
HU2 SUFFIX
CASE 517AW
TDFN−8*
VP2 SUFFIX
CASE 511AK
20 MHz SPI (5 V) Compatible
1.8 V to 5.5 V Supply Voltage Range
SPI Modes (0,0) & (1,1)
32−byte Page Write Buffer
Self−timed Write Cycle
Hardware and Software Protection
Block Write Protection
Protect 1/4, 1/2 or Entire EEPROM Array
Low Power CMOS Technology
1,000,000 Program/Erase Cycles
100 Year Data Retention
Industrial and Extended Temperature Range
8−lead PDIP, SOIC, TSSOP and 8−pad TDFN, UDFN Packages
These Devices are Pb−Free, Halogen Free/BFR Free, and RoHS
Compliant
V
CC
PDIP−8
L SUFFIX
CASE 646AA
TSSOP−8
Y SUFFIX
CASE 948AL
UDFN−8
HU4 SUFFIX
CASE 517AZ
PIN CONFIGURATION
CS
SO
WP
V
SS
1
V
CC
HOLD
SCK
SI
PDIP (L), SOIC (V), TSSOP (Y),
TDFN* (VP2), UDFN (HU2, HU4)
* Not recommended for new designs
PIN FUNCTION
Pin Name
Function
Chip Select
Serial Data Output
Write Protect
Ground
Serial Data Input
Serial Clock
Hold Transmission Input
Power Supply
CS
SI
CS
WP
HOLD
SCK
V
SS
CAT25080
CAT25160
SO
SO
WP
V
SS
SI
SCK
HOLD
V
CC
Figure 1. Functional Symbol
†The exposed pad for the TDFN/UDFN packages can
be left floating or connected to Ground.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 18 of this data sheet.
©
Semiconductor Components Industries, LLC, 2012
August, 2012
Rev. 8
1
Publication Order Number:
CAT25080/D
