1N5819HW
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
(@ T
A
= +25°C)
V
RRM
(V)
40
I
O
(A)
1.0
V
F(MAX)
(mV)
450
I
R(MAX)
(µA)
50
Features and Benefits
•
•
•
•
•
•
High Surge Capability
Low Power Loss, High Efficiency
High Current Capability and Low Forward Voltage Drop
Guard Ring Die Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Description and Applications
•
•
•
For Use in Low Voltage, High Frequency Inverters
Free Wheeling
Polarity Protection Application
Mechanical Data
•
•
•
•
•
•
Case: SOD123
Plastic Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Polarity: Cathode Band
Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead
Free Plating) Solderable per MIL-STD-202, Method 208
e3
Weight: 0.01 grams (approximate)
Top View
Ordering Information
(Note 4)
Part Number
1N5819HW-7-F
Notes:
Case
SOD-123
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant
2.. See http://www.diodes.com/quality/lead_free.htmlfor more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
.
Marking Information
SL = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
SL
Date Code Key
Year
Code
Month
Code
2011
Y
Jan
1
Feb
2
2012
Z
Mar
3
Apr
4
YM
2013
A
May
5
2014
B
Jun
6
Jul
7
2015
C
Aug
8
Sep
9
2016
D
Oct
O
Nov
N
2017
E
Dec
D
1N5819HW
Document number: DS30217 Rev. 16 - 2
1 of 5
www.diodes.com
June 2014
© Diodes Incorporated
1N5819HW
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Repetitive Peak Forward Current
t
p
≤
1ms,
δ ≤
0.5
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
@ T
L
= +90°C
@ I
R
= 1.0mA
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FRM
I
FSM
Value
40
28
1.0
1.5
25
Unit
V
V
A
A
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Typical Thermal Resistance Junction to Ambient (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J,
T
STG
Value
450
222
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 3)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
40
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
10
1
15
1.5
50
Max
⎯
0.320
0.450
0.750
1.0
10
50
2
75
3
60
Unit
V
V
mA
mA
µA
mA
µA
mA
pF
Test Condition
I
R
= 1.0mA
I
F
= 0.1A
I
F
= 1.0A
I
F
= 3.0A
V
R
= 40V, T
A
= +25°C
V
R
= 40V, T
A
= +100°C
V
R
= 4V, T
A
= +25°C
V
R
= 4V, T
A
= +100°C
V
R
= 6V, T
A
= +25°C
V
R
= 6V, T
A
= +100°C
V
R
= 4V, f = 1.0MHz
Reverse Leakage Current (Note 6)
I
R
Total Capacitance
Notes:
C
T
5. Device mounted on FR-4 PC Board, 2"x2", 2 oz. Copper, single sided, Cathode pad dimensions 0.75"x1.0", Anode pad dimensions 0.25"x1.0".
6. Short duration pulse test used to minimize self-heating effect.
1N5819HW
Document number: DS30217 Rev. 16 - 2
2 of 5
www.diodes.com
June 2014
© Diodes Incorporated

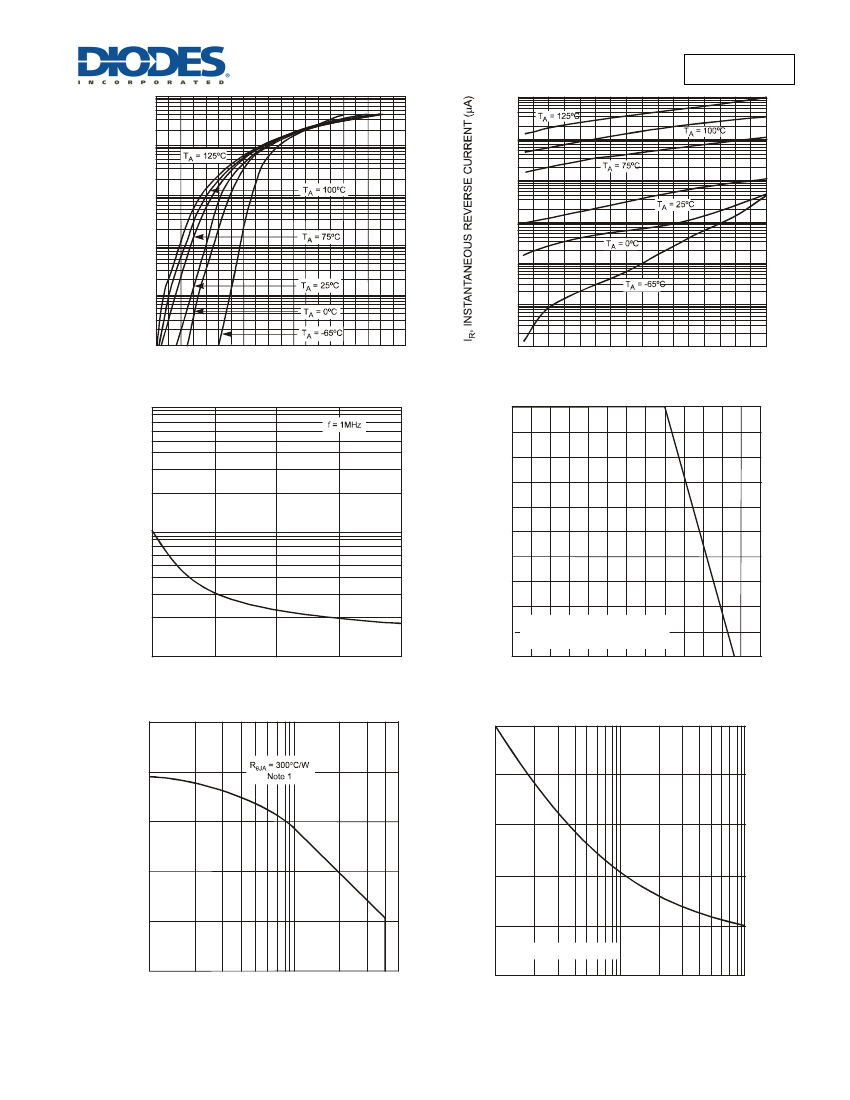

1N5819HW
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
10,000
1
1,000
100
0.1
10
0.01
1
0.001
0.1
.01
0
5
10
15
25
30
40
20
35
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
0.0001
0.2
0.4
0.6
0.8
1.0
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
1,000
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
1.0
C
T
, TOTAL CAPACITANCE (pF)
0.8
0.6
100
0.4
0.2
Single Pulse Half-Wave
60 Hz Resistive or Inductive Load
10
0
10
20
30
40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
25
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
0
10
40
60
80
100
120
140
T
A
, AMBIENT TEMPERATURE (ºC)
Fig. 4 Forward Current Derating Curve
T
A
, DERATED AMBIENT TEMPERATURE (ºC)
150
125
20
100
15
75
10
50
5
8.3ms Single Half Sine-Wave
25
1
20 30 40 50
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Operating Temperature Derating
0
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 6 Maximum Non-Repetitive Peak Forward Surge Current
1N5819HW
Document number: DS30217 Rev. 16 - 2
3 of 5
www.diodes.com
June 2014
© Diodes Incorporated
1N5819HW
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
C
H
B
A
M
L
K
SOD123
Dim
Min
Max
A
0.55 Typ
B
1.40
1.70
C
3.55
3.85
H
2.55
2.85
J
0.00
0.10
K
1.00
1.35
L
0.25
0.40
M
0.10
0.15
0
8°
α
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C
X
Dimensions Value (in mm)
Z
4.9
G
2.5
X
0.7
Y
1.2
C
3.7
Y
G
Z
1N5819HW
Document number: DS30217 Rev. 16 - 2
4 of 5
www.diodes.com
June 2014
© Diodes Incorporated
1N5819HW
