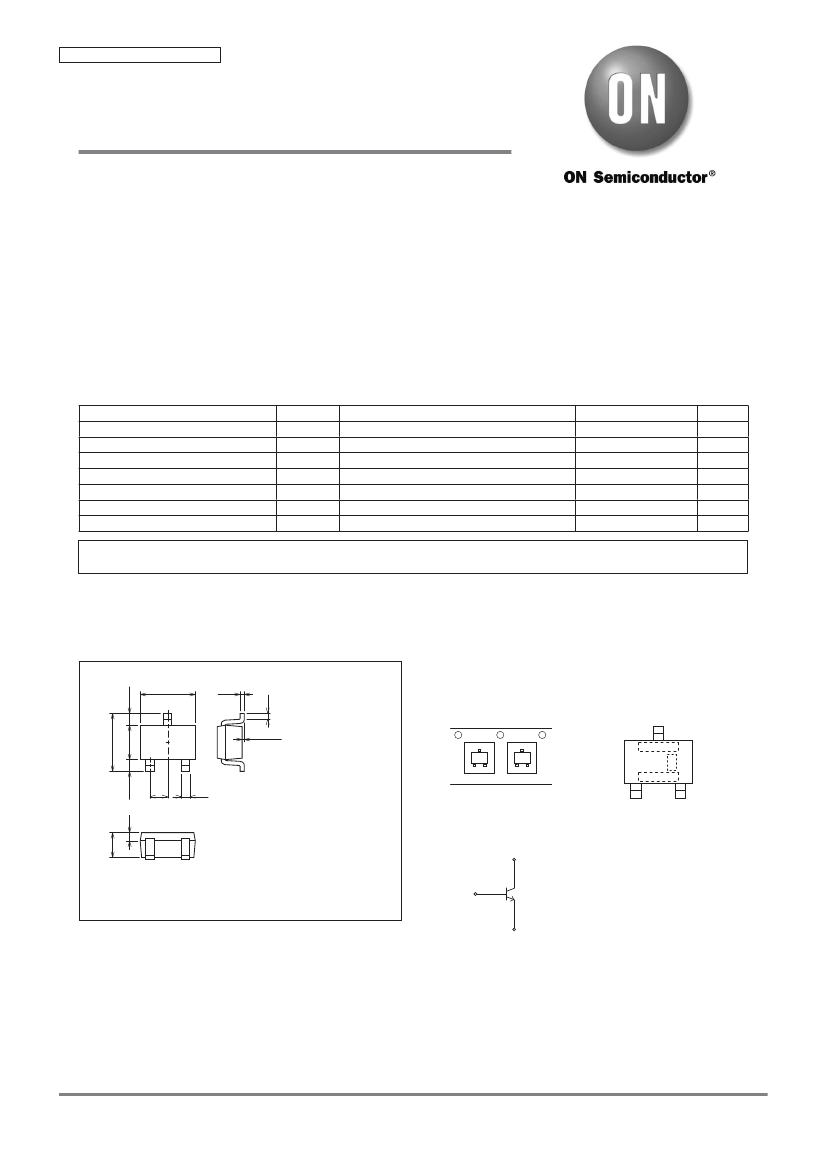

Ordering number : ENA1062A
2SC5226A
RF Transistor
10V, 70mA, fT=7GHz, NPN Single MCP
Features
•
•
•
http://onsemi.com
Low-noise
: NF=1.0dB typ (f=1GHz)
High gain
:
⏐
S21e
⏐
2
=12dB typ (f=1GHz)
High cut-off frequency : fT=7GHz typ
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Conditions
Ratings
20
10
2
70
150
150
--55 to +150
Unit
V
V
V
mA
mW
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7023A-009
2.0
3
0.15
Product & Package Information
• Package
: MCP
• JEITA, JEDEC
: SC-70, SOT-323
• Minimum Packing Quantity : 3,000 pcs./reel
2SC5226A-4-TL-E
2SC5226A-5-TL-E
0.425
Packing Type: TL
Marking
LOT No.
1.25
2.1
0 to 0.08
0.2
LN
0.425
1
0.65
2
0.3
TL
R
A
N
K
LOT No.
Electrical Connection
1 : Base
2 : Emitter
3 : Collector
MCP
1
3
0.9
0.3
2
Semiconductor Components Industries, LLC, 2013
August, 2013
71812 TKIM/51408AB TIIM TC-00001340 No. A1062-1/8
2SC5226A
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Reverse Transfer Capacitance
Forward Transfer Gain
Noise Figure
Symbol
ICBO
IEBO
hFE
fT
Cob
Cre
⏐S21e⏐
1
⏐S21e⏐
2
NF
2
2
Conditions
VCB=10V, IE=0A
VEB=1V, IC=0A
VCE=5V, IC=20mA
VCE=5V, IC=20mA
VCB=10V, f=1MHz
VCE=5V, IC=20mA, f=1GHz
VCE=2V, IC=3mA, f=1GHz
VCE=5V, IC=7mA, f=1GHz
Ratings
min
typ
max
1.0
10
60*
5
7
0.75
0.5
9
12
8
1.0
1.8
1.2
270*
Unit
μA
μA
GHz
pF
pF
dB
dB
dB
*
: The 2SC5226A is classified by 20mA hFE as follows :
Rank
hFE
3
60 to 120
4
90 to 180
5
135 to 270
Ordering Information
Device
2SC5226A-4-TL-E
2SC5226A-5-TL-E
Package
MCP
MCP
Shipping
3,000pcs./reel
3,000pcs./reel
memo
Pb Free
3
2
hFE -- IC
VCE=5V
2
fT -- IC
VCE=5V
Gain-Bandwidth Product, fT -- GHz
10
7
5
DC Current Gain, hFE
100
7
5
3
2
3
2
10
7
5
3
5
7 1.0
2
3
5
7 10
2
3
5
7 100
2
ITR07919
1.0
7
5
7
1.0
2
3
5
7
10
2
3
5
7 100
2
ITR07920
Collector Current, IC -- mA
3
2
Cob -- VCB
Reverse Transfer Capacitance, Cre -- pF
f=1MHz
Collector Current, IC -- mA
3
2
Cre -- VCB
f=1MHz
Output Capacitance, Cre -- pF
1.0
7
5
3
2
1.0
7
5
3
2
0.1
7
5
7
0.1
2
3
5
7 1.0
2
3
5
7 10
2
3
0.1
7
5
7 0.1
2
3
5
7 1.0
2
3
5
7
10
2
3
Collector-to-Base Voltage, VCB -- V
ITR07921
Collector-to-Base Voltage, VCB -- V
ITR07922
No. A1062-2/8
2SC5226A
14
⏐
S21e
⏐
2
-- IC
f=1GHz
12
NF -- IC
VCE=5V
f=1GHz
Forward Transfer Gain,⏐
S21e
⏐
2
-- dB
12
10
V
V
CE
=2
V
10
Noise Figure, NF -- dB
5
7 10
2
3
5
7 100
2
ITR07924
8
V
CE =
5
8
6
6
4
4
2
2
0
3
5
7 1.0
2
3
0
3
5
7 1.0
2
3
5
7 10
2
3
5
Collector Current, IC -- mA
160
150
140
120
100
80
60
40
20
0
0
PC -- Ta
Collector Current, IC -- mA
7 100
2
ITR07923
Collector Dissipation, PC -- mW
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
ITR07925
No. A1062-3/8
2SC5226A

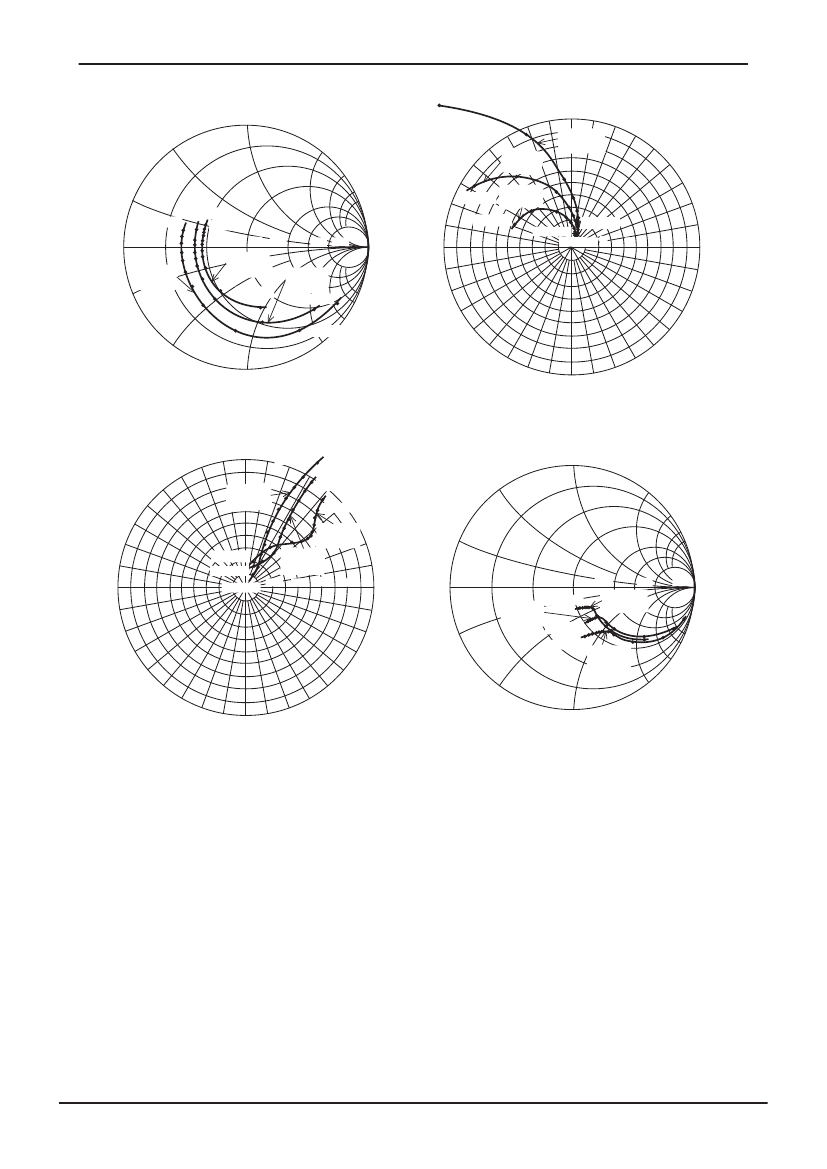

f=100MHz, 200MHz to 2000MHz(200MHz Step)
j50
j25
j100
j150
j10
j200
j250
150°
f=100MHz, 200MHz to 2000MHz(200MHz Step)
0.1GH
z
120°
90°
VCE=5V
IC=20mA
60°
VCE =5V
IC =7mA
2.0GHz
0
10
2.0GHz
2.0GHz
25
50 100
150 250
±180°
VCE=2V
0.1GHz
I =3mA
C
0.1GHz
2.0GHz
2.0GHz
8
2.0GHz
4
30°
12
16 20
0
VCE=2V
IC=3mA
VCE=5V
IC=20mA
--j10
0.1GHz
VCE=5V
IC=7mA
0.1GHz
--j25
--j50
--j250
--j200
--j150
0.1GHz
--j100
--150°
--30°
--120°
ITR07926
--60°
--90°
ITR07927
f=100MHz, 200MHz to 2000MHz(200MHz Step)
90°
120°
f=100MHz, 200MHz to 2000MHz(200MHz Step)
2.0GHz
j50
60°
2.0GHz
j25
j100
j150
j10
j200
j250
VCE=5V
IC=20mA
150°
2.0GHz
VCE=2V
30°
IC=3mA
VCE=5V
IC=7mA
±180°
0.1GHz
0.1GHz
0.04 0.08 0.12 0.16 0.2
0
0.1GHz
0
10
25
50
100
150
250
VCE=5V
IC=7mA
2.0GHz
VCE=5V
IC=20mA
--j10
--150°
--30°
2.0GHz
2.0GHz
V =2V
CE
IC=3mA
--j250
--j200
--j150
--j100
--j25
--120°
--90°
--60°
ITR07928
--j50
ITR07929
No. A1062-4/8
2SC5226A
S Parameters (Common emitter)
VCE=5V, IC=7mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.720
0.612
0.497
0.456
0.440
0.436
0.434
0.433
0.433
0.434
0.439
∠
S11
-46.0
-80.9
-121.3
-143.5
-157.6
-167.5
-176.1
176.6
170.9
165.0
159.6
⏐
S21
⏐
17.973
13.927
8.656
6.080
4.725
3.864
3.258
2.847
2.329
2.252
2.057
∠
S21
148.5
127.3
105.0
92.8
84.3
77.0
70.3
64.5
57.4
54.2
49.2
⏐
S12
⏐
0.030
0.047
0.066
0.079
0.094
0.110
0.126
0.143
0.160
0.178
0.197
∠
S12
68.5
57.1
51.3
52.9
55.4
56.8
57.9
58.4
58.9
58.6
58.1
⏐
S22
⏐
0.880
0.697
0.479
0.382
0.339
0.323
0.312
0.304
0.296
0.293
0.294
∠
S22
-23.6
-37.6
-47.6
-50.5
-51.8
-53.4
-55.8
-58.3
-62.0
-65.0
-68.1
VCE=5V, IC=20mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.481
0.420
0.391
0.386
0.381
0.382
0.385
0.388
0.390
0.391
0.394
∠
S11
-78.8
-119.2
-151.6
-166.4
-175.9
178.2
172.1
166.7
162.1
156.7
152.1
⏐
S21
⏐
29.795
19.008
10.416
7.084
5.407
4.401
3.701
3.217
2.839
2.534
2.319
∠
S21
132.9
112.2
95.4
86.6
80.1
74.1
68.5
63.6
58.8
54.3
50.1
⏐
S12
⏐
0.022
0.033
0.052
0.071
0.092
0.114
0.134
0.156
0.176
0.197
0.219
∠
S12
63.9
60.8
64.7
67.2
68.4
67.8
66.8
65.6
64.0
62.4
60.6
⏐
S22
⏐
0.707
0.470
0.296
0.236
0.213
0.208
0.204
0.202
0.199
0.197
0.197
∠
S22
-38.2
-51.1
-55.3
-56.1
-56.6
-57.9
-60.7
-63.5
-67.9
-71.2
-74.2
VCE=2V, IC=3mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.858
0.782
0.653
0.588
0.557
0.543
0.536
0.533
0.527
0.525
0.528
∠
S11
-32.4
-60.7
-101.1
-126.5
-143.7
-156.3
-166.8
-175.5
177.0
170.3
163.8
⏐
S21
⏐
9.413
8.187
5.855
4.337
3.444
2.871
2.446
2.145
1.904
1.714
1.564
∠
S21
157.2
138.5
113.8
98.4
87.7
78.5
70.5
63.5
57.1
51.7
45.9
⏐
S12
⏐
0.040
0.070
0.101
0.114
0.122
0.130
0.137
0.146
0.155
0.168
0.183
∠
S12
72.6
59.2
44.5
39.1
38.0
38.6
40.3
42.5
45.0
47.3
49.2
⏐
S22
⏐
0.945
0.833
0.637
0.515
0.454
0.426
0.407
0.393
0.382
0.379
0.378
∠
S22
-16.5
-29.3
-43.2
-50.0
-53.8
-57.1
-60.3
-63.8
-68.0
-72.0
-75.8
No. A1062-5/8
