DAN202UT-106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DAN202UT-106

DAN202UT-106: Description0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, UMT, 3 PIN; CategoryDiscrete semiconductor diode; File Size156KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DAN202UT-106 Overview

0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, UMT, 3 PIN

DAN202UT-106 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Humidity sensitivity level	NOT SPECIFIED
Maximum non-repetitive peak forward current	4 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

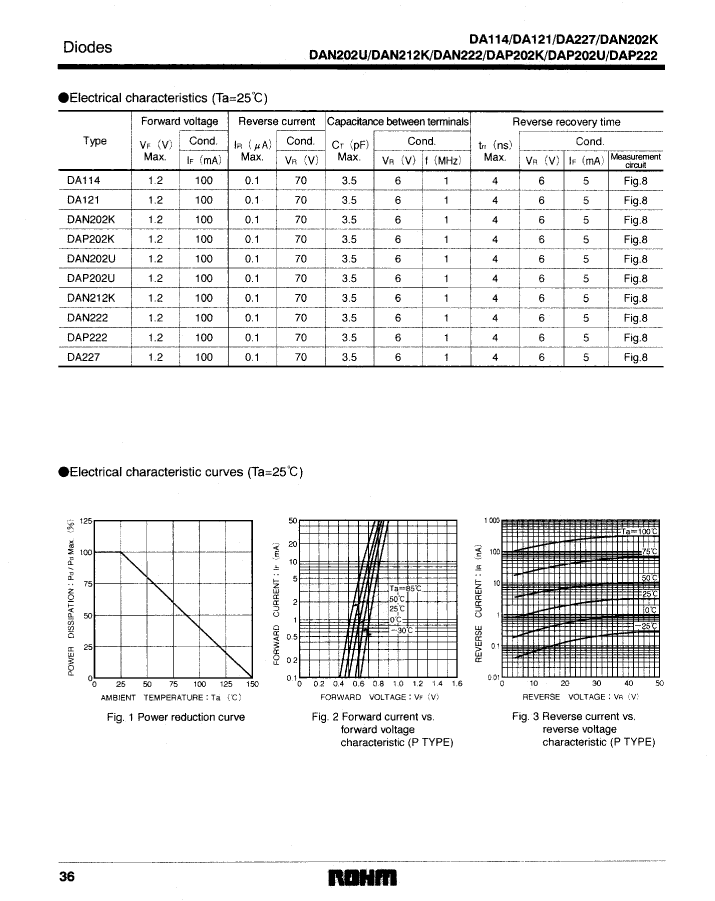

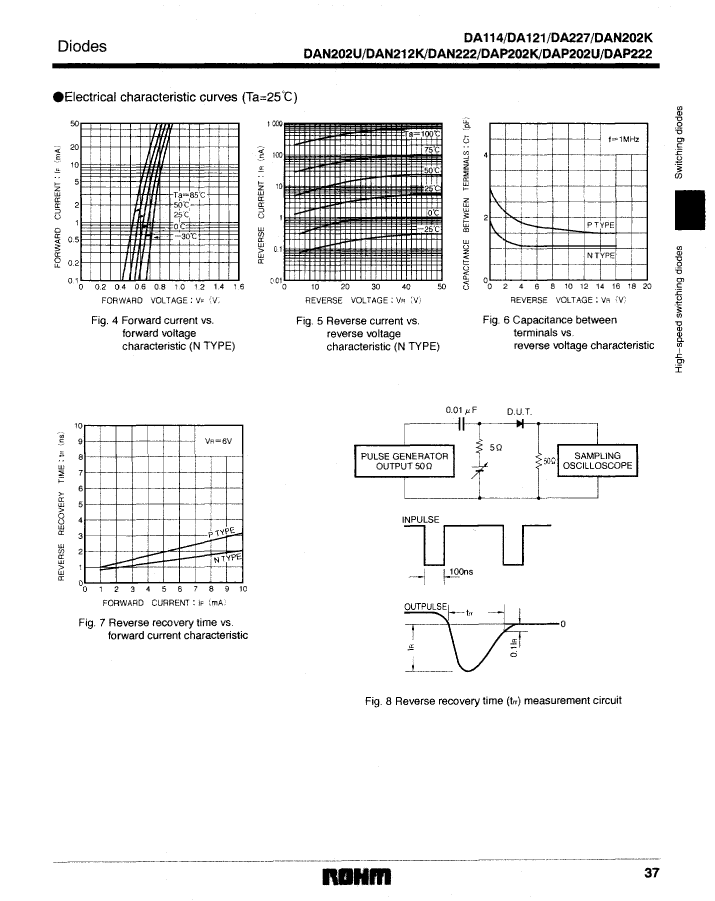

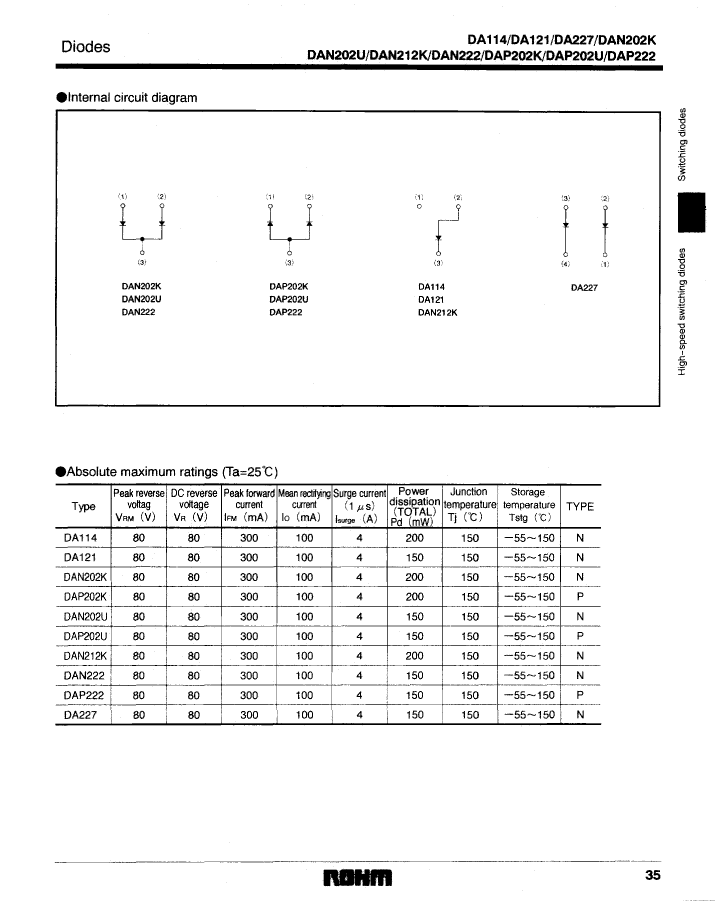

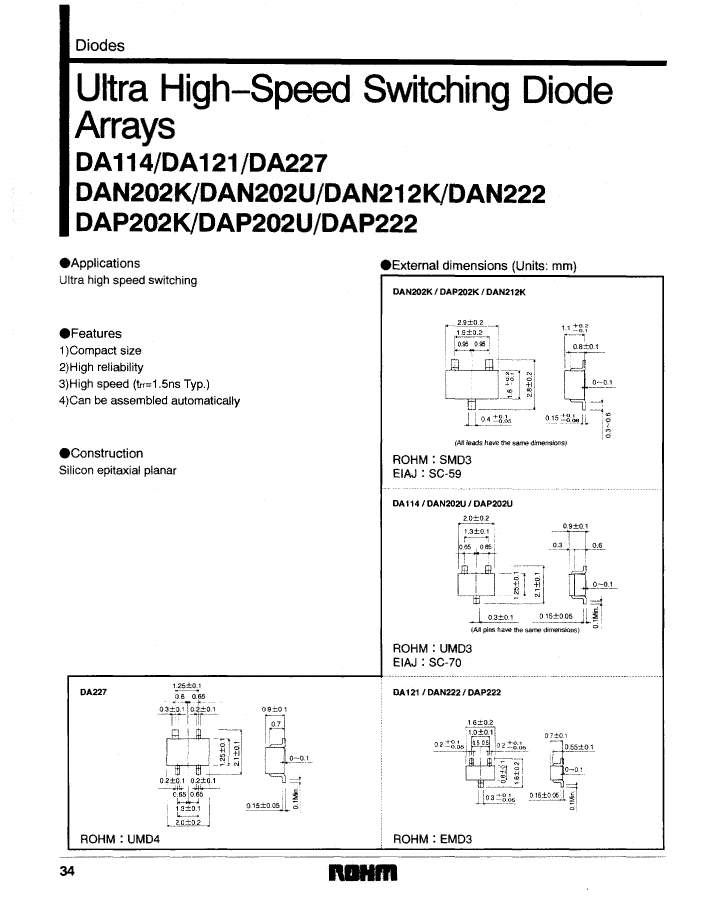

Preview

Download Datasheet

View All

DAN202UT-106 Related Products

	DAN202UT-106	DA114T-106	DAN202KT-146	DAP202KT-146	DAP202UT-106	DAN212KT-146
Description	0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, UMT, 3 PIN	0.1A, 80V, SILICON, SIGNAL DIODE, UMT, 3 PIN	0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, SMT, SC-59, 3 PIN	0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, SMT, SC-59, 3 PIN	0.1A, 80V, 2 ELEMENT, SILICON, SIGNAL DIODE, UMT, 3 PIN	0.1A, 80V, SILICON, SIGNAL DIODE, SMT, SC-59, 3 PIN
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	UMT, 3 PIN	R-PDSO-G3
Contacts	3	3	3	3	3	3
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	4 A	4 A	4 A	4 A	4 A	4 A
Number of components	2	1	2	2	2	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	80 V	80 V	80 V	80 V	80 V	80 V
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-
JESD-609 code	e1	-	e1	e1	e1	-
Humidity sensitivity level	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Peak Reflow Temperature (Celsius)	260	-	260	260	260	-
Terminal surface	TIN SILVER COPPER	-	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	-
Maximum time at peak reflow temperature	10	-	10	10	10	-
Is Samacsys	-	N	N	N	N	N
