DDTC124XUA-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DDTC124XUA-7-F

DDTC124XUA-7-F: DescriptionMemory Card Connectors SD MEM CD CONN R/A SMT PUSHPUSH; Categorysemiconductor Discrete semiconductor; File Size412KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

DDTC124XUA-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDTC124XUA-7-F	-	-	View	Buy Now

DDTC124XUA-7-F Overview

Memory Card Connectors SD MEM CD CONN R/A SMT PUSHPUSH

DDTC124XUA-7-F Parametric

Parameter Name	Attribute value
Product Category	Bipolar Transistors - Pre-Biased
Manufacturer	Diodes
RoHS	Details
Configuration	Single
Transistor Polarity	NPN
Typical Input Resistor	22 kOhms
Typical Resistor Ratio	0.47
Mounting Style	SMD/SMT
Package / Case	SOT-323-3
DC Collector/Base Gain hfe Min	68
Continuous Collector Current	100 mA
Peak DC Collector Current	100 mA
Maximum Operating Temperature	+ 150 C
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	1 mm
Length	2.2 mm
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	3000
Width	1.35 mm
Unit Weight	0.000176 oz

Preview

Download Datasheet

View All

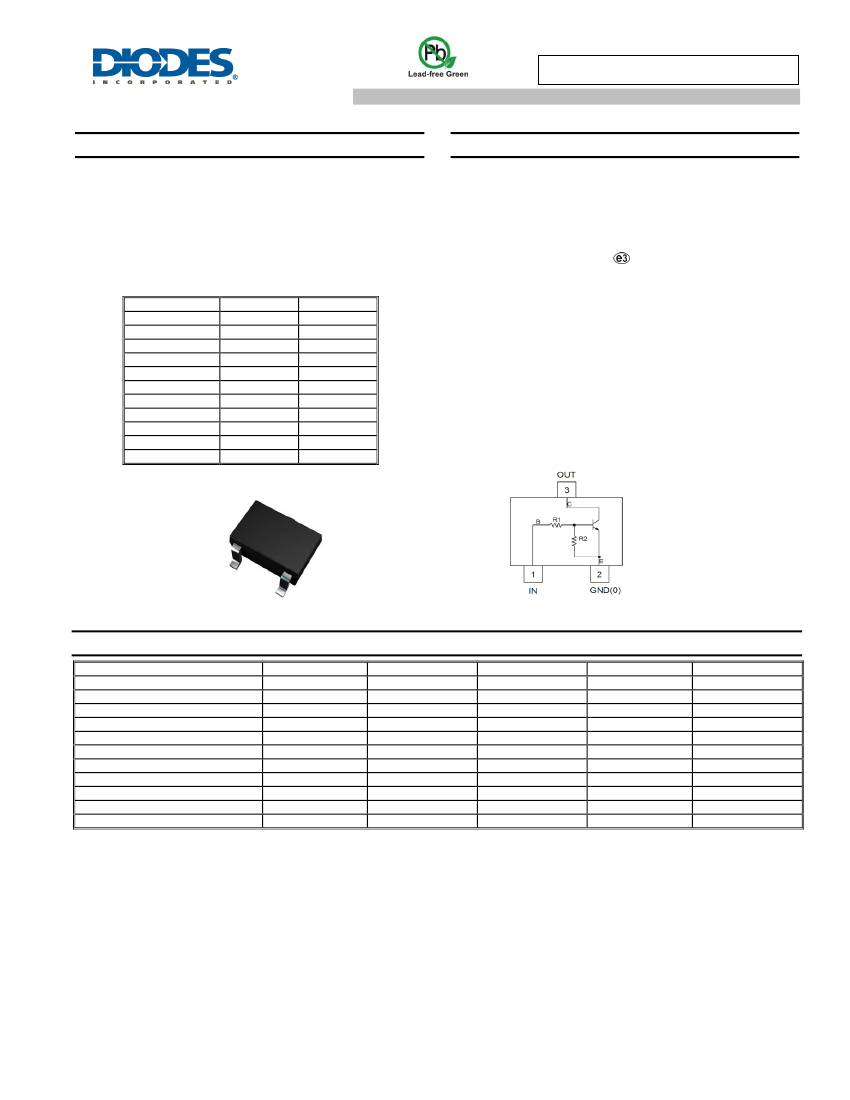

DDTC (R1≠R2 SERIES)UA

NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Built-In Biasing Resistors

Surface Mount Package Suited for Automated Assembly

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT323

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

Part Number

DDTC113ZUA

DDTC123YUA

DDTC123JUA

DDTC143XUA

DDTC143FUA

DDTC143ZUA

DDTC114YUA

DDTC114WUA

DDTC124XUA

DDTC144VUA

DDTC144WUA

R1(NOM)

1kΩ

2.2kΩ

4.7kΩ

10kΩ

22kΩ

47kΩ

SOT323

R2(NOM)

10kΩ

47kΩ

10kΩ

22kΩ

47kΩ

4.7kΩ

47kΩ

10kΩ

22kΩ

Top View

Device Schematic

Ordering Information

(Note 4)

Product

DDTC113ZUA-7-F

DDTC123YUA-7-F

DDTC123JUA-7-F

DDTC143XUA-7-F

DDTC143FUA-7-F

DDTC143ZUA-7-F

DDTC114YUA-7-F

DDTC114WUA-7-F

DDTC124XUA-7-F

DDTC144VUA-7-F

DDTC144WUA-7-F

Notes:

Compliance

AEC-Q101

Marking

N02

N05

N06

N09

N10

N11

N14

N15

N18

N21

N22

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

DDTC(R1≠R2 SERIES)UA

Document number: DS30322 Rev. 10 - 2

1 of 7

www.diodes.com

March 2016

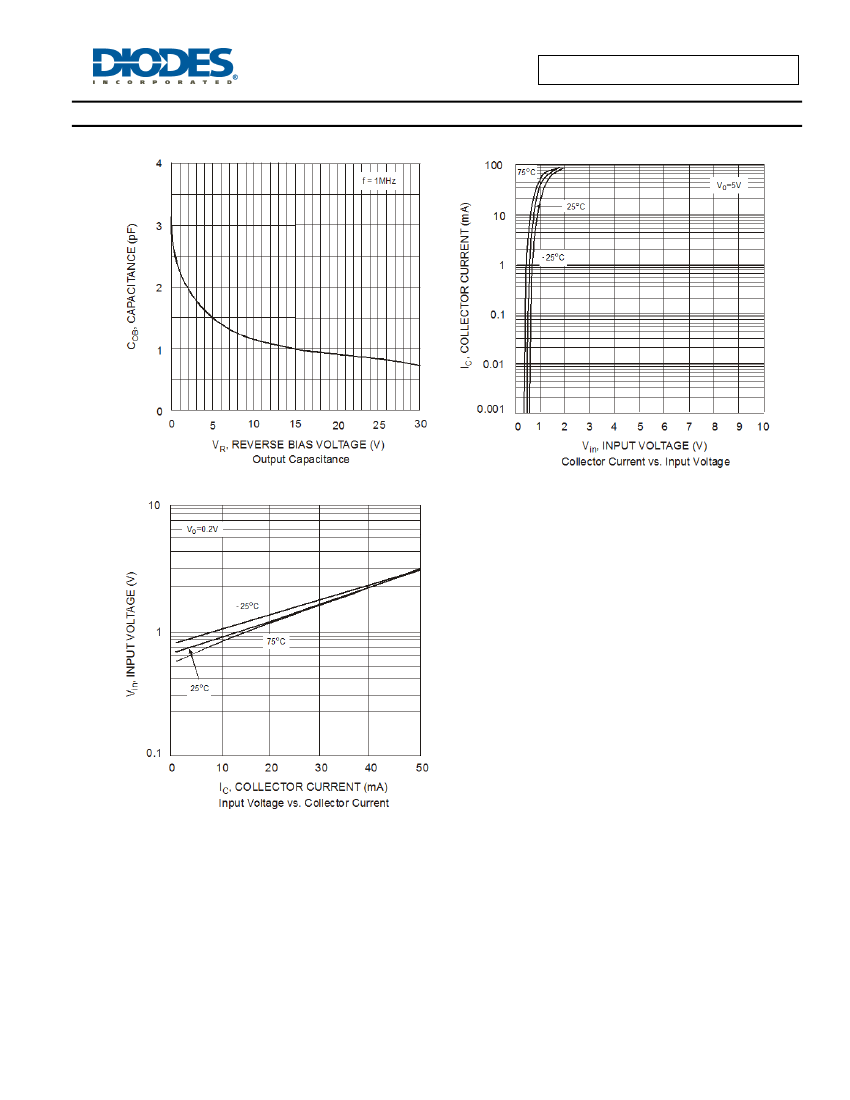

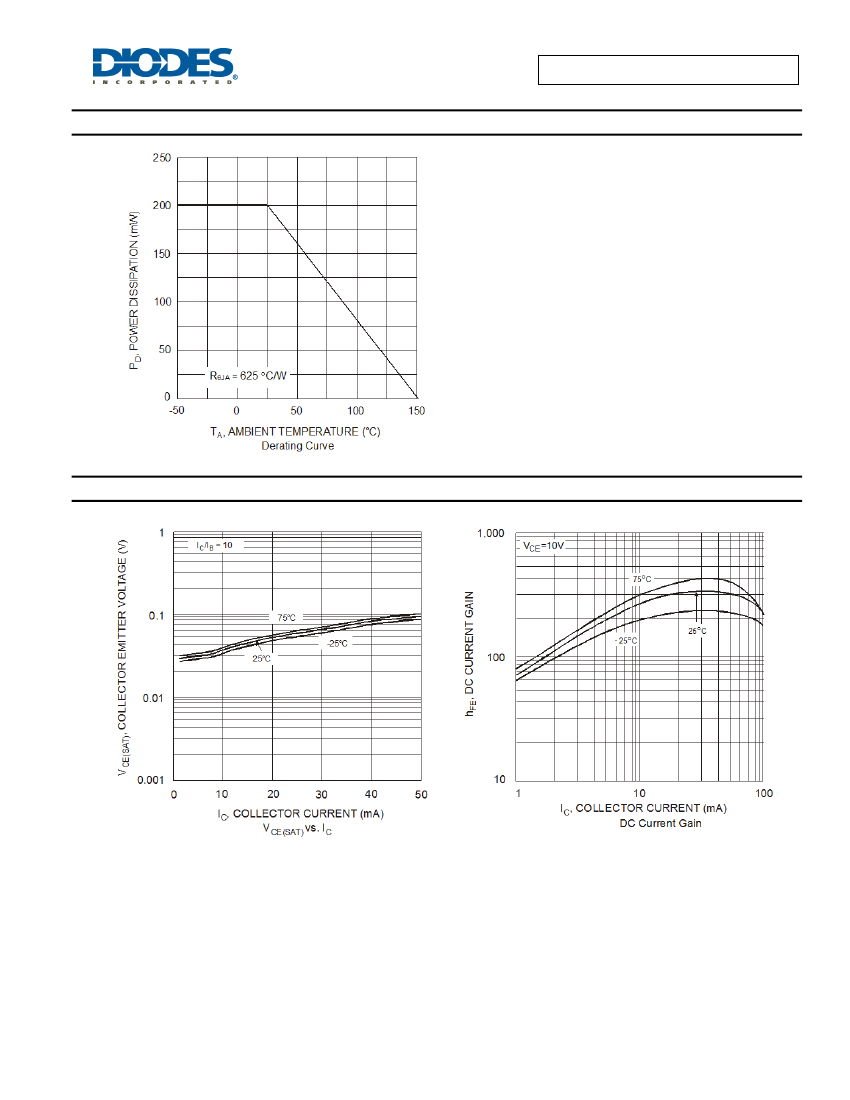

DDTC124XUA-7-F Related Products

	DDTC124XUA-7-F	DDTC123YUA-7-F	DDTC113ZUA-7-F
Description	Memory Card Connectors SD MEM CD CONN R/A SMT PUSHPUSH	8-bit Microcontrollers - MCU 64KB Flash 3968B RAM 8b FamilynanoWat XLP	USB Interface IC USB to UART Bdg Chip
Product Category	Bipolar Transistors - Pre-Biased	Bipolar Transistors - Pre-Biased	Bipolar Transistors - Pre-Biased
Manufacturer	Diodes	Diodes	Diodes
RoHS	Details	Details	Details
Configuration	Single	Single	Single
Transistor Polarity	NPN	NPN	NPN
Typical Input Resistor	22 kOhms	2.2 kOhms	1 kOhms
Typical Resistor Ratio	0.47	0.22	0.1
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	SOT-323-3	SOT-323-3	SOT-323-3
DC Collector/Base Gain hfe Min	68	33	33
Continuous Collector Current	100 mA	100 mA	100 mA
Peak DC Collector Current	100 mA	100 mA	100 mA
Maximum Operating Temperature	+ 150 C	+ 150 C	+ 150 C
Height	1 mm	1 mm	1 mm
Length	2.2 mm	2.2 mm	2.2 mm
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	3000	3000	3000
Width	1.35 mm	1.35 mm	1.35 mm
Unit Weight	0.000176 oz	0.000176 oz	0.000176 oz
Packaging	Reel	Cut Tape	Reel
