DS1869

3V Dallastat

Electronic

Digital Rheostat

www.dalsemi.com

FEATURES

Replaces mechanical variable resistors

Operates from 3V or 5V supplies

Electronic interface provided for digital as

well as manual control

Internal pull-ups with debounce for easy

interfacing to mechanical push buttons

Wiper position is maintained in the absence of

power

Low cost alternative to mechanical controls

Applications include volume, tone, contrast,

brightness, and dimmer control

8-pin SOIC and 8-pin DIP packages are

available

Standard resistance values for Dallastat

- DS1869-10 ~ 10 kΩ

- DS1869-50 ~ 50 kΩ

- DS1869-100 ~ 100 kΩ

Operating temperature range:

- Industrial: -40°C to +85°C

3V to 8V differential supply operational range

PIN ASSIGNMENT

)

V-

8-Pin DIP (300-mil)

See Mech. Drawings Section

)

V-

8-Pin SOIC (208-mil)

See Mech. Drawings Section

PIN DESCRIPTION

-V, +V

- High Terminal of Potentiometer

- Wiper Terminal of Potentiometer

- Low Terminal of Potentiometer

- Voltage Supply Inputs

- Up Contact Input

- Digital Input

- Down Contact Input

DESCRIPTION

The DS1869 Dallastat

is a digital rheostat or potentiometer. This device provides 64 possible uniform

tap points over the entire resistive range. The standard resistive ranges are 10 kΩ, 50 kΩ, and 100 kΩ.

The Dallastat can be controlled by either a switch contact closure input or a digital source input such as a

CPU. The DS1869 operates from 3V or 5V supplies. Wiper position is maintained in the absence of

power through the use of a EEPROM memory cell array. The EEPROM cell array will withstand more

than 50,000 writes.

The DS1869 is offered in two standard IC packages which include an 8-pin 300-mil DIP and an 8-pin

208-mil SOIC. The DS1869 can be configured to operate using a single pushbutton, dual pushbutton or

digital source input by varying power-on conditions. This is illustrated in Figures 1 and 2. The DS1869

pinouts allow access to both ends of the potentiometer R

, R

, and the wiper, R

. Control inputs include

the digital source input, D, the up contact input, UC, and the down contact input, DC. Other pins include

the positive, +V, and negative, -V, supply inputs. The DS1869 is specified to operate from -40°C to

+85°C.

1 of 8

112099

DS1869

OPERATION

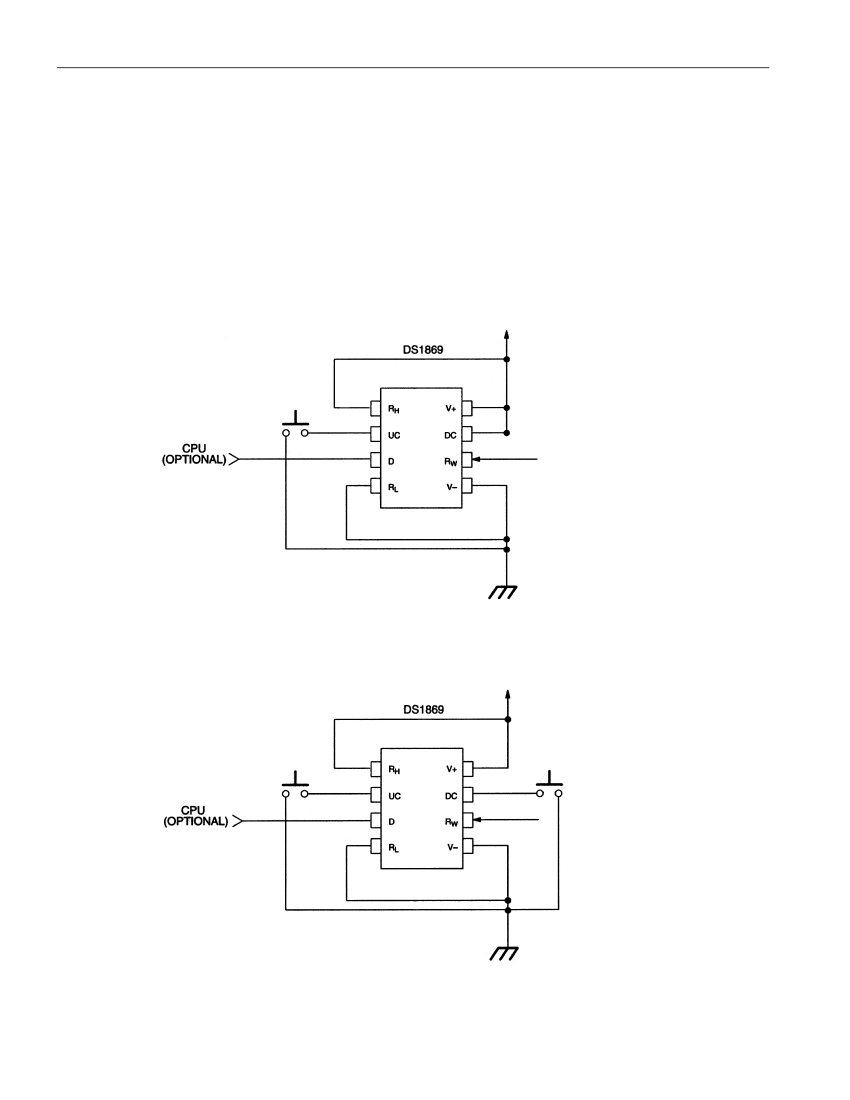

The DS1869 can be configured to operate from a single contact closure, dual contact closure, or a digital

source input. Figures 1 and 2 illustrate both contact closure configurations. Contact closure is defined as a

transition from a high level to a low level on the up contact (UC) or down contact (DC) inputs. All three

control inputs are active when in a low state and are inactive when in a high state.

The DS1869 interprets input pulse widths as the means of controlling wiper movement. A single pulse

input on the UC, DC, or D input terminals will cause the wiper position to move 1/64

of the total

resistance. A transition from a high to low on these inputs is considered the beginning of pulse activity or

contact closure. A single pulse must be greater than 1 ms but lasting no longer than 1 second. Pulse

timings are shown in Figure 5.

Repetitive pulsed inputs can be used to step through each resistive position of the device in a relatively

fast manner (see Figure 5b). The requirement for repetitive pulsed inputs is that pulses must be separated

by a minimum time of 1 ms. If the input is not allowed to be inactive (high) for at least 1 ms, the DS1869

will interpret repetitive pulses as a single pulse.

Pulse inputs lasting longer than 1 second will cause the wiper to move one position every 100 ms

following the initial 1-second hold time. The total time to transcend the entire potentiometer using a

continuous input pulse is given by the formula below:

≈1

second + 63 X 100 ms = 7.3 (seconds)

Single contact closure operation allows the user to control wiper movement in either direction from a

single pushbutton input. Figure 1 presents a typical single pushbutton configuration. The UC input is used

to increment and decrement wiper position for single pushbutton mode of operation. The DC input

provides no functionality in this mode but must be connected to the positive supply voltage (V

). The

digital source input (D) can be allowed to float.

On device power-up, the configuration shown in Figure 1 must exist in order to enter the single contact

closure mode of operationespecially and specifically, the (DC) input’s direct connection to the positive

supply voltage (V

The initial direction of wiper movement in single pushbutton operation is determined by prior activity.

The initial direction of wiper movement will be opposite to that of the previous activity. Changing the

direction of wiper movement in single pushbutton mode is accomplished by allowing a period of

inactivity on the UC input of (greater than) 1 second, or by moving the wiper to the end of the

potentiometer range. This will occur regardless of whether the input is a continuous pulse, a sequence of

repetitive pulses or a single pulse.

The digital source input, D, was designed for microprocessor or controlled applications. This control

input manipulates the device in the same manner as the single pushbutton configuration, controlling

movement of the wiper position in both upward and downward directions. One added feature over the

single pushbutton configuration is the ability to increment or decrement wiper position at a faster rate.

Digital source input control is available regardless of the type of pushbutton configuration.

Dual pushbutton mode of operation is entered when the DC input is floated on power-up. If interfacing

contact closure control inputs to digital logic, the DC input must be interfaced to an open drain drive

which is high impedance during power-up; see Figure 2B. This will prevent the device from entering a

single pushbutton mode of operation.

2 of 8

DS1869

DS1869 DUAL PORT CONFIGURATION (TYPICAL EXAMPLE)

Figure 2B

The DS1869 is provided with two supply inputs -V and +V. The maximum voltage difference between

the two supply inputs is +8.0 volts. The minimum voltage difference is +2.7 volts. All input levels are

referenced to the negative supply input, -V. The voltage applied to any Dallastat terminal must not exceed

the negative supply voltage (-V ) by -0.5 or the positive supply voltage (+V) by +0.5 volts. The minimum

logic high level must be +2.4 volts with reference to the -V supply voltage input for +V=5V. A logic low

level with reference to the -V supply voltage has a maximum value of +0.8 volts. Dallastats exhibit a

typical wiper resistance of 400 ohms with a maximum wiper resistance of 1000 ohms. The maximum

wiper current allowed through the Dallastat is specified at 1 milliamps (see DC Electrical

Characteristics).

NONVOLATILE WIPER SETTINGS

Dallastats maintain the position of the wiper in the absence of power. This feature is provided through the

use of EEPROM type memory cell arrays. During normal operation the position of the wiper is

determined by the input multiplexer. Periodically, the multiplexer will update the EEPROM memory

cells. The manner in which an update occurs has been optimized for reliability, durability, and

performance. Additionally, the update operation is totally transparent to the user.

When power is applied to the Dallastat, the wiper setting will be the last recorded in the EEPROM

memory cells. If the Dallastat setting is changed after power is applied, the new value will be stored after

a delay of 2 seconds. The initial storage of a new value after power-up occurs when the first change is

made, regardless of when this change is made.

After the initial change on power-up all subsequent changes of the wiper position will be recorded only if

the 4

LSB (out of a 6-bit total for 64 positions) is being changed. Thus any change greater than 12.5% of

the total resistance range will trigger one EEPROM write cycle.

Changes or storage to the EEPROM memory cells must allow for a 2-second delay to guarantee that

updates will occur. The EEPROM memory cells are specified to accept greater that 50,000 writes before a

wear-out condition. If the EEPROM memory cells do reach a wear-out condition, the Dallastat will still

function properly while power is applied. However, on power-up the device’s wiper position will be that

of the position last recorded before memory cell wear-out.

4 of 8
