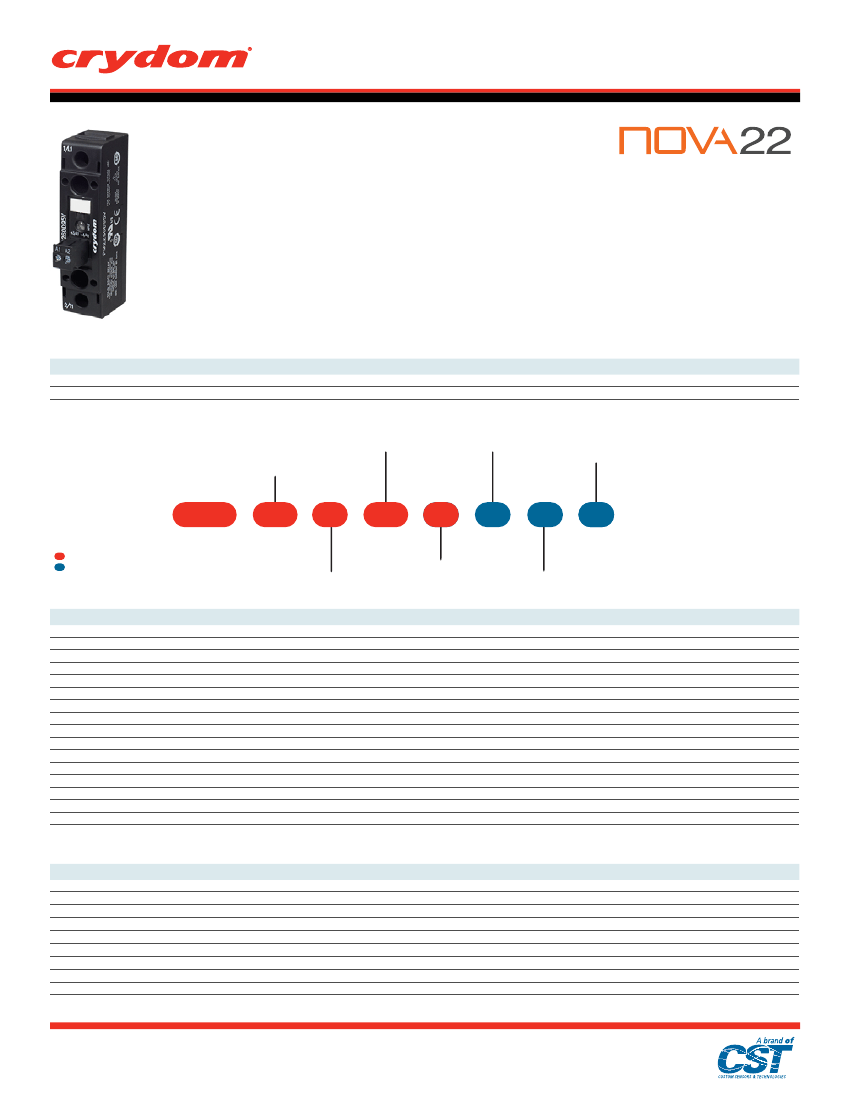

DataSheet
Panel Mount
PM22 Series
•
Output ratings up to 95 Amps at 600VAC
•
Built-in overvoltage protection
•
DBC substrate for superior thermal performance
•
LED input status indicator
•
IP20 touch-safe housing
•
AC or DC control
•
4000 VAC optical isolation
•
C-UL-US and TUV approved
Panel Mount SSRs
PRODUCT SELECTION
Control Voltage
90-280 VAC/VDC
4-32 VDC
25A
PM2260A25V
PM2260D25V
50A
PM2260A50V
PM2260D50V
95A
PM2260A95V
PM2260D95V
AVAILABLE OPTIONS
Operating Voltage
60:
48-600 VAC
Rated Load Current
25:
25 Amps
50:
50 Amps
95:
95 Amps [High I
2
t]
Switching Type
Blank:
Zero Voltage
Turn-On
Thermal Pad
R:
Instantaneous Turn-On
Blank:
Not Included
(Motor Rating Certified)
H:
Included
Series
PM22
Required for valid part number
For options only and not required for valid part number
60
A
25
U
V
R
J
H
U
Control Voltage
(1)
A:
90-280 VAC/VDC
D:
4-32 VDC
Terminal Layout
Input Connector
V:
Contactor Configuration
Blank:
Screw Terminal
J:
Spring Terminal
OUTPUT SPECIFICATIONS
(2)
Description
Operating Voltage (47-440Hz) [V
RMS
]
Transient Overvoltage [Vpk]
(3)
Maximum Off-State Leakage Current @ Rated Voltage [mA
RMS
]
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/ sec]
Load Current, General Use UL508/LC A IEC 62314 @ 40°C [A
RMS
]
(4)
Load Current, Motor Starting UL508 FLA/LC B IEC 62314 @ 40°C [A
RMS
]
(4)
Minimum Load Current [mA
RMS
]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Juntion to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Heat Sink for Rated Current @ 40ºC [°C/W]
Minimum Power Factor (at Maximum Load)
Motor Rating UL 508/IEC62314 [HP (kW)]: 120 VAC
Motor Rating UL 508/IEC62314 [HP (kW)]: 240 VAC
Motor Rating UL 508/IEC62314 [HP (kW)]: 480 VAC
25A
48-600
1200
1
500
25
8.5/4.8
100
286/300
1.35
0.49
409/375
2
0.5
0.5 (0.37)
1.5 (1.1)
3 (2.24)
50A
48-600
1200
1
500
50
14/7.6
100
716/750
1.35
0.27
2563/2343
0.7
0.5
1 (0.74)
3 (2.2)
5 (3.7)
95A
48-600
1200
1
500
95
26/14
150
1290/1350
1.30
0.2
8320/7593
0.23
0.5
2 (1.5)
5 (3.73)
10 (7.4)
INPUT SPECIFICATIONS
(2)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
PM2260DxxV
4-32 VDC
(5)
-32 VDC
4 VDC
1 VDC
10 mA
15 mA
Current Limited
1/2 Cycle
(7)
1/2 Cycle
PM2260AxxV
90-280 VAC/VDC
(6)
-
90 VAC/VDC
5 VAC/VDC
6 mA
10 mA
Current Limited
20
30
Do not forget to visit us at:
www.crydom.com
Copyright © 2015 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount
GENERAL SPECIFICATIONS
(2)
Description
Dielectric Strength, Input to Output (50/60Hz)
Dielectric Strength, Input/Output to Baseplate (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(8)
Ambient Storage Temperature Range
Short Circuit Current Rating
(9)
Weight (typical)
Housing Material
Baseplate Material
Hardware Finish
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Humidity
LED Input Status Indicator
Parameters
4000 V
RMS
4000 V
RMS
10
9
Ohms
8 pF
-40 to 80 °C
-40 to 100 °C
100kA
2.3 oz (65 g)
UL94 V-0
Aluminum
Nickel Plating
5/0.5
(10)
18-20/2-2.2
20-25/2.2-2.8
85% non-condensing
Green
INPUT CURRENT INFORMATION
4-32 VDC Input
14
12
7
6
5
4
3
2
1
0
5
10
15
20
25
30
35
0
0
40
80
120
160
200
240
280
90-280 VAC/VDC Input
Input Current (mA)
10
8
6
4
2
0
Input Voltage (VDC)
Input Current (mA)
Input Voltage (VAC/VDC)
SURGE CURRENT INFORMATION
PM2260x25V
Surge Current (Amp) AC Peak
Surge Current (Amp) AC Peak
300
250
200
150
100
50
0
0.01
0.1
1
10
700
600
500
400
300
200
100
0
0.01
0.1
1
10
PM2260x50V
Surge Duration (sec)
Surge Duration (sec)
PM2260x95V
Surge Current (Amp) AC Peak
1400
1200
1000
800
600
400
200
0
0.01
0.1
1
10
Single Pulse
(11)
Surge Duration (sec)
Do not forget to visit us at:
www.crydom.com
Copyright © 2015 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount
PM2260x95V
2.5ºC/W
100
0.25ºC/W
0.36ºC/W
0.5ºC/W
2.5ºC/W

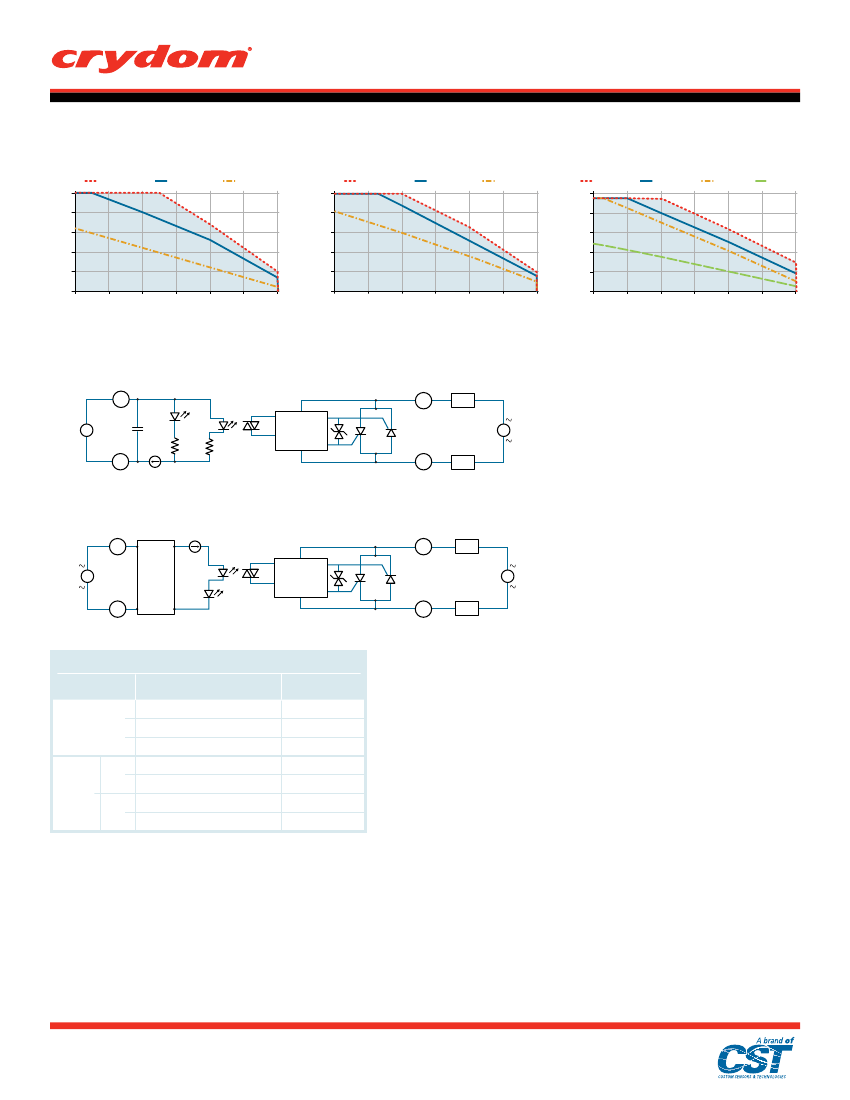

THERMAL DERATE INFORMATION
(8)
PM22xxx25x
2ºC/W
25
2.5ºC/W
5ºC/W
50
0.7ºC/W
PM2260x50V
1ºC/W
Load Current (Amps)
20
15
10
5
0
20
30
40
50
60
70
80
Load Current (Amps)
Load Current (Amps)
40
30
20
10
0
20
30
40
50
60
70
80
80
60
40
20
0
20
30
40
50
60
70
80
Ambient Temperature (ºC)
Ambient Temperature (ºC)
Ambient Temperature (ºC)
EQUIVALENT CIRCUIT BLOCK DIAGRAMS/WIRING DIAGRAM
DC Control
+3/A1
1/L1
Trigger
Circuit
Load
A
V
AC
B
Load
DC
V
-
-4/A2
Current
Limiter
2/T1
Load can be wired in position A or B
AC/DC Control
Current
Limiter
+3/A1
1/L1
OUTPUT
INPUT
+
Load
A
V
AC
B
Load
AC/DC
-/
V
AC/DC
Converter
Trigger
Circuit
-4/A2
Load can be wired in position A or B
Recommended Wire Sizes
Terminal
Configuration
Output
Wire Size
(Solid / Stranded)
20 AWG (0.5 mm
2
) [minimum]
2 x 10 AWG (5.3 mm
2
)
2 x 8 AWG (8.4 mm
2
) [maximum]
Screw
Input
Spring
30 AWG (0.2 mm
2
) [minimum]
12 AWG (2.5 mm
2
) [maximum]
26 AWG (0.2 mm
2
) [minimum]
12 AWG (2.5 mm
2
) [maximum]
Wire Pull-Out
Strength (lb)[N]
25 [111]
110 [490]
90 [400]
4.5 [20]
55 [245]
5 [22]
20 [89]
Do not forget to visit us at:
www.crydom.com
Copyright © 2015 Crydom Inc. Specifications subject to change without notice.
OUTPUT
2/T1
INPUT
+/
DataSheet
Panel Mount

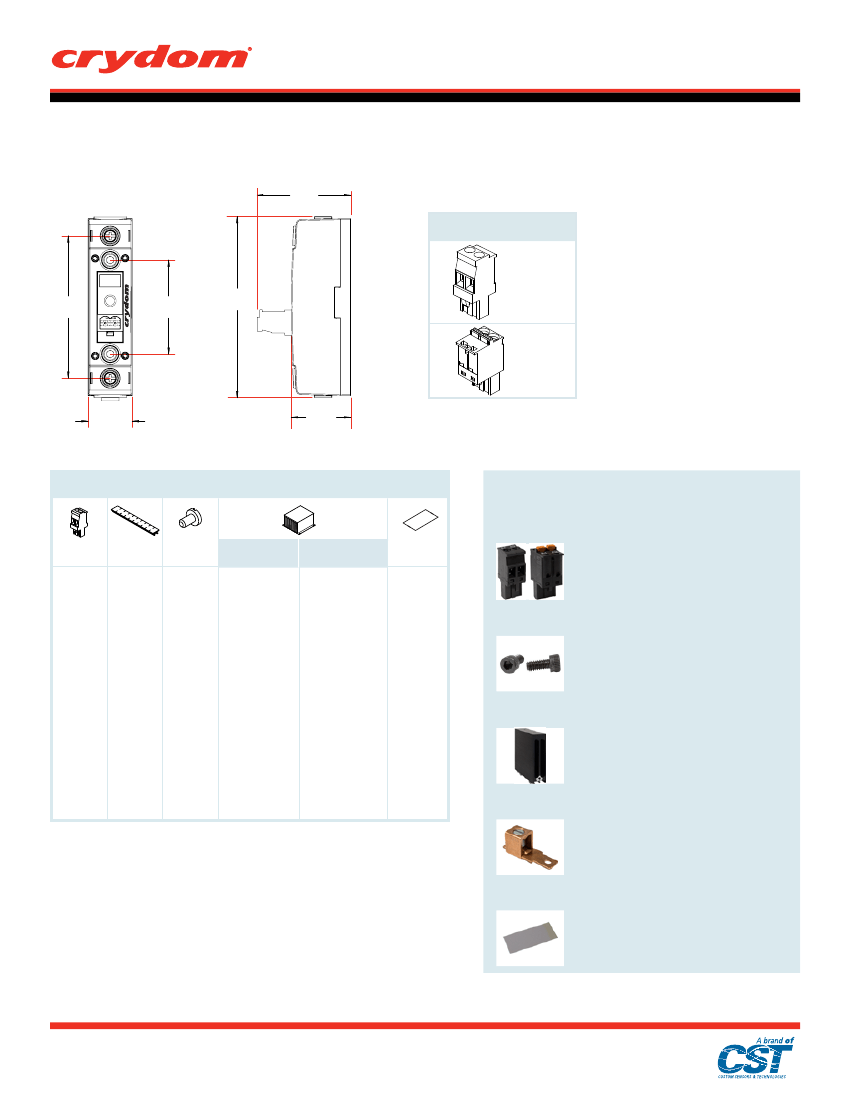

Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
MECHANICAL SPECIFICATIONS
1.87
[47.5]
1/L1
Input Connector
2.85
[72.3]
+3/A1
-4/A2
1.88
[47.8]
3.62
[91.9]
Screw
Terminal
Spring
Terminal
2/T1
0.89
[22.5]
1.19
[30.2]
ACCESSORIES
Recommended Accessories
New Accessories!
Connectors
Part number: CP201, CP202
Pluggable input connectors, 2 position, with screw
terminals (CP201) or spring type terminals (CP202).
Compatible with Contactor configuration NOVA22
SSRs.
Connectors
CP201
CP202
ID Marker
CNLB
CNLN
CNL2
Hardware
Kit
HK8
Heat Sink
Part No.
HS501DR
HS301 / HS301DR
HS251
HS259DR
HS202 / HS202DR
HS201 / HS201DR
HS172
HS151 / HS151DR
HS122 / HS122DR
HS103 / HS103DR
HS101
HS073
HS072
HS053
HS033
HS023
Thermal Resistance Thermal Pad
[ºC/W]
5.0
3.0
2.5
2.5
2.0
2.0
1.7
1.5
1.2
1.0
1.0
0.7
0.7
0.5
0.36
0.25
HSP-7
Hardware Kit
Part number: HK8
Bag with 2 SSR mounting screws 8-32 x 3/8, Hex Socket
Cap, compatible with PM22 Series Panel Mount SSRs.
Used to mount the SSR onto any of our compatible heat
sinks.
Heat Sink
Part number: HS259DR
DIN Rail mountable heat sink with 2.5°C/W thermal
resistance. Heat sink material is aluminum with black
anodized finish. Suitable for mounting a single PM22
Series Panel Mount SSRs.
Lug Terminal
Part number: TRM0
Copper wire lug for AWG 6 (13.3 mm
2
) to AWG 0 (53.5
mm
2
) wire size. For use with “Elevator” screw option
(”W” suffix) NOVA22 SSRs.
Thermal Pad
Part number: HSP-7
Non-adhesive thermal pad for half-puck package SSRs.
Compatible with PM22 Series Panel Mount SSRs.
Do not forget to visit us at:
www.crydom.com
Copyright © 2015 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount
AGENCY APPROVALS
Certification in accordance with:
United States Standard for Industrial Control Equipment - UL 508 and
Canadian Standard Association for Industrial Control Equipment – C22.2 No. 14.
TUV Certified in accordance to EN62314
Electromagnetic Compatibility:
IEC 61000-4-2 : Electrostatic Discharge – Level 3
IEC 61000-4-4 : Electrically Fast Transients – Level 3
IEC 61000-4-5 : Electrical Surges – Level 3
Vibration Resistance:
IEC 60068-2-6: Amplitude Range 10-55 Hz, Displacement 0.75mm
Shock Resistance:
IEC 60068-2-27: Peak Acceleration 15g, Duration11ms.
E116949
NOVA22 series has Environmental Product declarations type III conforming to ISO 14025.
GENERAL NOTES
(1)
Control voltage 18-52 VAC/VDC is available upon request.
(2)
All parameters at 25°C unless otherwise specified.
(3)
Output will self trigger between 900-1200 Vpk, not suitable for capacitive loads.
(4)
Heat sinking required, see derating curves.
(5)
Increase minimum voltage by 1 V for operations from -20 to -40°C.
(6)
For ambient temperatures above 40°C the maximum control voltage must not exceed 250 VAC/VDC.
(7)
Turn-on time for Instantaneous turn-on versions is 0.1 msec.
(8)
AC input models operating range is -20 to 60°C.
(9)
When protected with the appropriate class and rated fuse. For detailed info please contact Crydom Technical Support.
(10)
Input torque to screw terminals Connector.
(11)
For single surge pulse Tc=25°C; Tj=125°C. For AC Output SSRs, AC
RMS
value of surge current equals the peak value divided by
√
2 (1.414).
Rev. 100715
Do not forget to visit us at:
www.crydom.com
Copyright © 2015 Crydom Inc. Specifications subject to change without notice.
