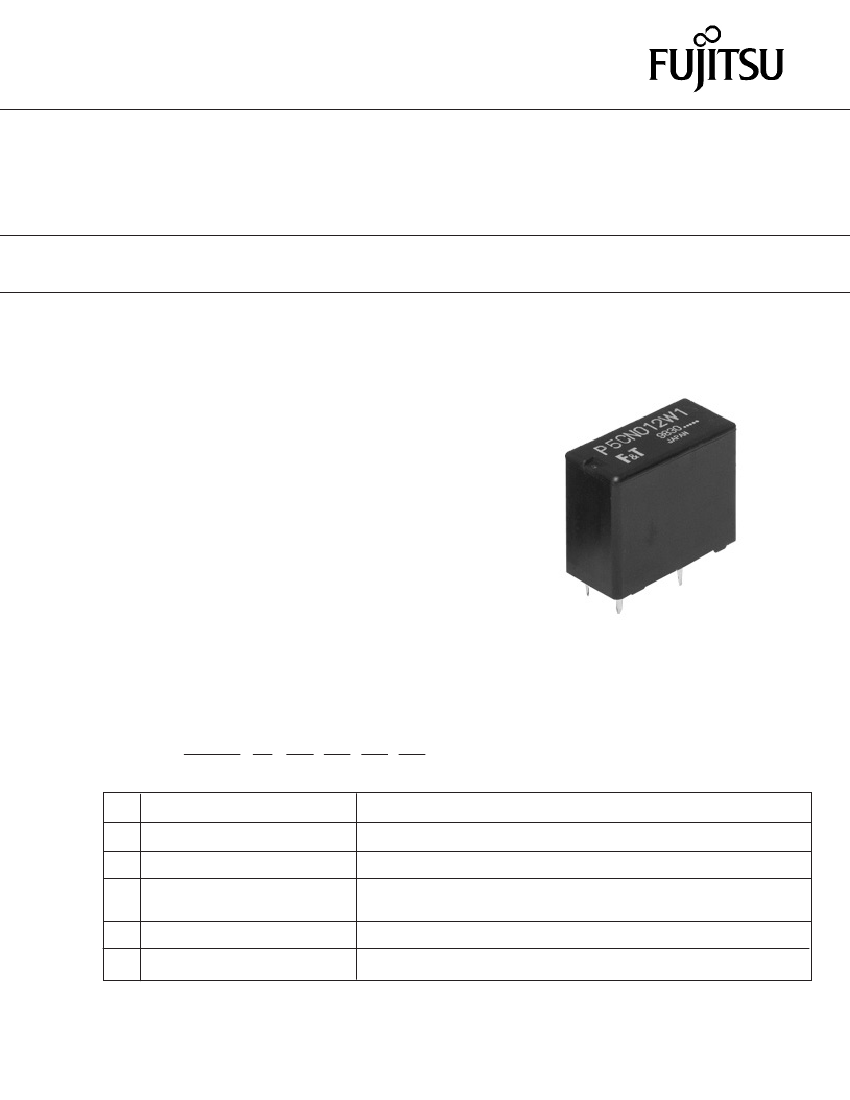

FTR-K1 SERIES
SILENT RELAY
1 POLE - 25A (for automotive applications)
FTR-P5 Series
n
FEATURES
Low operating sound
An original silent mechanism decreases the propagation of
operating sound when mounted on a PCB
(Average sound pressure: 50dB at 5 cm, 45dB at 10cm)
l
Compact, high density package 198 mm2 mounting area
l
High sensitivity, low power consumption
(nominal power consumption: 450 mW)
l
High capacity
Heat dissipation is high due to a single cover structure
l
Typical applications:
Wiper, power window, doorlock, power seat
sunroof, interior lighting, fan
l
RoHS compliant
Please see page 7 for more information
l
n
PARTNUMBER INFORMATION
FTR-P5
(a)
C
(b)
N
(c)
[Example]
(a)
(b)
(c)
(d)
(e)
(f)
012
(d)
W1
(e)
**
(f)
Relay type
Contact configuration
Sealing
Coil rated voltage
Contact material
Special type
FTR-P5 :FTR-P5-Series
C
N
012
W1
: 1 form C
: Plastic sealed
: 9.....12 VDC
Coil rating table at page 3
: Silver-tin oxide-indium oxide
To be assigned custom specification
Actual marking does not carry the type name: "FTR"
E.g.: Ordering code: FTR-P5CN012W1 Actual marking: P5CN012W1
1
FTR-P5 SERIES
FTR-K1 SERIES
n
SPECIFICATION
Item
Contact Data
Configuration
Material
Contact path voltage drop
Contact rating
Max. carrying current
Max. inrush current
Max. switching voltage
Max. switching current
Min. switching load *
Life
Coil Data
Timing Data
Other
Mechanical
Electrical
Operating temperature range
Storage temperature range
Operate (at nominal voltage)
Release (at nominal voltage)
Vibration resistance
Shock
Weight
Average sound pressure
Operational
Operational
No damage
1 form C
Silver-tin oxide-indium oxide
Max. 100mV at 1A, 12VDC
14VDC, 25A (motor locked)
25A/1 hour (25 °C, nominal voltage applied to coil)
35A (reference)
16VDC (reference)
35A (reference)
6VDC, 1A (reference)
Min. 10 million operations
Min. 100k operations (at contact rating)
-40 °C to +85 °C (no frost)
-40 °C to +100 °C (no frost)
Max. 10 ms
Max. 5 ms (without diode)
10 to 55Hz double amplitude 1.5mm , 3 shock in 6 directions
Min. 100m/s² (10g) (11 ± 1ms)
Min. 1000m/s² (100g) (6 ± 1ms)
Approximately 13 g
Approximately 50dB at 5cm
FTR-P5
* Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual load before
production since reference values may vary according to switching frequencies, environmental conditions and expected reliability levels.
n
COIL RATING
Coil
Code
009
010
012
Rated Coil
Voltage
(VDC)
9
10
12
Coil Resistance +/-
10% (Ohm)
180
220
320
Must Operate
Voltage
(VDC) *
5.5 (at 20 °C)
6.9 (at 85 °C)
6.3 (at 20 °C)
7.9 (at 85 °C)
7.3 (at 20 °C)
9.2 (at 85 °C)
Must Release
Voltage
(VDC) *
0.7 (at 20 °C)
0.9 (at 85 °C)
0.8 (at 20 °C)
1.0 (at 85 °C)
1.0 (at 20 °C)
1.3(at 85 °C)
450
455
Power Consumption at
Nominal Coil Voltage
(mW)
450
Note: All values in the table are valid for 20°C and zero contact current, unless otherwise stated.
* Specified operate values are valid for pulse wave voltage.
