Relay Module - PLC-RPT- 24DC/21 - 2900299
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

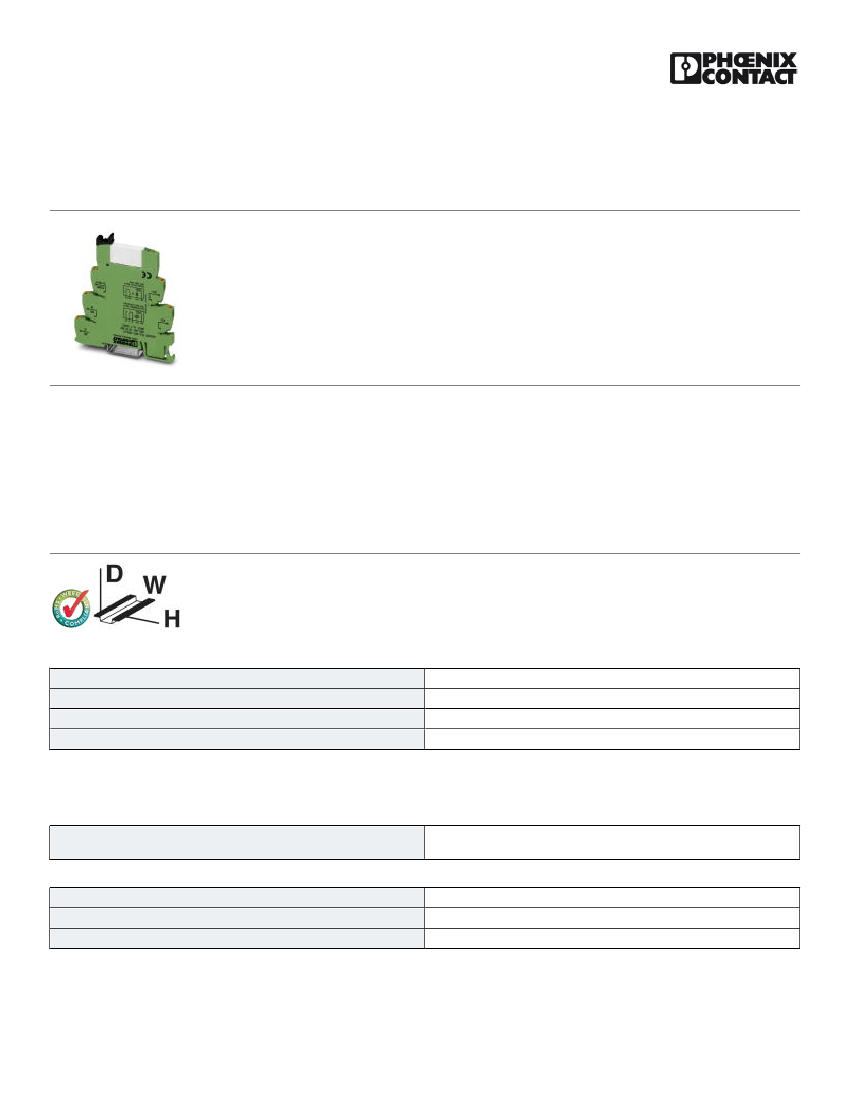

PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block with push-in technology and plug-in miniature
relay with power contact, for mounting on NS 35/7,5 DIN rails, 1 PDT, input voltage: 24 V DC
Product Features
■
■
■
■
■
■
Slim design
Efficient connection to system cabling using V8 adapter
RT III sealed relay
Safe isolation according to DIN EN 50178 between coil and contact
Integrated input circuit and interference suppression circuit
Functional plug-in bridges
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
36.0 g
85364190
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
6.2 mm
80 mm
94 mm
Ambient conditions
04/27/2016 Page 1 / 13
https://www.phoenixcontact.com/us/products/2900299
Relay Module - PLC-RPT- 24DC/21 - 2900299
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 60 °C
-40 °C ... 85 °C
Coil side
Nominal input voltage U
N
Typical input current at U
N
Typical response time
Typical release time
Protective circuit
Operating voltage display
Power dissipation for nominal condition
24 V DC
9 mA
5 ms
8 ms
Reverse polarity protection Polarity protection diode
Free-wheeling diode Damping diode
yes
0.22 W
Contact side
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Min. switching current
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
1 PDT
AgSnO
250 V AC/DC (The separating plate PLC-ATP should be installed for
voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in
adjacent modules. Potential bridging is then carried out with FBST 8-PLC...
or ...FBST 500...)
5 V (at 100 mA)
10 mA (at 12 V)
10 A (4 s)
6A
140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity in acc. with DIN VDE 0660/IEC 60947
2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15)
Connection data input side
Connection name
Connection method
Coil side
Push-in connection
04/27/2016 Page 2 / 13
https://www.phoenixcontact.com/us/products/2900299
Relay Module - PLC-RPT- 24DC/21 - 2900299
Technical data
Connection data input side
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
8 mm
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Connection data output side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Contact side
Push-in connection
8 mm
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
General
Test voltage relay winding/relay contact
Operating mode
Degree of protection
Mechanical service life
Flammability rating according to UL 94
Designation
Standards/regulations
4 kV AC (50 Hz, 1 min.)
100% operating factor
RT III (Relay)
2 x 10 cycles
V0
Standards/regulations
IEC 60664
IEC 60664A
DIN VDE 0110
DIN EN 50178/DIN VDE 0160 (in relevant parts)
DIN EN 50178/VDE 0160
IEC 60255/DIN VDE 0435 (in relevant parts)
Degree of pollution
Overvoltage category
Mounting position
Assembly instructions
3
III
any
In rows with zero spacing
7
Standards and Regulations
Connection in acc. with standard
Designation
Standards/regulations
CUL
Standards/regulations
IEC 60664
IEC 60664A
DIN VDE 0110
DIN EN 50178/DIN VDE 0160 (in relevant parts)
DIN EN 50178/VDE 0160
04/27/2016 Page 3 / 13
https://www.phoenixcontact.com/us/products/2900299
Relay Module - PLC-RPT- 24DC/21 - 2900299
Technical data
Standards and Regulations
IEC 60255/DIN VDE 0435 (in relevant parts)
Degree of pollution
Overvoltage category
Flammability rating according to UL 94
3
III
V0
Articles in set

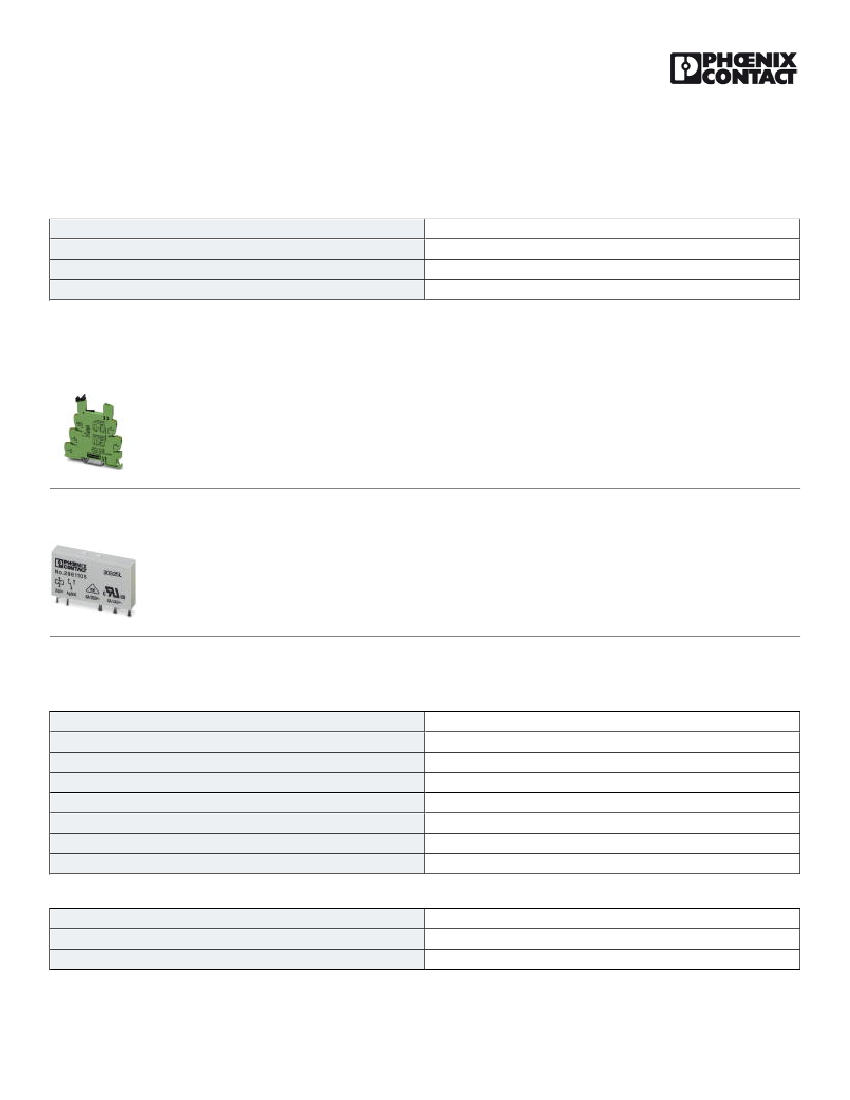

Relay socket - PLC-BPT- 24DC/21 - 2900445
6.2 mm PLC basic terminal block with push-in connection, without relay or solid-state relay, for mounting on DIN rail NS
35/7,5, 1 PDT, input voltage 24 V DC
Single relay - REL-MR- 24DC/21 - 2961105
Plug-in miniature power relay, with power contact, 1 PDT, input voltage 24 V DC
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27371001
27371001
27371001
27371001
27371001
27371001
27371601
27371601
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000196
EC000196
EC001437
04/27/2016 Page 4 / 13
https://www.phoenixcontact.com/us/products/2900299
Relay Module - PLC-RPT- 24DC/21 - 2900299
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121515
39121515
39121515
39121515
Approvals
Approvals
Approvals
UL Recognized / UL Listed / cUL Recognized / cUL Listed / GL / EAC / RC FRT / EAC / cULus Recognized / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Recognized
UL Listed
cUL Recognized
cUL Listed
04/27/2016 Page 5 / 13
