4M-SERIES
4M-Series
MINIATURE SLIDE SWITCHES

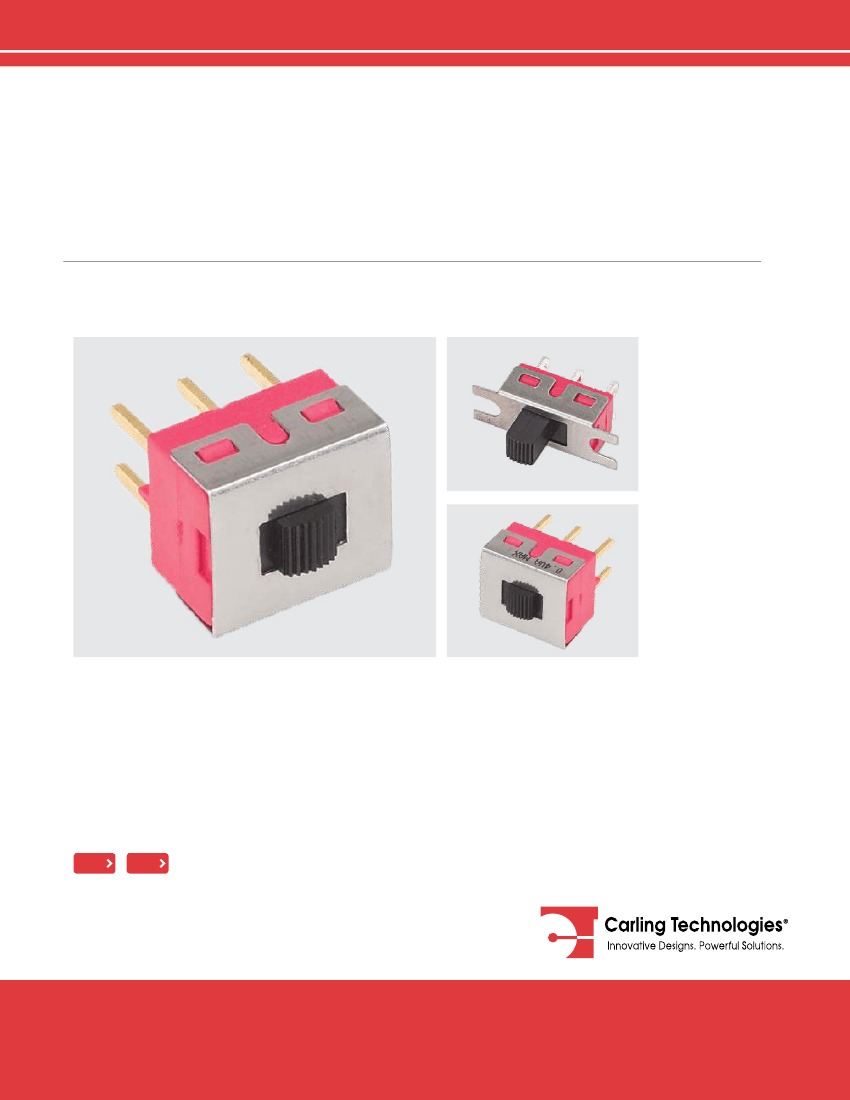

The 4M-Series miniature slide switches offer a variety of ratings, circuits, contact materials, and terminal platings.
With 14 termination choices and 8 actuator styles, this versatile switch adapts to a variety of applications, and is
able to withstand temperatures from -30°C to +85°C.
Product Highlights:
Two or Three Position Circuitry
125/250VAC or up to 28VDC
Available in Silver, Gold or Tin Plating
Supplied in Bulk or Tape Reel
UL and CSA Approvals Available
Typical Applications:
Consumer Electronics
Instrumentation
Computer Servers / Peripherals
Test / Measurement
Resources:
Download 3D CAD Files
IGS
STP
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
4M-Series - General Specifications, 4M1 Ordering Scheme, Dimensional Specifications
Electrical
Contact Rating
Electrical Life
Contact Resistance
Insulation Resistance
Dielectric Strength
refer to ordering scheme
30,000 make & break cycles @
full load
10 mΩ max. initial @ 2-4 VDC
100mA for both silver & gold
plated contacts
1000 MΩ min.
1500 Volts RMS @ sea level
Physical
Material
Operating Temperature -30°C to +85°C
Solder Heat Resistance MIL-STD-202, Method 210
Case
Slide Handle
Housing
Terminal Seal
Dially phthalate (DAP) (UL 94V-0)
Nylon
Stainless Steel
Epoxy

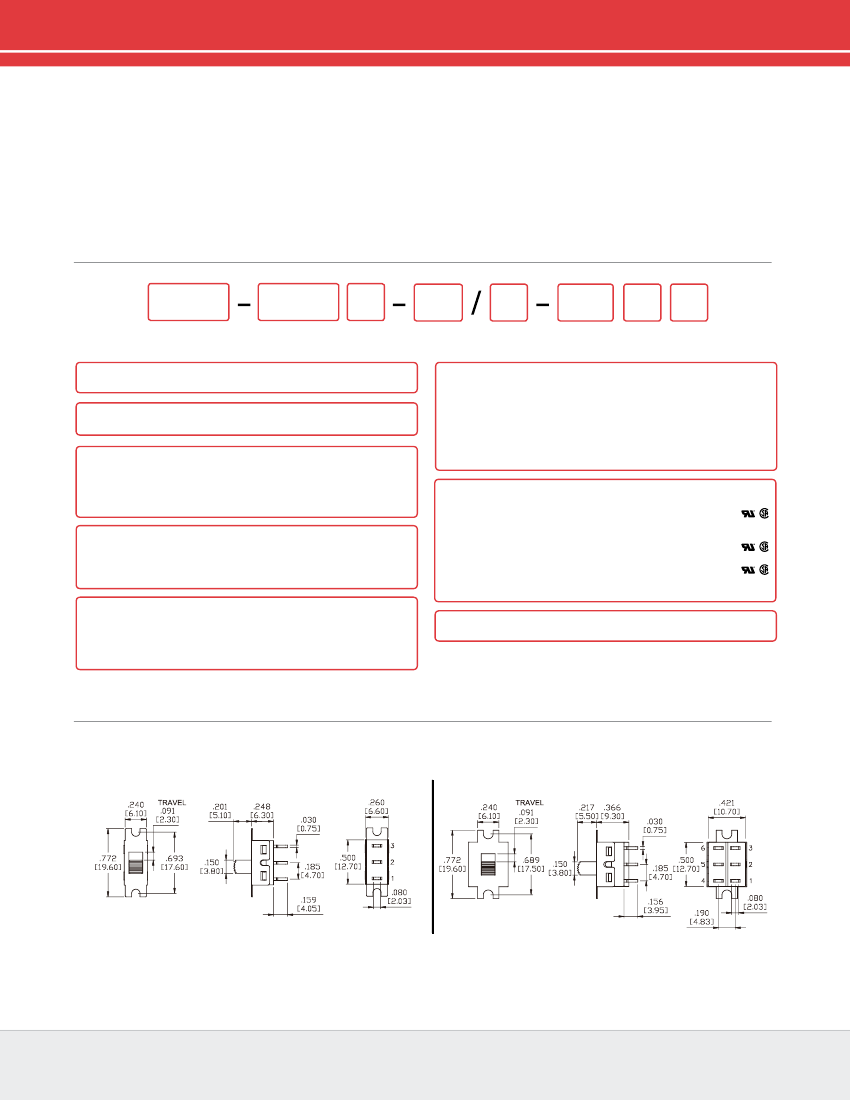

4M1
1
Series
SSP 3
2
Pole
3
Circuit
S1
4
Actuator
2
5
Actuator
Color
M6 Q E
6
Termination
7
Contacts
8
Seal
1 SERIES
4M1
Miniature Slide Switch
2 POLES
SSP
Single Pole
3 CIRCUIT
( ) - momentary
Switching Position: 1
2-1, 5-4
1
ON
3
ON
4 ACTUATOR
S1
.201” height
S2
.301” height
S3
.370” height
S4
.140” height
5 ACTUATOR COLORS
1
White
2
Black
3
Red
4
Orange
5
Yellow
SDP
Double Pole
6 TERMINATION
M1
Solder Lug
M2
PCB
M3
Quick Connect
M5-1
Wire Wrap .750
M5-2
Wire Wrap .964
M5-3
Wire Wrap .425
M5-4
Wire Wrap 1.062
M6
PC Mount, 90° horizontal
3
2-3, 5,6
ON
ON
M61
M7
M71
VS2
VS3
N1
Snap-In, 90°
PC Mount, 90° vertical
Snap-In, 90°
PC Mount, U bracket,
.350 height
PC Mount, U bracket,
.575 height
Solder Lug without
mounting tabs
2
Connected Terminals
NONE
OFF
S5
S6
S7
T1
.053” height (for DPDT only)
.488” height
.311” height
.209” height (for DPDT only)
7 CONTACTS / TERMINALS
Contact Material Terminal Plating Rating
Approvals
G
silver
1
gold over silver
5A 125VAC or 28VDC
,
2A 250VAC
K
gold
2
tin
3,5
0.4VA max 20V max
(AC/DC)
N/A
tin
3,5
5A 125VAC or 28VDC
,
P
silver
1
2A 250VAC
silver
1
5A 125VAC or 28VDC
,
Q
silver
1
2A 250VAC
R
gold
2
gold
2
0.4VA max 20V max
(AC/DC)
N/A
8 EPOXY SEAL
E
Epoxy Seal
6
7
8
9
Green
Blue
Brown
Gray
0
without Epoxy Seal
Notes:
1
Movable contact & terminal platings: silver over copper alloy
2
Movable contact & terminal platings: gold over nickel over copper alloy
3
Terminals platings: tin over nickel over copper alloy, available with PC terminations only
4
Non-Black, white and red colors require a minimum order of 2500 pieces
5
Tin option available with PC type terminations only

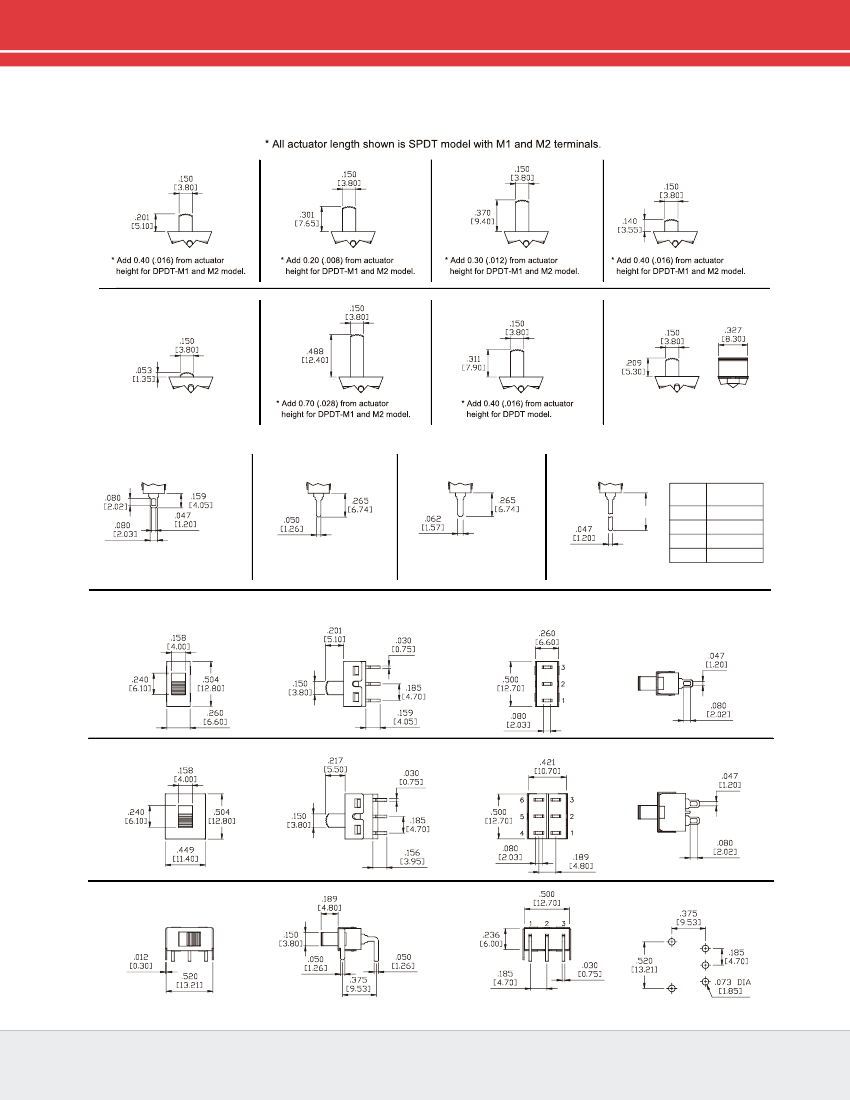

4M1-Series Dimensional Specifications: in. [mm]
Single Pole
Double Pole
Actuator Options
S1
S2
S3
S4
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com

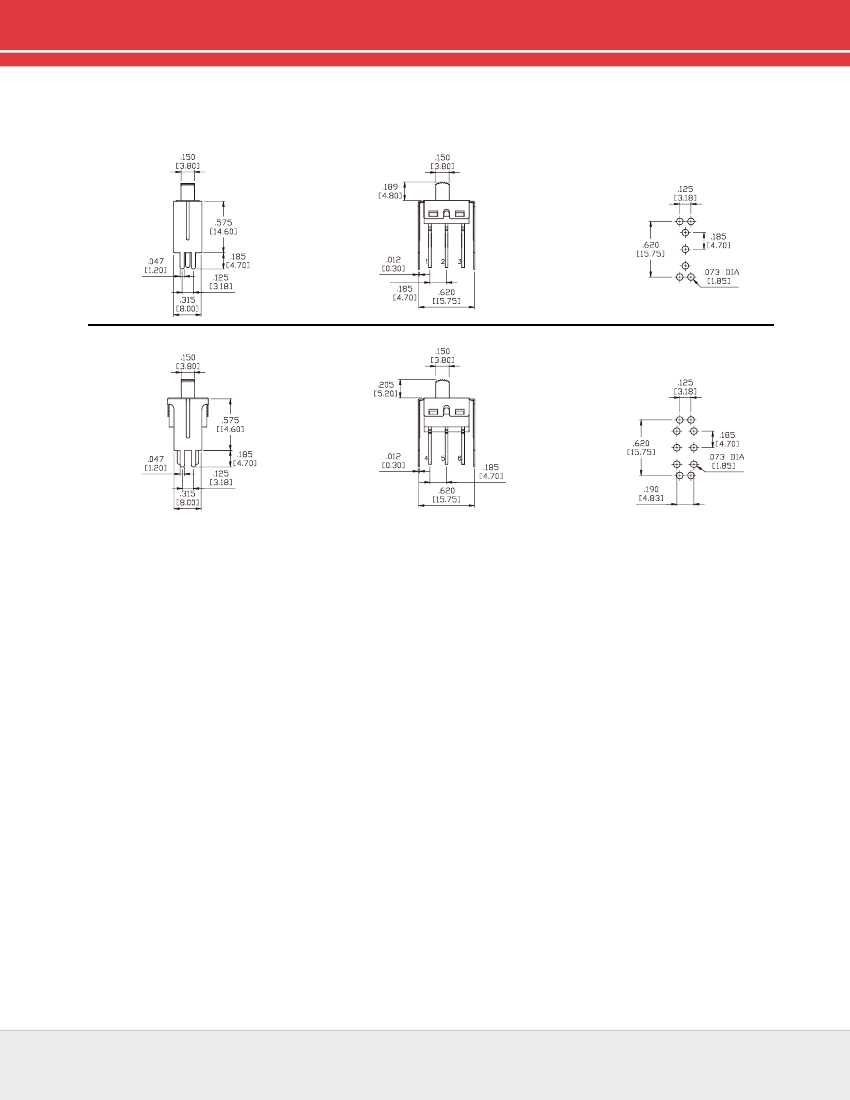

4S-Series - Dimensional Specifications
| 3

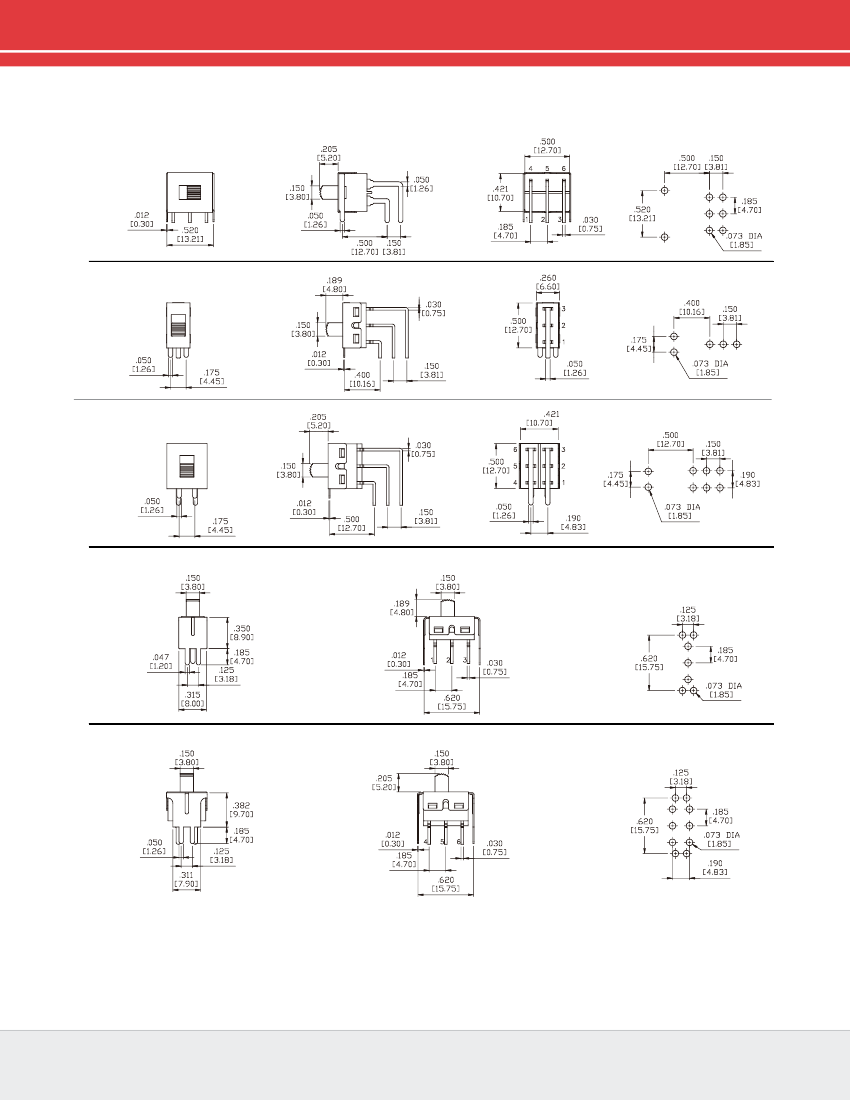

4M1-Series Dimensional Specifications: in. [mm]
Actuator Options
S1
S2
S3
S4
S5
S6
S7
T1
for DPDT only
M1
Standard Solder Lug
M2
PC Thru-Hole
Termination Options
M3
Quick Connect
M5
Wire Wrap
OPTION
CODE
'A'
DIM.'A'
.750 [19.05]
.964 [24.48]
.425 [10.80]
1.062 [26.97]
M5-1
M5-2
M5-3
THK .030 [0.75]
* Standard with Mounting Tabs.
THK .030 [0.75]
THK .030 [0.75]
THK .030 [0.75]
M5-4
N1
Single Pole
Termination Options without Mounting Tabs
N1
Double Pole
M6
Single Pole
P.C.MOUNTING
M6
Double Pole
P.C.MOUNTING
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
4 |
4S-Series - Dimensional Specifications
M6
Single Pole
P.C.MOUNTING
4M1-Series Dimensional Specifications: in. [mm]
M6
Double Pole
M1
Standard Solder Lug
M2
PC Thru-Hole
Termination Options
M3
Quick Connect
M5
Wire Wrap
P.C.MOUNTING
OPTION
CODE
'A'
DIM.'A'
.750 [19.05]
.964 [24.48]
.425 [10.80]
1.062 [26.97]
M5-1
M5-2
M5-3
THK .030 [0.75]
* Standard with Mounting Tabs.
THK .030 [0.75]
THK .030 [0.75]
THK .030 [0.75]
M5-4
M7
Single Pole
N1
Single Pole
Termination Options without Mounting Tabs
P.C.MOUNTING
Termination Options
M7
Double Pole
N1
Double Pole
P.C.MOUNTING
VS2
Single Pole
M6
Single Pole
P.C.MOUNTING
P.C.MOUNTING
M6
Double Pole
VS2
Double Pole
P.C.MOUNTING
P.C.MOUNTING
M7
Single Pole
P.C.MOUNTING
VS3
Single Pole
P.C.MOUNTING
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
4S-Series - Dimensional Specifications
| 5
4M1-Series Dimensional Specifications: in. [mm]
VS3
Double Pole
M7
Single Pole
Termination Options
P.C.MOUNTING
P.C.MOUNTING
VS2
Single Pole
VS3
Double Pole
P.C.MOUNTING
P.C.MOUNTING
VS2
Double Pole
P.C.MOUNTING
VS3
Single Pole
P.C.MOUNTING
VS3
Double Pole
P.C.MOUNTING
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
