Miniature Pushbutton Switches
Series KB

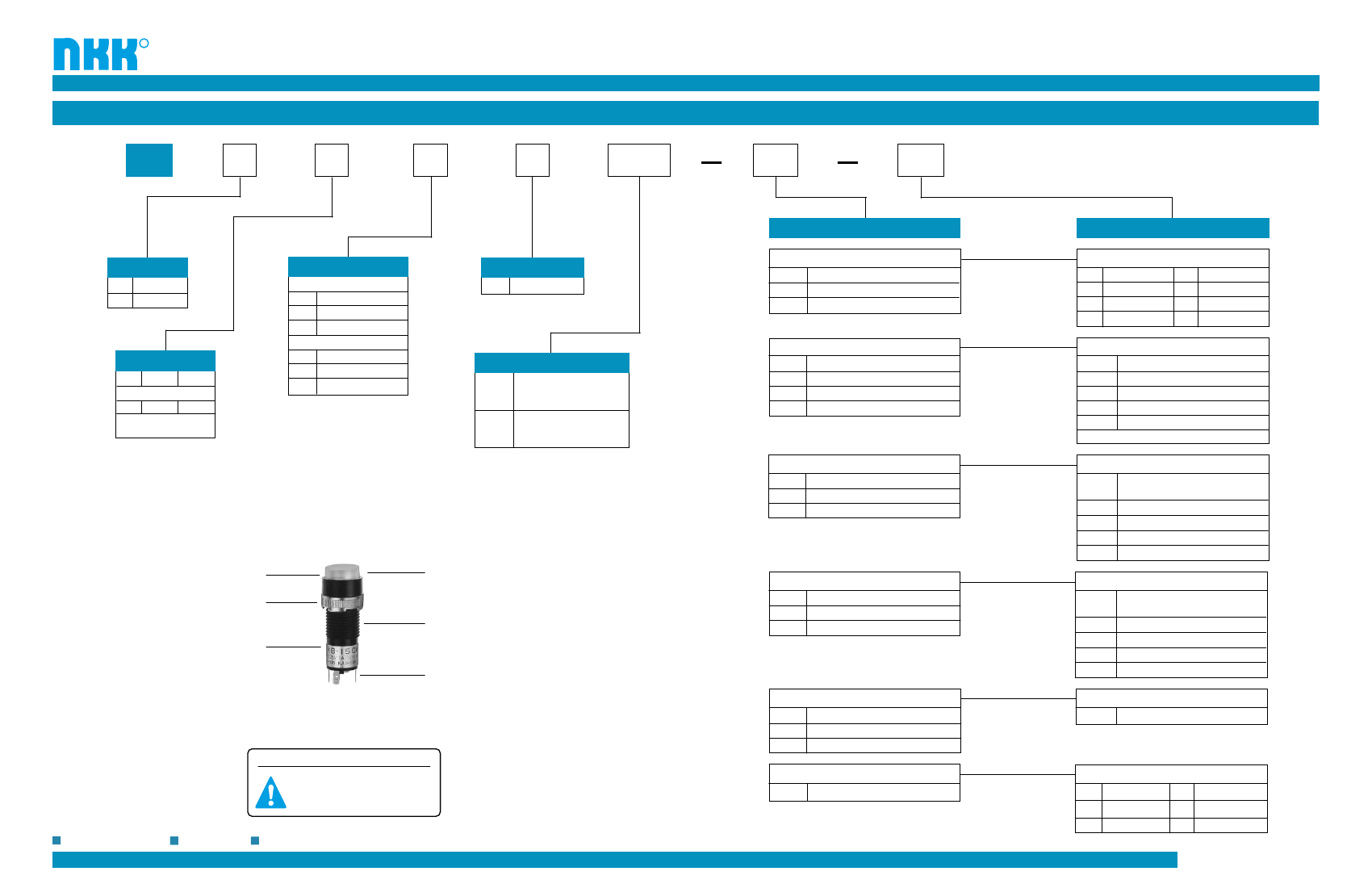

TYPICAL SWITCH ORDERING EXAMPLE
KB
1
5
C
K
W01
12
LAMPS
FF
CAP TYPES & COLORS
Solid Cap: Lens/Filter Colors
BB
CB
CC
EB
White/White
FB
Red/White
FF
Red/Red
GB
Yellow/White
GG
Green/White
Green/Green
Blue/White
Blue/Blue
POLES
1
2
SPDT
DPDT
SHAPES
Bushing Mounting
S
Square
C
R
Round
Rectangular
K
HOUSING
Black only
Incandescent Lamp used with Solid Cap
05
12
28
5-volt
12-volt
28-volt
CIRCUITS
5
ON
(ON)
( ) = Momentary
6
ON
ON
Alternate Action
with Latchdown
Snap-In Mounting
K
Square
M
N
Round
Rectangular
Incandescent or Neon used w/ Insert Cap
Insert Cap: Lens/Filter Colors
JB
JC
JE
JF*
JG*
* JF
Clear/White
Clear/Red
Clear/Yellow
Clear/Green
Clear/Blue
& JG not suitable with neon.
CONTACTS & TERMINALS
W01
Silver Contacts and
Solder Lug Terminals
1A @ 125/250V AC
Gold Contacts and
Solder Lug Terminals
0.4VA @ 28V AC/DC
05
12
28
01
5-volt
12-volt
28-volt
110-volt Neon
G01
Standard LED used with Cap for LED
C
D
F
Red
Amber
Green
AB
JB
JC
JD
JF
Solid Cap with
Green Lens and Green Filter
Black Housing
SPDT
ON-(ON) Circuit
Silver Contacts and
Solder Lug Terminals;
rated 1A @ 125/250V AC
Bright LED used with Cap for LED
5C
5D
5F
Red
Amber
Green
AB
JB
JC
JD
JF
Super Bright LED used with Cap for LED
6B
6F
6G
White
Green
Blue
Nonilluminated Cap
00
No Lamp
JB
LED Cap: Lens/Diffuser Colors
Black Cap/White Window
(Square only)
Clear/White
Clear/Red
Clear/Amber
Clear/Green
LED Cap: Lens/Diffuser Colors
Black Cap/White Window
(Square only)
Clear/White
Clear/Red
Clear/Amber
Clear/Green
LED Cap: Lens/Diffuser Colors
Clear/White
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
KB15CKW01-12-FF
12-volt Incandescent Lamp
Round Shape and Bushing Mountable
IMPORTANT:
Switches are supplied without UL &
CSA marking unless specified.
Specific models & ratings noted on
General Specifications page.
Nonilluminated Cap: Lens/Filter Colors
A
BB
CC
Black/None
White/White
Red/Red
EB
FF
GG
Yellow/White
Green/Green
Blue/Blue
www.nkkswitches.com
5-8-01
General Specifications
Dimensions
1
Dimensions
2
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
R
Miniature Pushbutton Switches
Series KB
GENERAL SPECIFICATIONS
Electrical Capacity (Resistive Load)
Power Level (code W):
1A @ 125/250V AC or 1A @ 30V DC
Logic Level (code G):
0.4VA maximum @ 28V AC/DC maximum
Note: See
Supplement Index
to find explanation of operating range.
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
50 milliohms maximum
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts & 1,500 minimum between contacts & case (silver);
750V AC minimum between contacts & 1,500 minimum between contacts & case (gold);
100,000 operations minimum
50,000 operations minimum for silver; 100,000 operations minimum for gold
Single pole 100 ~ 250 grams for maintained & 100 ~ 200 grams for momentary;
Double pole 150 ~ 350 grams for maintained & 150 ~ 300 grams for momentary
Nonshorting (break-before-make)
2.2mm (.087") pretravel; 0.80mm (.031") overtravel; 3.0mm (.118") total travel
Materials & Finishes
Housing:
Movable Contactor:
Stationary Contacts:
Housing Base:
Terminal Base:
Common Terminal:
End Terminals:
Lamp Terminals:
Polyamide
Silver for power circuit; copper with gold plating for logic level circuit
Silver for power circuit; copper with gold plating for logic level circuit
Polyamide
Polyester
Phosphor bronze with silver flash plating for power circuit;
Phosphor bronze with gold flash plating for logic level circuit
Brass with silver flash plating for power circuit;
Brass with gold flash plating for logic level circuit
Phosphor bronze with nickel flash plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
-25°C through +50°C (-13°F through +122°F) for Illuminated
-25°C through +70°C (-13°F through +158°F) for Nonilluminated
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50g acceleration (tested in 6 right angled directions, with 3 shocks in each direction)
Installation
Mounting Torque:
Cap Installation Force:
Soldering Time & Temperature:
Process Seal:
8.0 kgf/cm (6.9 lb/in) downward force on actuator
0.46 kg (1.0 lb)
3 seconds @ 350°C or 5 seconds @ 270°C
Not available
Standards & Certifications
Flammability Standards:
UL Recognized:
CSA Certified:
UL94V-0 housing and base
Single & double pole models recognized at 1A @ 125/250V AC, 1A @ 30V DC,
& 0.4VA @ 28V AC/DC; UL File No. E44145
Single & double pole models recognized at 1A @ 125/250V AC, 1A @ 30V DC,
& 0.4VA @ 28V AC/DC; CSA File No. LR23535
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
5-8-01
R
Miniature Pushbutton Switches
Series KB
POLES & CIRCUITS
Plunger Position
( ) = Momentary
Normal
Pole
SP
Model
KB15
KB16*
KB25
KB26*
ON
ON
ON
ON
(ON)
ON
(ON)
ON
2-3
2-3 5-6
2-1
2-1 5-4
SPDT
3
2
3
(COM)
1
6
Connected Terminals
Normal
Down
Throw & Power/Lamp Schematics
Notes: Switch is marked with "+" and "-".
Lamp circuit is isolated and requires
external power source.
2 (COM)
L (+)
(-) L
Down
1
5
L (+)
(-) L
DP
DPDT
4
* When in latchdown position for the alternate circuit, cap position is 1.4mm (.055") above the built-in shroud.

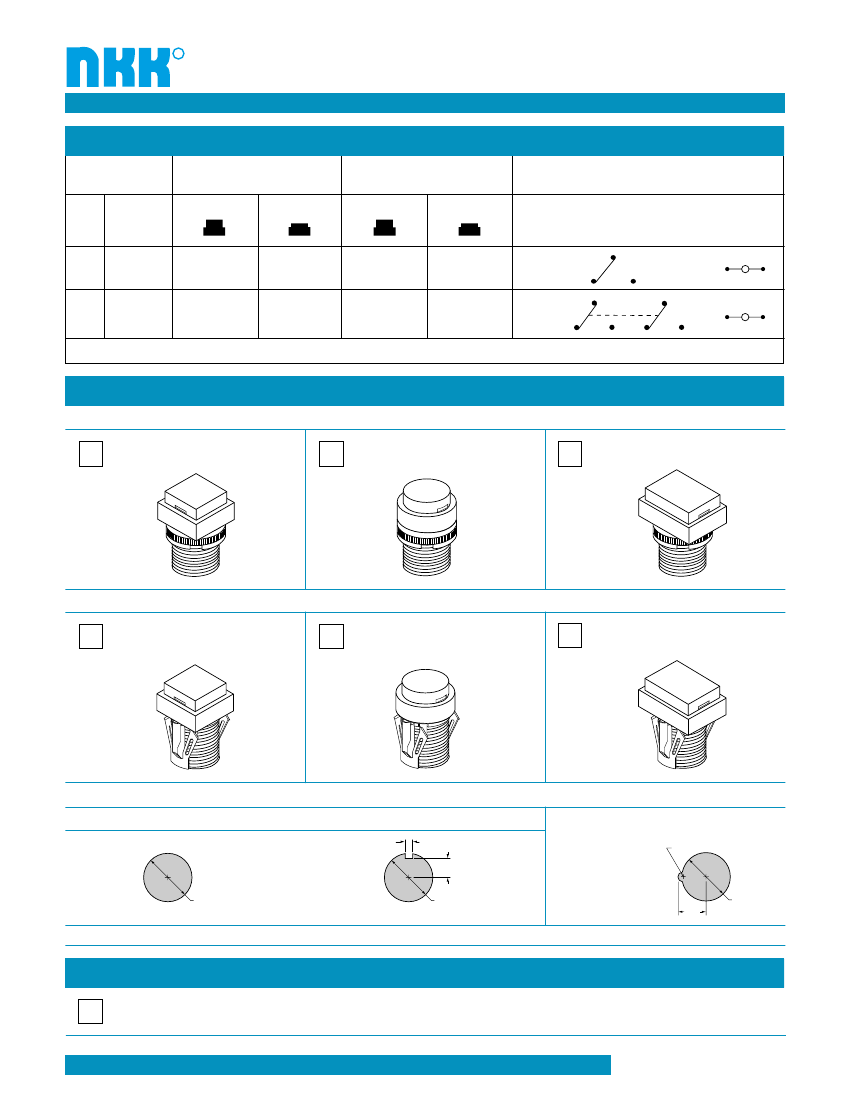

SHAPES & MOUNTING TYPES
Bushing Mounting
S
.551" Square
Shroud
C
.551" Diameter Round
Shroud
R
.551" x .728" Rectangular
Shroud
Snap-In Mounting
K
.551" Square
Shroud
M
.551" Diameter Round
Shroud
N
.551" x .728" Rectangular
Shroud
Panel Cutouts
Bushing Mounting
(1.8)
.071
Snap-In Mounting
Panel Thickness:
1.0 ~ 3.5mm
(.039 ~ .138")
(1.2) R
.047
Without
Keyway
(12.3) Dia
.484
Panel Thickness:
0.5 ~ 8mm
(.020 ~ .315")
(4.9)
.193
(12.3) Dia
.484
With
Keyway
(6.8)
.268
(12.3) Dia
.484
Panel thicknesses for optional accessories.
HOUSING
K
Housing available in black only.
Shroud is an integral part of the switch body.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
5-8-01
R
Miniature Pushbutton Switches
Series KB
(5.0)
.197
(2.0)
(1.8)
.079
.071
(1.0)
.039
Thk = (0.2) Com = (0.1)
.008
.005
CONTACT MATERIALS, RATINGS, & TERMINALS
W
Silver Contacts
Power Level
1A @ 125V AC & 250V AC
Logic Level
0.4VA maximum @ 28V AC/DC
G
Gold Contacts
See
Supplement Index
for complete explanation of operating range.
Solder Lug
The .039" x .079" oblong
hole accommodates one
solid 20-gauge wire or two
solid or stranded 22-gauge
wires.
01
A partitioned plastic guard is supplied with each switch to provide insulation between terminals.
Installation steps:
(1) Identify wire-to-terminal connections.
(2) Thread wires through the guard.
(3) Solder the connections.
(4) Push the guard fully onto the switch body.
(12.4) Dia
.488
(14.0) Dia
.551
(17.0)
.669
LAMP CODES & SPECIFICATIONS
Electrical specifications are determined at a basic temperature of 25°C. Lamp circuit is independent of switch operation.
For dimension drawings of lamps see the
Accessories & Hardware Index.
If the source voltage is greater than rated voltage, a ballast resistor is required. The ballast resistor calculation and more lamp
detail are shown in the Supplement; see
Supplement Index.
Incandescent & Neon Lamps
AT611
AT615
Voltage
Current
T-1 Bi-pin
05
V
I
Hours
5V AC
115mA
12
12V AC
60mA
7,000 average
28
*
28V AC
22mA
01
110V AC
1.5mA
10,000
Endurance
reduced in applications
with DC current, high
shock, vibration, or
continuous illumination.
Recommended Resistors for
Neon: 33K ohms for 110V
AC; 100K ohms for 220V AC
*
Lamp life is significantly
Standard Single Element LED
AT614
C
LEDs are colored in OFF state.
Forward Peak Current
Continuous Forward Current
Forward Voltage
D
Amber
50mA
40mA
2.35V
4V
0.67mA/°C
F
Green
50mA
40mA
2.35V
4V
0.67mA/°
Color
I
FM
I
F
V
F
V
RM
∆I
F
Red
50mA
40mA
1.75V
4V
0.67mA/°C
(+)
(-)
Reverse Peak Voltage
Current Reduction Rate Above 25°C
T-1 Bi-pin
Bright Dual Element LED
AT628
5C
LEDs are colored in OFF state.
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
T-1
3
⁄
4
Bi-pin
5D
Amber
40mA
26mA
2.0V
4V
0.50mA/°C
5F
Green
40mA
26mA
2.2V
4V
0.50mA/°C
Color
I
FM
I
F
V
F
V
RM
∆I
F
Red
40mA
26mA
1.9V
4V
0.50mA/°C
(+)
(-)
Current Reduction Rate Above 25°C
00
No Lamp
Code 00 indicates that no lamp is used with the solid cap.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
5-8-01
R
Miniature Pushbutton Switches
Series KB
6F
Green
30mA
20mA
3.5V
5V
0.50mA/°C

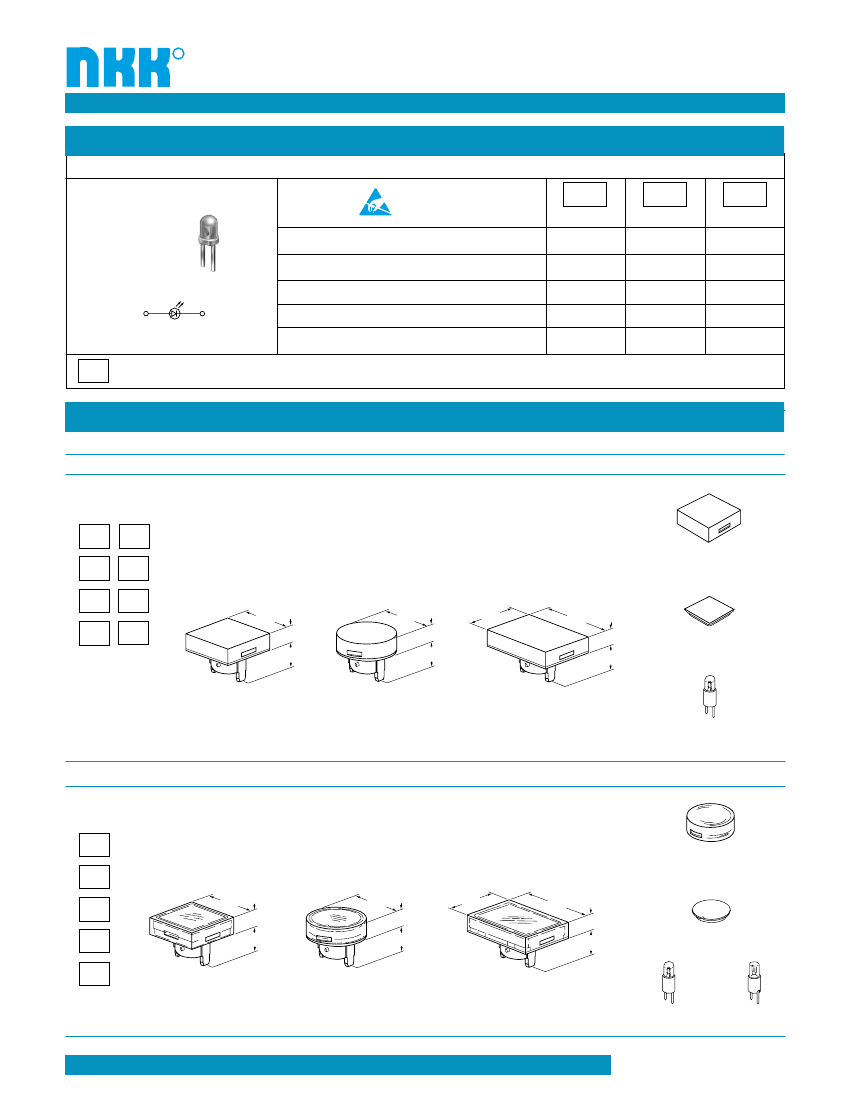

LAMP CODES & SPECIFICATIONS
Super Bright Single Element LED
AT625 Blue
AT631 White
AT632 Green
Electrostatic
Sensitive Devices
Attention
6B
Color
I
FM
I
F
V
F
V
RM
∆I
F
White
30mA
20mA
3.6V
5V
0.50mA/°C
6G
Blue
30mA
20mA
3.6V
5V
0.50mA/°C
Forward Peak Current
Continuous Forward Current
Forward Voltage
(+)
(-)
Reverse Peak Voltage
Current Reduction Rate Above 25°C
T-1 Bi-pin
00
No Lamp
Code 00 indicates that no lamp is used with the solid cap.
CAP TYPES & COLOR COMBINATIONS
Solid Cap for Incandescent Lamp
Color Codes:
Lens/Filter
Colors Available:
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
J
Clear
BB
CB
CC
EB
FB
FF
GB
GG
AT485
Square
AT486
Round
AT4021
Rectangular
Translucent Colored Lens
(11.6) Sq
.457
(4.5)
.177
(6.3)
.248
(11.6) Dia
.457
(4.5)
.177
(6.3)
.248
(11.6)
.457
(16.1)
.634
(4.5)
.177
(6.3)
.248
Translucent Colored Filter
Material: Polycarbonate
Finish: Glossy
Lamp AT611
Insert Cap for Incandescent or Neon Lamp
Lens/Filter
Colors Available:
JB
JC
JE
JF
JG
AT487
Square
(11.6) Sq
.457
AT488
Round
(11.6) Dia
.457
(4.5)
.177
(6.3)
.248
AT4022
Rectangular
(11.6)
.457
(16.1)
.634
(4.5)
.177
(6.3)
.248
Transparent Clear Lens
(4.5)
.177
(6.3)
.248
Translucent Colored Filter
JF and JG not suitable
with neon lamp.
Material: Polycarbonate
Finish: Glossy
Lamp AT611 Lamp AT615
www.nkkswitches.com
5-8-01
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
京公网安备 11010802033920号
EEWORLD
