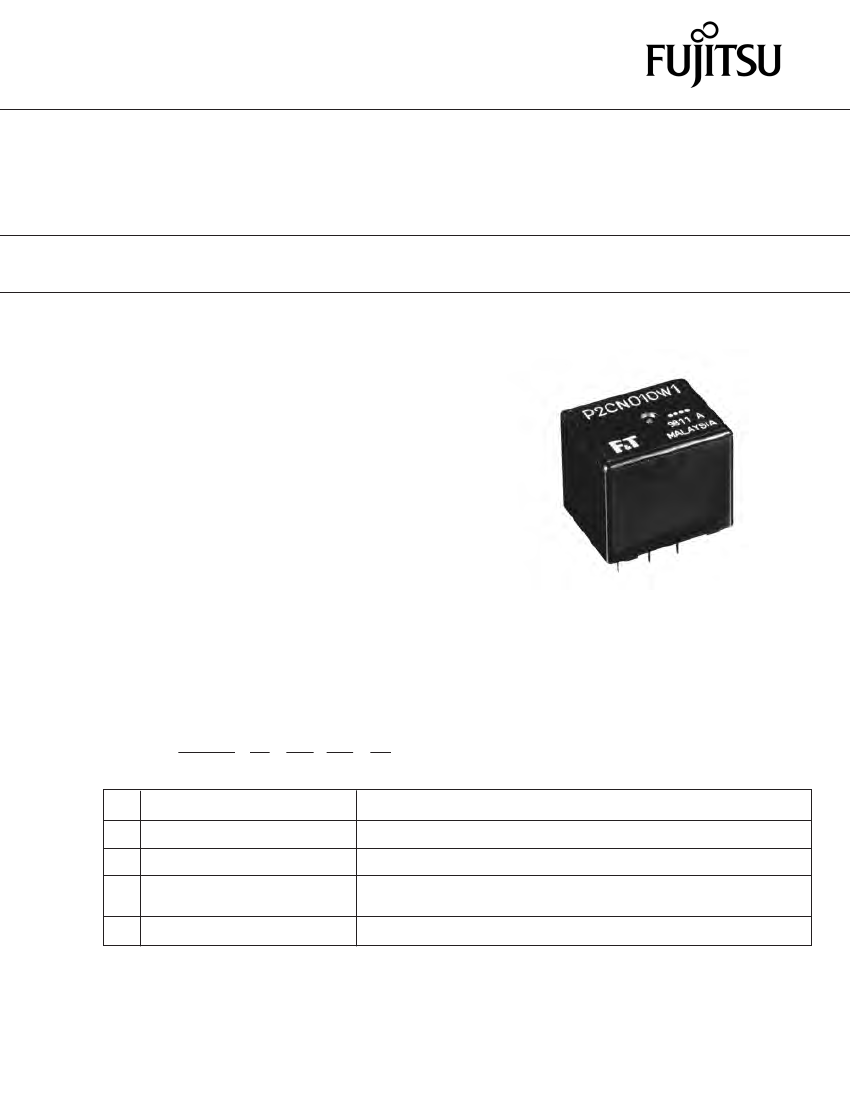

FTR-K1 SERIES
SILENT TWIN RELAY
1 POLE x 2 - 25A, H-Bridge (
for automotive applications
)
FTR-P2 Series
n
l
FEATURES
Low operating sound
An original silent mechanism decreases the propagation
of operating sound when mounted on a PCB.
(Average sound pressure: 50dB at 5 cm)
l
Compact, high density package
350 mm
2
mounting area
l
High sensitivity, low power consumption
(nominal power consumption: 450 mW)
l
Simple PCB layout due to internal H-Bridge connections
typically used in motor applications.
All terminals are on the perimeter
l
High breaking capability.
l
Typical applications
Power window, Doorlock, Power seat, Wiper (for H-Bridge circuit)
l
RoHS compliant
Please see page 7 for more information
n
PARTNUMBER INFORMATION
FTR-P2
(a)
C
(b)
N
(c)
[Example]
(a)
(b)
(c)
(d)
(e)
012
(d)
W1
(e)
FTR-P2 : FTR-P2 Series
C
N
012
W1
: 1 form C x 2, H-bridge
: 0.3mm gap
: 9.....12VDC
Coil rating table at page 2
:
Silver-tin oxide indium
Relay type
Contact configuration
Contact gap
Coil rated voltage
Contact material
Actual marking does not carry the type name: "FTR"
E.g.: Ordering code: FTR-P2CN012W1 Actual marking: P2CN012W1
1
FTR-K1 SERIES
FTR-P2 SERIES
n
SPECIFICATION
Item
Contact Data
Configuration
Material
Voltage drop
Contact rating
Max. carrying current
Max. switching voltage
Max. switching current
Min. switching load *
Life
Coil Data
Timing Data
Other
Mechanical
Electrical
Operating temperature range
Storage temperature range
Operate (at nominal voltage)
Release (at nominal voltage)
Vibration resistance (operational)
Shock
Weight
Average sound pressure
Operational
No damage
1 form C x 2, H-Bridge
Silver-tin oxide indium
Max. 100mV at 1A, 12VDC
14VDC, 25A (motor locked)
25A/1 hour (25 °C, nominal voltage applied to coil)
16VDC
35A
6V, 1A (reference)
Min. 10 million operations
Min. 100k operations (at contact rating)
-40 °C to +85 °C (no frost)
-40 °C to +100 °C (no frost)
Max. 10 ms
Max. 5 ms (without diode)
10 to 55Hz double amplitude 1.5mm
100 m/s² minimum (10G)
1,000 m/s² minimum (100G)
Approximately 13 g
Approximately 50dB at 5cm
FTR-P2
* Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual
load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.
n
COIL RATING
Coil
Code
009
010
012
Rated Coil
Voltage (VDC)
9
10
12
Coil Resistance
+/- 10% (Ohm)
180
220
320
Must Operate Voltage
(V) *
5.5 (at 20 °C)
6.9 (at 85 °C)
6.3 (at 20 °C)
7.9 (at 85 °C)
7.3 (at 20 °C)
9.2 (at 85 °C)
Must Release
Voltage
(V) *
0.7 (at 20 °C)
0.9 (at 85 °C)
0.8 (at 20 °C)
1.0 (at 85 °C)
1.0 (at 20 °C)
1.3 (at 85 °C)
450
455
Power Consumption
at Nominal Coil
Voltage (mW)
450
Note: All values in the table are valid for 20°C and zero contact current, unless otherwise stated.
* Specified operate values are valid for pulse wave voltage.
