FEPB16AT THRU FEPB16JT
FAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage -
50 to 600 Volts
TO-263AB
0.380 (9.65)
0.420 (10.67)
0.245 (6.22)
MIN
K
0.047 (1.19)
0.055 (1.40)
0.160 (4.06)
0.190 (4.83)
0.045 (1.14)
0.055 (1.40)
Forward Current -
16.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
Dual rectifier construction, positive centertap
♦
Glass passivated chip junctions
♦
Low power loss
♦
Low forward voltage, high current capability
♦
High surge current capability
♦
Superfast recovery times for high efficiency
♦
High temperature soldering in accordance with
CECC 802 / Reflow guaranteed
0.320 (8.13)
0.360 (9.14)
1
K
2
0.575 (14.60)
0.625 (15.88)
SEATING
PLATE
-T-
0.090 (2.29)
0.110 (2.79)
0.018 (0.46)
0.025 (0.64)
0.027 (0.686)
0.037 (0.940)
0.080 (2.03)
0.110 (2.79)
0.095 (2.41)
0.100 (2.54)
MECHANICAL DATA
Case:
JEDEC TO-263AB molded plastic body
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Weight:
0.08 ounce, 2.24 grams
PIN 1
K - HEATSINK
PIN 2
Dimensions are in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
FEPB
SYMBOLS 16AT
FEPB
16BT
FEPB
16CT
FEPB
16DT
FEPB FEPB
16FT 16GT
FEPB
16HT
FEPB
16JT
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
C
=100°C
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method) at T
C
=100°C per leg
Maximum instantaneous forward voltage per leg
at 8.0A
Maximum DC reverse current
at rated DC blocking voltage per leg
Maximum reverse recovery time
(NOTE 1)
per leg
Typical
J
unction
C
apacitance per leg
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction and storage temperature range
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MH
Z
and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to case per leg mounted on heatsink
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
150
105
150
200
140
200
300
210
300
400
280
400
500
350
500
600
420
600
Volts
Volts
Volts
Amps
16.0
I
FSM
200.0
Amps
V
F
I
R
t
rr
C
J
R
ΘJC
T
J,
T
STG
0.95
10.0
500.0
35.0
85.0
2.2
1.3
1.5
Volts
µA
T
C
=25°C
T
C
=100°C
50.0
60.0
ns
pF
°C/W
°C
-55 to +150
4/98

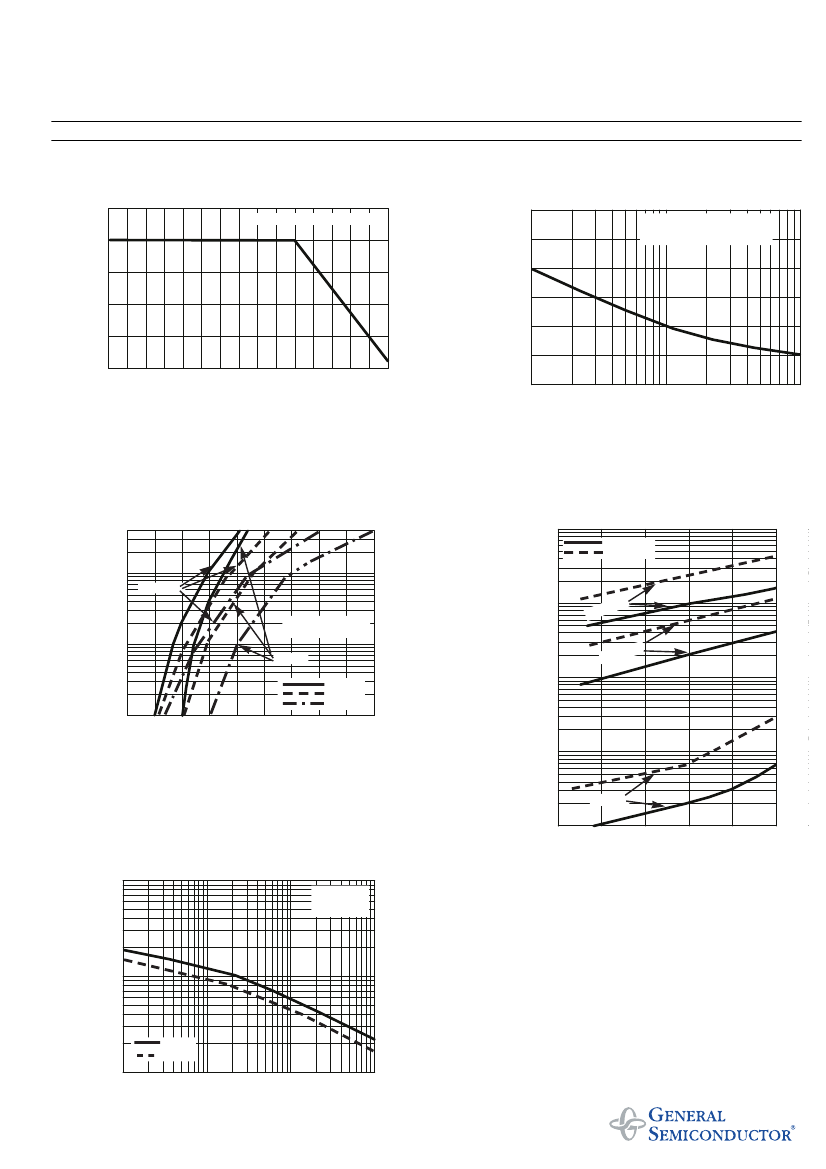

RATINGS AND CHARACTERISTICS CURVES FEPB16AT THRU FEPB16JT
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
FIG. 1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,
AMPERES
20
16
12
8.0
4.0
0
RESISTIVE OR INDUCTIVE LOAD
300
PEAK FORWARD SURGE CURRENT,
AMPERES
250
200
150
100
50
0
T
C
=100°C
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0
50
100
150
CASE TEMPERATURE, °C
1
10
100
NUMBER OF CYCLES AT 60 H
Z
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
INSTANTANEOUS FORWARD CURRENT,
AMPERES
FIG. 4 -TYPICAL REVERSE CHARACTERISTICS
PER LEG
40
INSTANTANEOUS REVERSE LEAKAGE CURRENT,
MICROAMPERES
100
50V-400V
600V-1000V
10
T
J
=125°C
10
PULSE WIDTH=300µs
1% DUTY CYCLE
T
J
=
125
°C
1
T
J
=25°C
50-400V
300-400V
500-600V
00°C
T
J
=1
1
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.1
T
J
=25°C
0.01
0
FIG. 5 - TYPICAL JUNCTION CAPACITANCE PER LEG
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
1,000
JUNCTION CAPACITANCE, pF
T
J
=125°C
f=1.0 MH
Z
Vsig=50mVp-p
100
50-400V
500-600V
10
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
