Limitless™ WLS Series
Wireless Limit Switches
The Limitless™ product line combines the best of MICRO SWITCH™ heavy-duty limit switches with the latest commercial off-the-
shelf wireless technology. Wireless enabled limit switches can be used for position sensing and presence/absence detection for an
endless number of applications.
The Limitless™ Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically
possible or economically feasible. Combining this greater flexibility with proven harsh duty packaging can result in increased
efficiencies and improved safety for machines, equipment, OEMs, and operators.

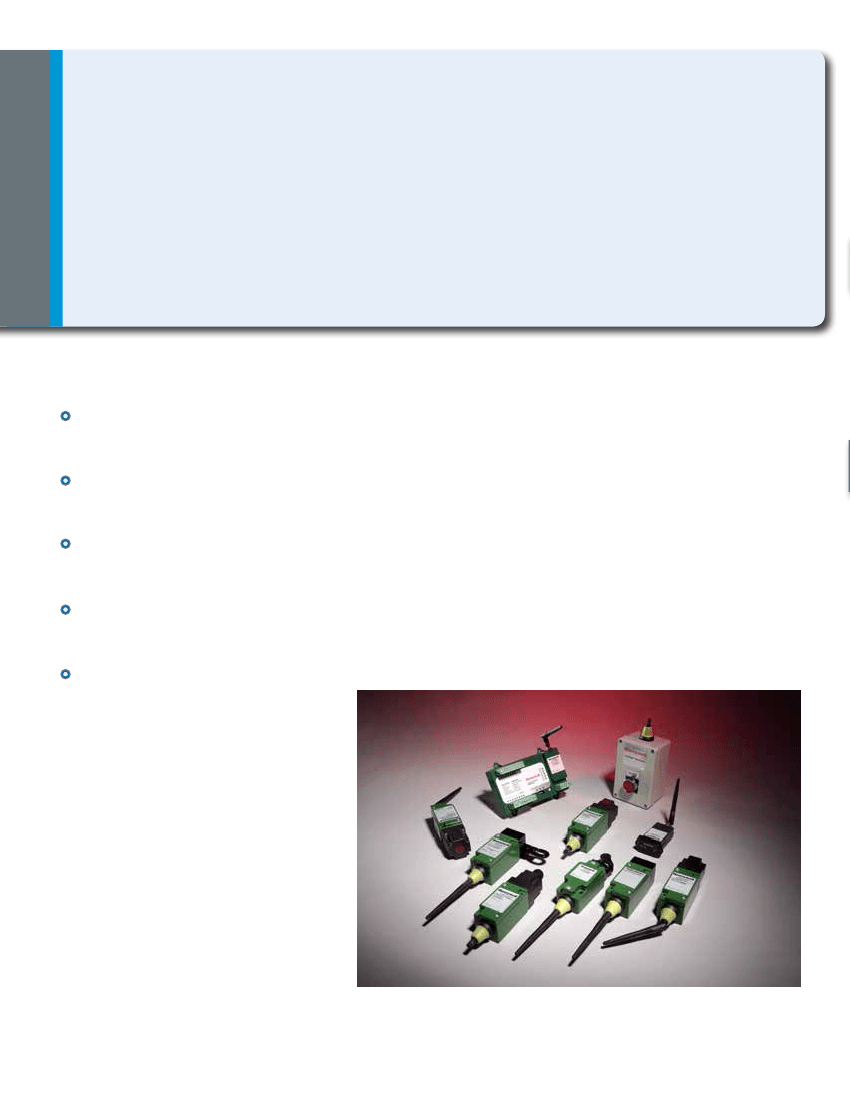

What makes our wireless solutions better?
•
Enables control and/or notification from remote parts of
applications/machinery/manufacturing plants, where wiring is
too costly or not possible
Ability to reconfigure and network multiple switches and
interfaces with unique addresses that allows for adding,
subtracting, or relocating Limitless™ inputs easily
Limit, eyelet pull, and non-contact switches along with
single switch adapters allow for multiple wireless solutions to
accommodate almost any application
Reduced installation and maintenance costs eliminate the
need to wire switches, install conduit, apply strain relief,
mounting clips, connectors, junction boxes, etc.
Eliminates issues with wire connection integrity and cable
degradation on moving equipment
INDUSTRY STANDARD
VALUE • RELIABLE
2
sensing.honeywell.com
Features
and Benefits
WIRELESS DESIGN
Radio (license-free and global): WPAN 802.15.4, 2.4 GHz, point-to-point to deliver
reliable, flexible, and secure wireless transmission.
Offers control from
remote locations where wiring is too costly or not practical (up to 305 m [1000 ft]).
SEALED FOR HARSH ENVIRONMENTS
The Limitless™ Series features
industrial and NEMA ratings,
sealed zinc
die-cast and powder coated housings with direct or remote mounted antenna
options.
Range of 305 m [1000 ft]
REMOTE CONTROL AND MONITORING
When paired with the Limitless™ Monitor or Receiver, the WLS product line can
enable users to monitor and/or control equipment, access points, and presence/
absence detection in remote locations where wiring is too costly or impractical
to install. The WLS Series is designed to consume ultra-low power that helps to
prolong battery life and has
direct or remote mounted antenna options.
Consumes ultra-low power to prolong battery life
DESIGN OPTIONS
The WLS Series offers a broad range of actuator styles. Side rotary, top plunger,
eyelet pull, wobble stick, single switch adapter, and non-contact switch are all
available within the product line. Actuator heads on most models can be
rotated
in 90° increments
to allow for flexibility in applications. Multiple actuators can
also be applied to any side rotary WLS Limitless™ switch.
CONFIGURABILITY
All of the WLS Series Limitless™ switches can be easily paired with a WPMM
monitor or WDRR receiver providing multiple inputs that
easily allow for adding,
removing, or relocating Limitless™ switches.
This unique feature helps to
eliminate issues with wire connection integrity on moving equipment.
REDUCES COSTS
With no wires, conduit, strain relief, connectors, or junction boxes to install or
maintain, the WLS Series can
reduce maintenance costs and inventory
associated with maintaining and repairing equipment and facilities.
sensing.honeywell.com
3

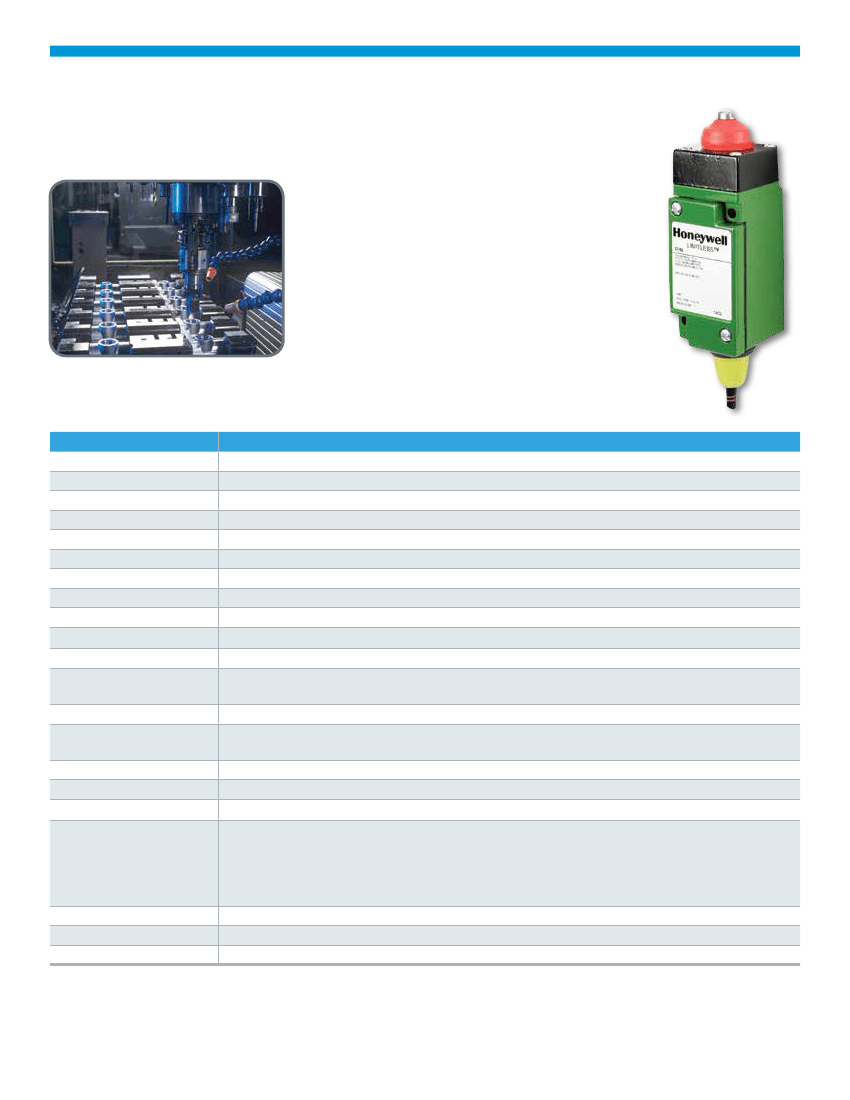

Limitless™ WLS Series • Heavy-Duty Limit Switch
Potential Applications
with elements of control, notification, and/or setup
•
•
•
•
•
•
•
•
•
•
•
•
Table 1. WLS Series Specifications
Characteristic
Series name
Product type
Availability
Operating force
Actuator
Lever type
Housing material
Housing type
Radio
Antenna type
Signal range*
Battery
Sealing
EMC
Shock
Vibration
Operating temperature
Valve position
Crane boom/jib/skew position
Safety shower monitoring
Lifts
Material handling
Presses
CNC equipment
Construction/Agricultural equipment
Movable machinery
Door position
Hose attachment verification
Remote or temporary equipment
Parameter
WLS Series
Limitless™ Wireless Heavy-Duty Limit Switches
global, license-free bands
see specification tables on page 6-7
side rotary, top plunger, top roller plunger, top adjustable plunger, side plunger, wobble stick
rotary lever included with side rotary – other lever options available
zinc die-cast head and body, phosphate treated and powder coated
EN 50041
WPAN 802.15.4; 2.4 GHz
direct or remote mount antenna options; omni directional
305 meters [1000 ft] clear “line of sight”** between switch and receiver using a 2.2 dBi integral antenna
3.5 Vdc Lithium Thionyl Chloride; 2/3 AA size (est. life = 1 year )
Manufactured by Uniwell, part number DEV-10-0009; Green Energy p/n ER14335M; Honeywell p/n WBT1
IP67; NEMA 1, 3, 4, 6, 6P, 12, 13
Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
IEC 60068-2-27; half sine, 10 g, 6 mS, 3 axis
IEC 60068-2-6; 10-500Hz w/ 0,35 mm peak to peak, 58-500 Hz-5g
-40 °C to 85 °C [-40 °F to 185 °F]
FCC 15.247: United States of America • IC RSS 210: Canada
ETSI, CE mark: European countries • ACMA, C-TICK: Australia, New Zealand
IDA: Singapore • COFETEL: Mexico
WPC: India • ANATEL: Brazil
SRRC: China • KCC: South Korea
20142601
20142601
Industrial
Agency approvals and
standards
UNSPSC code
UNSPSC commodity
Sealed
*Actual range may vary depending upon antennas, cables, and topography.
** “Line of sight” is not mandatory to fully utilize the Limitless™ technology and thus testing in the actual application will determine suitability.
4
sensing.honeywell.com
Limitless™ Wireless Heavy-Duty Limit Switches
PRODUCT NOMENCLATURE
WLS
1
A
00
Antenna
type code*
A
Country use
code
A
Operating
head code
1
3
Modification
code
Not applicable
A
Specials
Not applicable
Switch type
Gen Code
RF Code
Actuator code
See WLS actuator
code table for details.
Actuators for operating
head code “A” only,
insert actuator code
from table below.
WLS
Series
Wireless
1
Version 1
A
2.4 GHz;
IEEE 802.15.4
00
01
02
03
04
05
06
07
08
09
10
11
No antenna; RP-SMA
connector jack
2.2 dBi omni w/ switch
mount; straight design
2.2 dBi omni w/ switch
mount; tilt/swivel
3.0 dBi omni w/ remote
adhesive mount
9.8 ft cable
5.5 dBi omni w/ remote
mag. mount, tilt/swivel
5 ft cable
5.5 dBi omni w/ remote
mag. mount, tilt/swivel
10ft cable
9.0 dBi omni w/ remote
mag. mount, tilt/swivel
5 ft cable
9.0 dBi omni w/ remote
mag. mount, tilt/swivel
10ft cable
8.0 dBi omni w/ remote
bkt. mount, str. design
3 ft cable
8.0 dBi omni w/ remote
bkt. mount, str. design
11 ft cable
2.2 dBi omni w/ remote
bracket mount, straight
design, 10 ft cable
0 dBi omni w/
switch mount;
straight design
A
B
US, Canada,
Mexico
All other
approved
countries
1, 2, 3
A
C
D
E
J
N
V
Side rotary,
momentary
Top plunger,
plain
Top plunger,
roller
Side plunger,
momentary
Wobble stick
Side rotary,
maintained
Top plunger,
adjustable
3
4
5
6
Head assembled
with actuator to
right side
Head assembled
with actuator to
left side
Head assembled
with actuator to
mounting surface
Roller
perpendicular to
mounting surface
BT1
BT2
BT3
BT4
RS1
RS2
M12 Micro connector
on top of head for
external switch connection*
M12 Micro connector
on side of head for
external switch connection*
Cable grip on
top of head for
external switch connection*
Cable grip on
side of head for
external switch connection*
Reed switch target
on top of head
Reed switch target
on side of head
Eyelet pull
1
Use with antenna type
codes 00 - 03, 05, 10, 11
only; usage also allowed
in Country Code A.
2
Some countries require
specific communication
certifications. Contact
Honeywell for existing
certification information.
If Limitless™ devices are
used on machinery that
may be shipped globally,
use country code “B”.
3
PO1
operating head
PO2
(low force, 7 lb ref.)
Eyelet pull
operating head
(low force, 18 lb ref.)
* Connect to SPDT (form C) gold
contact switch; 3.6 Vdc, 30 mA max.
electrical load
* See Table 11 for additional information.
Table 2. WLS Series Actuator Code Table
Catalog
Material
Listing
Fixed 1.5 inch radius
1
LSZ51
Rollerless
1A
LSZ51A
Nylon
1B
LSZ51B
Steel
1C
LSZ51C
Nylon
1D
LSZ51D
Steel
1F
LSZ51F
Nylon
1G
LSZ51G
Nylon
1J
LSZ51J
Nylon
1L
LSZ51L
Ball bearing
1M
LSZ51M
Nylon
1N
LSZ51N
Steel
1P
LSZ51P
Nylon
Adjustable 1.5 in to 3.5 in radius
2
LSZ52
Rollerless
2A
LSZ52A
Nylon
2B
LSZ52B
Steel
2C
LSZ52C
Nylon
2D
LSZ52D
Steel
2E
LSZ52E
Nylon
2J
LSZ52J
Nylon
2K
LSZ52K
Nylon
2L
LSZ52L
Ball bearing
2M
LSZ52M
Nylon
2N
LSZ52N
Nylon
Yoke – 1.5 in radius
3A
LSZ53A
Nylon
3B
LSZ53B
Steel
3D
LSZ53D
Steel
Code
Roller Dia. (in) Roller Width (in) Roller Mounting
Code
Catalog
Material
Listing
Yoke – 1.5 in radius, continued
3E
LSZ53E
Nylon
3M
LSZ53M
Nylon
3P
LSZ53P
Steel
3S
LSZ53S
Nylon
Rod
4
LSZ54
Hub only
4M
LSZ54M
Alum, 5.5 in
4N
LSZ54N
Stainless, 13 in
4R
LSZ54R
Spring Wire,
12 in
4V
LSZ54V
Flex cable, 4.8 in
Offset – 1.5 in radius
5
LSZ55
Rollerless
5A
LSZ55A
Nylon
5B
LSZ55B
Steel
5C
LSZ55C
Nylon
5D
LSZ55D
Steel
5E
LSZ55E
Nylon
5K
LSZ55K
Nylon
Wobble stick
7A
LSZ1JGA
Delrin™ rod, 5.5
7M
LSZ1JGM
Spring wire, 13.0
7N
LSZ1JGN
Cable, 5.5 in.
Short fixed - 1.3 in radius
9A
LSZ59A
Nylon
9B
LSZ59B
Steel
9C
LSZ59C
Nylon
9D
LSZ59D
Steel
Roller Dia. (in) Roller Width (in) Roller Mounting
n/a
0.75
0.75
0.75
0.75
1.0
1.5
1.0
0.75
0.75
0.75
0.75
n/a
0.75
0.75
0.75
0.75
0.75
1.0
1.5
0.75
2.0
0.75
0.75
0.75
0.75
n/a
0.25
0.25
0.25
0.25
0.520
0.25
0.520
0.25
1.25
1.25
0.50
n/a
0.25
0.25
0.25
0.25
1.30
0.50
0.25
0.25
0.25
0.50
0.25
0.25
0.25
n/a
Front
Front
Back
Back
Front
Front
Back
Back
Back
Front
Front
n/a
Back
Back
Front
Front
Front
Front
Front
Front
Front
Front
Front/Back
Front/Back
Front/Front
0.75
0.75
0.75
0.75
n/a
n/a
n/a
n/a
n/a
n/a
0.75
0.75
0.75
0.75
0.75
1.5
n/a
n/a
n/a
0.75
0.75
0.75
0.75
0.25
1.25
0.25
0.25
n/a
n/a
n/a
n/a
n/a
n/a
0.25
0.25
0.25
0.25
0.50
0.25
n/a
n/a
n/a
0.25
0.25
0.25
0.25
Back/Front
Back/Front
Back/Back
Back/Back
n/a
n/a
n/a
n/a
n/a
n/a
Back
Back
Front
Front
Front
Front
n/a
n/a
n/a
Front
Front
Back
Back
sensing.honeywell.com
5
京公网安备 11010802033920号
EEWORLD
