Part Number

Search

800BWSP9SM6QE

Description
Pushbutton Switches 3A 120VAC or 28VDC Off-(On) SPST/SPDT
CategoryMechanical and electronic products    switch
File Size381KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

800BWSP9SM6QE Online Shopping

Suppliers Part Number Price MOQ In stock
800BWSP9SM6QE - - View Buy Now

800BWSP9SM6QE Overview

Pushbutton Switches 3A 120VAC or 28VDC Off-(On) SPST/SPDT

800BWSP9SM6QE Parametric

Parameter NameAttribute value
MakerE-Switch
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typePLUNGER
body width8.13 mm
body height5.08 mm
Body length or diameter9.11 mm
Contact (AC) maximum rated R load3A@120VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)3 A
Contact (DC) maximum rated R load3A@28VDC
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)28 V
Electrical life50000 Cycle(s)
JESD-609 codee4
Manufacturer's serial number800B
Installation featuresSURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
method of packingTAPE AND REEL
sealEPOXY TERMINAL SEALED
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePUSHBUTTON SWITCH
Terminal surfaceSILVER
Termination typeSOLDER
Base Number Matches1

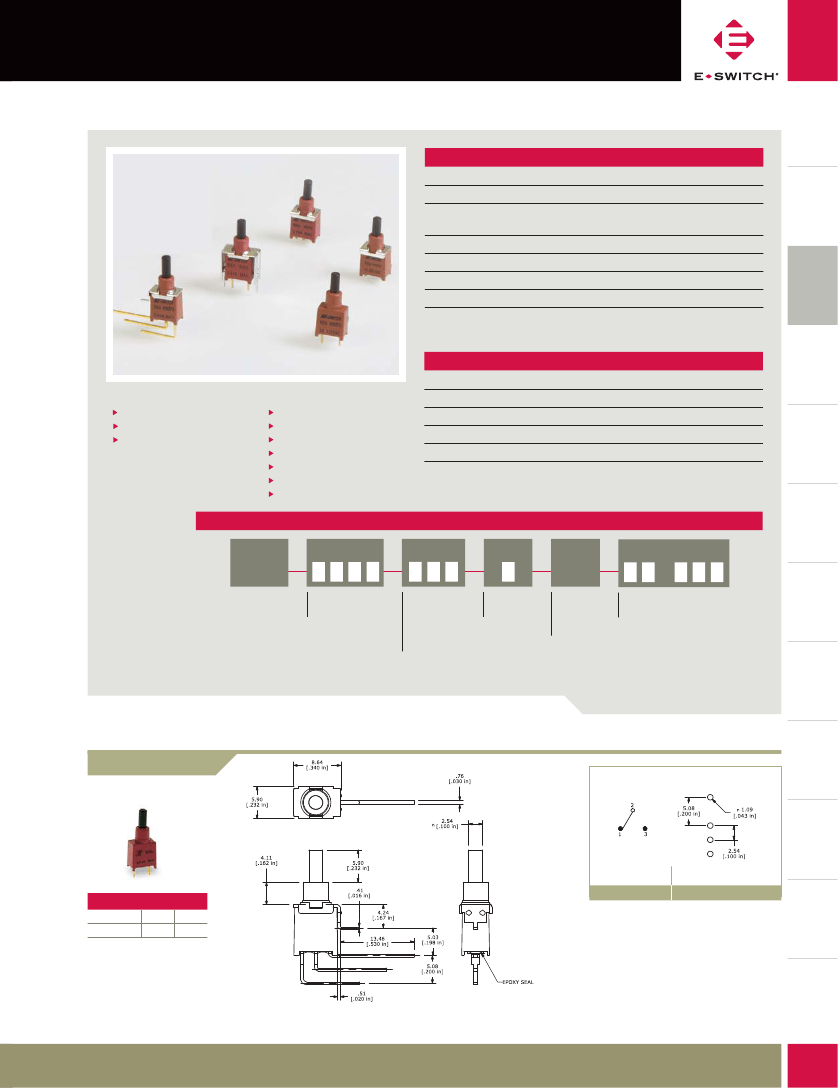

SERIES 800A SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
50,000 cycles typical
10m
1
max. typical @ 2-4 VDC
100mA for both silver and gold plated contacts
1,000M
1
min.
1,000 V rms @ sea level
200 ± 50 gf
PUSHBUTTON
SWITCHES
CAP COLOR
SNAP-ACTION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
Model No.
WSP8
WSP9
ON
OFF
Type
(ON)
(ON)
SCHEMATIC

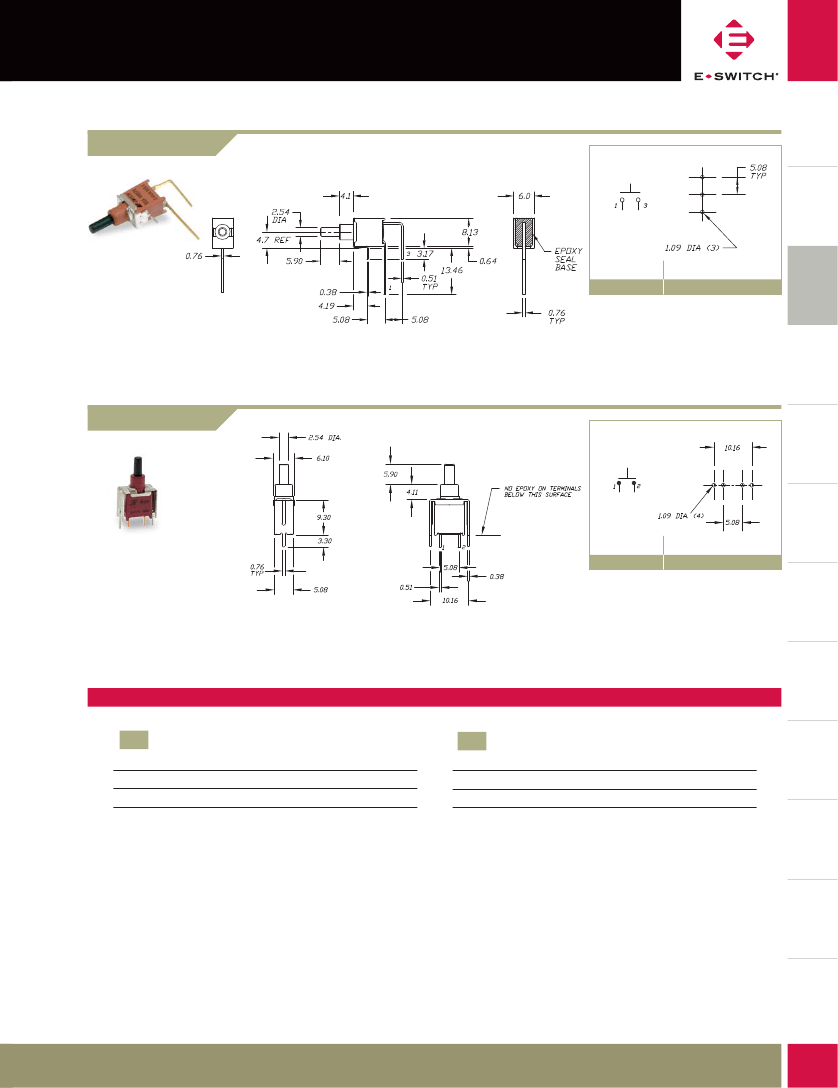

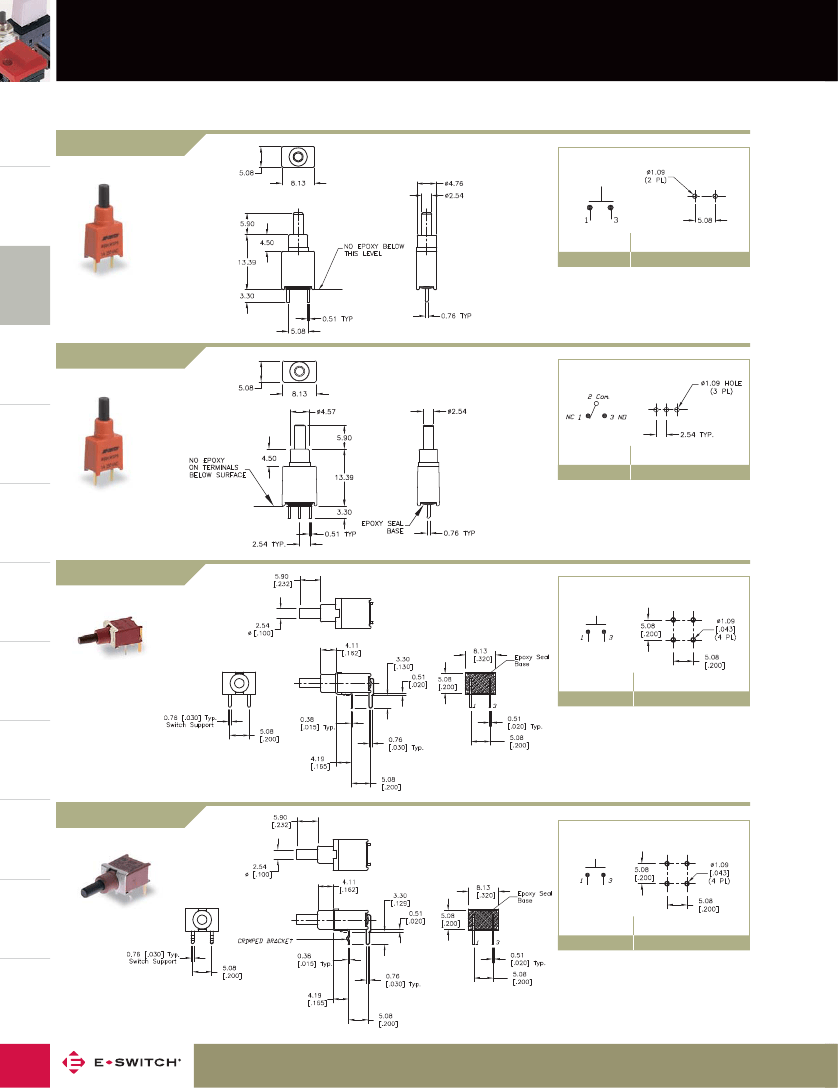

P.C. MOUNTING
( ) = Momentary
KEYLOCK
SWITCHES
DIP
SWITCHES
SLIDE
SWITCHES
SEAL
CAP
ROCKER
SWITCHES
TOGGLE
SWITCHES
NAVIGATION
SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES - SUB-MINIATURE
Contact Rating:
1A @ 120 VAC
Operating Temperature: -30°C to +85°C
MATERIALS
Case:
Diallyl Phthalate (DAP)
Glass filled nylon or glass filled polyester
Diallyl Phthalate (DAP)
Stainless steel
Silver or Gold plated copper alloy
FEATURES & BENEFITS
Subminiature design
Butt contact design
IP-67 sealed option
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Plunger:
Bushing:
Housing:
Contacts:
SPDT
WSP8
www.e-switch.com
HOW TO ORDER
SERIES
MODEL NO.
TERMINATION
CONTACT
MATERIAL
800 A
WSP8
WSP9
M2
M6
M61
M7
VS2
Q = Silver
R = Gold
E
E = Epoxy
Sealed at
Base of
Terminal
See Cap Options
Example Ordering Number
800A_ WSP9_ M7_ R_ E
Specifications subject to change without notice.
