AS12CV-A-RO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> AS12CV-A-RO

AS12CV-A-RO: DescriptionSlide Switches ON-ON .15 BLK ACTUTR VERTICAL PC .4VA; CategoryTopical application Mechanical and electrical/engineering/automation; File Size249KB，6 Pages; ManufacturerNKK; Websitehttps://www.nkkswitches.com.cn

Download Datasheet Parametric Compare View All

AS12CV-A-RO Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AS12CV-A-RO	-	-	View	Buy Now

AS12CV-A-RO Overview

Slide Switches ON-ON .15 BLK ACTUTR VERTICAL PC .4VA

AS12CV-A-RO Parametric

Parameter Name	Attribute value
Product Category	Slide Switches
Manufacturer	NKK
RoHS	Details
Contact Form	SPDT
Switch Function	ON - ON
Contact Current Rating	0.4 VA at 28 V
Voltage Rating AC	28 VAC
Termination Style	Vertical PC with Bracket
Actuator	3.8 mm Long
Mounting Style	Through Hole
Contact Plating	Gold
Illumination	Non-Illuminated
Contact Material	Brass
Mounting Angle	Vertical
Operating Temperature Range	- 30 C to + 85 C
Factory Pack Quantity	1
Travel	2.5 mm
Type	Subminiature Slides

Preview

Download Datasheet

View All

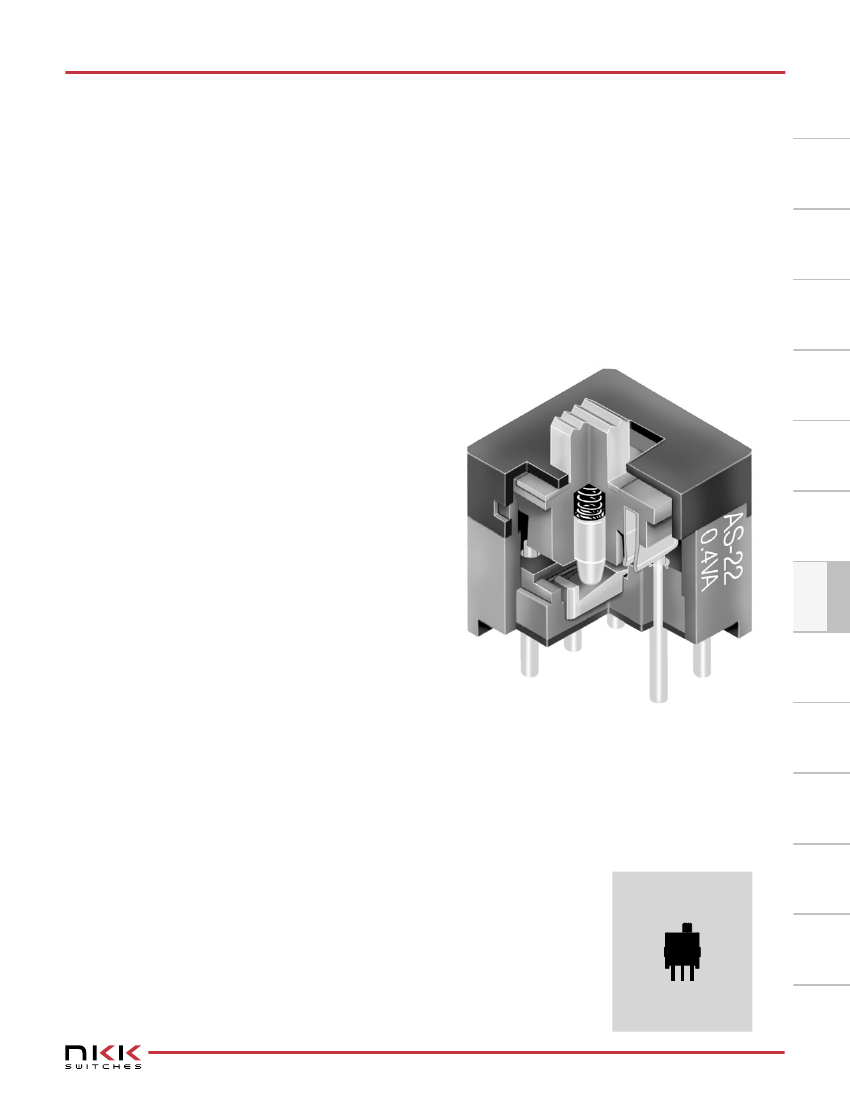

Series AS

Toggles

Subminiature Slides

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Logic Level:

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Note: Find additional explanation of operating range in Supplement section.

Pushbuttons

Programmable Illuminated PB

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

50 milliohms maximum

500 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

50,000 operations minimum

2.55N

Nonshorting (break-before-make)

Pretravel: .082” (2.1mm); Overtravel: .016” (0.4mm); Total Travel: .098” (2.5mm)

Keylocks

Materials & Finishes

Actuator:

Upper Case Housing:

Lower Case Housing:

Support Bracket:

Movable Contact:

Stationary Contacts:

Terminals:

Glass fiber reinforced polyamide

Carbon blended polyacetal (antistatic)

Glass fiber reinforced polyamide

Tin plated phosphor bronze

Phosphor bronze with gold plating

Brass with gold plating

Slides

Rotaries

Environmental Data

Tactiles

Operating Temperature Range:

Humidity:

Vibration:

Shock:

–30°C through +85°C (–22°F through +185°F)

90 ~ 95% humidity for 192 hours @ 40°C (104°F)

10 ~ 60Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range

& returning in 5 minutes; 3 right angled directions for 30 minutes

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

PCB Processing

Soldering:

Cleaning:

Touch

Wave Soldering Recommended. See Profile A in Supplement section.

Manual Soldering: for single pole see Profile B in Supplement section; for double pole see Profile A.

These devices are not process sealed. Hand clean locally using alcohol based solution.

Indicators

Standards & Certifications

The A Series slides have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-voltage, low-current, logic-level circuit.

When used as intended in a logic-level circuit, the results do not produce hazardous energy.

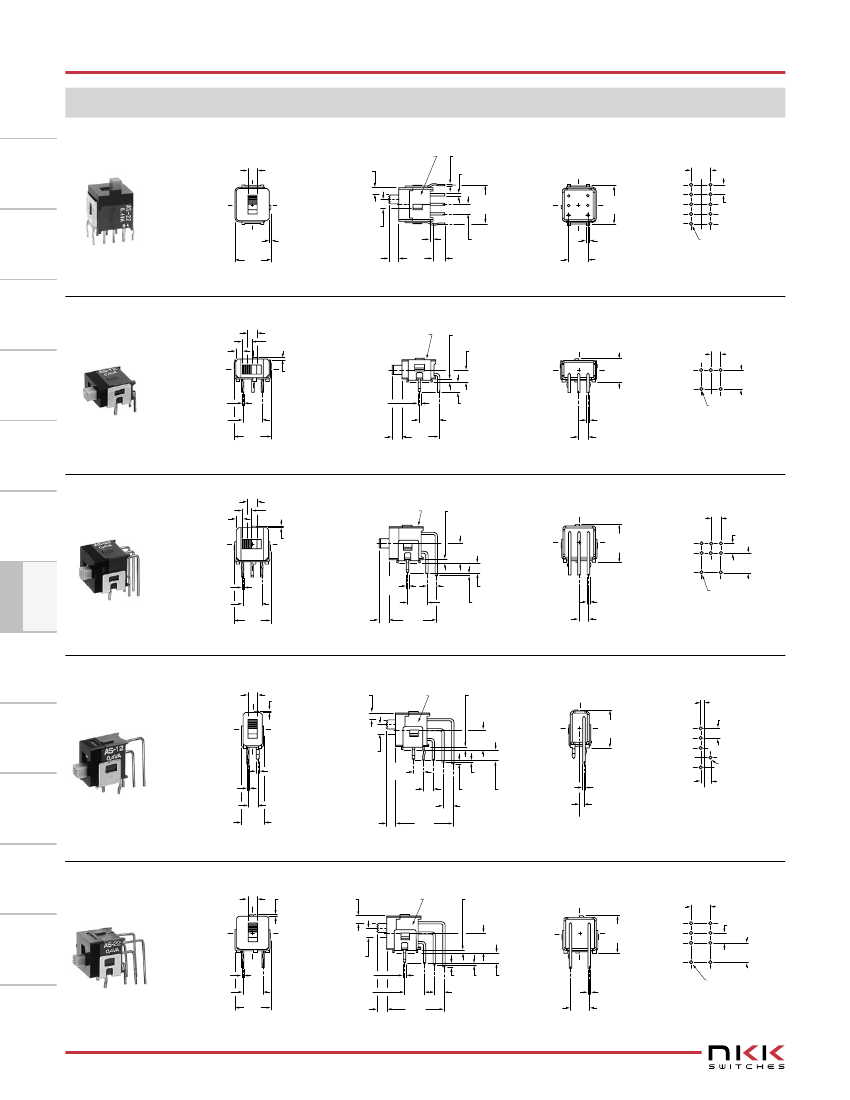

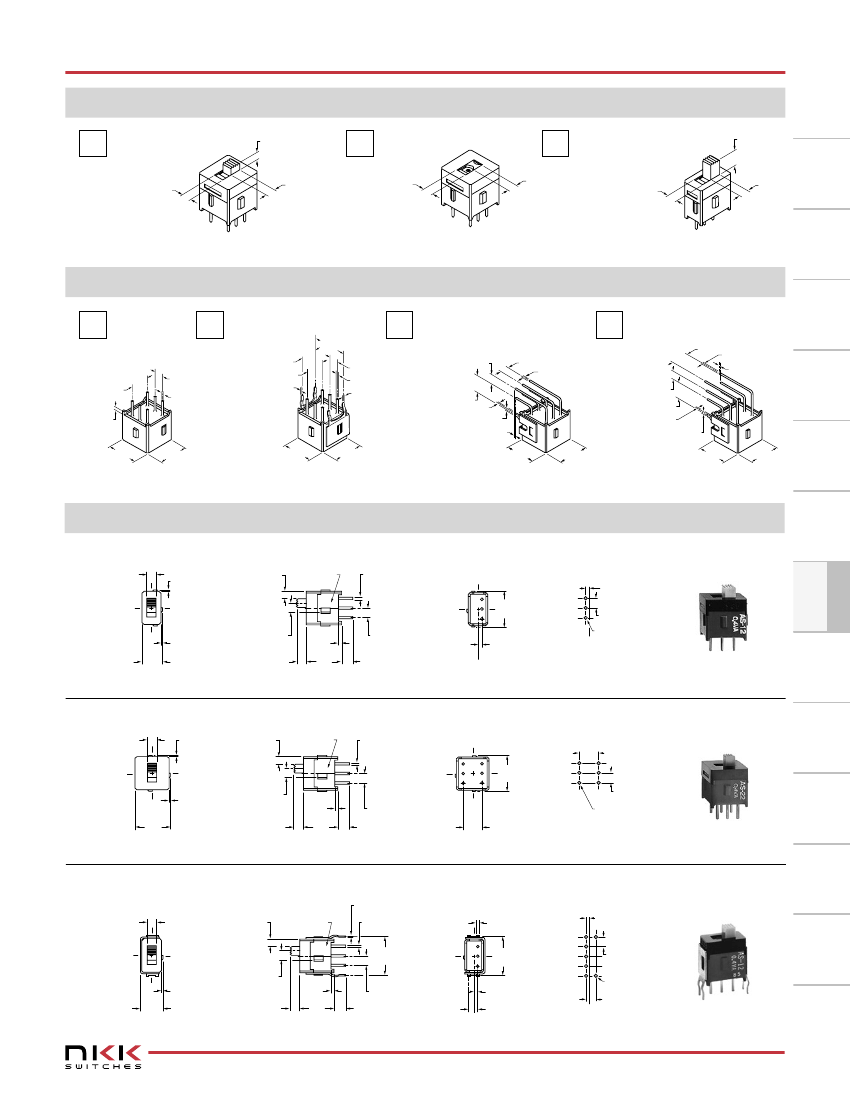

Supplement

Accessories

www.nkk.com

AS12CV-A-RO Related Products

	AS12CV-A-RO	AS13CH-RO	AS11BH-RO	AS23BH-RO
Description	Slide Switches ON-ON .15 BLK ACTUTR VERTICAL PC .4VA
Product Category	Slide Switches	Slide Switches	Slide Switches	Slide Switches
Manufacturer	NKK	NKK	NKK	NKK
RoHS	Details	Details	Details	Details
Contact Form	SPDT	SPDT	SPST	DPDT
Switch Function	ON - ON	ON - OFF - ON	ON - OFF	ON - OFF - ON
Contact Current Rating	0.4 VA at 28 V	0.4 VA at 28 V	0.4 VA at 28 V	0.4 VA at 28 V
Voltage Rating AC	28 VAC	28 VAC	28 VAC	28 VAC
Termination Style	Vertical PC with Bracket	Right Angle PC with Bracket	Right Angle PC with Bracket	Right Angle PC with Bracket
Actuator	3.8 mm Long	3.8 mm Long	Flush	Flush
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole
Contact Plating	Gold	Gold	Gold	Gold
Illumination	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated
Contact Material	Brass	Brass	Brass	Brass
Mounting Angle	Vertical	Right	Right	Right
Operating Temperature Range	- 30 C to + 85 C	- 30 C to + 85 C	- 30 C to + 85 C	- 30 C to + 85 C
Factory Pack Quantity	1	1	1	50
Travel	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Type	Subminiature Slides	Subminiature Slides	Subminiature Slides	Subminiature Slides
