6/6/2016
Marquardt Products
Marquardt Mechatronik GmbH
SchlossStr. 16
78604 RietheimWeilheim
Germany
Phone: +49 (0) 7424 / 990
Fax: +49 (0) 7424 / 992399
Net: www.marquardt.de
Email: marquardt@marquardt.de
Technical data
Product number
3251.0004

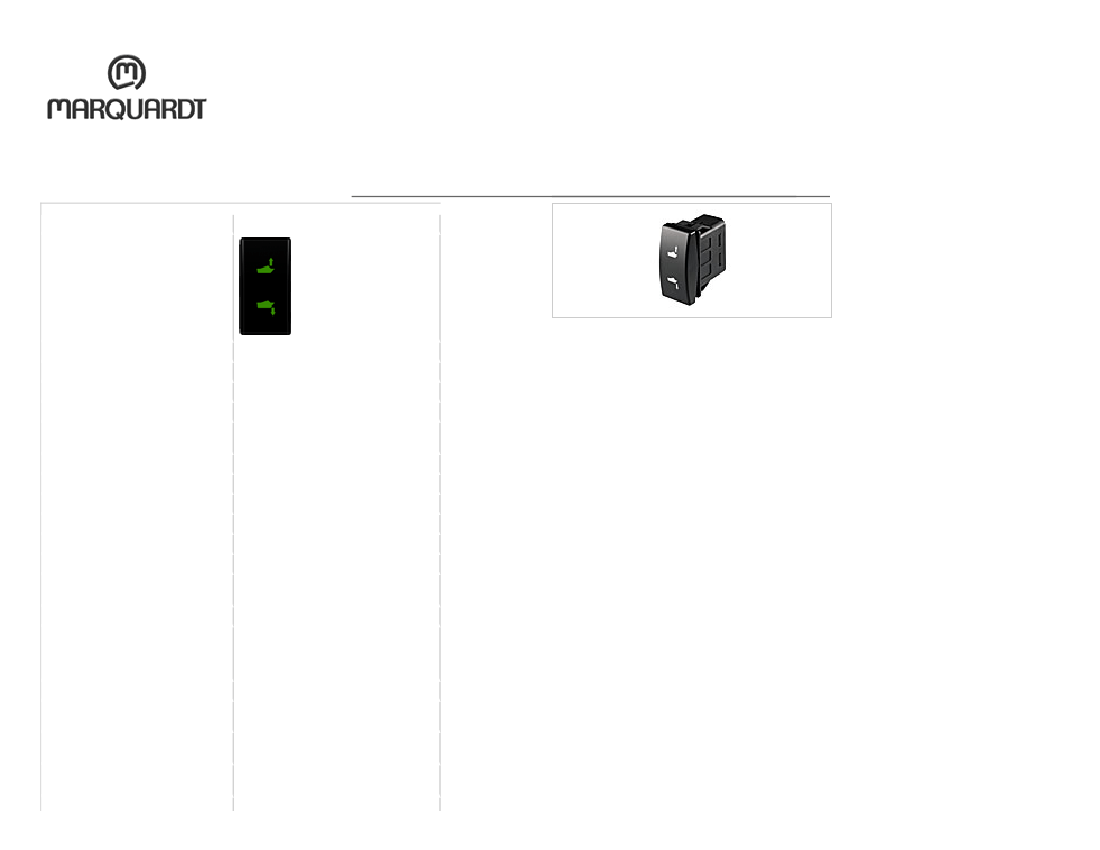

Product image / Drawings
Actuator color / printing
Product family
Actuation type
ROHS conform
Product code
Switching function
Material fixed contact
Number of poles
connections
Mechanical life endurance
Rating IEC
Contact resistance (new condition)
Insulation resistance (new
condition)
Proof tracking
Protection type
Ambient temperature
Ambient temperature
Actuators and additional actuators
Housing description
Rocker switches
direct
yes
32503B1910B0bl1390138000
Changeover switch with OFFposition
in the center (2xSPST Center OFF)
AgNi
2 x 1 pole
Quickconnect terminal, 3.0 x 0.8
50E4
10 (5) A 12 V DC 1E5
< 100 (1 A 12 V DC) mOhm
> 100 (500 V DC) MOhm
250 PTI
Connection
Actuator
40 °C ... +85 °C
40 °C ... +85 °C
rocker: PC, transparent white, black
varnished, lasered symbol
housing: PP, black
base plate: PA, black
IP 40
IP 66 and IP 67
https://www.marquardtschalter.de/productdetail.php?pid=65d90f&lang=EN
1/2
6/6/2016
Marquardt Products
Connection surface
Contact material
Lighting
Operating force
Miscellaneous
Additional labeling
Type of fastening
bearing connection
external connection
AgNi
silver plated
silver plated
Symbol position 1 + 2: LED, 12 V,
green
7 N to 12 N +1,5 N
circuit symbol: 50.108 / momentary
function both sides
50.108
Snap fastening
https://www.marquardtschalter.de/productdetail.php?pid=65d90f&lang=EN
2/2
