AB15AV-HA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> AB15AV-HA

AB15AV-HA: DescriptionPushbutton Switches SUBMINIATURE PUSHBUTTON/PC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size330KB，7 Pages; ManufacturerNKK; Websitehttps://www.nkkswitches.com.cn

Download Datasheet Parametric View All

AB15AV-HA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AB15AV-HA	-	-	View	Buy Now

AB15AV-HA Overview

Pushbutton Switches SUBMINIATURE PUSHBUTTON/PC

AB15AV-HA Parametric

Parameter Name	Attribute value
Product Category	Pushbutton Switches
Manufacturer	NKK
RoHS	Details
Product	Standard Switches
Type	Sealed
Mounting Style	Panel
Contact Form	SPDT
Switch Function	ON - (ON)
Voltage Rating AC	28 VAC
Voltage Rating DC	28 VDC
Power Rating	0.4 VA
Termination Style	Solder Pin
Contact Plating	Gold
Actuator	Round
Cap Color	Black
Housing Material	Polyamide, Glass Fiber Reinforced
Life	50000 Cycles
Factory Pack Quantity	1
Terminal Seal	Epoxy

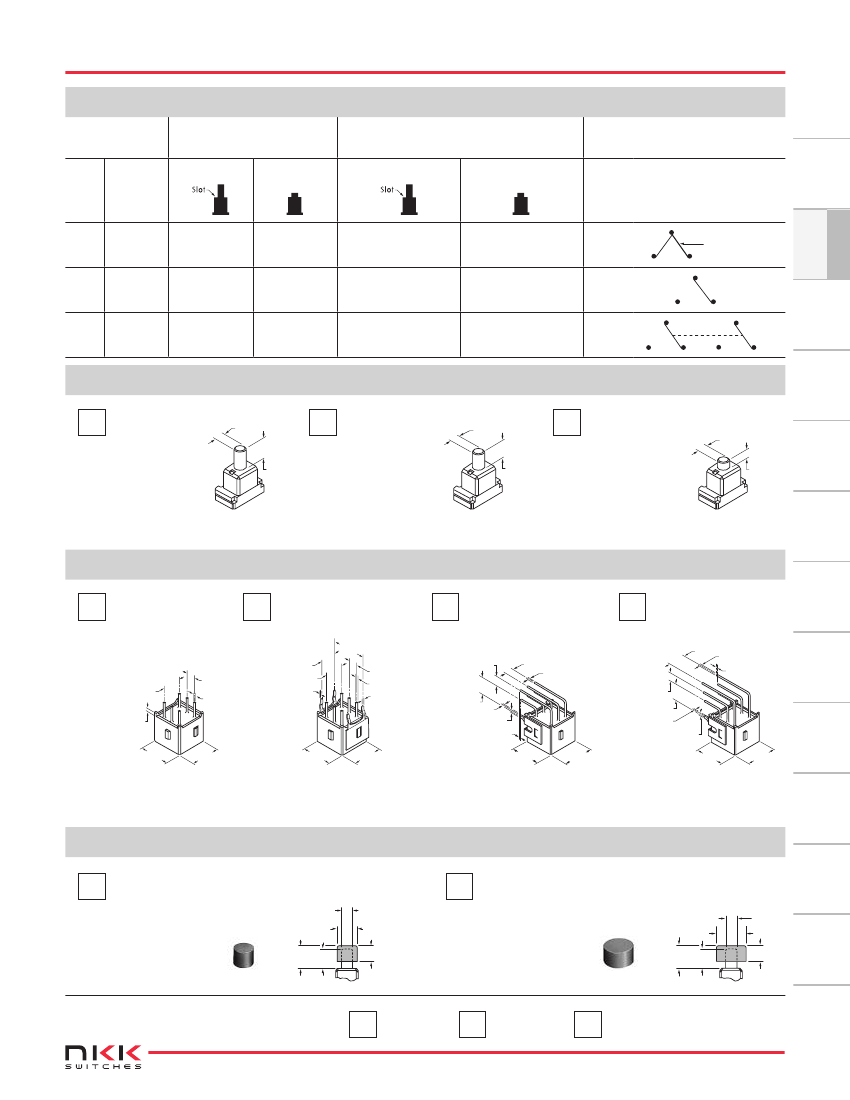

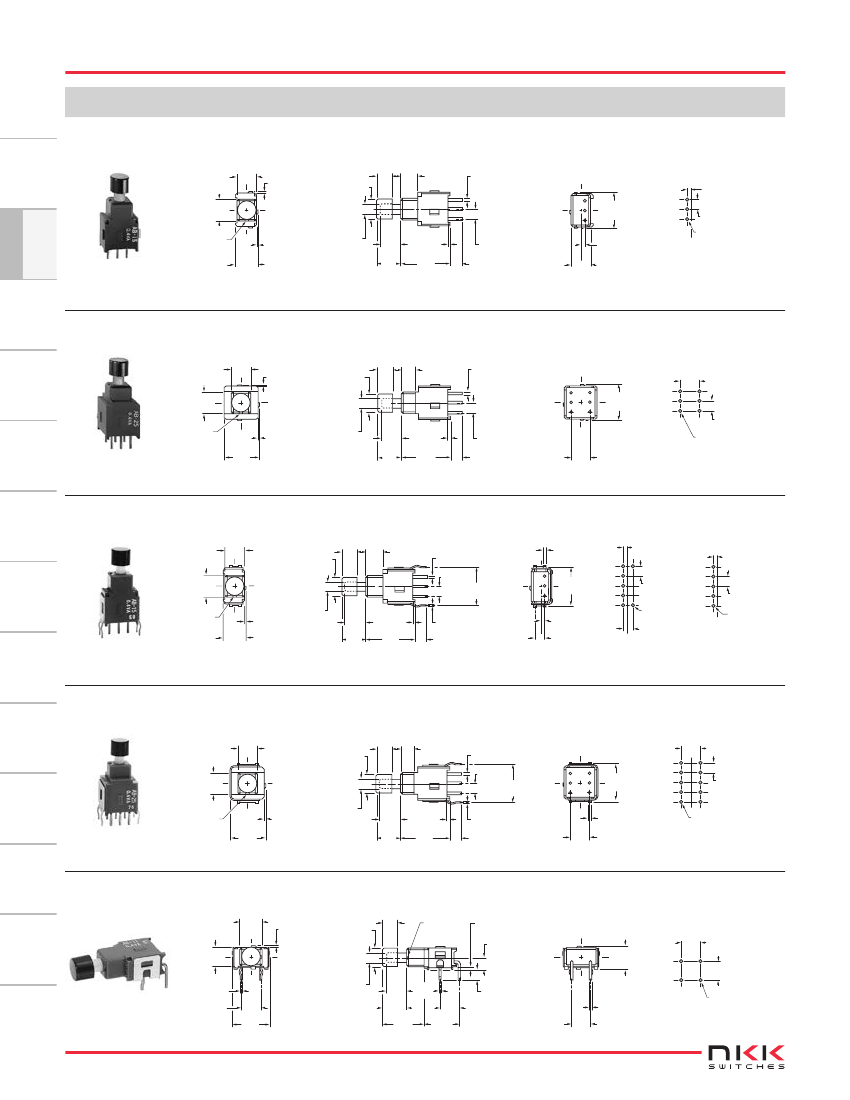

Preview

Download Datasheet

View All

Series AB

Toggles

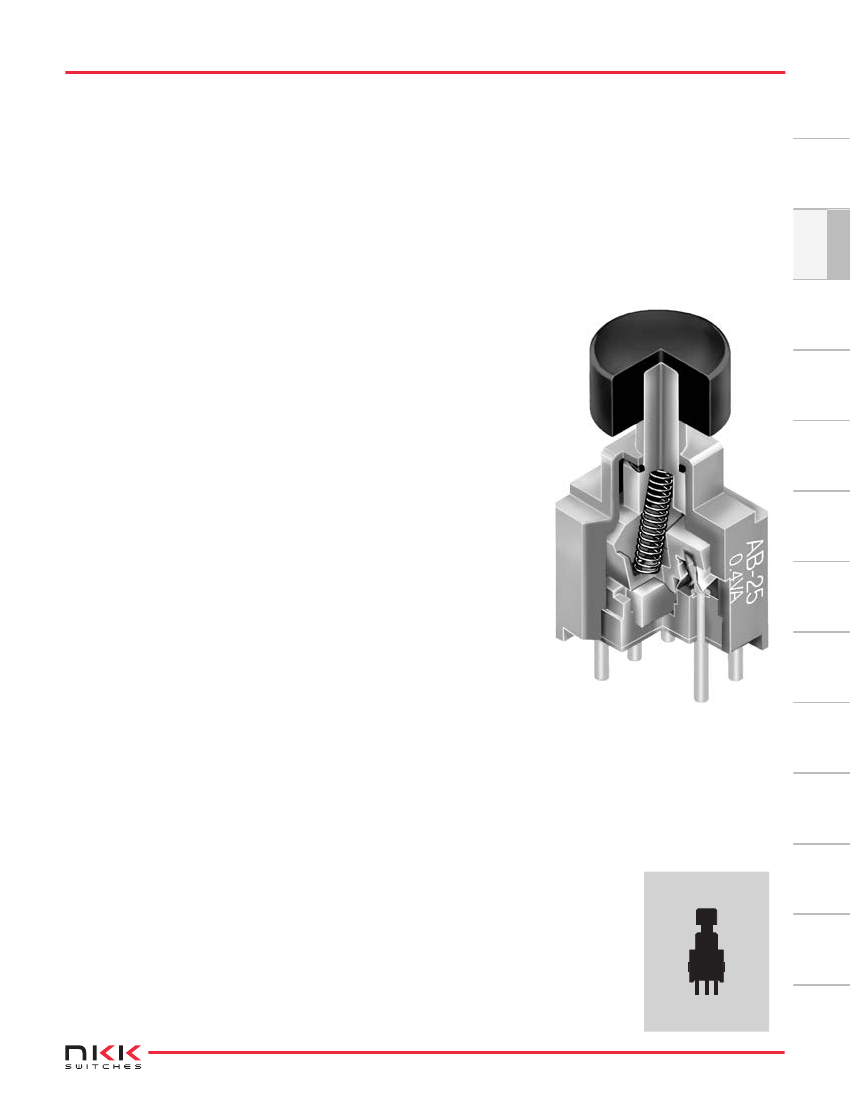

Process Sealed Subminiature Pushbuttons

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Logic Level:

Pushbuttons

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Note: Find additional explanation of operating range in Supplement section.

Programmable Illuminated PB

50 milliohms maximum

500 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

50,000 operations minimum

2.55N

Nonshorting (break-before-make)

Pretravel .028” (0.7mm); Overtravel .016” (0.4mm); Total Travel .043” (1.1mm)

Keylocks

Materials & Finishes

Plunger:

Case Housing:

Support Bracket:

Movable Contact:

Stationary Contacts:

Terminals:

Polyacetal

Glass fiber reinforced polyamide

Tin plated phosphor bronze

Phosphor bronze with gold plating

Brass with gold plating

Slides

Rotaries

Environmental Data

Tactiles

Operating Temp Range:

Humidity:

Vibration:

Shock:

–30°C through +85°C (–22°F through +185°F)

90 ~ 95% humidity for 96 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

Installation

Cap Installation Force:

49.03N (11.2 lbf) maximum downward force on actuator

Touch

PCB Processing

Soldering:

Cleaning:

Indicators

Wave Soldering Recommended: See Profile A in Supplement section.

Manual Soldering: See Profile B in Supplement section.

Automated cleaning. See Cleaning specifications in Supplement section.

Accessories

Standards & Certifications

The AB Series pushbuttons have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-voltage, low-current, logic-level circuit.

When used as intended in a logic-level circuit, the results do not produce hazardous energy.

Supplement

www.nkkswitches.com
