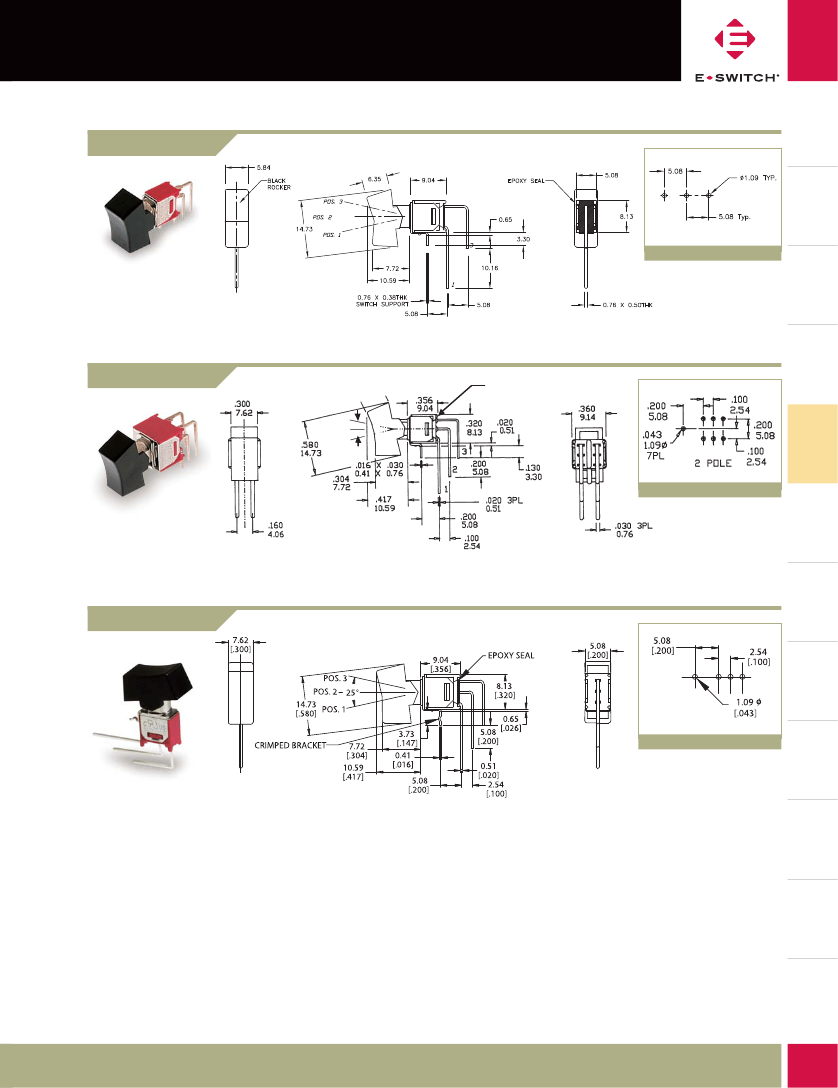

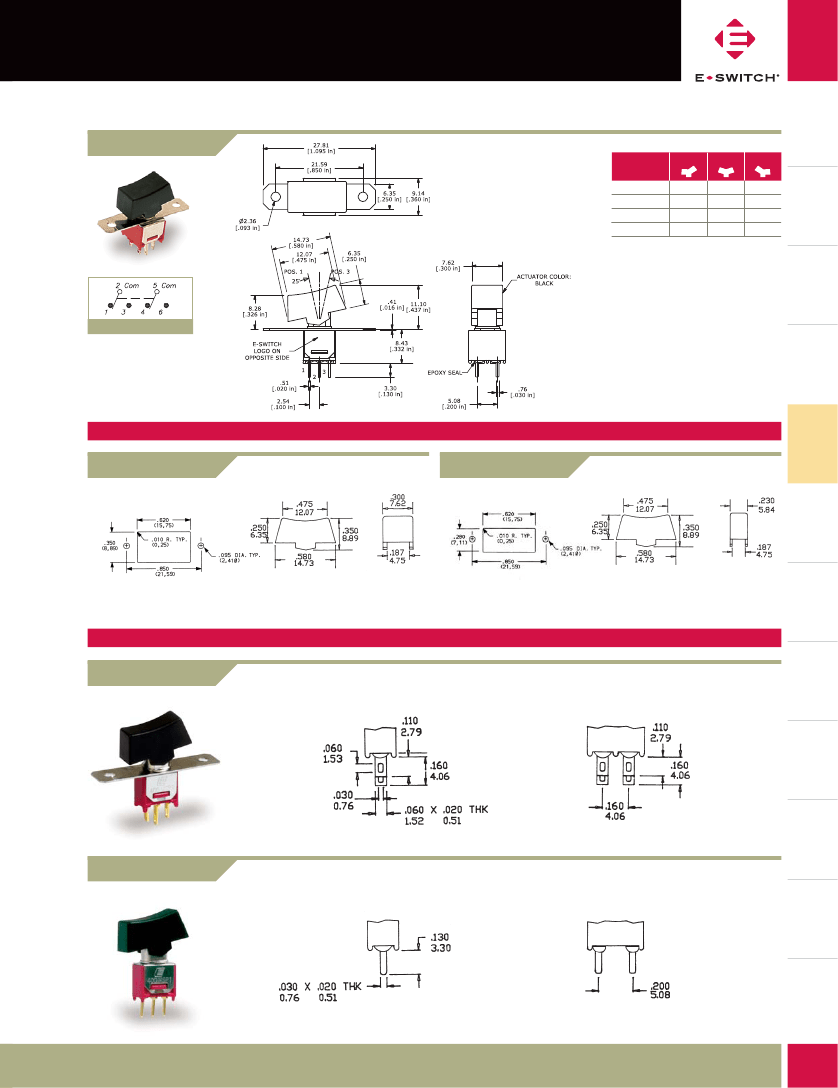

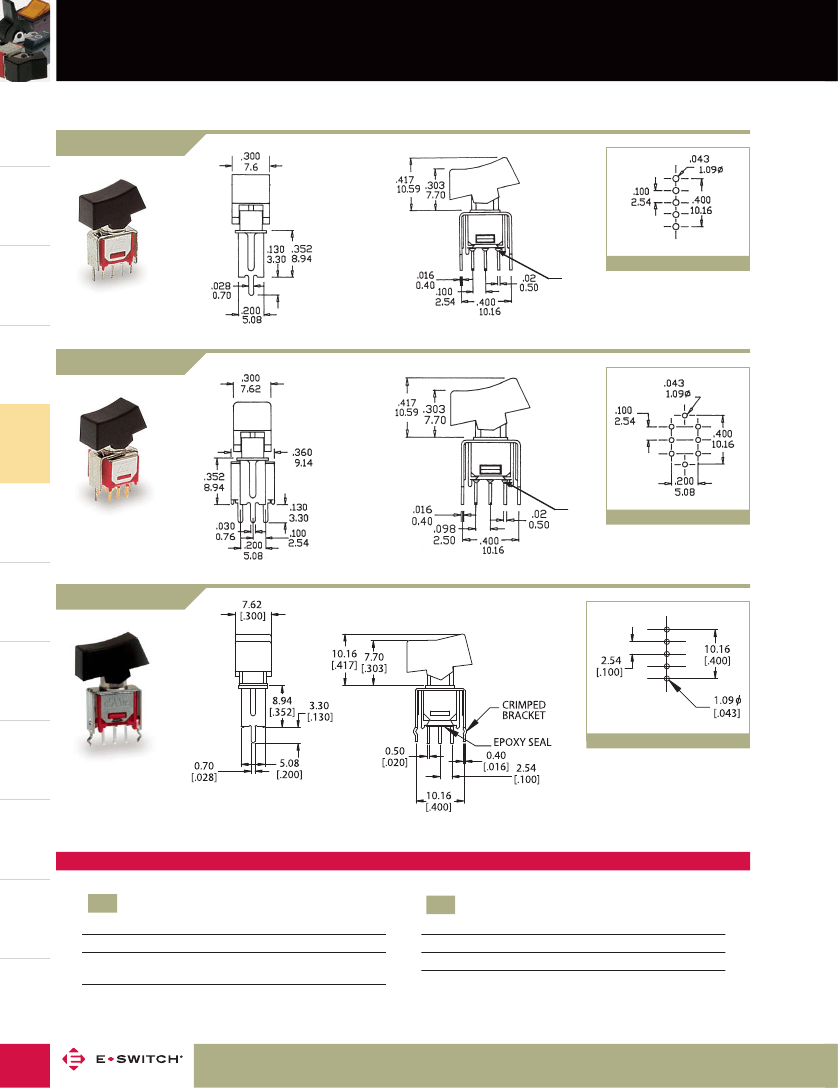

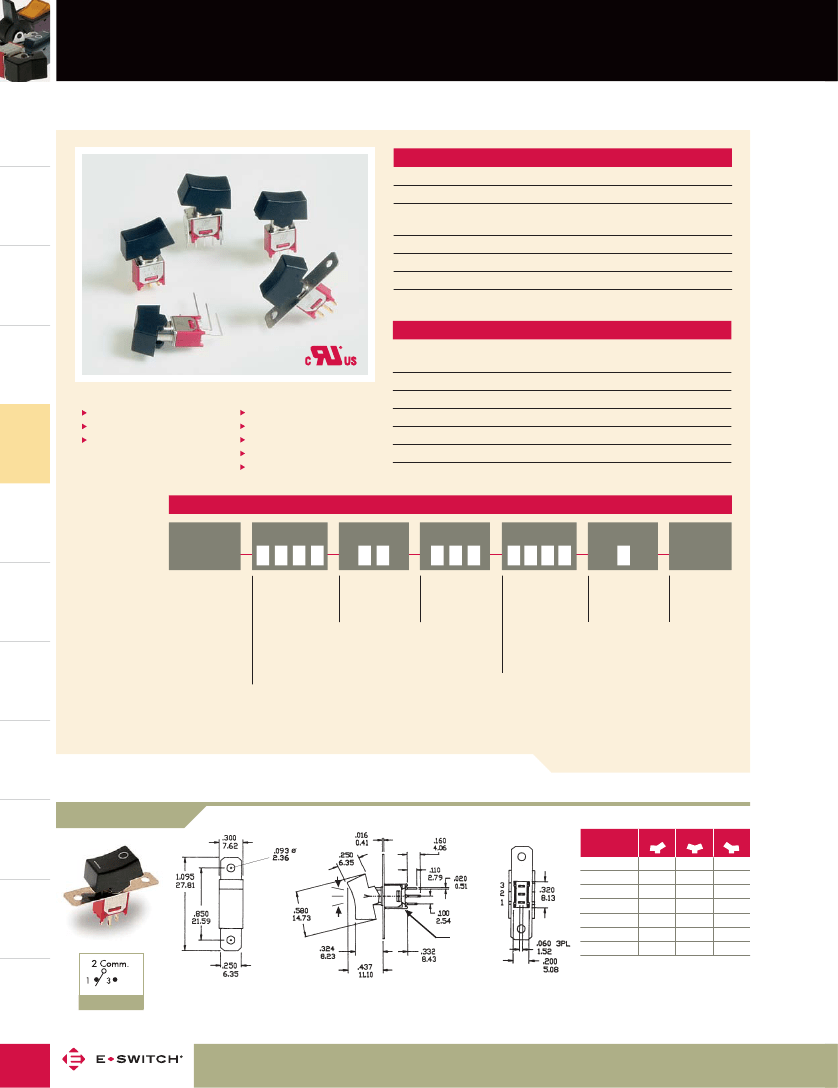

SERIES 400 SWITCHES
TACT
SWITCHES
ROCKER SWITCHES - SUB-MINIATURE
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Life Expectancy:
Contact Resistance:
Insulation Resistance:
See contact material options
30,000 make-and-break cycles at full load
20 mΩ max. typical initial @ 2-4 VDC
100 mA for silver and gold plated contacts
1,000 MΩ min
1,000 V RMS @ sea level
PUSHBUTTON
SWITCHES
Dielectric Strength:
Operating Temperature: -30° C to 85° C
MATERIALS
TOGGLE
SWITCHES
Case:
Rocker:
Diallyl phthalate (DAP) or glass filled nylon,
flame retardant, heat stabilized (UL 94-V0)
Nylon
Brass, nickel plated
Stainless steel
Silver or gold plated copper alloy
FEATURES & BENEFITS
ROCKER
SWITCHES
Variety of switching functions
Sub-miniature
Multiple actuator options
APPLICATIONS/MARKETS
Telecommunications
Instrumentation
Test equipment
Networking
Computer peripherals
Bushing:
Housing:
Contacts / Terminals:
Terminal/Switch Support: Brass, or steel tin plated
▲
▲
▲
SLIDE
SWITCHES
HOW TO ORDER
SERIES
MODEL NO.
ACTUATOR
ACTUATOR
COLOR
TERMINATION
CONTACT
MATERIAL
SEAL
400
SNAP-ACTION
SWITCHES
MSP1
MSP2
MSP3
MSP4
MSP5
MSP6***
MDP1
MDP2
MDP3
R1*
R6**
BLK =Black
WHT=White
RED =Red
M1
M2
M6
M61
M7
M71
VS2
VS21
Q = Silver
R = Gold
E
E = Epoxy
Sealed at
Base of
Terminal
DIP
SWITCHES
* Std. all models except SPDT with
M6 + M61 terminations.
** Std. on SPDT models with
M6 + M61 terminations.
*** Not available with M6 terminations.
Specifications subject to change without notice.
▲
▲
▲
Example Ordering Number
400_ MSP1_ R6_ BLK_ M6_ R_ E
KEYLOCK
SWITCHES
ROTARY
SWITCHES
SPDT
POS 1
Model No.
MSP-1
MSP-2
MSP-3
MSP-4
MSP-5
MSP-6
Term. Comm.
ON
ON
ON
(ON)
ON
OFF
2-3
POS 2
NONE
NONE
OFF
OFF
OFF
NONE
OPEN
POS 3
ON
(ON)
ON
(ON)
(ON)
ON
2-1
POS 3
DETECTOR
SWITCHES
POS 2
POS 1
25˚
Epoxy
Seal
( ) = Momentary
CAP
OPTIONS
SCHEMATIC
152
Phone: 800-867-2717
Fax: 763-531-8235

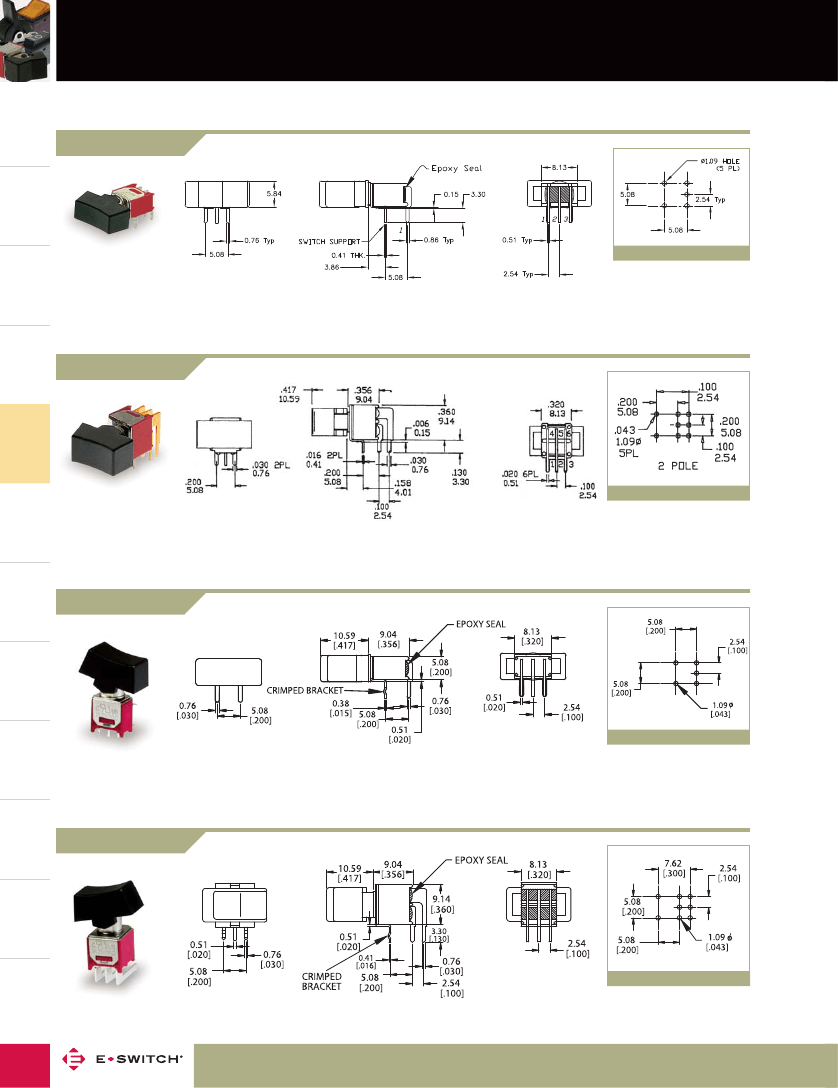

SERIES 400 SWITCHES
TACT
SWITCHES
ROCKER SWITCHES - SUB-MINIATURE
VS2
SPDT
NAVIGATION
SWITCHES
1 POLE
PUSHBUTTON
SWITCHES
P.C. MOUNTING
Epoxy
Seal
TOGGLE
SWITCHES
VS2
DPDT
SLIDE
SWITCHES
ROCKER
SWITCHES
Epoxy
Seal
P.C. MOUNTING
SNAP-ACTION
SWITCHES
VS21
SPDT
DIP
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
P.C. MOUNTING
CONTACT MATERIAL OPTIONS
Q
Fixed Terminal:
Moving Contact:
Rating:
Silver plated copper alloy
Silver plated copper alloy
3 AMPS @ 120 VAC or 28 VDC;
1 AMP @ 250VAC
DETECTOR
SWITCHES
R
Fixed Terminal:
Moving Contact:
Rating:
Copper alloy with gold plate over nickel plate
Copper alloy with gold plate over nickel plate
0.4 VA max. @ 20 VAC or DC max.
CAP
OPTIONS
156
Phone: 800-867-2717
Fax: 763-531-8235
