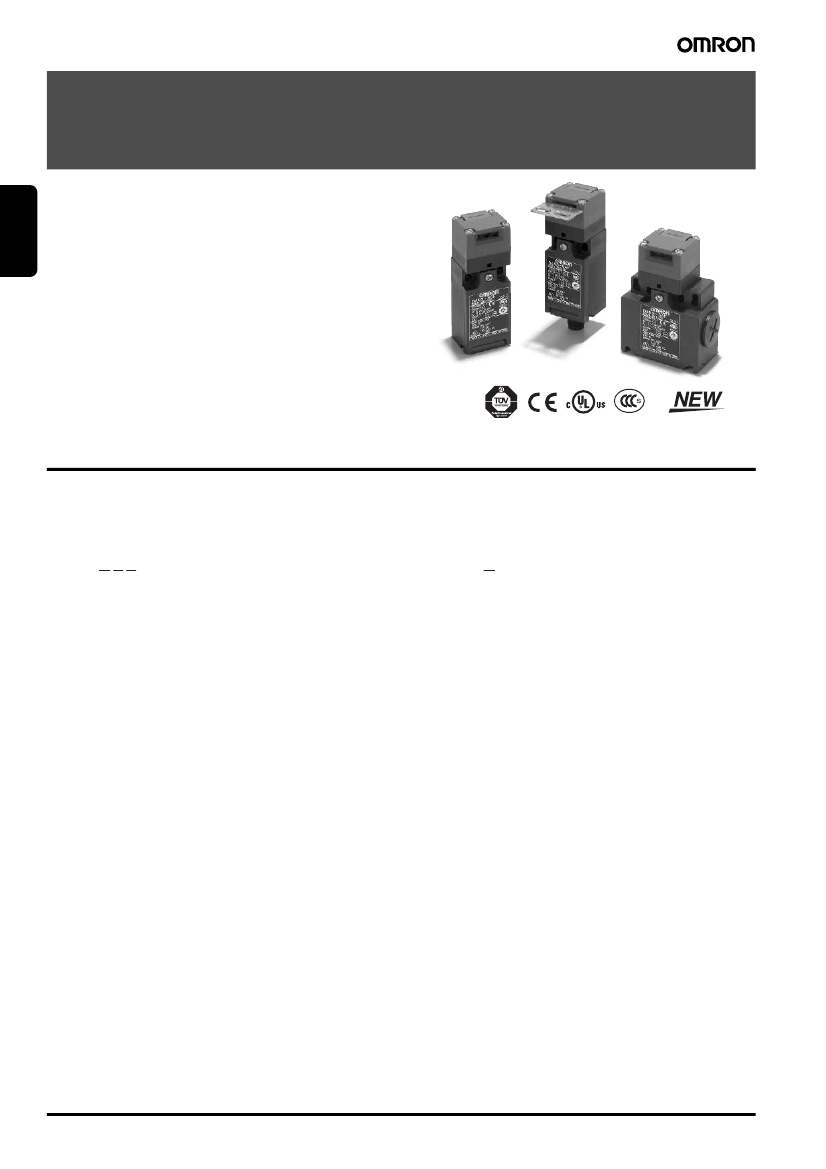

Safety-door Switch
D4NS
Multi-contact, Labor-saving, Environment-
friendly, Next-generation Safety-door Switch
• Lineup includes three contact models with 2NC/1NO and 3NC
contact forms and MBB models in addition to the previous
contact forms 1NC/1NO, and 2NC.
• M12-connector models are available, saving on labor and
simplifying replacement.
• Standardized gold-clad contacts provide high contact reliability.
• Applicable to both standard loads and microloads.
• Free of lead, cadmium, and hexavalent chrome, reducing the
burden on the environment.
Note:
Be sure to read the
“Safety Precautions”
on page A-12 and the
“Precautions for All Safety Door Switches”
on page A-2.
Safety Door
Switches
D4NS
Model Number Structure
■
Model Number Legend
Switch
Operation Key
D4NS-@@@
1 2 3
1. Conduit/Connector size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
3: 1/2-14NPT (1-conduit)
4: M20 (1-conduit)
5: Pg13.5 (2-conduit)
6: G1/2 (2-conduit)
7: 1/2-14NPT compatible (2-conduit model with M20 conduit size
includes an M20-to-1/2-14NPT conversion adapter)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
A: 1NC/1NO (slow-action)
B: 2NC (slow-action)
C: 2NC/1NO (slow-action)
D: 3NC (slow-action)
E: 1NC/1NO (MBB contact)
F: 2NC/1NO (MBB contact)
D4DS-K@
1
1. Operation Key Type
1: Horizontal mounting
2: Vertical mounting
3: Adjustable mounting (Horizontal)
5: Adjustable mounting (Horizontal/ Vertical)
Note:
An order for the head part or the switch part alone cannot be
accepted. The Operation Key is sold separately.
A-4
Safety-door Switch
D4NS
Ordering Information
■
List of Models
Switches (Operation Keys are sold separately.)
Type
1-Conduit
Slow-action
Contact configuration
1NC/1NO
Pg13.5
G1/2
1/2-14NPT
M20
2NC
Pg13.5
G1/2
1/2-14NPT
M20
2NC/1NO
Pg13.5
G1/2
1/2-14NPT
M20
3NC
Pg13.5
G1/2
1/2-14NPT
M20
Slow-action MBB contact 1NC/1NO
Pg13.5
G1/2
1/2-14NPT
M20
2NC/1NO
Pg13.5
G1/2
1/2-14NPT
M20
2-Conduit
Slow-action
1NC/1NO
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
2NC
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
2NC/1NO
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
3NC
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
Slow-action MBB contact 1NC/1NO
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
2NC/1NO
Pg13.5
G1/2
M20, includes M20-to-1/2-14NPT conversion adapter
M20
1-Conduit, with
connector
Slow-action
1NC/1NO
2NC
Slow-action MBB contact 1NC/1NO
M12 connector
Conduit opening/Connector
Model
Safety Door
Switches
D4NS-1AF
D4NS-2AF
D4NS-3AF
D4NS-4AF
D4NS-1BF
D4NS-2BF
D4NS-3BF
D4NS-4BF
D4NS-1CF
D4NS-2CF
D4NS-3CF
D4NS-4CF
D4NS-1DF
D4NS-2DF
D4NS-3DF
D4NS-4DF
D4NS-1EF
D4NS-2EF
D4NS-3EF
D4NS-4EF
D4NS-1FF
D4NS-2FF
D4NS-3FF
D4NS-4FF
D4NS-5AF
D4NS-6AF
D4NS-7AF
D4NS-8AF
D4NS-5BF
D4NS-6BF
D4NS-7BF
D4NS-8BF
D4NS-5CF
D4NS-6CF
D4NS-7CF
D4NS-8CF
D4NS-5DF
D4NS-6DF
D4NS-7DF
D4NS-8DF
D4NS-5EF
D4NS-6EF
D4NS-7EF
D4NS-8EF
D4NS-5FF
D4NS-6FF
D4NS-7FF
D4NS-8FF
D4NS-9AF
D4NS-9BF
D4NS-9EF
D4NS
Note: 1.
The recommended models for equipment and machinery being exported to Europe are those with an M20 or Pg13.5 conduit sizes, and for North
America, the recommended models are those with a 1/2-14NPT conduit sizes.
2.
Resin is used as the material for the D4NS housing and head. Use the metal D4BS Safety-door Switch for applications requiring greater
mechanical strength.
Safety-door Switch
D4NS
A-5
Operation Keys
Type
Model
D4DS-K1
Horizontal mounting
Vertical mounting
Safety Door
Switches
D4DS-K2
Adjustable mounting
(Horizontal)
D4DS-K3
D4NS
Adjustable mounting
(Horizontal/Vertical)
D4DS-K5
Specifications
■
Standards and EC Directives
•
Conforms to the following EC Directives:
Machinery Directive
Low Voltage Directive
EN50047
EN1088
GS-ET-15
■
Approved Standard Ratings
TÜV (EN60947-5-1), CCC (GB14048.5)
Item
Utilization
category
3A
AC-15
DC-13
0.27 A
250 V
Rated operating current (I
e
)
■
Approved Standards
Agency
TÜV Product
Service
UL (See note.)
CQC (CCC)
Standard
EN60947-5-1 (approved
direct opening)
UL508, CSA C22.2 No.14
GB14048.5
File No.
(See note 1.)
E76675
2003010305077
330
Rated operating voltage (U
e
)
240 V
Note:
Use a 10-A fuse type
gI
or
gG
that conforms to IEC60269 as a
short-circuit protection device. This fuse is not built into the
Switch.
UL/CSA (UL508, CSA C22.2 No. 14)
A300
Rated
voltage
120 VAC
240 VAC
Carry current
10 A
60 A
30 A
Current
Make
Break
6A
3A
Volt-amperes
Make
Break
7,200 VA 720 VA
Note: 1.
Consult your OMRON representative for details.
2.
Approval for CSA C22.2 No. 14 is authorized by the UL
mark.
3.
Ask your OMRON representative for information on
approved models.
Q300
Rated
voltage
125 VDC
250 VDC
Carry current
2.5 A
Current
Make
0.55 A
0.27 A
Break
0.55 A
0.27 A
Volt-amperes
Make
69 VA
Break
69 VA
A-6
Safety-door Switch
D4NS
■
Characteristics
Degree of protection (See note 3.)
Durability
(See note 4.)
Operating speed
Operating frequency
Direct opening force (See note 6.)
Direct opening travel (See note 6.)
Contact resistance
Minimum applicable load (See note 7.)
Rated insulation voltage (U
i
)
Protection against electric shock
Pollution degree (operating environment)
Impulse withstand voltage (EN60947-5-1)
Mechanical
Electrical
IP67 (EN60947-5-1)
(This applies for the Switch only. The degree of protection for the key hole is IP00.)
1,000,000 operations min.
500,000 operations min. for a resistive load of 3 A at 250 VAC (See note 5.)
300,000 operations min. for a resistive load of 10 A at 250 VAC
0.05 to 0.5 m/s
30 operations/minute max.
60 N min.
10 mm min.
25 m
Ω
max. (initial value)
Resistive load of 1 mA at 5 VDC (N-level reference value)
300 V
Class II (double insulation)
3 (EN60947-5-1)
Between terminals of the same polarity
Between terminals of different polarities
Between other terminals and uncharged metallic parts
Insulation resistance
Contact gap
Vibration resistance
Shock resistance
Malfunction
Destruction
Malfunction
Conditional short-circuit current
Rated open thermal current (I
th
)
Ambient temperature
Ambient humidity
Weight
100 M
Ω
min.
2 x 2 mm min
10 to 55 Hz, 0.75-mm single amplitude
1,000 m/s
2
min.
300 m/s
2
min.
100 A (EN60947-5-1)
10 A (EN60947-5-1)
Operating:
−
30
°
C to 70
°
C with no icing
Operating:95% max.
Approx. 96 g (D4NS-1CF)
2.5 kV
4 kV
6 kV
Safety Door
Switches
D4NS
Note: 1.
The above values are initial values.
2.
The Switch contacts can be used with either standard loads or microloads. Once the contacts have been used to switch a load, however,
they cannot be used to switch smaller loads. The contact surfaces will become rough once they have been used and contact reliability
for smaller loads may be reduced.
3.
The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing properties are
sufficient for the operating conditions and environment beforehand. Although the switch box is protected from dust or water penetration,
do not use the D4NS in places where foreign material may enter through the key hole on the head, otherwise Switch damage or
malfunctioning may occur.
4.
The durability is for an ambient temperature of 5
°
C to 35
°
C and an ambient humidity of 40% to 70%. For more details, consult your
OMRON representative.
5.
If the ambient temperature is greater than 35
°
C, do not pass the 3-A, 250-VAC load through more than 2 circuits.
6.
These figures are minimum requirements for safe operation.
7.
This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is possible with the
actual load beforehand.
Safety-door Switch
D4NS
A-7

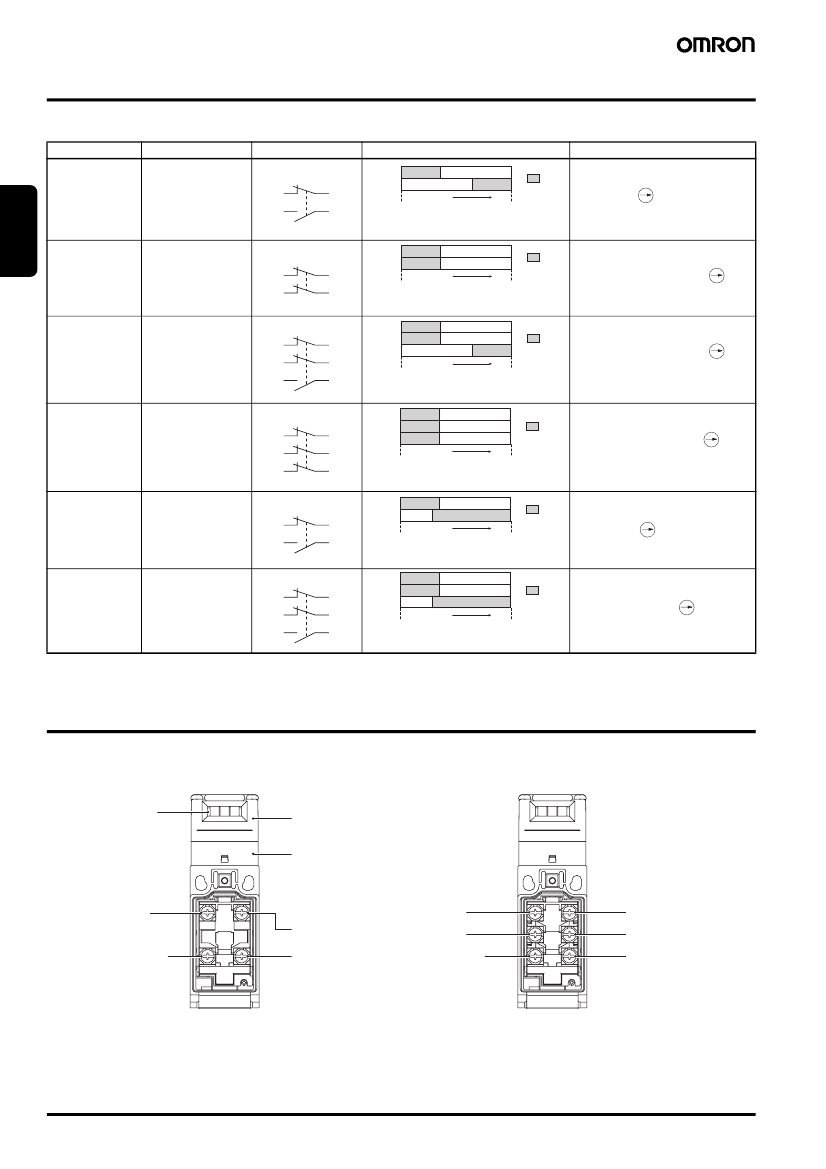

Connections
■
Contact Form (Diagrams Show State with Key Inserted)
Model
D4NS-@A@
Contact
1NC/1NO
Zb
11
12
34
Operation
Key insertion
completion
position
Contact form
11-12
33-34
Operating pattern
ON
Stroke
Extraction
completion
position
Remarks
Only NC contacts 11-12 have an
approved direct opening
mechanism.
The terminals 11-12 and 33-34
can be used as unlike poles.
Safety Door
Switches
33
D4NS-@B@
2NC
Zb
11
12
32
11-12
31-32
Stroke
Operation
Key insertion
completion
position
Extraction
completion
position
ON
31
Only NC contacts 11-12 and
31-32 have an approved
direct opening mechanism.
The terminals 11-12 and 31-32
can be used as unlike poles.
Only NC contacts 11-12 and
21-22 have an approved
direct opening mechanism.
The terminals 11-12, 21-22, and
33-34 can be used as unlike
poles.
Only NC contacts 11-12, 21-22,
and 31-32 have an approved di-
rect opening mechanism.
The terminals 11-12, 21-22, and
31-32 can be used as unlike
poles.
D4NS
D4NS-@C@
2NC/1NO
D4NS-@D@
3NC
D4NS-@E@
1NC/1NO MBB
D4NS-@F@
2NC/1NO MBB
Zb
11
21
33
12
22
34
11-12
21-22
33-34
Stroke
Operation
Key insertion
completion
position
Extraction
completion
position
ON
Zb
11
21
31
12
22
32
11-12
21-22
31-32
Stroke
Operation
Key insertion
completion
position
Extraction
completion
position
ON
Zb
11
33
12
34
11-12
33-34
Stroke
Operation
Key insertion
completion
position
Extraction
completion
position
ON
Only NC contacts 11-12 have an
approved direct opening
mechanism.
The terminals 11-12 and 33-34
can be used as unlike poles.
Zb
11
21
33
12
22
34
11-12
21-22
33-34
Stroke
Operation
Key insertion
completion
position
Extraction
completion
position
ON
Only NC contacts 11-12 and
21-22 have an approved direct
opening mechanism.
The terminals 11-12, 21-22 and
33-34 can be used as unlike poles.
Note:
MBB (Make Before Break) contacts have an overlapping structure, so that before the normally closed contact (NC) opens, the normally open
contact (NO) closes.
Nomenclature
■
Structure
D4NS-@A@, D4NS-@B@, D4NS-@E@
Operation
key hole
Head
The head can be mounted
in four directions.
Sealing properties
The switch casing ensures IP67
(except the keyhole, which
ensures IP00). Use the D4NS in
places where the keyhole is free
from oil, water, and metal chips.
D4NS-@C@, D4NS-@D@, D4NS-@F@
Terminal 11
Terminal 12
Terminal 11
Terminal 21
Terminal 31 (33)
Terminal 12
Terminal 22
Terminal 32 (34)
Terminal 31 (33)
Terminal 32 (34)
Note:
The 2-conduit models have the same terminal arrangement.
A-8
Safety-door Switch
D4NS
