Relay socket - PLC-BSC-120UC/21-21 - 2967031
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

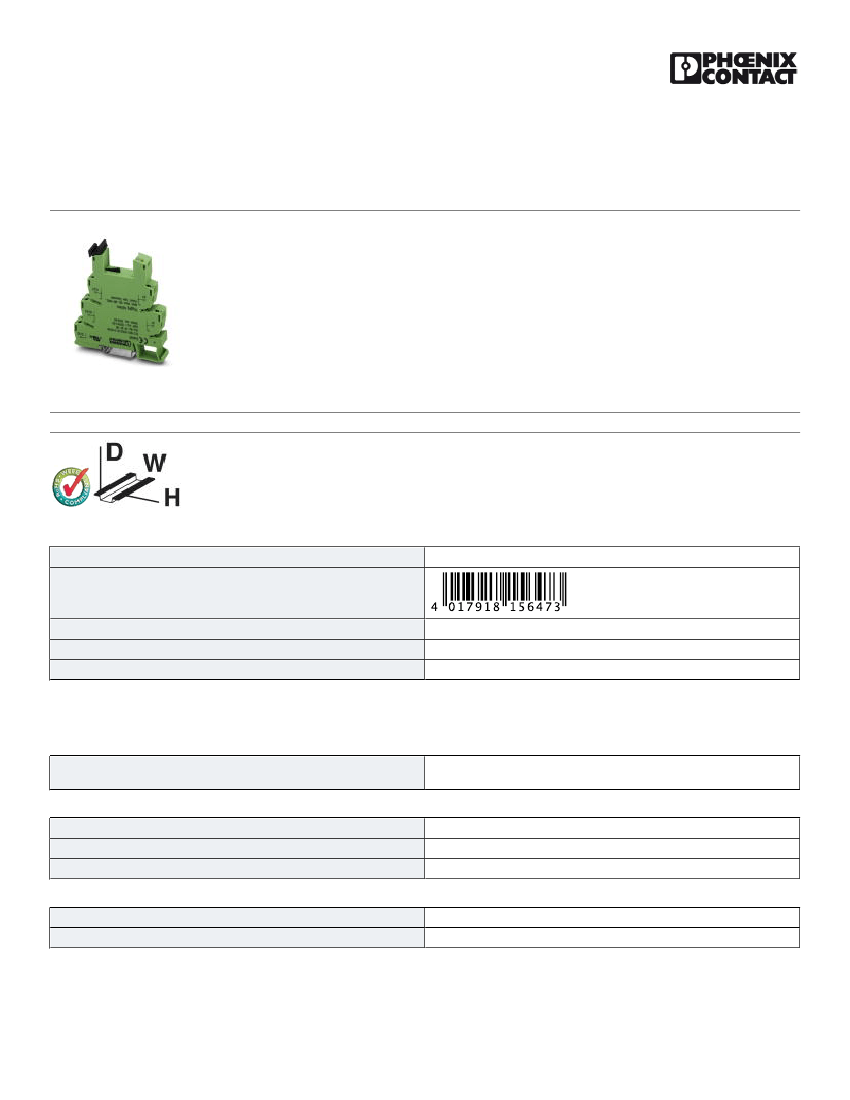

14 mm PLC basic terminal block with screw connection, without relay or solid-state relay, for mounting on DIN rail
NS 35/7,5, 2 PDTs, input voltage 120 V AC/DC
Figure shows PLC-
BSC-120UC/21-21/SO46 version
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
57.54 g
85369010
Germany
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
14 mm
80 mm
94 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 55 °C
-40 °C ... 85 °C
Input data
04/22/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2967031
Relay socket - PLC-BSC-120UC/21-21 - 2967031
Technical data
Input data
Nominal input voltage U
N
Status display
Protective circuit
120 V AC/DC
LED
Bridge rectifier
Output data
Compatible components
Miniature relay, REL-MR-110DC/21-21AU, REL-MR-110DC/21-21
Connection data, input side
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Input side
Screw connection
8 mm
M3
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Connection data, output side
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Output side
Screw connection
8 mm
M3
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
General
Color
Operating mode
Flammability rating according to UL 94
Mounting position
Assembly instructions
green
100% operating factor
V0
any
In rows with zero spacing
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
27371102
04/22/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2967031
Relay socket - PLC-BSC-120UC/21-21 - 2967031
Classifications
eCl@ss
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27371102
27371603
27371603
27371603
27371603
27371603
27371603
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001456
EC001456
EC001456
EC001456
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211917
39121516
39121516
39121516
39121516
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GL / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
04/22/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/2967031
Relay socket - PLC-BSC-120UC/21-21 - 2967031
Approvals
UL Recognized
cUL Recognized
GL
EAC
cULus Recognized

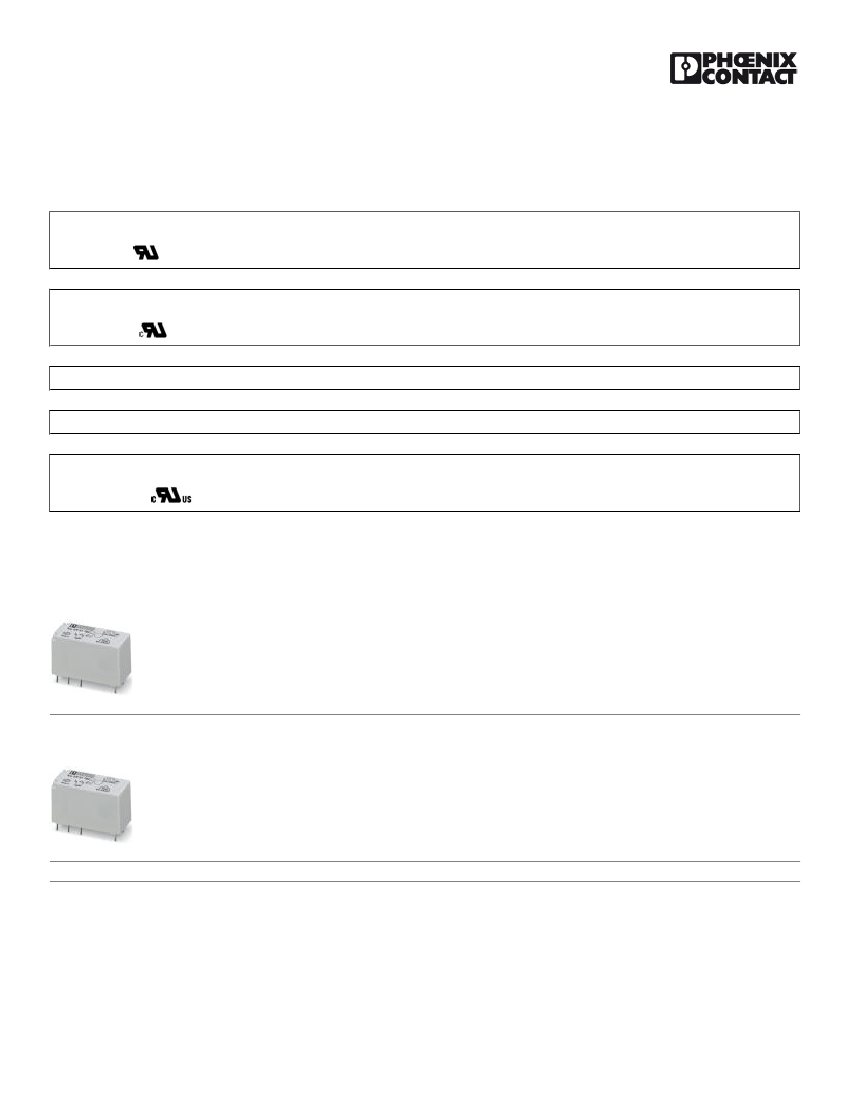

Accessories
Required add-on products
Single relay - REL-MR-110DC/21-21 - 2961202
Plug-in miniature power relay, with power contact, 2 PDTs, input voltage 110 V DC
Single relay - REL-MR-110DC/21-21AU - 2961228
Plug-in miniature power relay, with multi-layer gold contact, 2 PDTs, input voltage 110 V DC
