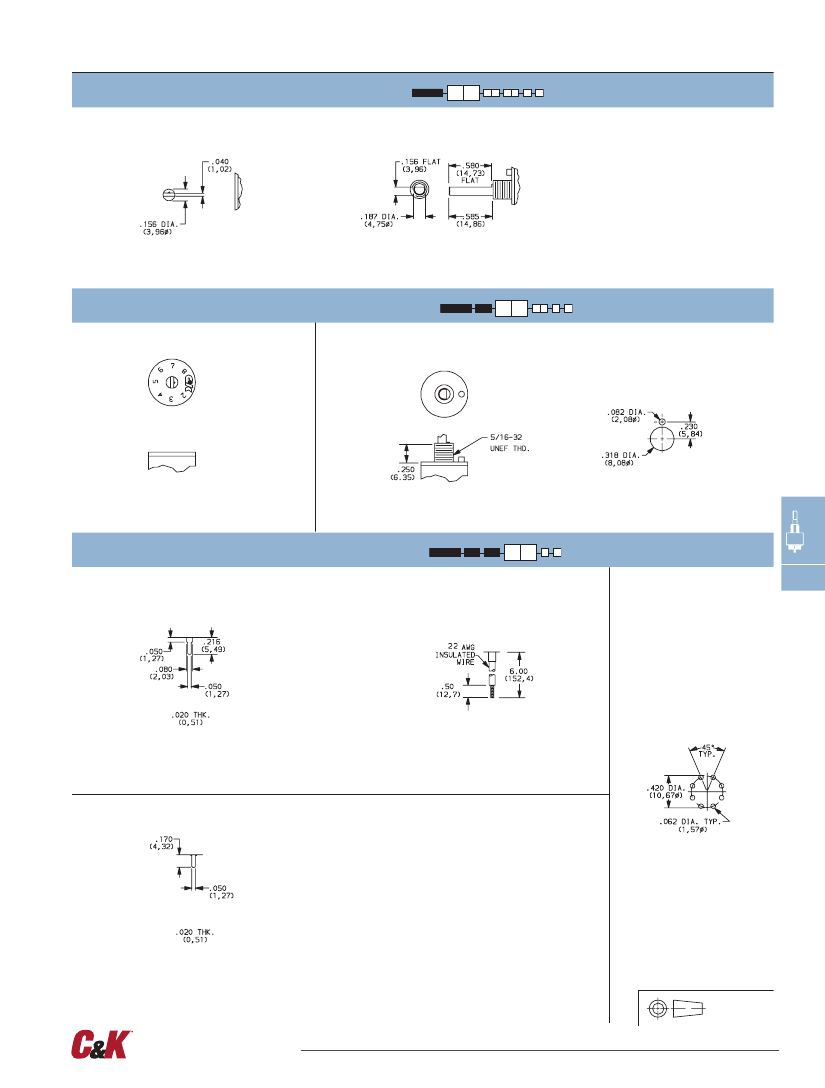

F Series
Miniature ROTA-SLIDE Rotary Switches
®
Features/Benefits
•
Multi-pole and multi-position
•
Panel and PCB mounting
•
Positive detent
•
Value added capability
•
RoHS Compliant
Typical Applications
•
Small appliances
•
Testing fixtures
•
Safety equipment
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page K-24 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m Ω typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109 Ω min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45º or 90º -one contact models; two contact models,
4 pos. max. Models with common terminal -90º, 4 pos. max.
OPERATING & STORAGE TEMPERATURE: -30ºC to 65ºC
Materials
HOUSING & BUSHING: 6/6 Nylon (UL 94V-2).
ACTUATOR: 6/6 nylon (UL 94V-2).
CONTACTS: Q contact material: Copper, silver plated. See page
K-24 for additional contact materials.
TERMINALS: Q contact material: Copper, silver plated. See page
K-24 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
MOUNTING NUT: Brass, nickel plated.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Custome Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-22 thru K-24. For additional options not shown in catalog, consult Customer Service Center.
K
Rotary
Switch Function
FA05
SP, 90° Index, 3 pos.
F103
SP, 45° Index, 3 pos.
F203
DP, 45° Index, 3 pos.
Actuator
FA01
SPDT, 90° Index
15
Screwdriver slot without bushing
FC03
SP, W/Common 90° Index, 3 pos.
08
.585” high with .156” flat
Mounting Style
RN
PC
RS
5/16-32 threaded bushing
Terminations
02
PC Thru-hole
WC
Wire lead
Contact Material
Q
Silver
B
Gold
Seal
NONE No
seal
E
Epoxy seal
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–21
www.ckswitches.com
F Series
Miniature ROTA-SLIDE
®
Rotary Switches

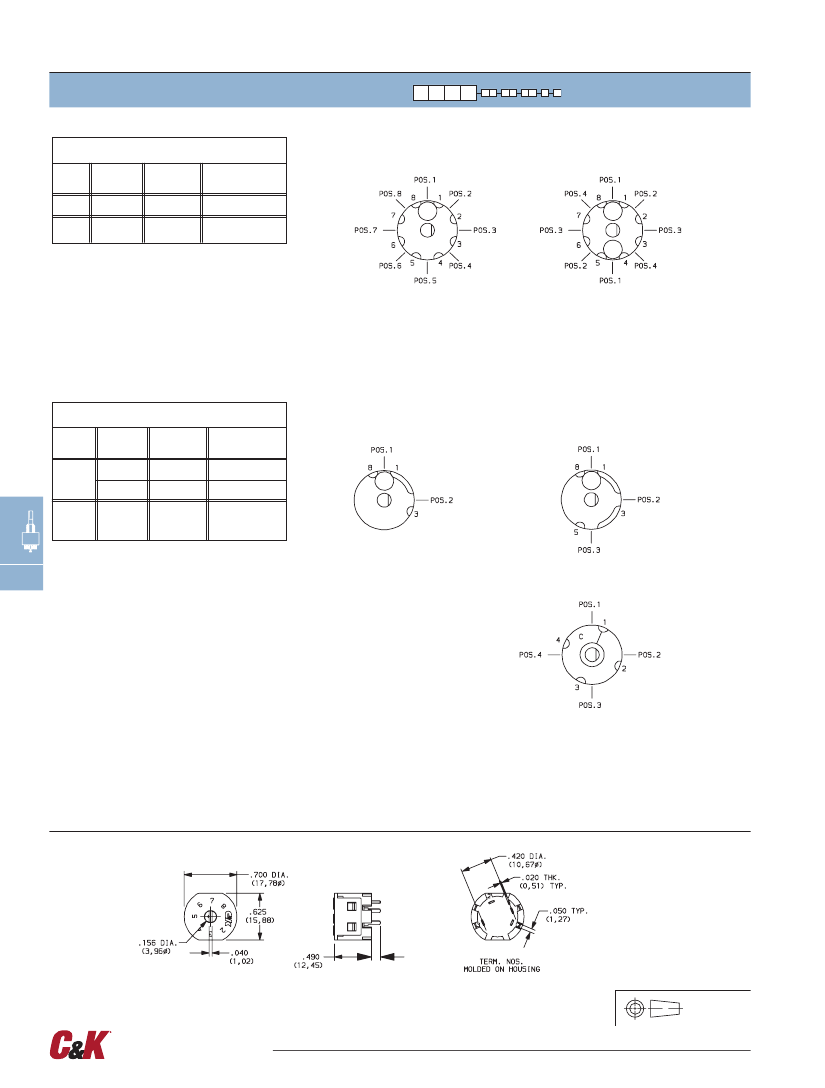

SWITCH FUNCTION
45º INDEXING SCHEMATICS
45º INDEXING
NO.
POLES
SP
DP
MODEL
NO.
SWITCH
FUNCTION
3 Position
3 Position
TERMINALS
8-1-2-3*
All Terminals
F103
F203
F1XX MODELS
F2XX MODELS
Break-before-make contacts. Terminal numbers
are molded on bottom of housing. Actuators are
shown in position 1.
F1XX, F2XX models: No common terminal is present.
Switching function is provided by movable contacts
shorting adjacent pairs of stationary contacts.
NOTE:
*Switches with ‘02’ PC terminations have
additional terminal no. 5 as switch support only.
This terminal is not connected electrically inside switch.
90º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
SPDT
3 Position
90º INDEXING SCHEMATICS
TERMINALS
8-1-3
8-1-3-5
SP
FA01
FA05
FC03
SP WITH
COMMON
3 Position
C-1,C-2,C-3
K
Rotary
FA01 MODEL
FA05 MODEL
C= Common Terminal
FCXX MODEL
Break-before-make contacts. Terminal numbers
are molded on bottom of housing. Actuators are
shown in position 1.
FAXX models: No common terminal is present.
Switching function is provided by movable contacts
shorting adjacent pairs of stationary contacts.
FCXX models: Common terminal is present.
NOTE:
*Switches with ‘02’ PC terminations have
additional terminal no. 5 as switch support only.
This terminal is not connected electrically inside switch.
.170
(4,31)
Part number show: FC0315RN02Q
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–22
www.ckswitches.com
F Series
Miniature ROTA-SLIDE Rotary Switches
®
ACTUATOR
15
SCREWDRIVER SLOT WITHOUT BUSHING
08
.585” HIGH WITH .156” FLA
Shown with ‘RN’ mounting style; not
available with ‘RS’ mounting style
or FCXX models.
Must be ordered with ‘RS’ mounting style.
MOUNTING STYLE
RN
PC
RS
5/16-32 THREADED BUSHING
PANEL MOUNTING
PC mount, no bushing, position numbers
molded standard. Shown with ‘15’ actuator;
not available with ‘08’ actuator or FCXX models.
Panel mount, with 5/16 in.–32 threaded bushing.
Mounting nut (P/N 175020201) included. Must
be ordered with ‘08’ actuator option.
5/16 IN. BUSHING
TERMINATIONS
02
PC THRU-HOLE
WC
WIRE LEAD
K
Rotary
PC MOUNTING
F1XX, F2XX & FAXX Models
Black wire standard, other colors and
lengths available, consult Customer
Service Center. UL style 1015.
02
PC THRU-HOLE
FCXX Models
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–23
www.ckswitches.com
F Series
Miniature ROTA-SLIDE
®
Rotary Switches
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
POWER
LOW LEVEL/DRY CIRCUIT
RATING
4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.
1
2
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options).
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
All models
with all options when ordered with ‘Q’ contact material.
SEAL
NONE
NO SEAL
E
EPOXY SEAL
Not available on FCXX models.
K
Rotary
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–24
www.ckswitches.com
