Fuse module - EMG 45-SI6E/K - 2955807
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse module with indicating pin, for 6 cartridge fuse inserts, 5x25 mm, individual connection

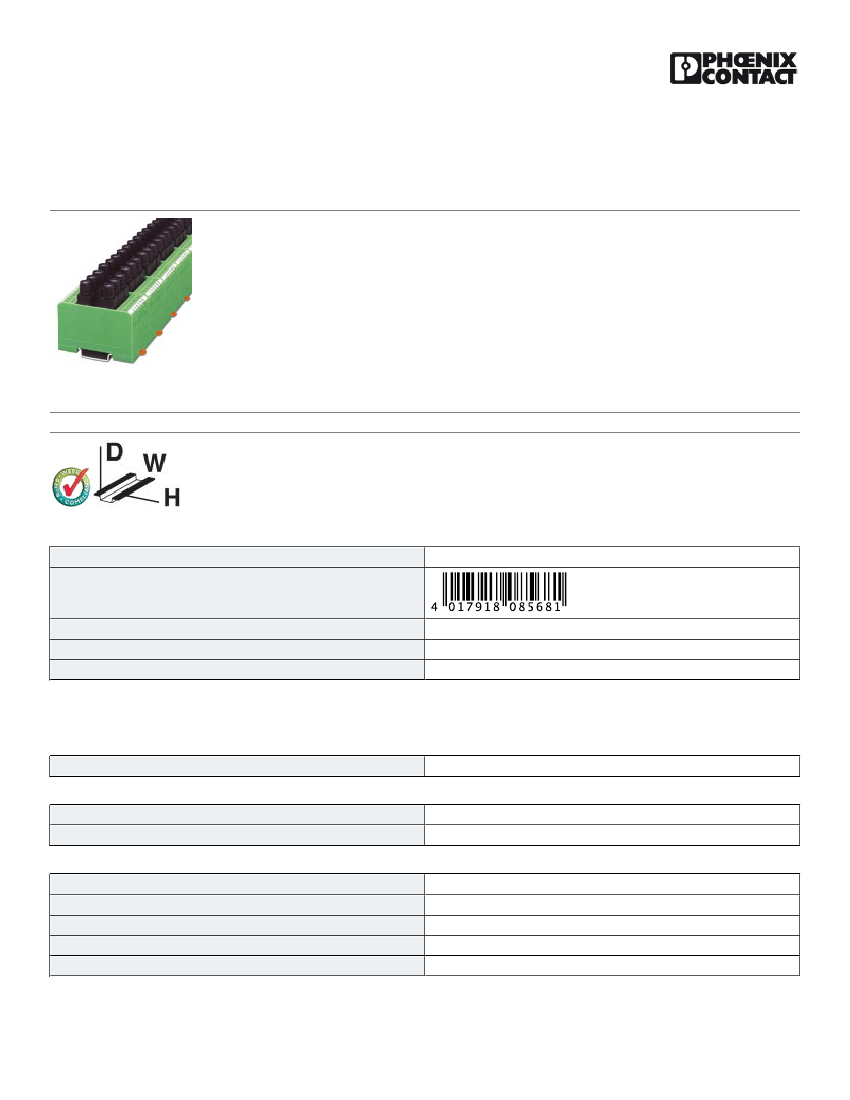

The illustration shows version EMG
45-SI/K, with 6 cartridge fuse holders
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
133.75 g
85363010
Germany
1 pc
Technical data
Dimensions
Width
45 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 50 °C
General
Nominal voltage U
N
Cartridge fuse inserts
Mounting position
Assembly instructions
250 V AC
Max. 6.3 A/250 V AC (between two terminal blocks)
Max. 3 A/250 V AC (for simultaneous loading of inserts)
any
In rows with zero spacing
04/24/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2955807
Fuse module - EMG 45-SI6E/K - 2955807
Technical data
General
Standards/regulations
IEC 664
IEC 664 A
DIN VDE 0110-1
DIN VDE 0160
DIN VDE 0109-11, draft
Degree of pollution
Overvoltage category
2
III
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Screw thread
Connection method
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
M3
Screw connection
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27141116
27141116
27141116
27141116
27141116
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC000036
EC000036
EC000036
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
30212005
39121605
39121605
39121605
04/24/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2955807
Fuse module - EMG 45-SI6E/K - 2955807
Classifications
UNSPSC
UNSPSC 13.2
39121605
Accessories
Accessories
Marking material - EMG-GKS 12 - 2947035
Equipment marker, width 12 mm
Drawings
04/24/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/2955807
Fuse module - EMG 45-SI6E/K - 2955807

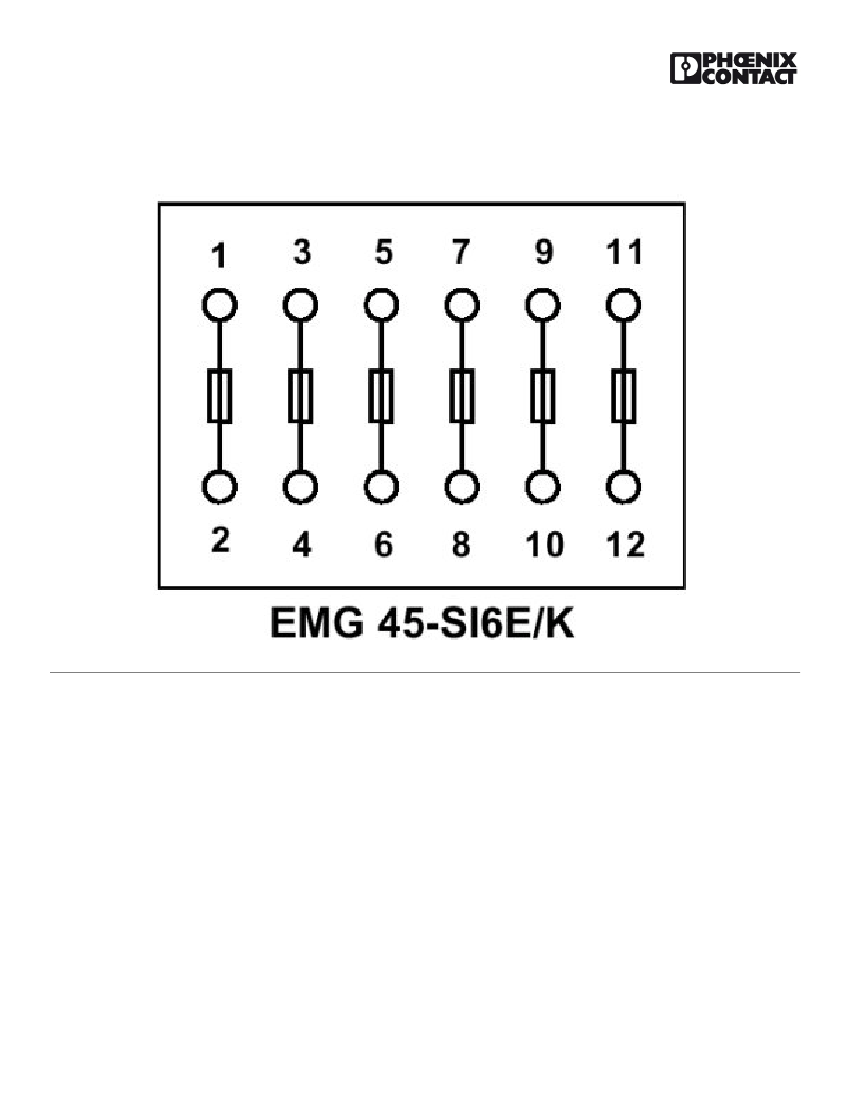

Circuit diagram
