D53TP50D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> D53TP50D

D53TP50D: DescriptionLogic Output Optocouplers DIP-8 LOG OUT/AC IN; CategoryLED optoelectronic/LED photoelectric; File Size671KB，6 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

D53TP50D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D53TP50D	-	-	View	Buy Now

D53TP50D Overview

Logic Output Optocouplers DIP-8 LOG OUT/AC IN

D53TP50D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-8
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, ZERO VOLTAGE CROSSING
Configuration	COMPLEX
control voltage	3 V
Maximum forward current	0.025 A
input type	AC
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	50 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	MOSFET
total height	22 mm
total length	104 mm
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

DataSheet

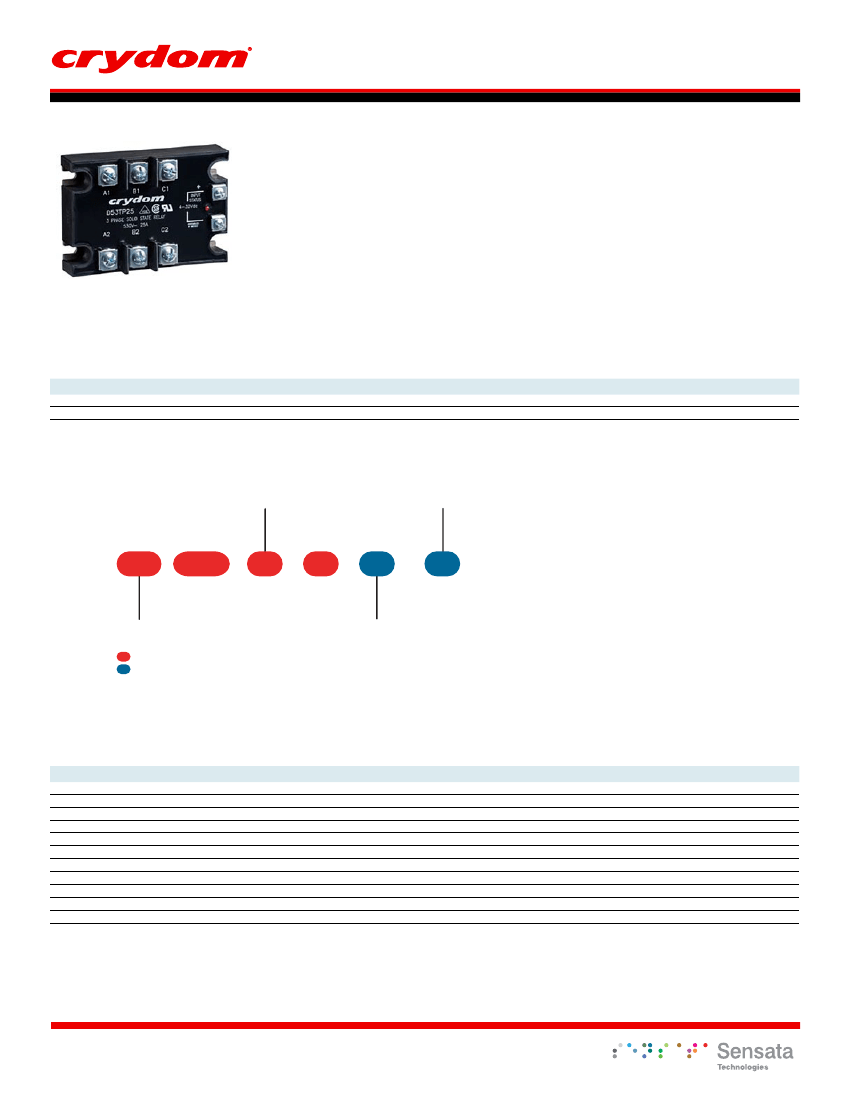

53TP Series IP00

•

Three-phase solid-state relay; Ratings 25 A, 50 A per phase @ 48-530 VAC

•

2 package styles IP00 or IP20 (See IP20 spec sheet for more information)

•

SCR output for heavy industrial loads

•

Transient protection built in

•

AC or DC control

•

Zero-crossing (resistive loads) or random-fire (inductive loads) output

•

LED input status indicator

•

UL Recognized, CE Compliant to EN60950-1

Panel Mount

PRODUCT SELECTION

Control Voltage

90-280 VAC

4-32 VDC

25 A

A53TP25D

D53TP25D

50 A

A53TP50D

D53TP50D

AVAILABLE OPTIONS

Load Current

25:

25 Amps

50:

50 Amps

Switching Mode

Blank:

Zero Voltage Turn-On

-10:

Random Turn-On

Series

53TP

-10

Control Voltage

DC (4-32V)

AC (90-280V)

Thermal Pad

Blank:

Not Included

Included

Required for valid part number

For options only and not required for valid part number

OUTPUT SPECIFICATIONS AC Output

(1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

(2)

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]

(3)

Maximum Load Current [Arms]

(4)

Minimum Load Current [Arms]

Maximum Surge Current 50-60 Hz (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I²t for Fusing 50-60 Hz (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

25 A

48-530

1200

500

0.05

239/250

1.6

1.02

285/260

0.5

50 A

48-530

1200

500

0.05

597/625

1.6

0.63

1779/1620

0.5

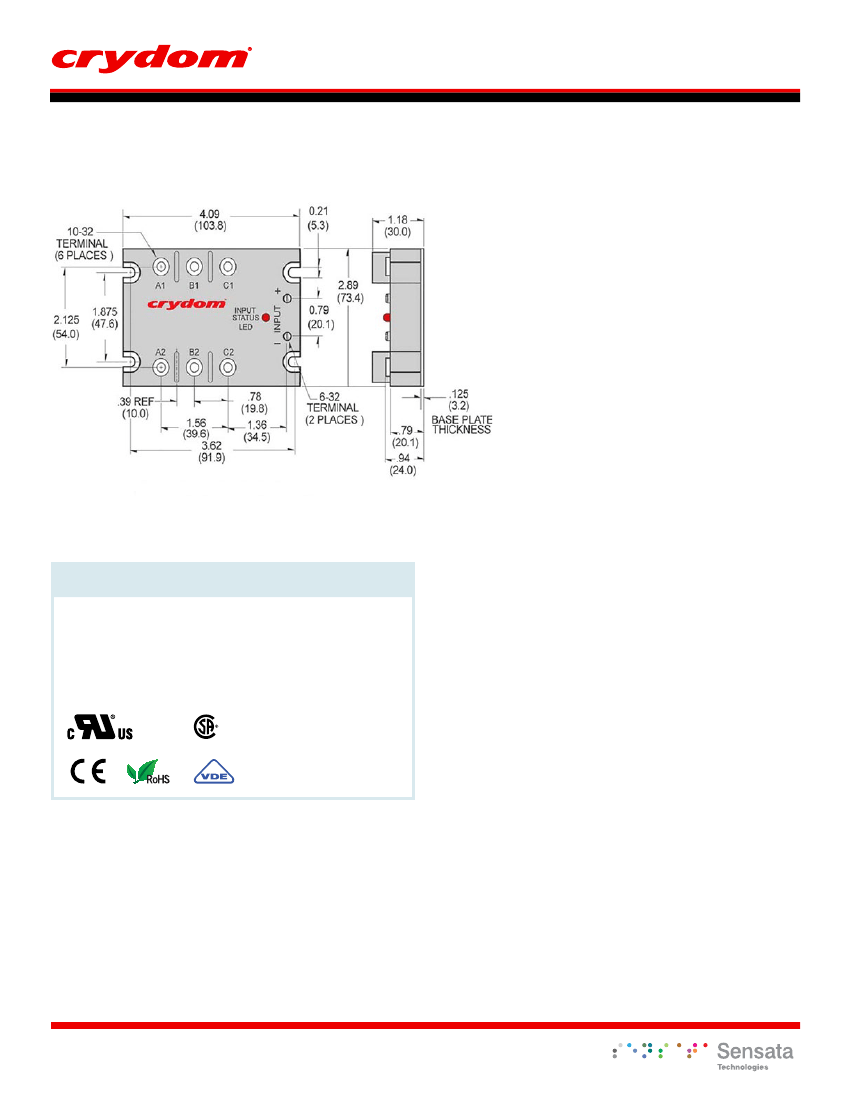

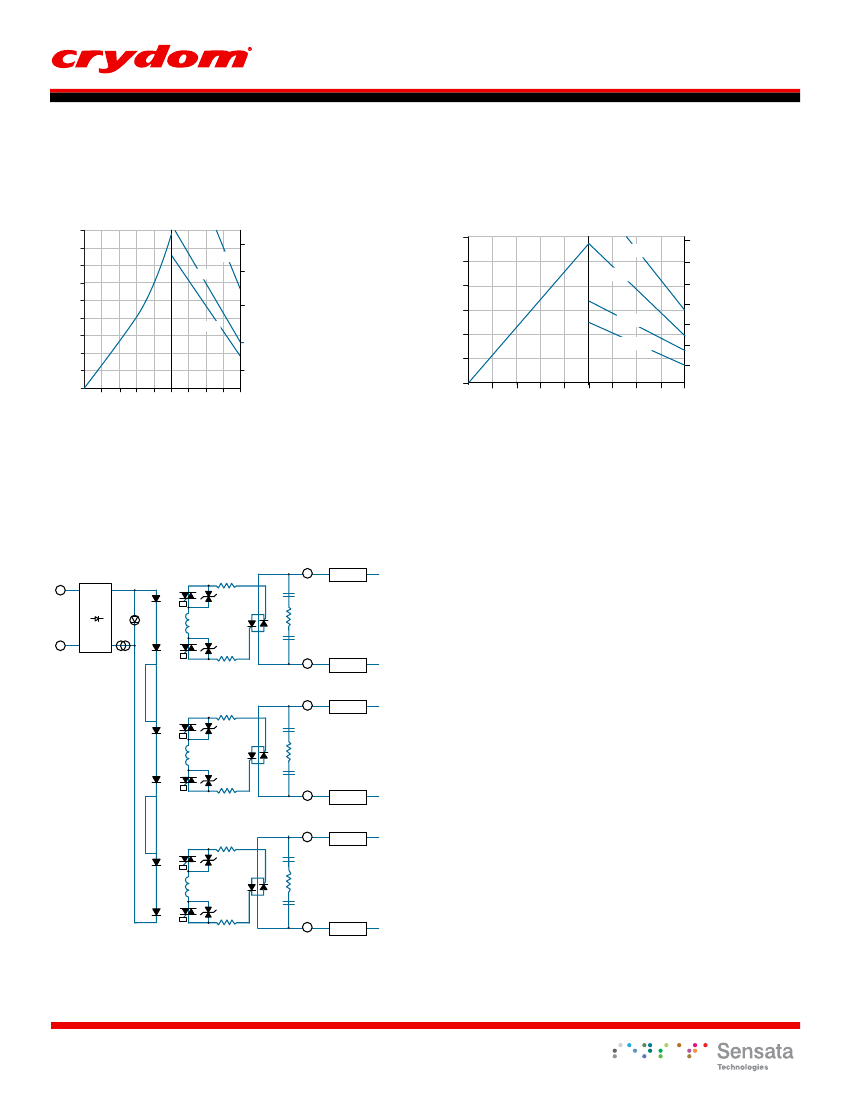

Do not forget to visit us at:

www.crydom.com

D53TP50D Related Products

	D53TP50D	D53TP50DH	A53TP50D	D53TP50D-10	A53TP25DH	A53TP50D-10	A53TP25D
Description	Logic Output Optocouplers DIP-8 LOG OUT/AC IN	Solid State Relays - Industrial Mount SOLID STATE RELAY 48-530 VAC	Solid State Relays - Industrial Mount SER1 DC CTRL SCR OUT	General Purpose Relays DPDT 5A 24VDC LED indicator	Solid State Relays - Industrial Mount 3P SSR CONTROLLED 3-POLE	Solid State Relays - Industrial Mount PM IP00 3P-SSR 530 VAC/50A,90-280V,RN	Solid State Relays - Industrial Mount PM IP00 3P-SSR 530 VAC/25A,90-280V,ZC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8	ROHS COMPLIANT, PLASTIC PACKAGE-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED	UL RECOGNIZED, ZERO VOLTAGE CROSSING
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Maximum forward current	0.025 A	0.025 A	0.01 A	0.025 A	0.01 A	0.01 A	0.01 A
Maximum insulation voltage	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V
Number of components	1	1	1	1	1	1	1
Maximum on-state current	50 A	50 A	50 A	50 A	25 A	50 A	25 A
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
control voltage	3 V	-	90 V	3 V	-	90 V	90 V
input type	AC	-	AC	AC	-	AC	AC
Output circuit type	MOSFET	-	MOSFET	MOSFET	-	MOSFET	MOSFET
total height	22 mm	-	22 mm	22 mm	-	22 mm	22 mm
total length	104 mm	-	104 mm	104 mm	-	104 mm	104 mm
Base Number Matches	-	-	1	-	1	1	1
