Relay socket - PLC-BSC-120UC/21HC/SO46 - 2980432
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

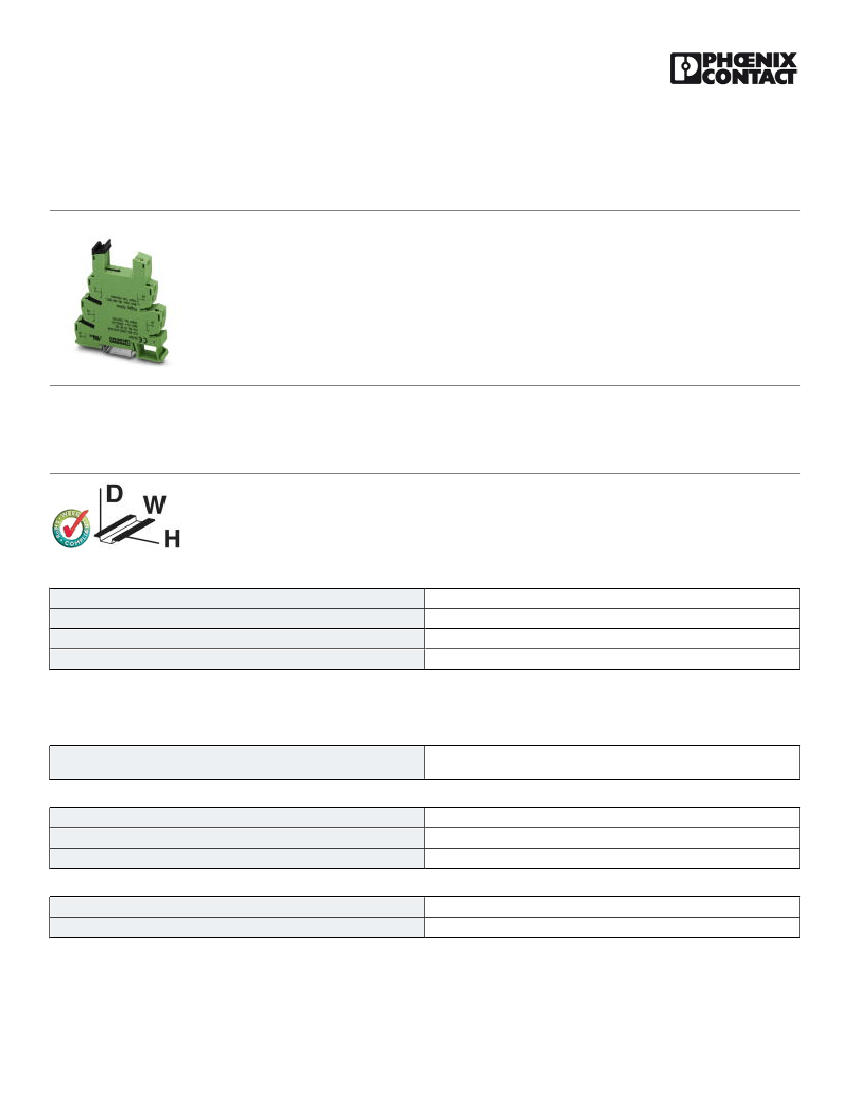

14 mm PLC basic terminal block with interference current and interference voltage protection on the control side,
with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, for high continuous
currents, 1 PDT, input voltage 120 V AC
Product Features
■
■
High relay release voltage
Resistant to interference currents
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
58.88 g
85364190
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
14 mm
80 mm
94 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 55 °C
-40 °C ... 85 °C
Input data
04/25/2016 Page 1 / 10
https://www.phoenixcontact.com/us/products/2980432
Relay socket - PLC-BSC-120UC/21HC/SO46 - 2980432
Technical data
Input data
Nominal input voltage U
N
Input voltage range in reference to U
N
Release voltage
Typical input current at U
N
Typical response time
Typical release time
Status display
Protective circuit
120 V AC
0.85 ... 1.14 (at 20 °C)
typ. 16 V AC
8.5 mA
7 ms
10 ms
LED
Bridge rectifier Bridge rectifier
RCZ filter RCZ filter
Output data
Compatible components
Miniature relay, REL-MR-110DC/21HC
Connection data, input side
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Input side
Screw connection
8 mm
M3
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Connection data, output side
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Output side
Screw connection
8 mm
M3
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
General
Protective circuit
Color
Operating mode
Flammability rating according to UL 94
Mounting position
Assembly instructions
Bridge rectifier Bridge rectifier
RCZ filter RCZ filter
green
100% operating factor
V0
any
In rows with zero spacing
04/25/2016 Page 2 / 10
https://www.phoenixcontact.com/us/products/2980432
Relay socket - PLC-BSC-120UC/21HC/SO46 - 2980432
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27371102
27371102
27371603
27371603
27371603
27371603
27371603
27371603
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001456
EC001456
EC001456
EC001456
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211917
39121516
39121516
39121516
39121516
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GL / EAC / cULus Recognized
Ex Approvals
04/25/2016 Page 3 / 10
https://www.phoenixcontact.com/us/products/2980432
Relay socket - PLC-BSC-120UC/21HC/SO46 - 2980432
Approvals
Approvals submitted
Approval details
UL Recognized
cUL Recognized
GL
EAC
cULus Recognized
Accessories
Accessories
Bridge

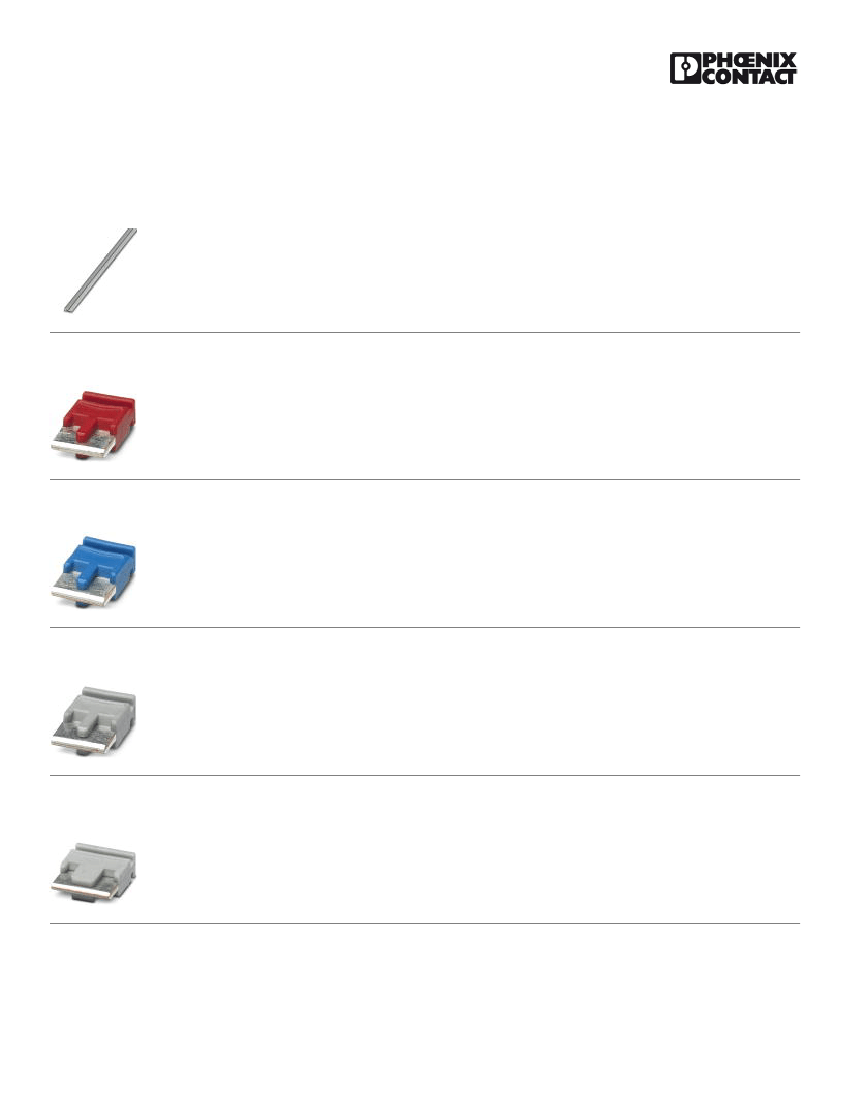

Continuous plug-in bridge - FBST 500-PLC RD - 2966786
Continuous plug-in bridge, Length: 500 mm, Color: red
Continuous plug-in bridge - FBST 500-PLC BU - 2966692
Continuous plug-in bridge, Length: 500 mm, Color: blue
04/25/2016 Page 4 / 10
https://www.phoenixcontact.com/us/products/2980432
Relay socket - PLC-BSC-120UC/21HC/SO46 - 2980432
Accessories
Continuous plug-in bridge - FBST 500-PLC GY - 2966838
Continuous plug-in bridge, Length: 500 mm, Color: gray
Single plug-in bridge - FBST 6-PLC RD - 2966236
Single plug-in bridge, Length: 6 mm, Number of positions: 2, Color: red
Single plug-in bridge - FBST 6-PLC BU - 2966812
Single plug-in bridge, Length: 6 mm, Number of positions: 2, Color: blue
Single plug-in bridge - FBST 6-PLC GY - 2966825
Single plug-in bridge, Length: 6 mm, Number of positions: 2, Color: gray
Single plug-in bridge - FBST 8-PLC GY - 2967688
Single plug-in bridge, Length: 8 mm, Number of positions: 2, Color: gray
04/25/2016 Page 5 / 10
