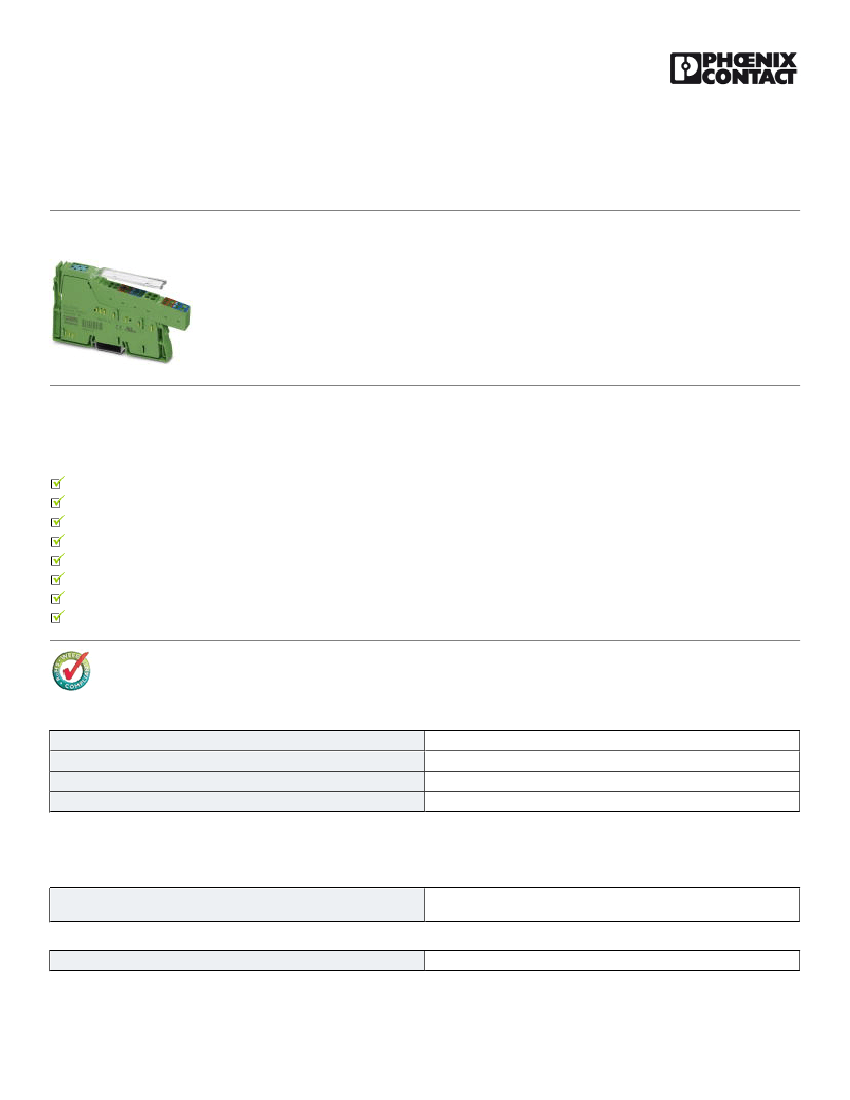

Inline terminal - IB IL 24 DI 4-XC-PAC - 2701152
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline digital input terminal, version for extreme conditions, complete with accessories (connector plug and
labeling field), 4 inputs, 24 V DC, 3-conductor connection technology
Product description
The terminal is designed for use within an Inline station.
It is used to acquire digital input signals.
Product Features
4 digital inputs
Connection of sensors in 2 and 3-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 1 A
Diagnostic and status indicators
Can be used under extreme ambient conditions
Coated PCBs
Extended temperature range T2 (-40°C ... +55°C)
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100.0 GRM
85389091
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
12.2 mm
09/03/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/2701152
Inline terminal - IB IL 24 DI 4-XC-PAC - 2701152
Technical data
Dimensions
Height
Depth
Note on dimensions
140.5 mm
71.5 mm
Housing dimensions
Ambient conditions
Ambient temperature (operation)
-40 °C ... 55 °C (See also the "Tested successfully: Use under extreme
ambient conditions" section of the data sheet.)
-40 °C ... 60 °C (At U
S
< 24.5 V; see also the "Tested successfully: Use
under extreme ambient conditions" section of the data sheet.)
Ambient temperature (storage/transport)
GRP_Temperature class
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-40 °C ... 85 °C
T2 (-40°C ... 55°C, EN 50155)
10 % ... 95 % (according to DIN EN 61131-2)
10 % ... 95 % (according to DIN EN 61131-2)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
General
Weight
Note on weight specifications
Mounting type
Operating mode
Protection class
Test section
66 g
with connector
DIN rail
Process data operation with 4 bits
III, IEC 61140, EN 61140, VDE 0140-1
5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min
Interfaces
Fieldbus system
Designation
Connection method
Transmission speed
Lokalbus
Inline local bus
Inline data jumper
500 kBit/s
Power supply for module electronics
Supply voltage
Supply voltage range
Supply current
Communications power U
L
24 V DC (via voltage jumper)
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
40 mA
7.5 V (via voltage jumper)
09/03/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/2701152
Inline terminal - IB IL 24 DI 4-XC-PAC - 2701152
Technical data
Power supply for module electronics
Current consumption
Power consumption
max. 40 mA (from the local bus)
max. 0.3 W (at U
L
)
Inline potentials
Communications power U
L
Current consumption from U
L
Segment supply voltage U
S
Current consumption from U
S
Power consumption
7.5 V DC
max. 40 mA
24 V DC (nominal value)
max. 1 A
max. 0.3 W (at U
L
)
Digital inputs
Input name
Connection method
Number of inputs
Typical response time
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Nominal input current at U
IN
Digital inputs
Spring-cage connection
2, 3-wire
4 (EN 61131-2 type 1)
< 1 ms
24 V DC (via voltage jumper)
-3 V DC ... 5 V DC
15 V DC ... 30 V DC
min. 3 mA (at nominal voltage)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27240404
27240404
27242204
27242604
27242604
27242604
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001433
EC001599
EC001599
EC001599
09/03/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/2701152
Inline terminal - IB IL 24 DI 4-XC-PAC - 2701152
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
39121311
39121311
39121311
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
cUL Recognized
cULus Recognized
Drawings
09/03/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/2701152
Inline terminal - IB IL 24 DI 4-XC-PAC - 2701152

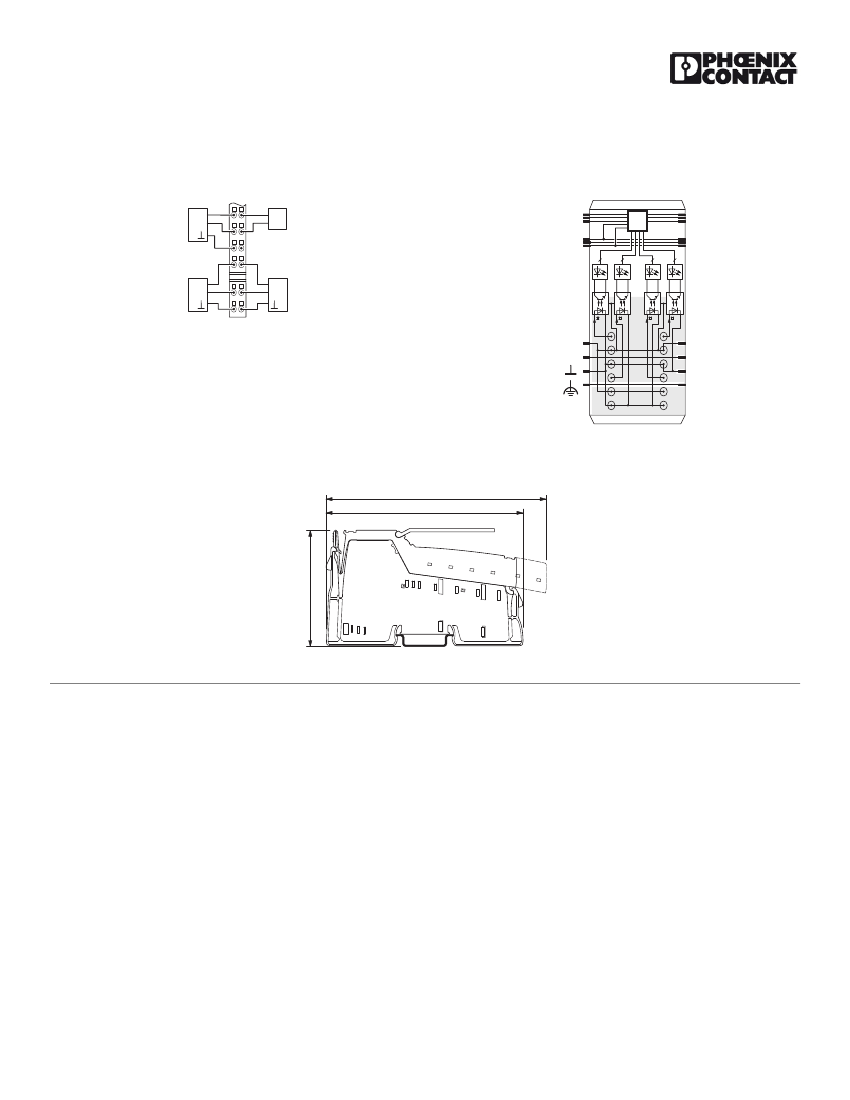

Connection diagram
1.1
Block diagram
Local bus
U
L
2
2
2
2
IN 1
+24 V
1.2
2.2
IN 2
+24 V
OPC
1.3
2.3
1
1.4
2
2.4
IN 3
+24 V
1.5
2.5
IN 4
+24 V
1.6
2.6
3
4
+24 V (U
S
)
+24 V (U
M
)
Dimensioned drawing
140,5
119,8
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
71,5
09/03/2014 Page 5 / 5
