831704C80: DescriptionBasic / Snap Action Switches SNSW 5A SPDT X3S NONE; CategoryTopical application Mechanical and electrical/engineering/automation; File Size485KB，9 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

831704C80 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	831704C80	-	-	View	Buy Now

831704C80 Overview

Basic / Snap Action Switches SNSW 5A SPDT X3S NONE

831704C80 Parametric

Parameter Name	Attribute value
Product Category	Basic / Snap Action Switches
Manufacturer	Crouzet
Contact Form	SPDT
Switch Function	ON - (OFF), OFF - (ON)
Illuminated	Non-Illuminated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

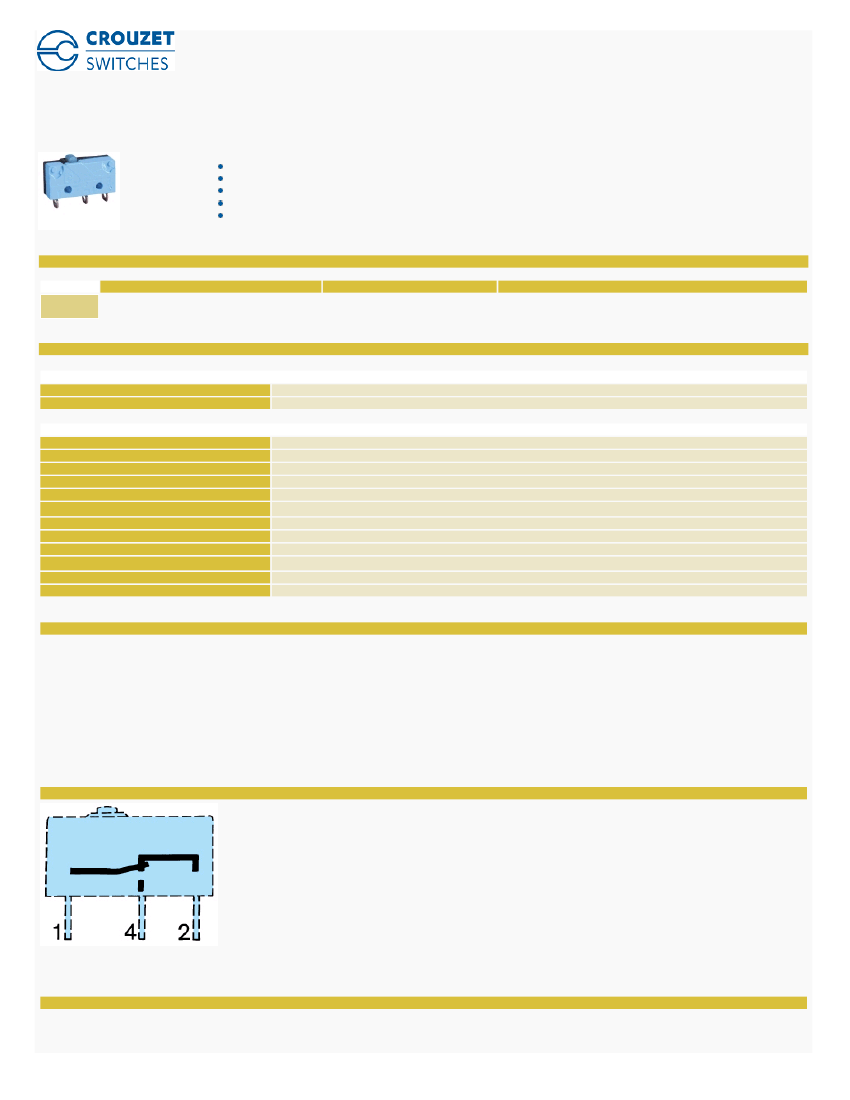

02/11/2015

www.crouzet.com

V4 83170 Low force 831704 Part number made to order

Nominal ratings 0.1 A to 10 A / 250 VAC

Minimum rating 1 mA / 4 VDC

Operating temperature up to +125 °C

Conforming to standards EN 61058 and UL 1054

Choice of actuators with 2 possible fixing positions

Part numbers

Type

MADE TO

ORDER

Low force 831704

Function

I (changeover)

Connections

X1S - X2 - X2S - X3 - X3S

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Maximum total travel force (N)

Max. permitted overtravel force (N)

Maximum rest position (mm)

Operating position (mm)

Max. differential travel mm

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

0,6

0,1

9,2

8,4

±0,3

0,15

0,5

-20 →+125

3.10

0,4

1,7

Additional specifications

Components

Material

- Case : polyester UL 94 VO

- Button : Glass-filled polyamide

- Contacts : AgNi, gold-plated AgNi (dual-current)

- Terminals : cupro-nickel (except W7A5 in brass)

Levers

- Flat : stainless steel

- Roller : stainless steel, polyamide roller

Approvals

NF - UL - cUL

Principles

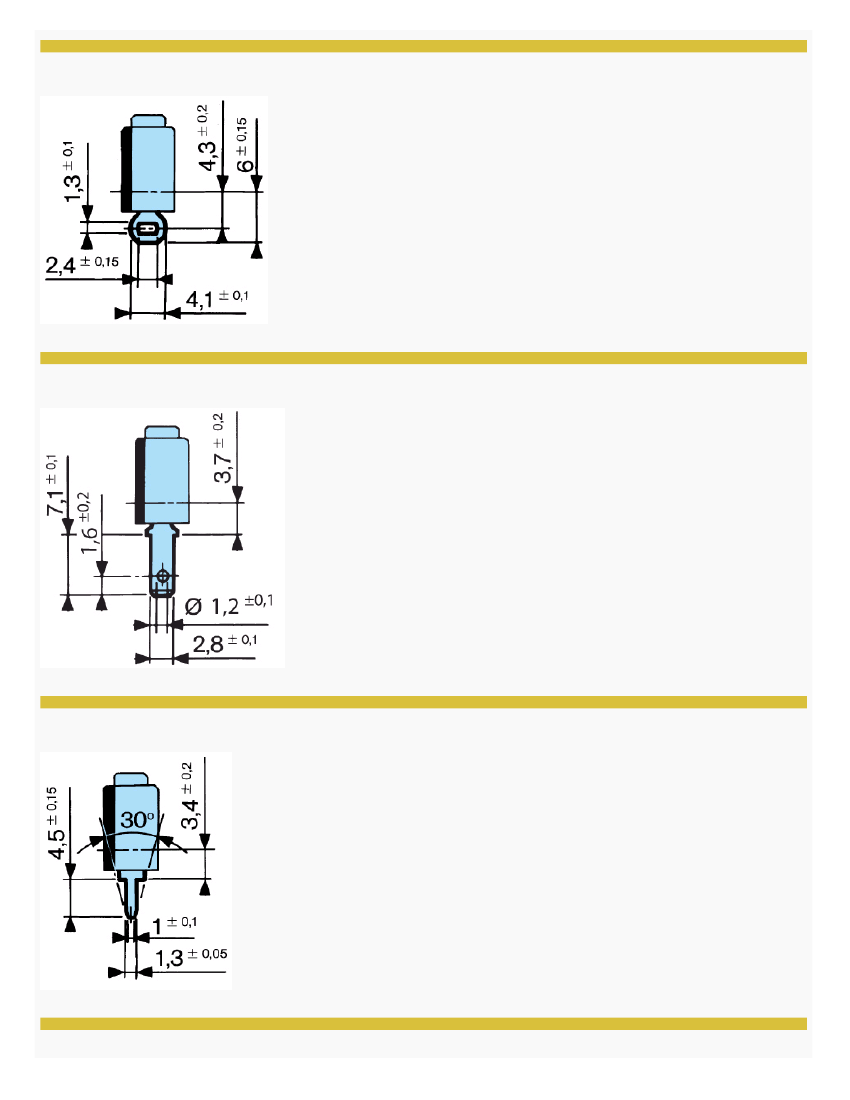

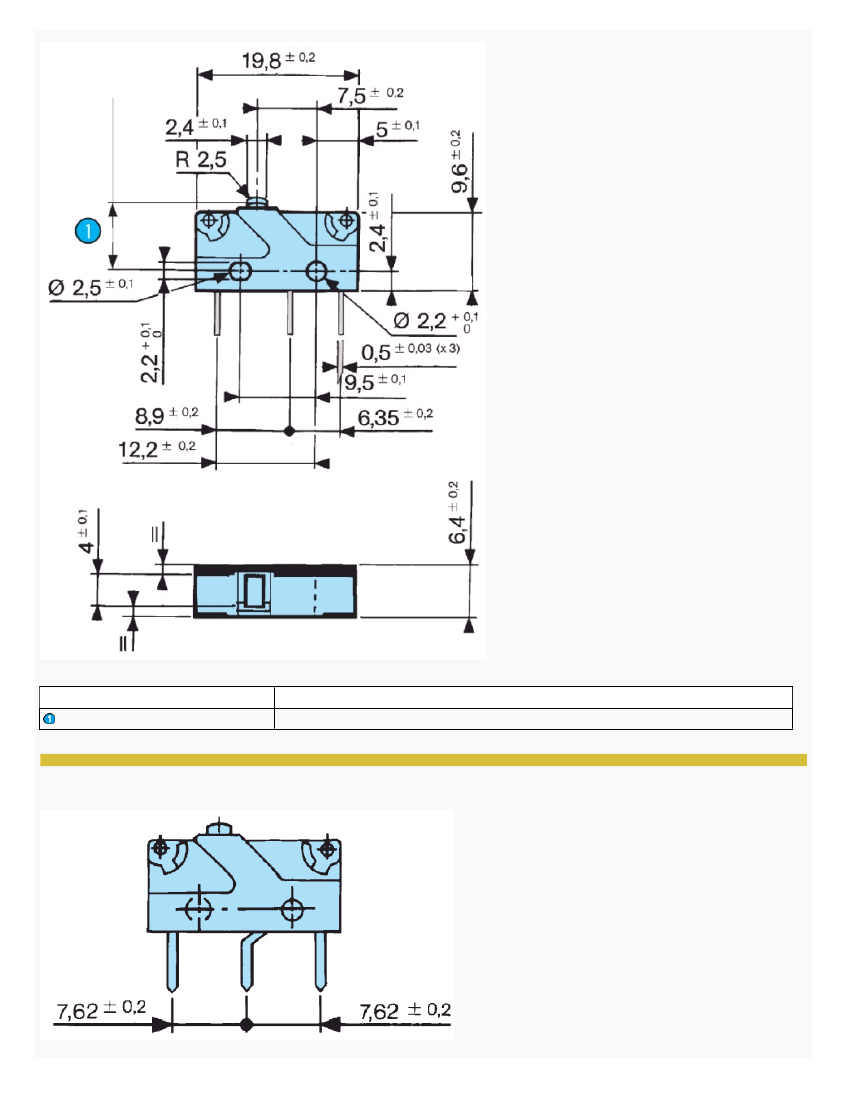

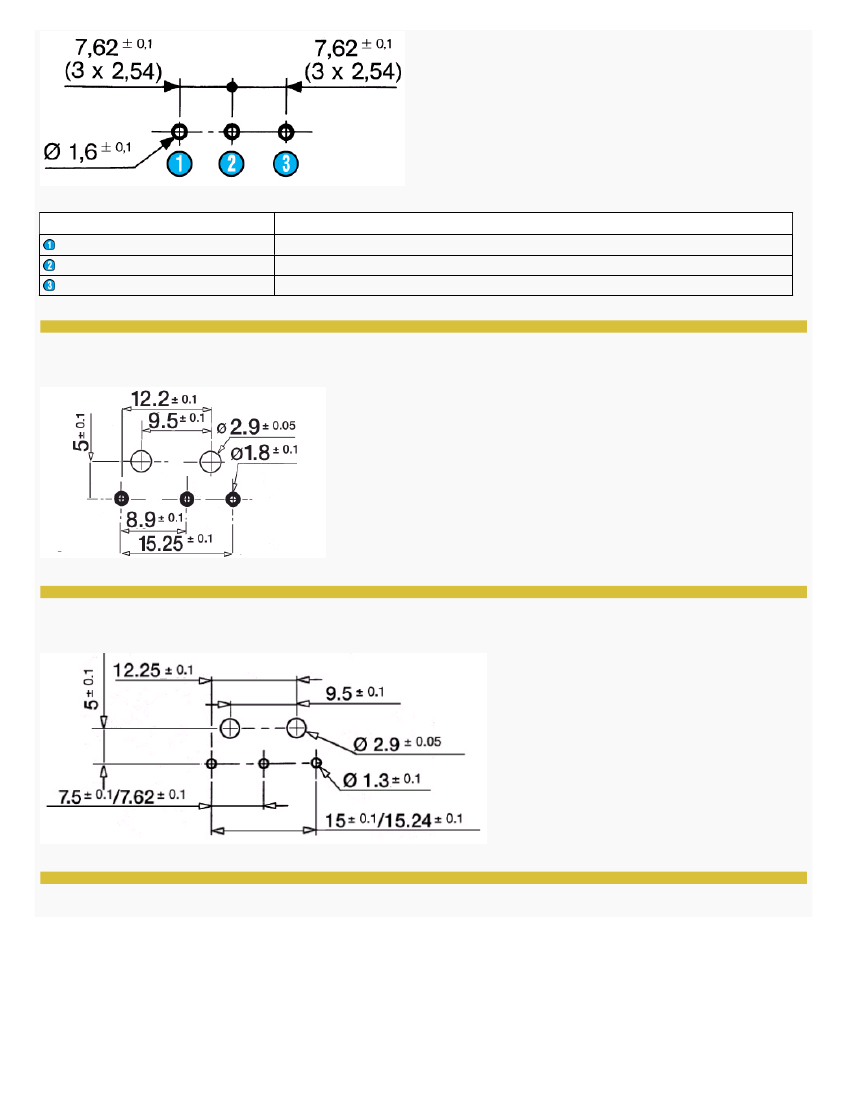

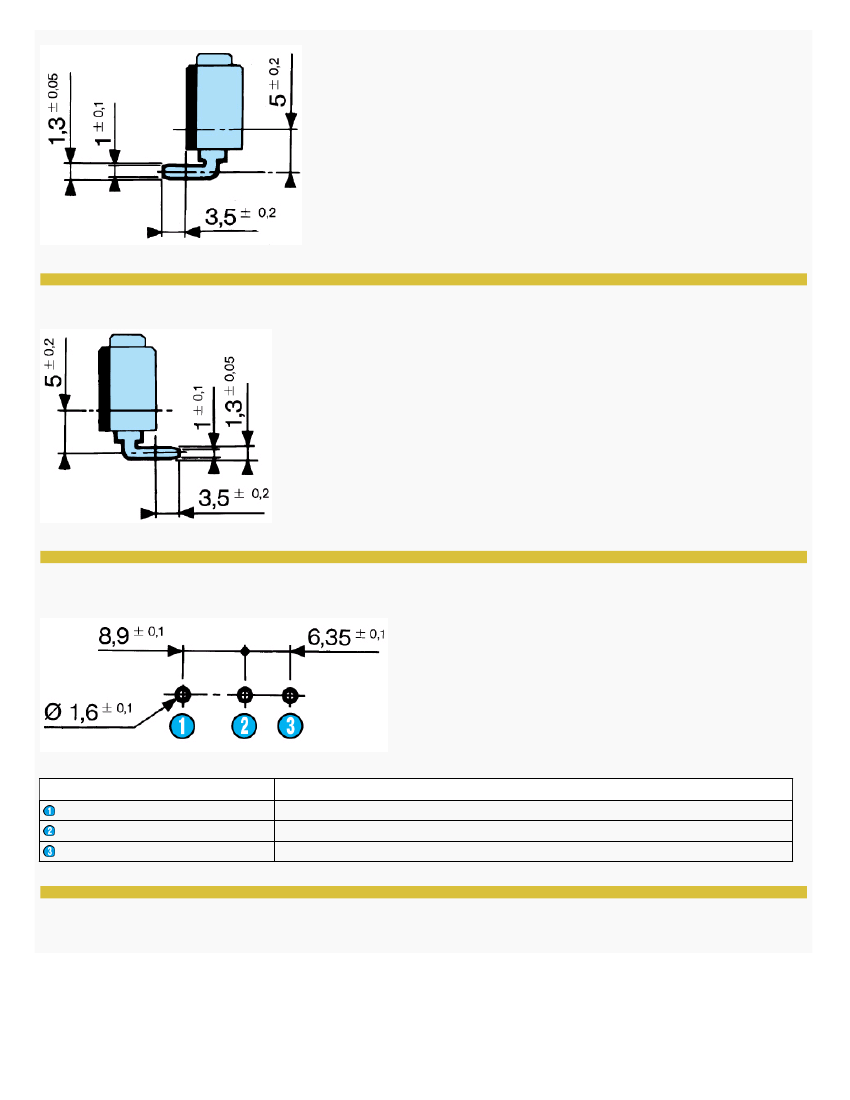

Dimensions (mm)

Product

83170

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
