DC400A10C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> DC400A10C

DC400A10C: DescriptionSolid State Relays - Industrial Mount SSR DC OUTPUT 300VDC/10A 90-140VAC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1MB，7 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric Compare View All

DC400A10C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DC400A10C	-	-	View	Buy Now

DC400A10C Overview

Solid State Relays - Industrial Mount SSR DC OUTPUT 300VDC/10A 90-140VAC

DC400A10C Parametric

Parameter Name	Attribute value
Product Category	Solid State Relays - Industrial Mount
Manufacturer	Crydom
RoHS	Details
Control Voltage Range	90 VAC to 140 VAC
Load Voltage Rating	1 VDC to 300 VDC
Load Current Rating	10 A
Input Current	11 mA to 13 mA
Contact Form	SPST (1 Form A)
Output Type	MOSFET
Mounting Style	Panel
Input to Output Isolation Method	Optocoupler
Maximum Operating Temperature	+ 80 C
Minimum Operating Temperature	- 30 C
Package / Case	Hockey Puck
Product	SSR - Solid State Relays
Factory Pack Quantity	10
Termination Style	Screw
Type	Isolated

Preview

Download Datasheet

View All

PowerPlus DC

• Optically Isolated MOSFET output

• Ratings from 10A to 40A @ 150 VDC and 10 & 20A @ 300 VDC

• AC and DC control

• Relays are easily paralleled for higher-current applications

• LED Status Indicator

• Optional IP20 Cover

• UL Recognized, CE and RoHS Compliant

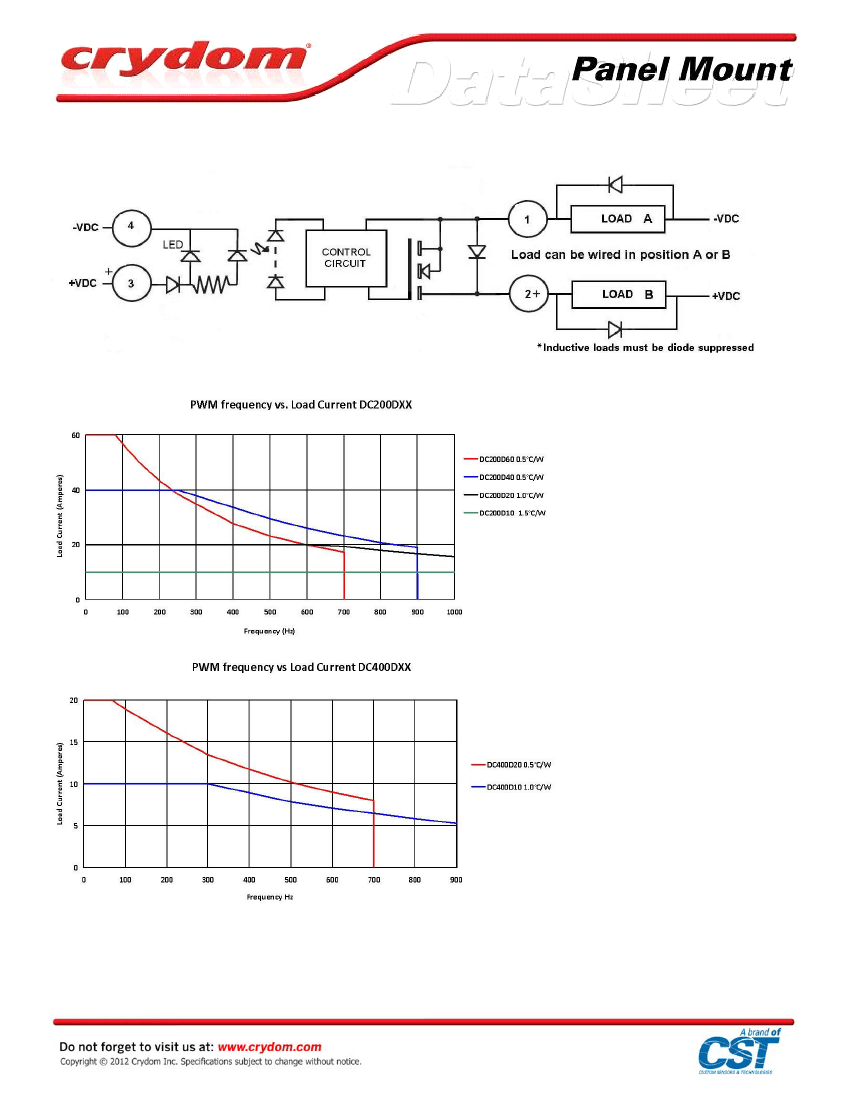

• PWM to 1K HZ

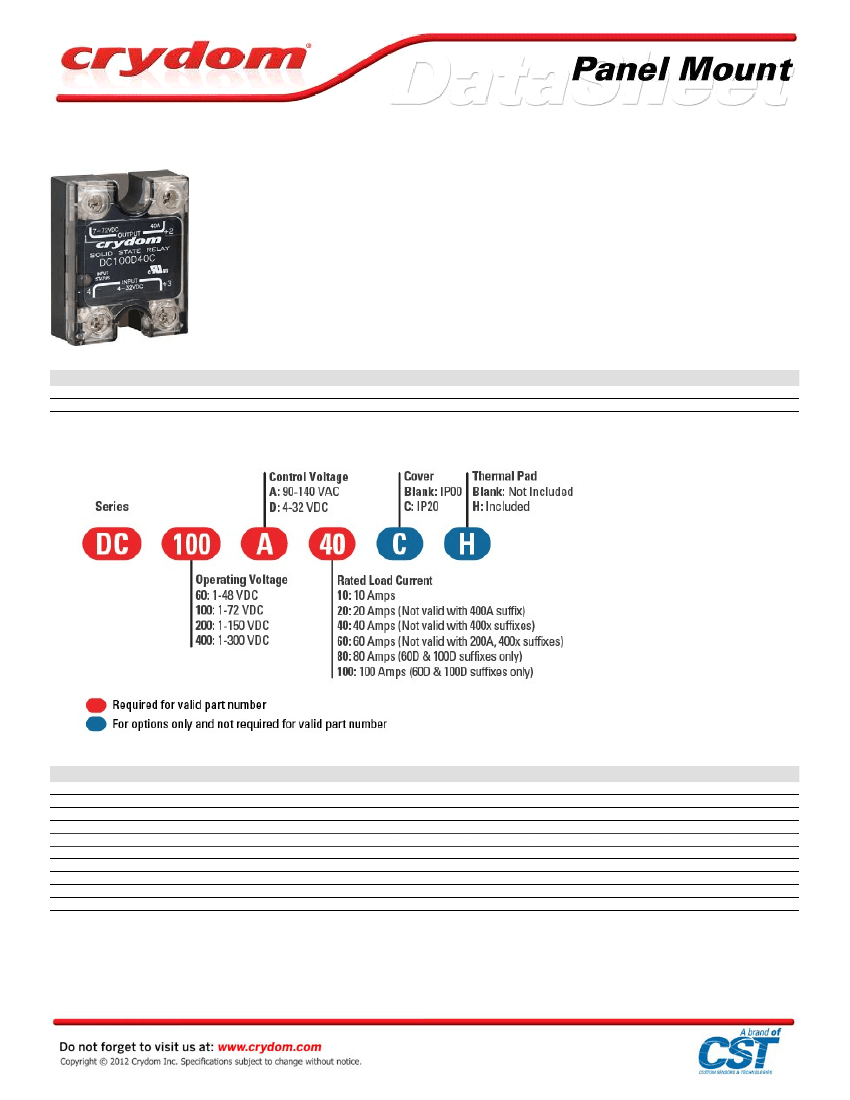

PRODUCT SELECTION

Control Voltage

4-32 VDC

90-140 VAC

10A

DC200D10

DC200A10

20A

DC200D20

DC200A20

40A

DC200D40

60A

DC200D60

10A

DC400D10

DC400A10

20A

DC400D20

AVAILABLE OPTIONS

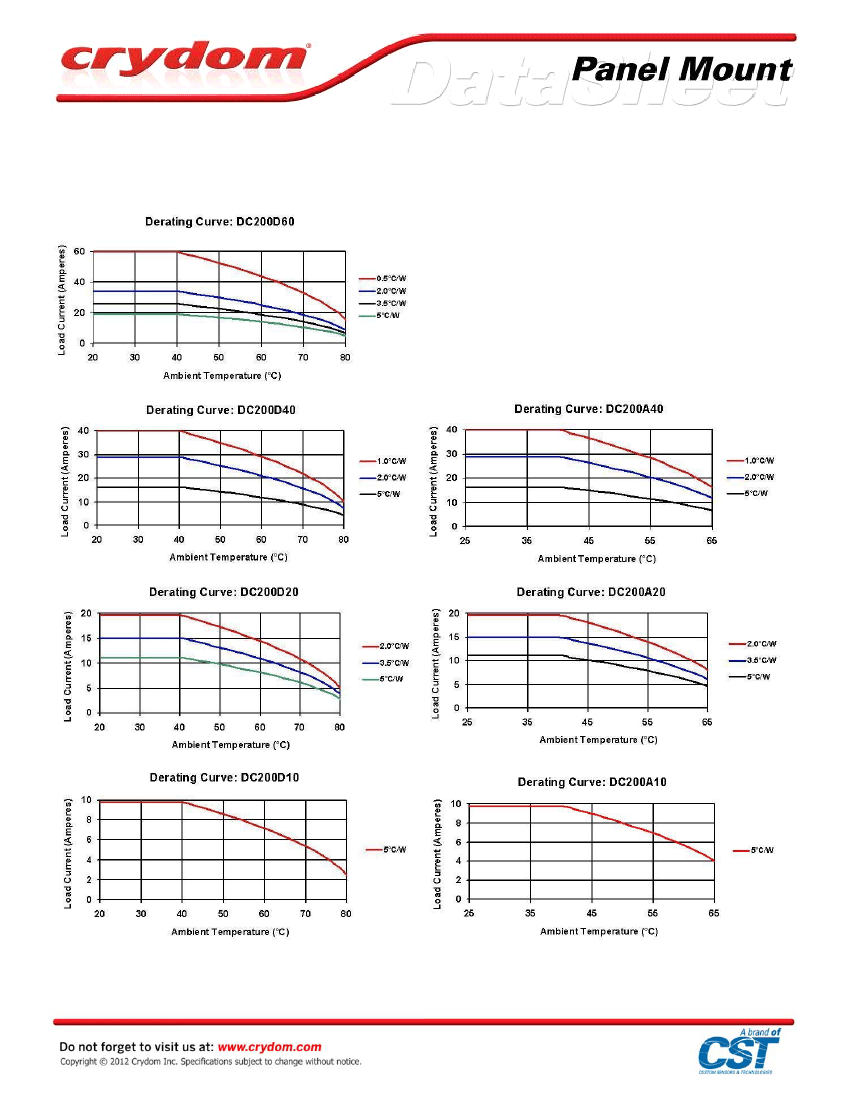

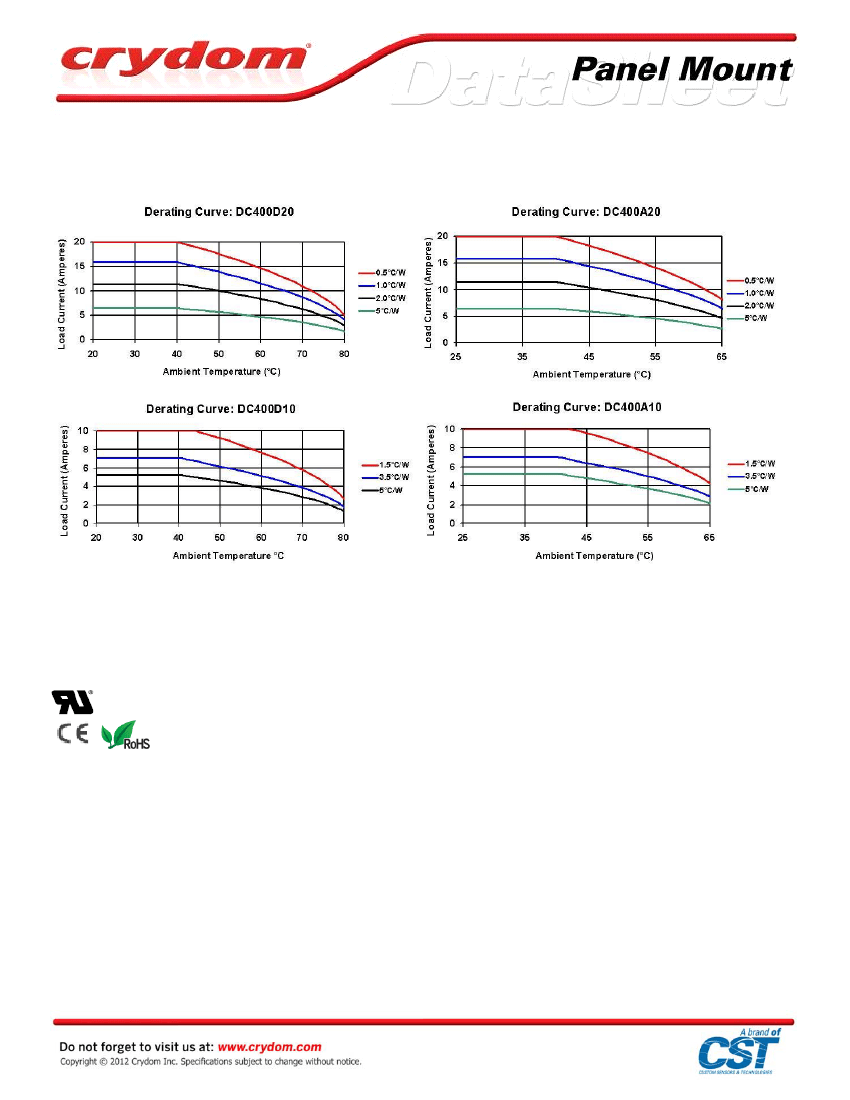

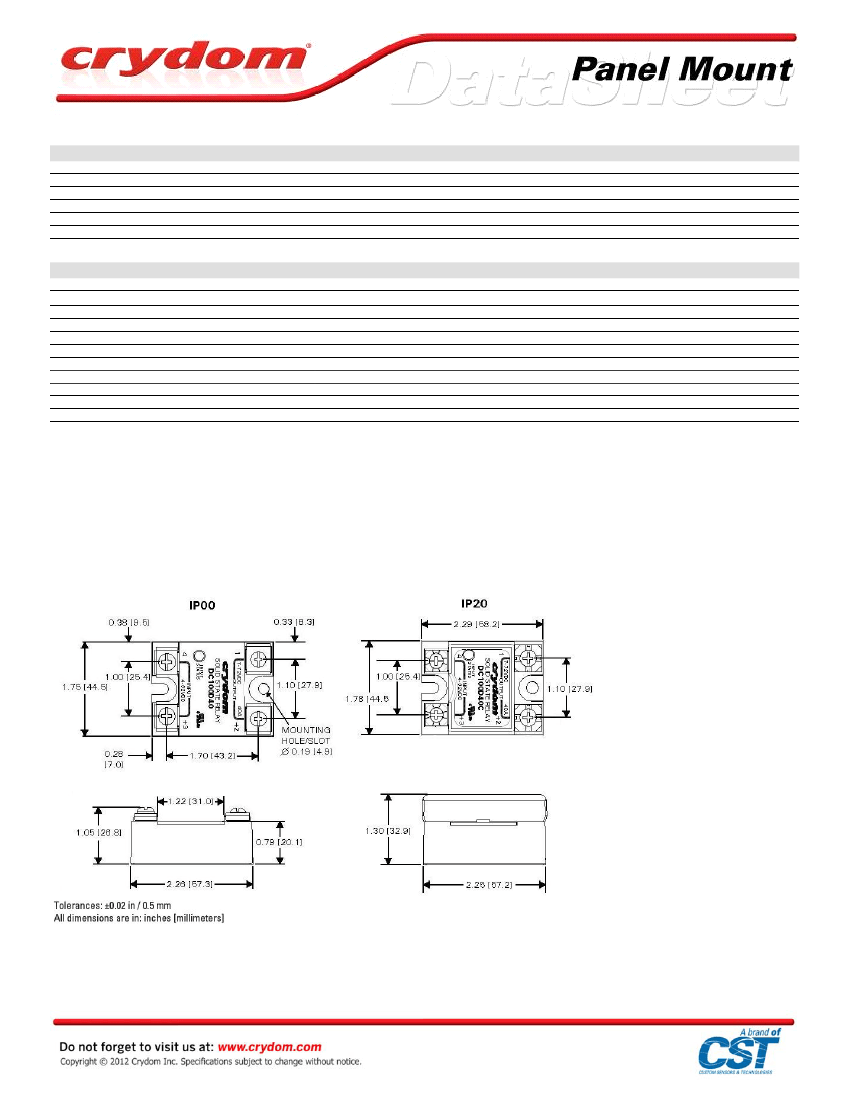

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage [Vdc] (2)

Blocking Voltage

Rated Load Current [Adc] (3)

Minimum Load Current [mA] (4)

Maximum Surge Current [Adc] (10ms)

Maximum On-State Voltage Drop @ Rated Current [Vdc]

Maximum Off-State Leakage Current @ Rated Voltage [mA]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum On-State Resistance @ Rated Current [RDS-ON][mOhms]

Maximum PWM [Hz] (5)

10A

1-150 VDC

200

2.5

0.66

0.2

1.05

20A

1-150 VDC

200

2.5

1.1

0.2

0.85

40A

1-150 VDC

200

2.5

142

0.2

0.51

900

60A

1-150 VDC

200

2.5

213

1.1

0.2

0.42

700

10A

1-300 VDC

400

2.5

2.3

0.4

0.57

230

900

20A

1-300 VDC

400

2.5

0.4

0.45

155

700
