Single relay - REL-SG220/F104 - 2960177
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
KAMMRELAIS ®, contact F 104, size 2, heavy-duty contact, 2 PDTs, input voltage 220 V DC

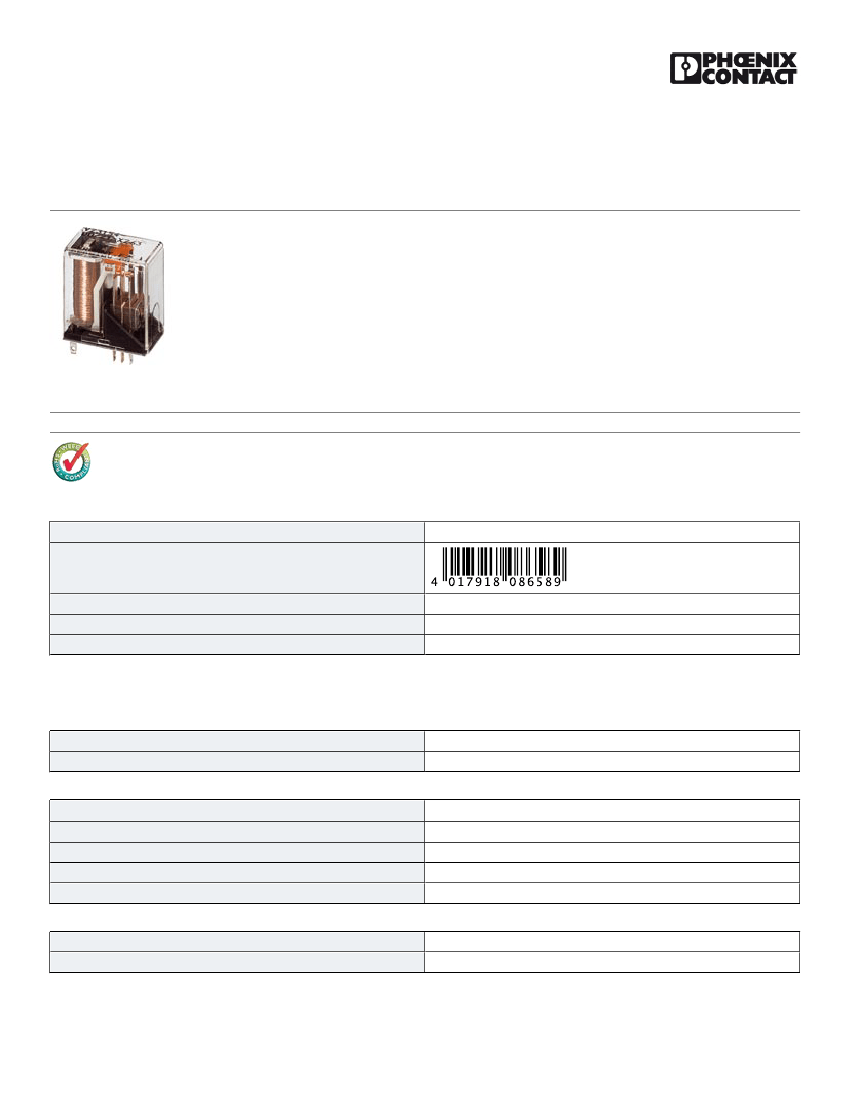

The illustration shows the version
REL-SG 24/F 104
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
32.55 GRM
85364900
Germany
1 pc
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 70 °C
-40 °C ... 70 °C
Coil side
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical response time
Typical release time
Coil resistance
220 V DC
0.8 (maximum permissible operating voltage: 1.1 x U
N
at 20°C)
8 ms
3 ms
25000 Ω ±15 %
Contact side
Contact type
Contact material
Single contact
Ag, gold-flashed
10/28/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2960177
Single relay - REL-SG220/F104 - 2960177
Technical data
Contact side
Maximum switching voltage
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
250 V AC/DC
5A
5A
120 W (at 24 V DC)
60 W (at 48 V DC)
50 W (at 60 V DC)
70 W (at 110 V DC)
70 W (for 250 V DC)
500 VA (for 250 V AC)
General
Test voltage relay winding/relay contact
Test voltage PDT/PDT
Mechanical service life
1 kV AC (50 Hz, 1 min.)
1 kV AC (50 Hz, 1 min.)
Approx. 10 cycles
7
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27371104
27371104
27371001
27371001
27371001
27371001
27371001
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000196
EC000196
EC000196
EC000196
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121515
39121515
39121515
39121515
10/28/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2960177
Single relay - REL-SG220/F104 - 2960177

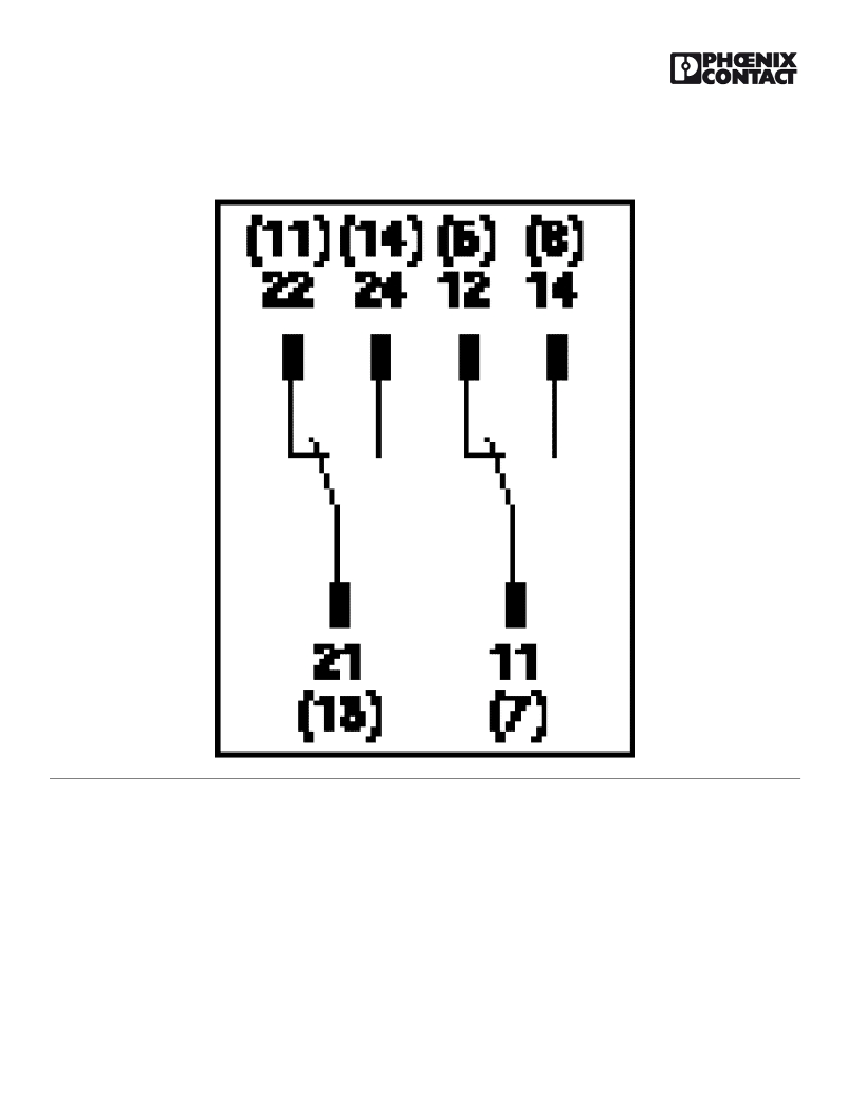

Circuit diagram
