02/11/2015
www.crouzet.com
0.5 Nm ovoid 3.9 Watts 3.9 W Part number made to order
Torque rating of gearboxes : 0.5 Nm, high-performance plastic gears
Motors : nominal power 3 W, interference suppression for standard stocked products
Wide speed range : 0.3 to 430 rpm
Optional encoder built into the motor
Part numbers
Type
82861008
3.9 W
Type
828610
Voltage
12 V
Standard speed (rpm)
4300
Output speed (rpm)
143
Ratios (i)
30
Specifications
General characteristics
Motor
Gearbox
Maximum permitted torque from gearmotor under
continuous conditions for 1 million turns (Nm)
Axial load static (daN)
Radial load static (daN)
Max. output power (W)
Nominal output (W)
Gearbox case temperature rise (°C)
Weight (g)
828600
810210
0.5
1
8
3,9
3
50
160
Made to order products, available on request
Motors :
Other supply voltages
Motor with 2 ball bearings
Shaft lengths at front and/or rear
Lead outputs or radial tag terminals
Special interference suppression
Encoder : 5 pulses/rev
Gearboxes :
Special shaft
Ball bearing
Special greasing
Torque limiter F
Gearbox fixing M3
Other speeds

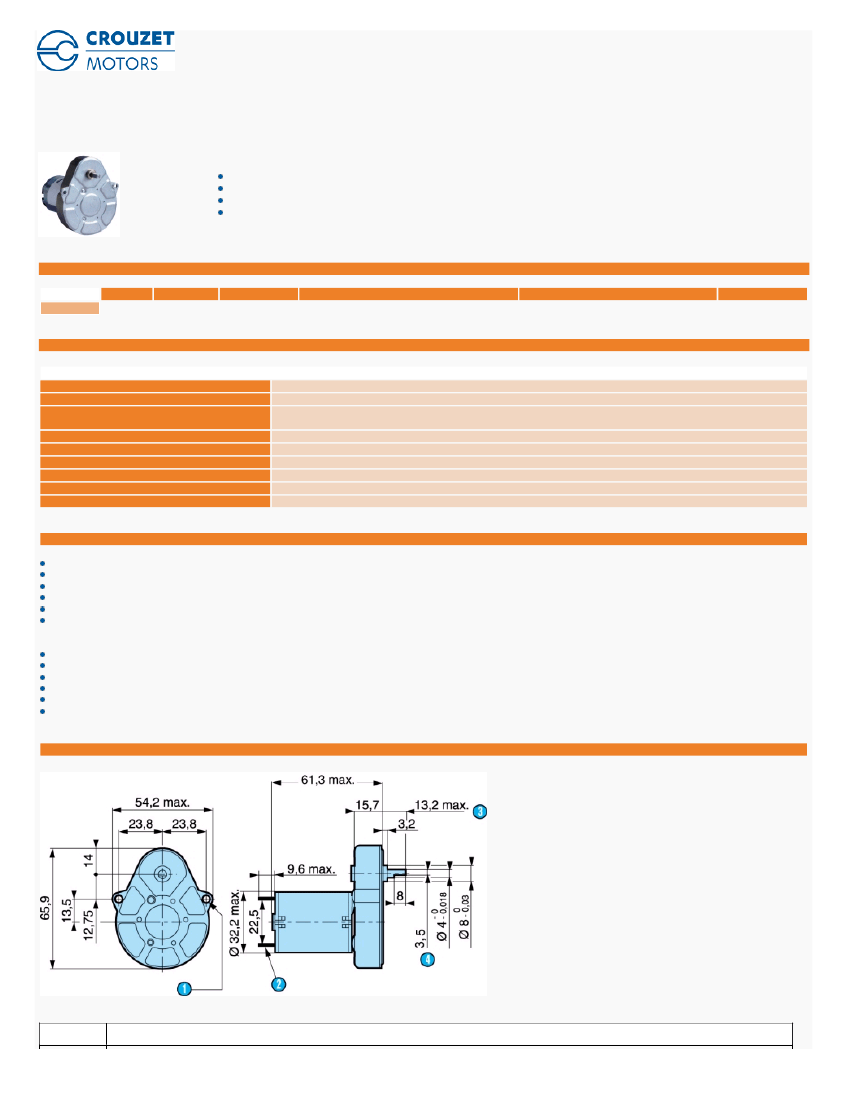

Dimensions (mm)
828610
N
o
Legend
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
2 fixing holes Ø 3.2
2 standard tags NFC 20-120, series 2.8 x 0.5 mm
Shaft pushed-in
3.5 across flats
www.crouzet.com

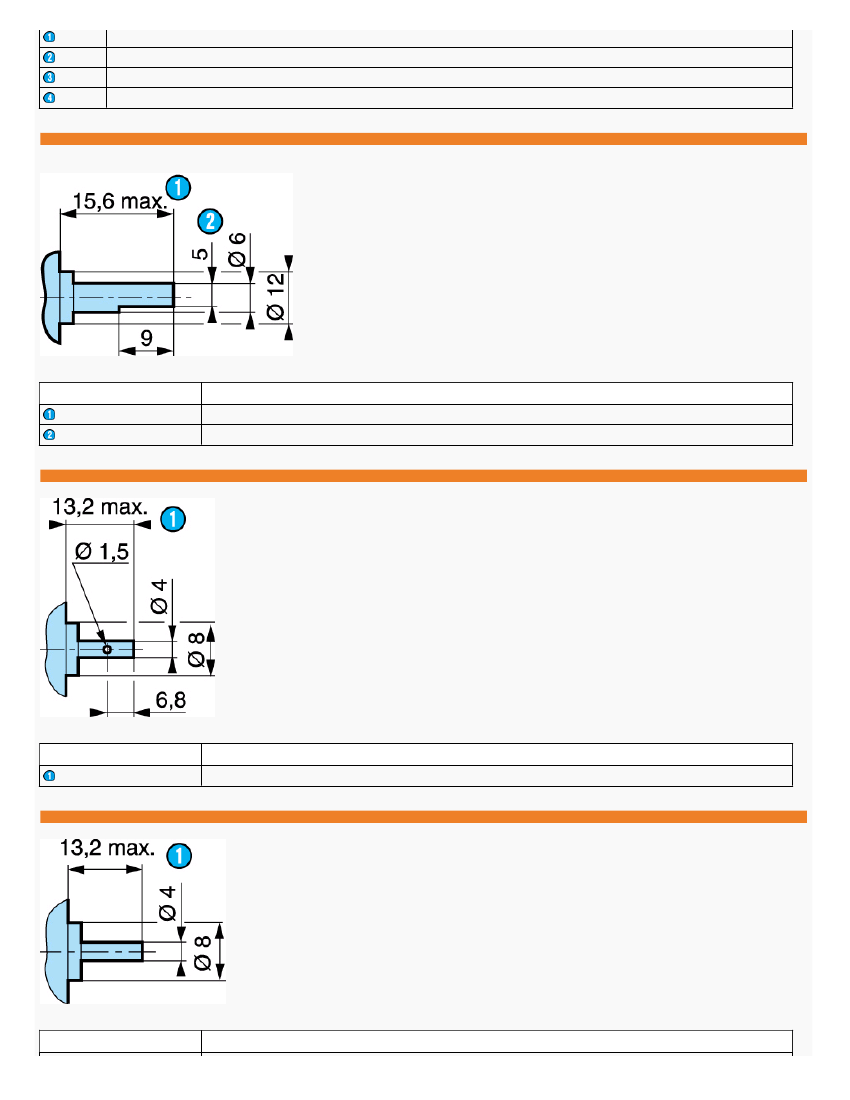

Dimensions (mm)
Shaft 70999421
SP1295.10
N
o
Legend
Shaft pushed-in
5 across flats
Dimensions (mm)
Shaft 79200779
N
o
Legend
Shaft pushed-in
Dimensions (mm)
Shaft 79200967
N
o
Legend
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Shaft pushed-in
www.crouzet.com

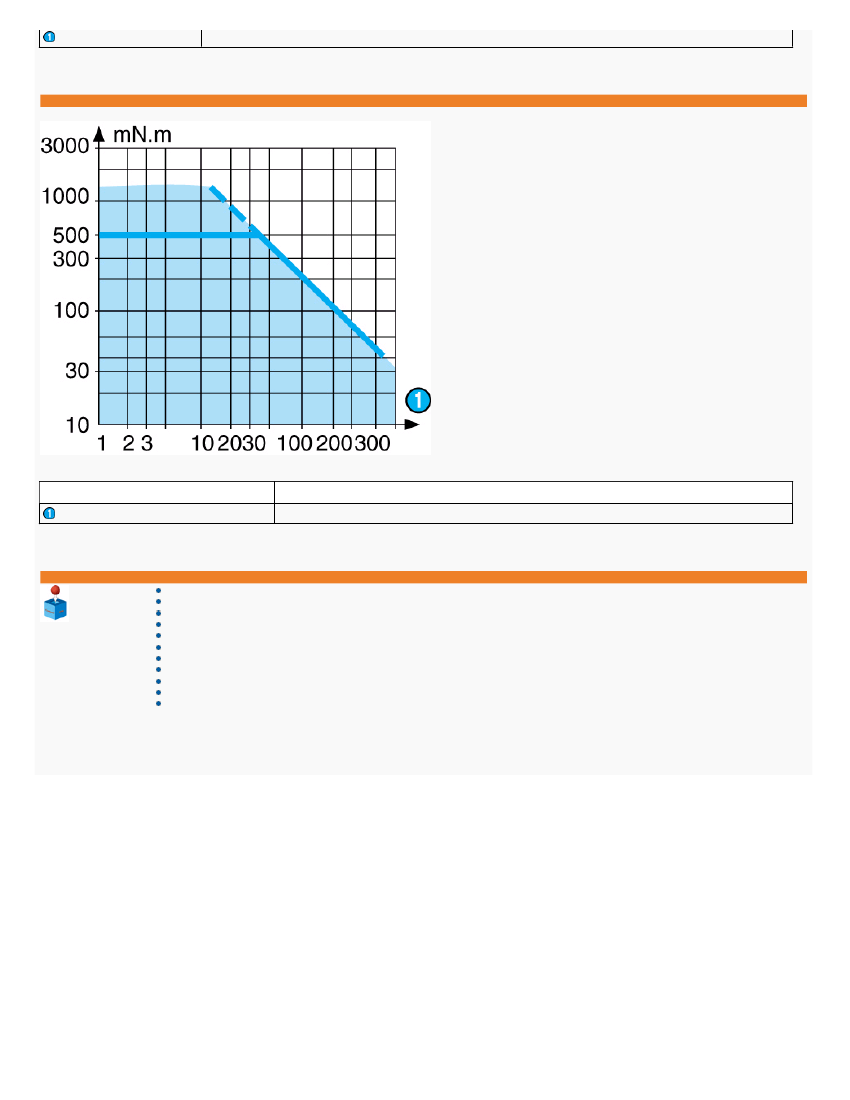

Curves
Curve : torque/nominal speed 828610
N
o
Legend
rpm
Product adaptations
Special supply voltage
Lead output
1 or 5 pulse encoder
Special connectors
Special shaft
Special reduction ratio
Special materials for gears
Special ball bearings
Special adaptor plate
EMC filter
More than 200 reduction ratios available
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
