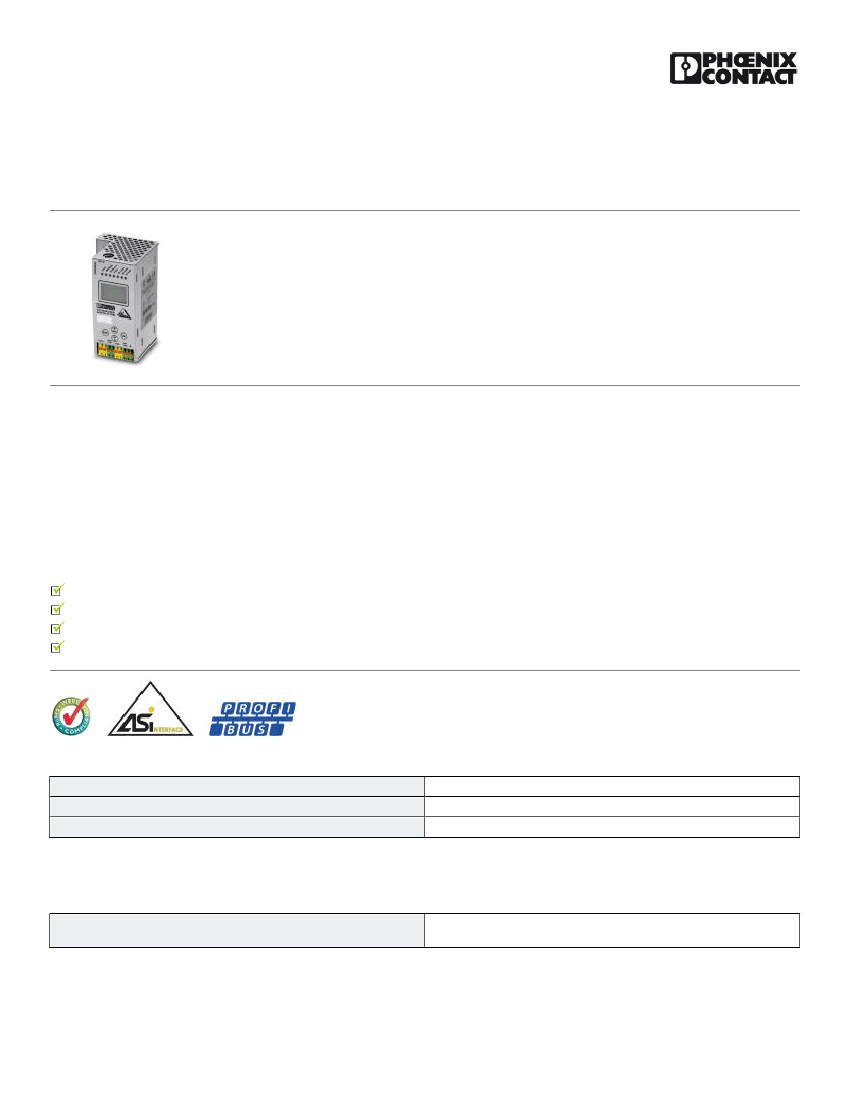

AS-i gateway - FLX ASI MA 2 PB EF - 2773607
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
AS-Interface (AS-i)-Gateway for PROFIBUS DP with extended function, double master, IP20 degree of
protection, as per AS-i specification 3.0
Product description
The Fieldline Extension AS-Interface gateway for PROFIBUS FLX ASI MA 2 PB EF enables easy integration of two AS-Interface networks into a
PROFIBUS DP system. The device has a rugged, high-grade steel housing with the IP20 degree of protection and is intended for use in the control
cabinet.
The gateway enables the operation of AS-Interface slaves with expanded addressing and is specified according to the AS-Interface specification 3.0.
Downward compatibility with AS-i slaves of older specifications is also facilitated.
The connected AS-i slaves can be easily addressed through the AS-Interface gateway using the "Mode" and "Set" keys as well as a 7-segment display.
In the extended display mode, each of the two AS-i circuits can be extensively parameterized and diagnosed with the help of the multi-line LCD display
and the "OK", "Up" and "Down" keys.
Product Features
For one or two AS-Interface networks
Stainless steel housing
AS-Interface specification 3.0
IP20 protection
Packing unit
Custom tariff number
Country of origin
1 pc
90328900
Germany
Key commercial data
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
09/09/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2773607
AS-i gateway - FLX ASI MA 2 PB EF - 2773607
Technical data
Dimensions
Width
Height
Depth
75 mm
120 mm
83 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Degree of protection
0 °C ... 55 °C
-25 °C ... 85 °C
IP20
Interfaces
Interface
Connection method
PROFIBUS DP remote bus
1x D-SUB-9 connector
Power supply
Typical current consumption
approx. 200 mA (from AS-i circuit 1)
approx. 70 mA (from AS-i circuit 2)
Operating elements
Keys
Number of AS-i slaves
Local diagnostics
4 Buttons (Mode/Set/ESC/OK) for configuring the AS-i network
62
Addresses, error messages Via four-line LCD
power Operating voltage, electronics module (UL) Green LED
U AS-i Operating voltage AS-i (U ASI) Green LED
AS-i active AS-i transmission (ASI ACTIVE) Green LED
prg enable Programming mode active, automatic slave programming
possible Green LED
prj mode Configuration mode active (PRJ Enable) Yellow LED
fault AS-i configure error (CONFIG ERR) LED red
PROFIBUS Device/network status Green LED
General
Weight
460 g
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
27240490
27240490
27242208
27242608
09/09/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2773607
AS-i gateway - FLX ASI MA 2 PB EF - 2773607
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27242608
27242608
27242608
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001604
EC001604
EC001604
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Approvals
Approvals
Approvals
UL Listed / cUL Listed / ASI-Interface / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
cUL Listed
09/09/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/2773607
AS-i gateway - FLX ASI MA 2 PB EF - 2773607
Approvals
ASI-Interface
cULus Listed
Drawings
Application drawing
Dimensioned drawing
75
83
