OM13543: NTS0304E Evaluation Board

Overview

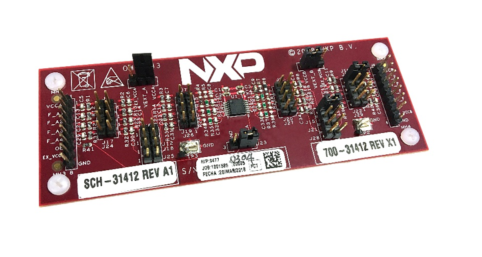

^{Evaluation board OM13543 is designed to evaluate the} NXP® NTS0304E, a family of 4-bit dual supply conversion transceivers with automatic direction sensing that supports bidirectional voltage level translation. The device has eight 1-bit input and output ports (A and B), an output enable input (OE), and two power supply pins (V _CC (A) and _CC (B)). V _CC (A) can accept voltages between 0.95 V and 3.6 V. V _CC (B) can accept voltages between 1.65 V and 5.5 V.
