OM13318: NVT2002DP Demonstration Board

Overview

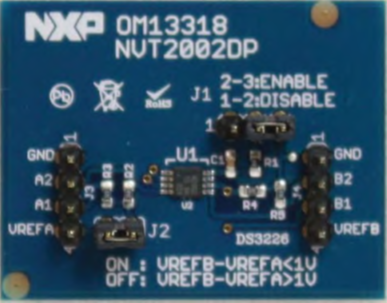

The NVT2001GM (OM13315) and NVT2002DP (OM13318) demonstration boards are designed to evaluate NXP's single or dual-channel bidirectional voltage level translators. The demo board connects I/O devices at different voltage levels. Since the NVT2001GM and NVT2002DP devices are passive, pull-up resistors may be required depending on the I/O interface type (totem pole or open drain), the conversion voltage difference, and the conversion direction (high voltage to low voltage, low voltage to high voltage, or bidirectional) . The NVT2001GM and NVT2002DP devices allow conversion between any voltage from 1.0 V to 5.5 V.
