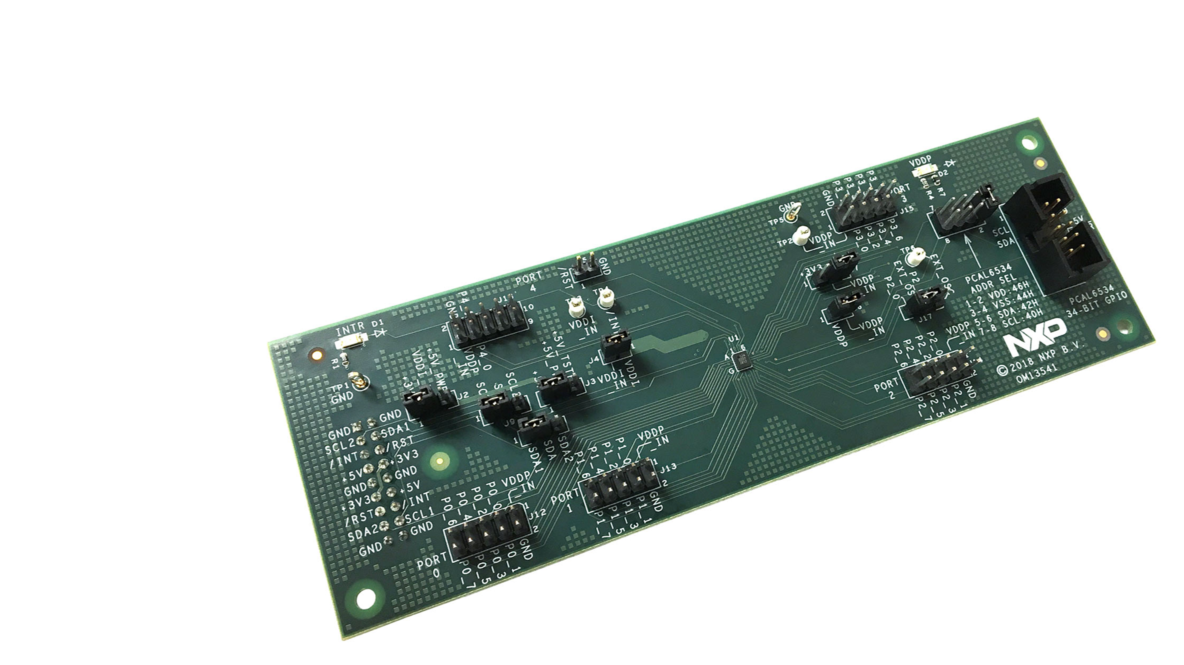

OM13541: PCAL6534 Evaluation Board

Overview

The PCAL6534 is a 34-bit general-purpose I/O expander that provides remote I/O expansion for most microcontroller families through a very Fast Mode (Fm+) I2C bus interface ^. The ultra-low voltage interface allows direct connection to microcontrollers operating with voltages as low as 0.8 V.
