Single op amp demonstration board for SC70 or SOT-23 packages

STEVAL-CCA022V1

Overview

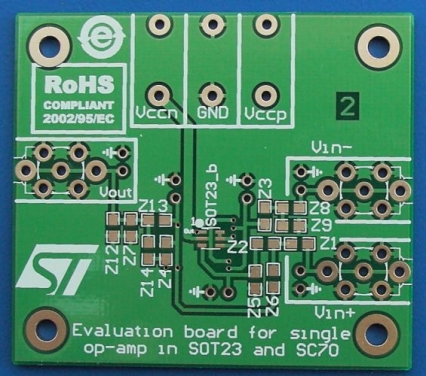

The STEVAL-CCA022V1 demonstration board is designed to help characterize single operational amplifiers in SOT23-5 (two different pinouts) and SC70-5 packages.

Operational amplifiers in SOT23-6 and SC70-6 packages can also be characterized but their standby pin is not usable because it is connected to V_CC + on the board.
The STEVAL-CCA022V1 allows to characterize, among the others, the following op-amps (not included in the package): TS507, TSV621, TSV631, TSV911, TSV991, TS1851, TS1871, TS931, TS941, TS951, TS971, TS321.

Main features

This demonstration board with its components allow it to be configured as:Low-pass Sallen-Key circuitHigh-pass Sallen-Key circuitDifferential amplifierAC-coupled circuitIn-loop compensation circuitOut-of-loop compensation circuitNumerous other possible configurations
