NXH5104A Demonstration Board

NXH5104A Demo Board

Overview

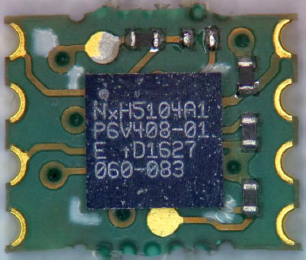

The NxH5104_SOIC_ADB is a small PCB that adapts the NxH5104 WLCSP package into an 8-SOIC JEDEC compliant footprint. The NxH5104_SOIC_ADB replaces an industry standard SPI compatible Serial E²PROM and extends the memory to 4Mbit. The board is intended to evaluate the NxH5104; this board is not targeted for mass production.
