LSM9DS1 adapter board, standard DIL24 socket

STEVAL-MKI159V1

Overview

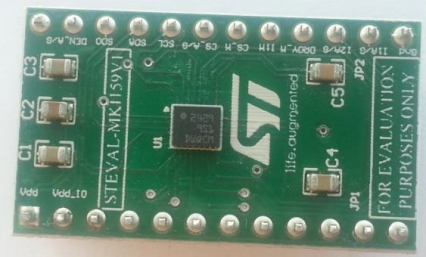

The STEVAL-MKI159V1 is an adapter board designed to facilitate the evaluation of MEMS inertial devices in the LSM9DS1 product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application.The STEVAL-MKI159V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM9DS1 pinout and comes ready to use with the required decoupling capacitors on the V_DD power supply line.

This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications.

Main features

Complete LSM9DS1 pinout for a standard DIL24 socket
Fully compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards
RoHS compliant
